Page 1: Ceiling Fan

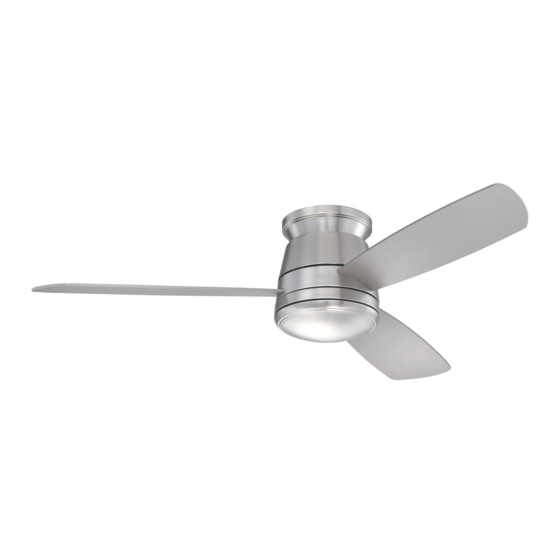

CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-417H-3SV-SN 52-417H-3WA-13 FAN RATING AC 120V. 60Hz CUL LISTED MODEL : AC-652... -
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Set of blades assembly (3) b. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Mounting REMEMBER to turn off the power. Follow bracket Screws the steps below to hang your fan properly: Step 1. Remove the mounting bracket from the fan motor assembly. (Fig. 4) Fan motor assembly Step 2. Attach the mounting bracket to the outlet box with two screws and washers provided with the outlet box. -
Page 6: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT Mounting bracket An additional safety support is provided Safety cable to prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 7. 7. MAKE THE ELECTRIC CONNECTIONS Figure 7 Remember to disconnect the power. -
Page 7: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Loosen two of the four screws from the mounting bracket and remove the other two. Screws Step 2. Remove the motor assembly from the mounting bracket hook and engage the key holes to the two screws previously loosened. -
Page 8: Installing The Light Kit
11. INSTALLING THE LIGHT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Connection Step 1. Remove the 1 of 3 screws from the plugs mounting plate and keep it for future use. - Page 9 14. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. A. HI, MED, and LOW buttons: These three buttons are used to set the fan speed as follows: HI= high speed Med= medium speed Low= low speed B.
-
Page 10: Troubleshooting
15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
