Summary of Contents for Savoy 52-004H-MO-13
-

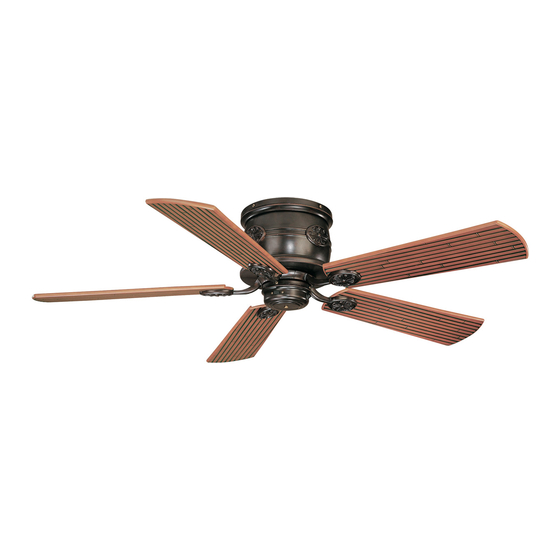

Page 1: Ceiling Fan
CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-004H-MO-13 52-004H-MO-52 FAN RATING AC 120V. 60Hz CUL LISTED MODEL : AC-6 52OD... -
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Mounting bracket b. Fan motor assembly c. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, 7. Do not operate reversing switch while insure electricity has been turned off fan blades are in motion. Fan must be at the circuit breaker or fuse box turned off and blades stopped before before beginning. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. Hanging the Fan CUL Listed electrial REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1. Attach the mounting bracket to the outlet box with two screws and washers provided with the outlet box. Mounting screws (supplied with Make sure the bracket is tight and... -
Page 6: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to prevent the fan from falling. Secure the Mounting bracket safety cable to the ceiling joist with screw Safety cable and washer, as illustrated in Figure 6. 7. MAKE THE ELECTRIC Figure 6 CONNECTIONS Remember to disconnect the power. -
Page 7: Finishing The Installation
NOTE: LIGHT KITS ARE AVAILABLE AT YOU POWER LINES 120V SAVOY HOUSE RETAILER. THE FAN IS ALREADY WIRED TO SUPPORT THE LIGHT GREEN GROUND KIT OPTION. WIRING LIGHT WARNING: TO REDUCE THE RISK OF FIRE, GROUND TO MOUNTING ELECTRIC SHOCK, OR OTHER PERSONAL BRACKET INJURY. -
Page 8: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Step 1 Attach the blade to the blade bracket using the screws and rubber washers as shown in Figure 12. Start screw into bracket. Repeat for the two remaining screws. Screws Step 2 Tighten each screw. Make sure the Rubber washers blade is straight. -
Page 9: Installing The Switch Housing
11. INSTALLING THE SWITCH HOUSING NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. 1. Remove the screws from the mounting plate under the fan motor. -
Page 10: Troubleshooting
13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
