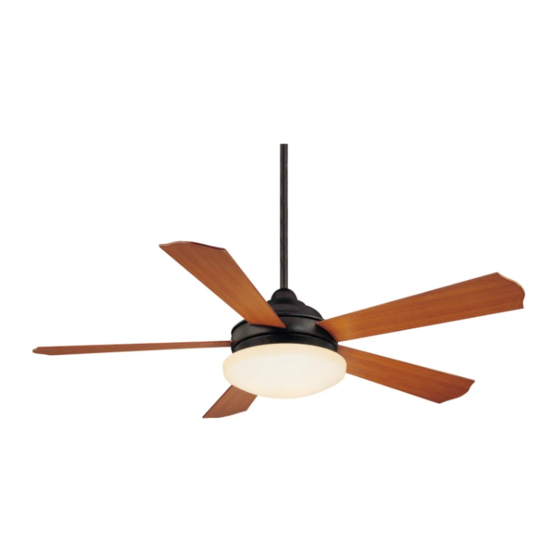

CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-771-5TK-13 52-771-5BW-SN 52-771-5WH-WH FAN RATING AC 120V. 60Hz CUL LISTED MODEL : AC-552A... -
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Blade set (5) b. Blade support plates (5) c. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 9. To avoid personal injury or damage to the electricity has been turned off at the fan and other items, be cautious when circuit breaker or fuse box before working around or cleaning the fan. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy cover Figure 5... -
Page 6: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 9. Figure 9 7. - Page 7 Step 3. (Fig. 12 and 13) Receiver to House Supply Wires Electrical Connections: Outlet box Connect the black (hot) wire from the ceiling to the black wire marked "AC in L" White (neutral) Black (hot) Green or bare from the receiver. Connect the white copper (ground) Black ("AC IN L") (neutral) wire from the ceiling to the white...
-
Page 8: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Tuck connections neatly into ceiling outlet box. Outlet box Step 2. Slide the canopy up to hanger bracket and place the key hole on the Hanger canopy over the screw on the hanger bracket bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 9: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Insert the blades 4 through the blade slot in the decorative housing. Align the holes in blade and blade bracket, secure with blade support plate, screws and fiber washers provided. Slot Blade Blades support Fiber washers plates Screws 10. -
Page 10: Installing The Light Bulbs & Glass Shade
11. INSTALLING THE LIGHT BULBS & GLASS SHADE 1. Install 3 x 40W candelabra bulbs (included). (Fig. 17) 2.Raise glass shade up against the mounting plate and secure it to fan by turning glass clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 17) Bulbs Mounting plate 3. - Page 11 13. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. A. HI, MED and LOW buttons: These three buttons are used to set the fan speed as follows: HI= high speed Med= medium speed Low= low speed B.
-
Page 12: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
