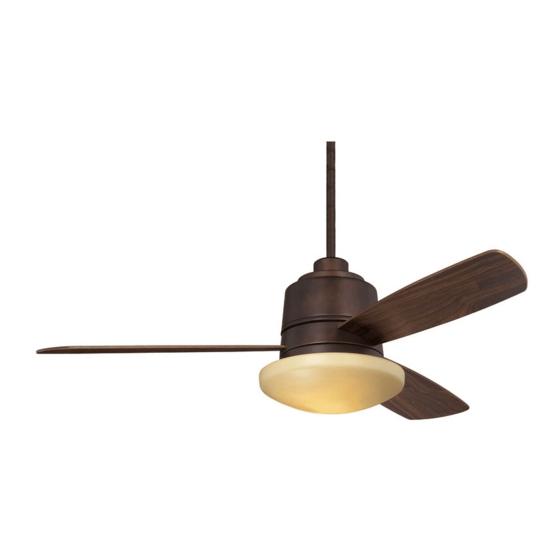

Page 1: Ceiling Fan
CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-417-3SV-SN 52-417-3WA-13 FAN RATING AC 120V. 60Hz CUL LISTED MODEL : AC-387... -
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (3) b. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly. CUL Listed electrical box NOTE: This ceiling fan is supplied with two Hanger types of hanging assemblies; the standard bracket ceiling installation using the downrod with ball and socket mounting and the Mounting screws "close-to-ceiling"... - Page 6 CLOSE-TO-CEILING INSTALLATION 1. Pass the 120-volt supply wires through Canopy the center hole in the ceiling hanger bracket as shown in Fig. 5. Decorative canopy cover Figure 8 2. Remove the decorative canopy cover from the canopy. (Fig. 8) 3. Secure the hanger bracket to the ceiling Screw and lockwasher (3 of 6 places) outlet box with the screws and washers...
-
Page 7: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 11. Figure 11 7. -
Page 8: Finishing The Installation
Step 3. (Figure 14) Receiver to House Outlet box Supply Wires Electrical Connections: Connect the black (hot) wire from the White (neutral) Black (hot) ceiling to the black wire marked "AC in Green or bare L" from the receiver. Connect the copper (ground) Black ("AC IN L") white(neutral) wire from the ceiling to the... -
Page 9: Attaching The Fan Blades
Outlet box Screws Hanger bracket Ceiling canopy Figure 16 9. ATTACHING THE FAN BLADES Caution: Remove the rubber packing mounts and discard before installation. Caution: Motor is shipped with motor Rubber packing support plate prevent movement during mounts transportation. Remove the screws from Slot the motor support plate, discard the motor support plate and keep the light kit for... -
Page 10: Installing The Light Kit
11. INSTALLING THE LIGHT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1. Remove the 1 of 3 screws from the mounting plate and keep it for future use. - Page 11 14. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. A. HI, MED, and LOW buttons: These three buttons are used to set the fan speed as follows: HI= high speed Med= medium speed Low= low speed B.
-
Page 12: Troubleshooting
15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
