Getting Started

This section provides information about setting up the iPoMan
II-1200, connecting power, and connecting devices to it before
users start using it for power management. Read this section
carefully to learn how to connect various devices to the iPoMan
II-1200.

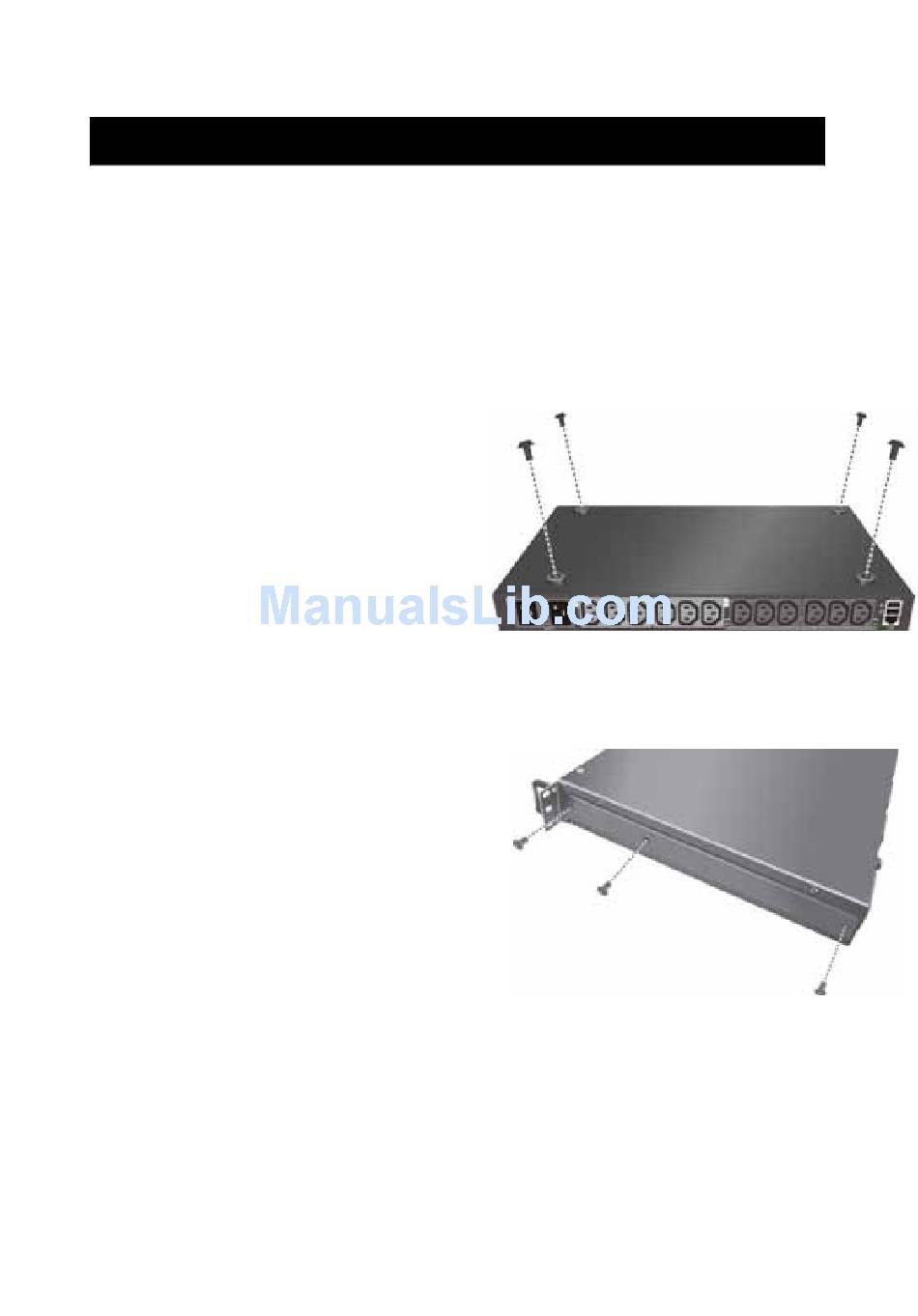

Attaching the Feet

The iPoMan II-1200 comes with
four feet or spacers that are
attached to the bottom. Use the
four screws provided with the
feet to attach the feet to the
bottom of the iPoMan II-1200 as
shown:
Note: Users do not need to attach
the feet if users are going to install the iPoMan II-1200 in a rack.

Attaching the Ears

The iPoMan II-1200 is designed to
be placed in a rack arrangement
and comes with two ears
(mounting brackets) that help users
to move the device easily. Attach
each ear with the three screws
provided in the package.

Rack Mounting

The iPoMan II-1200 can be installed in most standard 19" (1U)
racks. After attaching the ears to each side of the device,
position the device in the rack and align the holes in the ears
(mounting brackets) with the hole in the rack. Use the screws
supplied with your racks to tighten the ears (mounting brackets)
