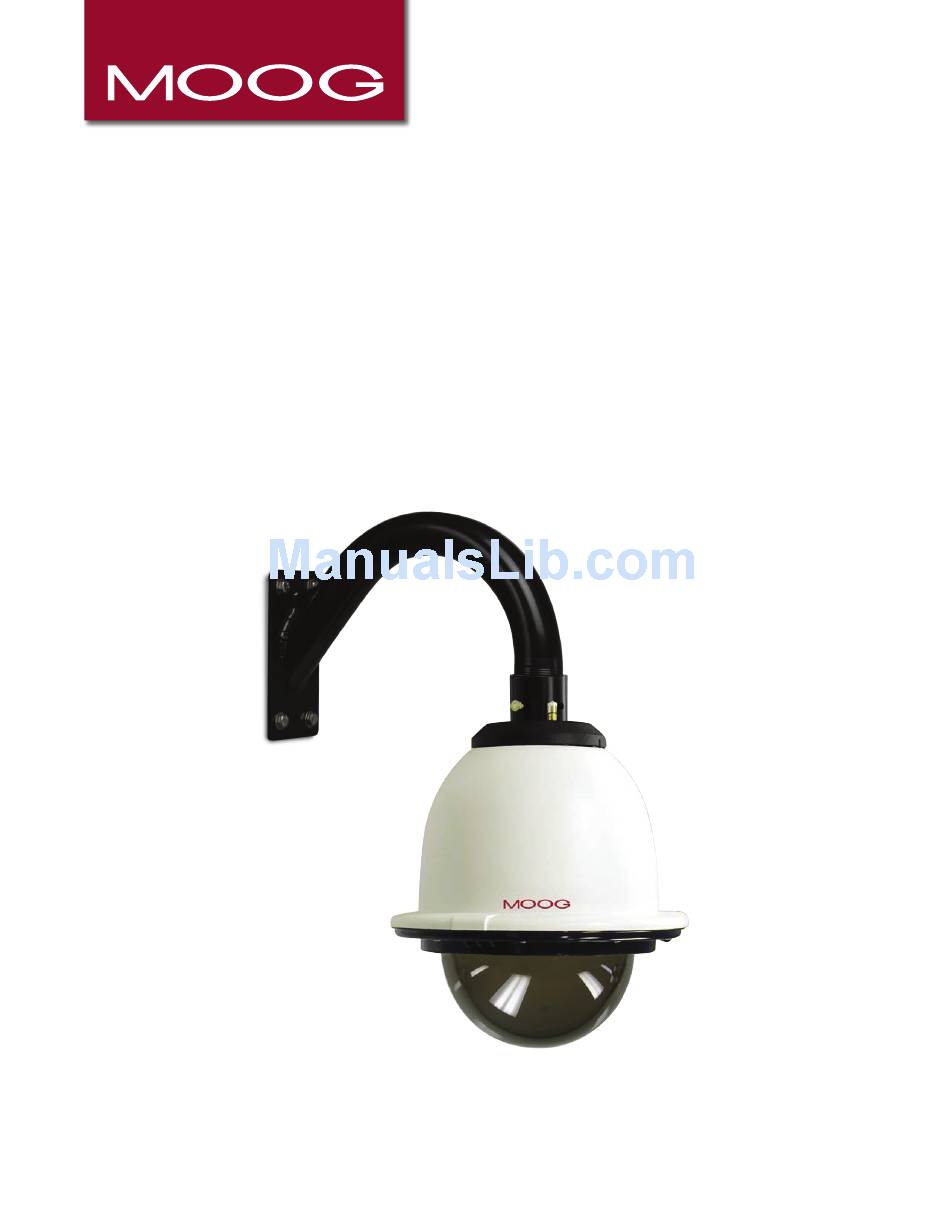

PFDW75C2N
Pressurized FusionDome
PFDW75C2N............. IP Network Ready 7" outdoor pressurized dome housing with WM20G gooseneck wall mount, with 24Vac input, heater and blower, for
Network cameras, 120 to 24Vac, 96vA transformer, clear dome
PFDW75T2N.............. IP Network Ready 7" outdoor pressurized dome housing with WM20G gooseneck wall mount, with 24Vac input, heater and blower, for
Network cameras, 120 to 24Vac, 96vA transformer, tinted dome
PFDW78C2N.............. An extended trim ring model for larger cameras with a maximum camera depthof 243.3mm (9.58")
Substitute "C" (Clear dome) for "T" (Tinted dome) version
To be used with the 81-IN5481 Instruction Manual.
© 2013, Moog Inc. All Rights Reserved
Network Outdoor Wall Mounted Camera Enclosure
™
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5353 111313
Advertisement
Table of Contents
Related Manuals for Moog FusionDome PFDW75C2N
Summary of Contents for Moog FusionDome PFDW75C2N
-
Page 1: Installation And Operation Instructions
Substitute “C” (Clear dome) for “T” (Tinted dome) version To be used with the 81-IN5481 Instruction Manual. Moog Inc. Sensor and Surveillance Systems 3650 Woodhead Drive Northbrook, IL. USA 60062 81-IN5353 111313 © 2013, Moog Inc. All Rights Reserved +1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com... -
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Warranty Registration
Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell. - Page 4 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 5: Electrical Specifications
Electrical Specifications Contents of Box Power 24VAC PFDW75C2N Class 2 Only 24 VAC 3.3 Amps Total Power: 80 Watts Accessories: Heater: 50 Watts/Blower: 2 Watts Camera Power: 28 Watts Max Tools Required: .100” Flat Head Screwdriver English Phillips Head Screwdriver 7/16”... - Page 6 •Special anti-seize tape “DO NOT REMOVE” Securely mount bracket to wall. Pull wiring Teflon tape™ is wrapped around the pipe threads to through bracket and position grommet as shown. ensure a tight seal and to prevent galling. • Cinta de Teflon ™ se envuelve alrededor de las roscas de la tubería para •...
- Page 7 Make the appropriate wiring connections Loop the lanyard over the screw head to temporarily hold housing. from the dome to the pendant. • Loop la cuerda de seguridad en la cabeza del tornillo para mantener • Hacer las conexiones de cableado de la cúpula de la temporalmente la vivienda.
- Page 8 RJ45 24VAC POWER Camera Yellow Max 80 Watts Camera Green Heater/Blower Yellow 26 Watts Heater/Blower Green Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Common White Make the appropriate male and female connections. Indoor model does not include pre-run cables. •...
- Page 9 Undo the lanyard, pull housing up and twist Slide the grommet down over the coupling to prevent secure with the locking bolt and washers. water from entering and complete the assembly. • Resbale el ojal abajo sobre el acoplador para evitar que el agua •...
- Page 10 Air Chuck Fitting Hose Air Chuck Regulator Tank Valve Nitrogen Tank Place the air chuck on the tank valve and When pressurizing unit be sure to set the begin filling until pressure relief valve opens. guage or regulator from 10-20psi (.7-1.4bar). •...
