QFD
QView

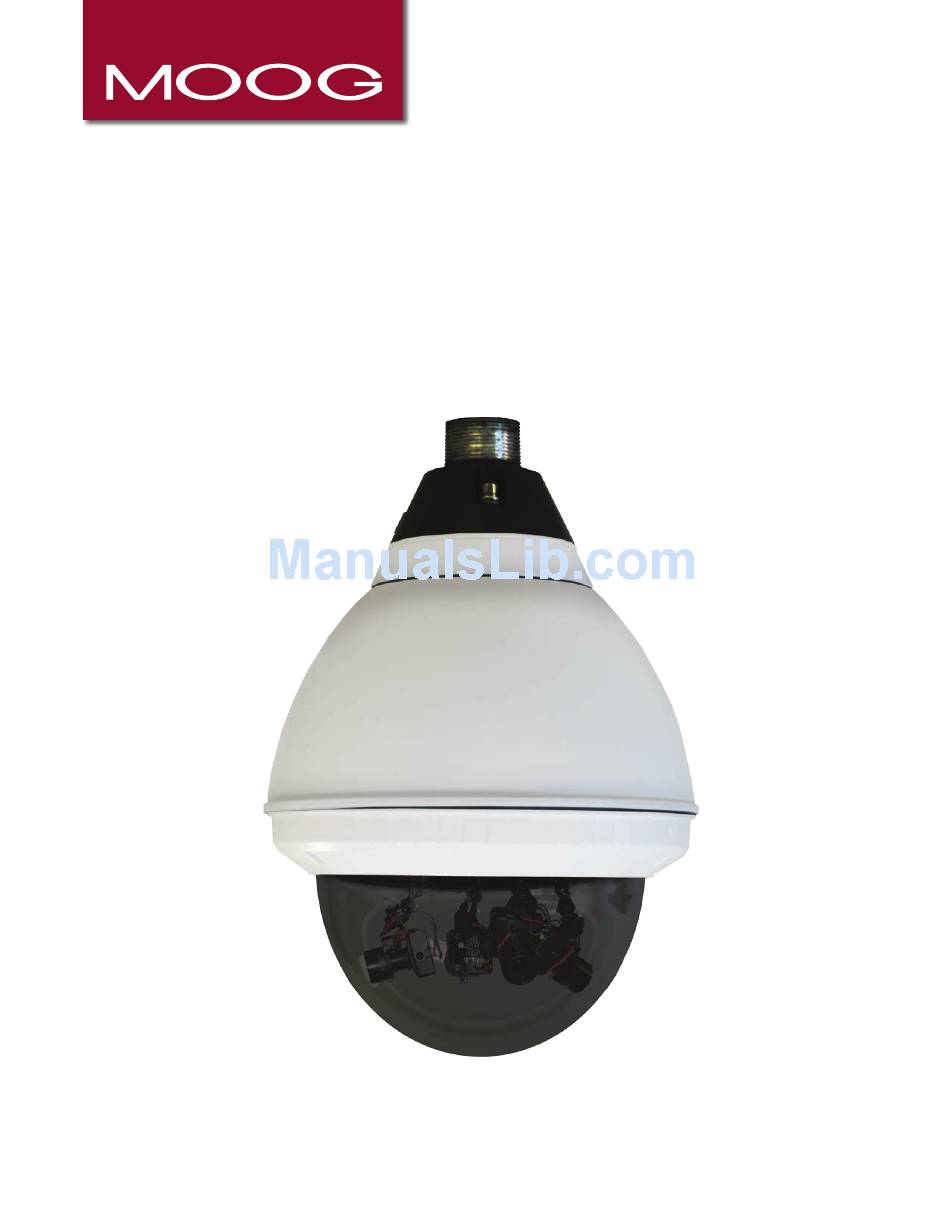

FusionDome Multiple Camera System
™
QFDPT2-70NA........... Standard 7" outdoor, pendant mount, tinted dome, with (2) day / night cameras, 3-9mm auto-iris lens
QFDPT4-70NA........... Standard 7" outdoor, pendant mount, tinted dome, with (4) day / night cameras, 3-9mm auto-iris lens
© 2013, Moog Inc. All Rights Reserved
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5247 111113
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Moog QView QFDPT2-70NA
Summary of Contents for Moog QView QFDPT2-70NA
-
Page 1: Installation And Operation Instructions
QFDPT4-70NA... Standard 7” outdoor, pendant mount, tinted dome, with (4) day / night cameras, 3-9mm auto-iris lens Moog Inc. Sensor and Surveillance Systems 3650 Woodhead Drive Northbrook, IL. USA 60062 81-IN5247 111113 © 2013, Moog Inc. All Rights Reserved +1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com... - Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
- Page 3 Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell.
- Page 4 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 5: Table Of Contents
Warranty Information 1½" NPT pipe or with brackets designed with 1½" male pipe threads, such as the Moog WM20G. 2. Attach the coupling to the bracket or pendant pipe (Figure 1). NOTE: Pipe threads should be clean and rust free. Use a sealer (such as Teflon™... -
Page 6: Camera Adjustment
CAMERA ADJUSTMENT 1. Access the cameras by removing the dome. Loosen the locking screws on the lip of the dome. DO NOT TAKE THESE SCREWS OUT. Once the screws are loosened, turn the dome counter clock-wise until it stops, then pull the dome off (Figure 3). Loosen screws only, do not remove Remove dome by twisting... -
Page 7: Camera Settings
Controller Camera Connection In order to make any change to the camera setting you must first connect the OSD controller to the Included with every camera is an On Screen Display camera. Note the camera must be powered in order (OSD) controller. - Page 8 2) EXPOSURE 6) SPECIAL SHUTTER SETUP SHUTTER AUTO SETUP NTSC: 1/60, PAL: 1/50 LENS LENS EXPOSURE EXPOSURE 1/250 - 1/100,000 *SPECIAL SUB MENU LIST WHITE BAL ATW1 WHITE BAL ATW1 BRIGHTNESS SPECIAL BACKLIGHT BACKLIGHT BRIGHTNESS OFF *CAMERA TITLE CAM TITLE DAY &...
-
Page 9: Nvt Instructions
NVT INSTRUCTIONS UNSHIELDED TWISTED PAIR VIDEO WIRING NOTE: The customer must purchase the Video Transceiver from NVT. Part numbers are: • NV-212A (500 ft.) * NV-213A or NV-213A-M (1000 ft.) • NV-652R, NV-862R, or NV-1662R (3000 ft.) The cameras included in the QView™ series have the option of transmitting video signals to NVT receivers via unshielded twisted pair cable. You must purchase the receiver separately. - Page 10 Wiring Notes Wire — What to DO 1. DO use point-to-point Unshielded Twisted Pair wire, gauge 24 or thicker, stranded or solid, Category 2, 3, 4, or 5. 2. The video signal may co-exist in the same wire bundle as other video, telephone, data, control signals, or low-voltage power.
-
Page 11: Exploded View
EXPLODED VIEWS OF HOUSING Item No. Description Part No. FD8 Housing Top 30-VL1697 Dome Support Ring 30-VL1695 25W, 24Vac w/Leads 72-HT1752 FD8 Clear Dome 20-DCFD8 FD8 Tinted Dome 20-DTFD8 9.25" O-ring 96-RSORG11 Plastic Ring Plugs 30-VL1696 FD8 PCB 76-FPD8PB FD8 Upper Housing Bracket 30-VL1744 Housing Gasket 96-PSGK05... -
Page 12: Cable And Power Guidelines
1447/441 2300/701 NOTE: The above table is based on a "worst-case" power supply. Using a regulated or switching power supply can increase your cable distance. Moog recommends using our PS24 power supply, or a CSA/UL listed Class 2 power supply.
