PFDW75C2NAX

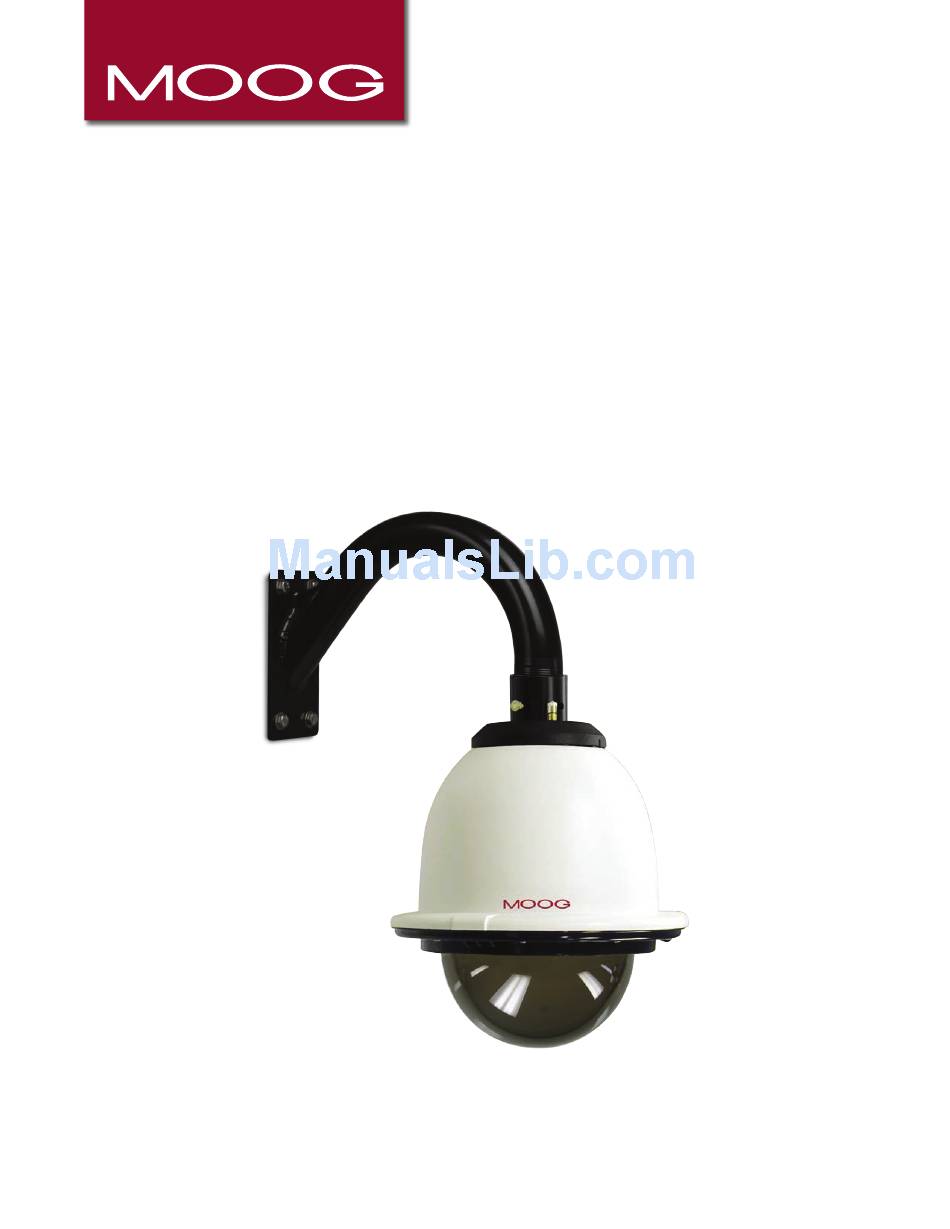

Pressurized FusionDome
PFDW75C2NAX......... Pressurized outdoor FusionDome, for Axis cameras, with WM20G gooseneck wall mount, clear dome, 24Vac input, heater and blower.
Accommodates an IP network PTZ camera, (includes: 120 to 24Vac, 96 watts transformer)
PFDW75T2NAX.......... TINTED VERSION
Substitute "C" (Clear dome) for "T" (Tinted dome) version
To be used with the 81-IN5409 Instruction Manual.
© 2013, Moog Inc. All Rights Reserved
Network Outdoor Wall Mounted Camera Enclosure
™
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5463 111313
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Pressurized FusionDome PFDW75C2NAX
Summary of Contents for Moog Pressurized FusionDome PFDW75C2NAX
-
Page 1: Installation And Operation Instructions
Substitute “C” (Clear dome) for “T” (Tinted dome) version To be used with the 81-IN5409 Instruction Manual. Moog Inc. Sensor and Surveillance Systems 3650 Woodhead Drive Northbrook, IL. USA 60062 81-IN5463 111313 © 2013, Moog Inc. All Rights Reserved +1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com... -
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Warranty Registration
Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell. - Page 4 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 5: Electrical Specifications
Electrical Specifications Contents of Box Power 24VAC PFDW75NAX Class 2 Only 24 VAC Power: 80 Watts Accessories: Heater/Blower: 80 Watts Camera Power: (PoE) Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 7/16” Wrench or Socket 24 VAC Energía: 80 vatios Accesorios: Calentador/Blower:80 vatio Energía De la Cámara fotográfica:... - Page 6 WM20G: SOLD SEPARATELY SOLD SEPARATELY •Special anti-seize tape “DO NOT REMOVE” Securely mount bracket to wall. Pull wiring Teflon tape™ is wrapped around the pipe threads to through bracket and position grommet as shown. ensure a tight seal and to prevent galling. •...
- Page 7 SOLD SEPARATELY SOLD SEPARATELY Make the appropriate wiring connections Loop the lanyard over the screw head to temporarily hold housing. from the dome to the pendant. • Loop la cuerda de seguridad en la cabeza del tornillo para mantener • Hacer las conexiones de cableado de la cúpula de la temporalmente la vivienda.
- Page 8 Wire as shown below RJ45 24VAC Camera/Heater/Blower Green 80 Watt Camera/Heater/Blower Yellow Blue RS-485RX B Violet RS-485TX A Gray RS-485TX B White Make the appropriate male and female connections. • Haga las conexiones masculinas y femeninas apropiadas. • Établissez les rapports masculins et femelles appropriés. •...
- Page 9 Twist on the camera to the mounting plate, Complete all wiring connections. turning clockwise to secure. • Termine todas las conexiones del cableado. • Tuerza en la cámara a la pletina, dando vuelta a la derecha para asegurar. • Accomplissez tous les raccordements de câblage. •...
-
Page 10: Replacement Parts List
After purging check the housing pressure. It Purge housing of all pressure and repeat 3 times to remove all moisture from housing. should be around 5psi (.34bar). • Después de purgar el cheque la presión de la cubierta. • Purgue la cubierta de toda la presión y repita 3 veces de Debe estar alrededor de 5psi (34bar).
