Before attempting to connect or operate this product, please read these instructions completely.

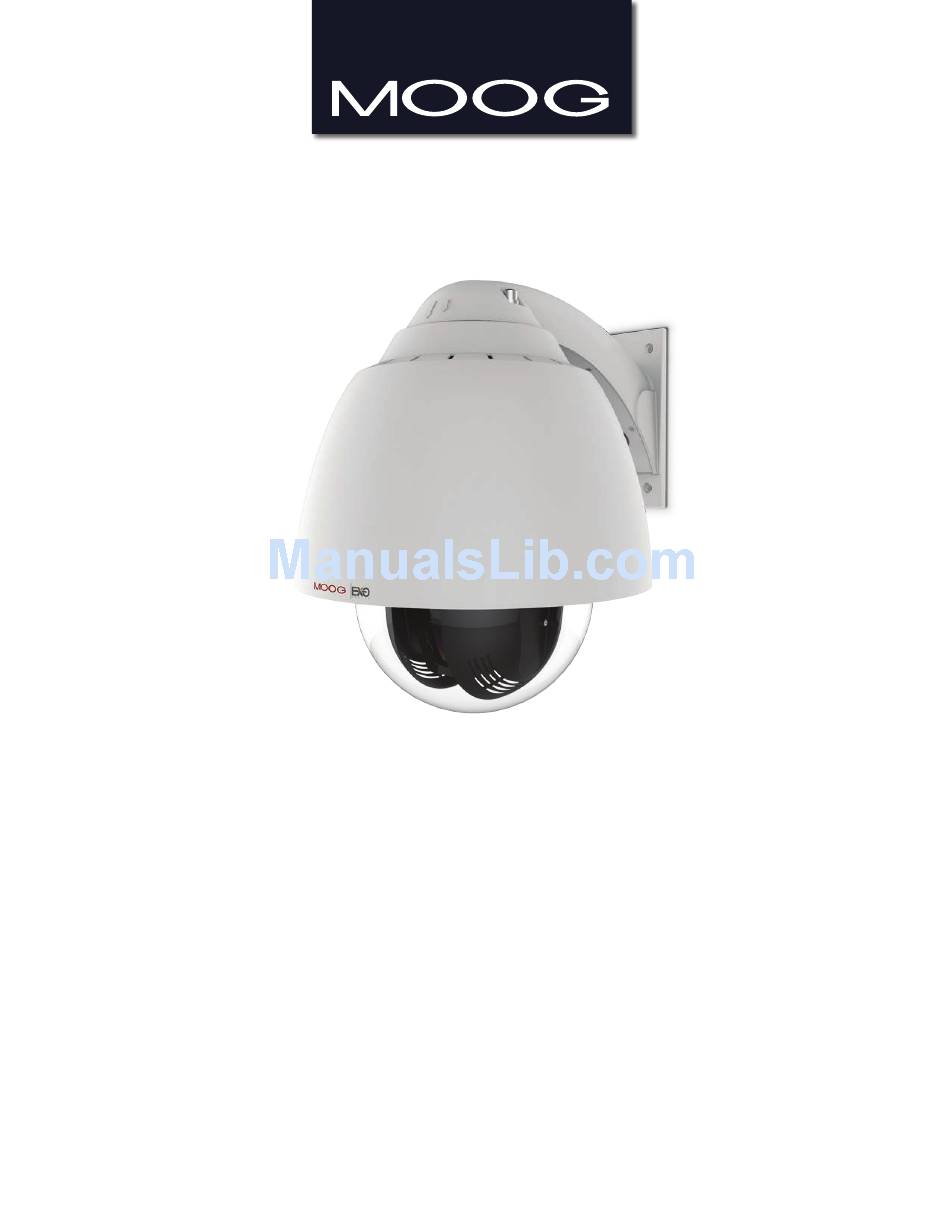

EXO Vandal Resistant HD Camera
EXVP7C2-2 Rugged 1080P HD PTZ camera system, 20x optic zoom, H.264 support, ONVIF, extended temperature range, surge protection with
Pendent adaptor
EXVW7C2-2 Rugged 1080P HD PTZ camera system, 20x optic zoom, H.264 support, ONVIF, extended temperature range, surge protection with
Wall mount
EXVP7C2-3 Rugged 1080P HD PTZ camera system, 30x optic zoom, H.264 support, ONVIF, extended temperature range, surge protection with
Pendent adaptor
EXVW7C2-3 Rugged 1080P HD PTZ camera system, 20x optic zoom, H.264 support, ONVIF, extended temperature range, surge protection with
Wall mount
Moog Inc. • Sensor and Surveillance Systems • 2525 Park Central Boulevard, Decatur, GA 30035 USA • +1 770.987.7550 • www.moogS3.com
Installation and Operation Instructions
High Definition Camera Systems for Harsh Environments
81-IN5505 06/24/13
© 2013, Moog Inc. All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Moog EXVP7C2-2
Summary of Contents for Moog EXVP7C2-2
-
Page 1: Installation And Operation Instructions
EXVW7C2-3 Rugged 1080P HD PTZ camera system, 20x optic zoom, H.264 support, ONVIF, extended temperature range, surge protection with Wall mount 81-IN5505 06/24/13 © 2013, Moog Inc. All Rights Reserved Moog Inc. • Sensor and Surveillance Systems • 2525 Park Central Boulevard, Decatur, GA 30035 USA • +1 770.987.7550 • www.moogS3.com... - Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
- Page 3 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog, Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30092. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 4: Electrical Specifications
Electrical Specifications Contents of Box Power 24VAC EXPF7 Class 2 Only EXSS7 EXSP7 EXRHW(P)7 24 VAC 3.2 Amps Total Power: 75 Watts Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver 7/16” Wrench or Socket English 24 VAC 3.2 amperios Energía Total: 75 vatios Las Herramientas Requirieron: Destornillador Principal Plano Del 100"... - Page 6 4”-5” Trim incoming control and power wires to Bracket is designed for 45° conduit fitting (If using 4”- 5”, for either wall or pendent bracket. the conduit). Run wire into bracket, secure to wall. • Recorte de control de entrada y los cables de alimentación de 4 "- 5", •...
- Page 7 Important Gasket Must be in place Wiring the dome can be completed Align large arrows. by referring to the diagram. • Atar con alambre la bóveda puede ser terminada refiriendo al diagrama. • Alinee las flechas grandes. • Le câblage du dôme peut être accompli en se rapportant au diagramme. •...
- Page 8 4”-5” Trim incoming control and power wires to 4-5” for Secure lanyard to lanyard clip. either wall or pendent bracket. • Ajuste los alambres entrantes del control y de la energía a • Asegure el acollador al clip del acollador. 4-5”...
- Page 9 Important Gasket Must be in place Align large arrows. To lock, turn clockwise. • Alinee las flechas grandes. • Para trabarse, dar vuelta a la derecha. • Alignez les grandes flèches. • Pour fermer à clef, tourner dans le sens des aiguilles d'une montre.
- Page 10 Wiring Connections for ALL Housings RJ45 24VDC POWER 24Vac 24Vac Orange 75 Watts Green/White AUDIO Speaker + Gray Audio GND Brown MIC + White ALARM Alarm (In) Blue Alarm (Out) Black/White Alarm (In/GND) Violet Alarm (Out) Red/White Make the appropriate male and female connections. •...
- Page 11 CAPTIVE SCREW Power Network Cables Disconnect cables, and remove To remove, loosen captive screw. Pan / Tilt from base bracket in housing. • Para quitarlo, tornillo cautivo suelto. • Desconecte los cables y retire la cacerola / de la inclinación del soporte de base en materia de vivienda.
- Page 12 Align the arrows on the outside of the dome Connect Lanyard to trim ring assembly. and lock. • Alinee las flechas en el exterior de la bóveda y trábese. • Conecte el acollador con el montaje del anillo del ajuste. •...
-
Page 13: Replacement Parts List
Replacement Parts List EXVW7C2-2 EXVP7C2-2 EXVW7C2-3 EXVP7C2-3 PART NUMBER DESCRIPTION 1 RPGK3356 2 RPFD2612 3 RPRH3641G GRITE HGS TOP ASSEMBLY 4 RP76VL2024 SURGE / CONNECTION PCB 5 RPVL3414 RH7 HGS BKT 6 RPFD080 BLOWER 7 RPFD072 HEATER 24Vac 8 RPVL4106... -
Page 14: Software Setup
1.0.0 Moog Discovery Tool By factory default, the Moog EXO Camera is configured in DHCP. If you are not using a DHCP server it will automatically allocate itself an APIPA (Automatic Private IP Addressing) address in the range 169.254.0.1 to 169.254.255.254 with subnet mask 255.255.0.0. - Page 15 In: 2 Out: 1 If no DHCP server was able to assign an IP address to an Moog EXO Camera, it will appear in the MDT device list with an APIPA address (169.254.*.*). If an Moog EXO Camera displays an APIPA address it must be configured with a valid IP address before it can be remotely...
- Page 16 To assign IP Address, update firmware, or configure Moog web interface, right click on highlighted serial number / Mac Address. Assign IP Address(es) Once the IP information is set, the Silverlight web application served by the EXO Camera can be launched from the MDT or directly in your web browser by typing the device’s IP address in the address bar.
-
Page 17: Using The Moog Exo Web Application
2.0.0 Using the Moog EXO Web Application Application When entering the Web Application, the following window will be displayed. You will be asked a username and password. The default User name and Password is ‘admin’. (To reset the user name and password see / Configurations / User Accounts) -
Page 18: System Status
2.1.0 System Status Status Window System Status - 2.1.0 Configuration - 2.2.0 Main Menu Tabs Maintenance - 3.0.0 Live Viewer - 4.0.0 Recording - 5.0.0 Upon successfully logging into the web interface, a welcome screen will be displayed. The welcome screen shows general devices health status as well as firmware version and system uptime. -
Page 19: System Configuration
2.2.0 System Configuration Configuration / System Under the Configuration section, select the System tab to perform the following operations: • View product model information, current firmware version and serial number. • Specify a custom name; this name can be used by third-party software to display a selected name for the device. Enable edge recording by checking the box “Use Recorder Module”... -
Page 20: Configuration / Date Time
2.2.1 Configuration / Date Time Under the Configuration section, select the Date Time tab to perform the following operations: • Set the time zone in which the device is operating. • Manually set the current date and time for the device’s internal clock. •... -
Page 21: Configuration / Network / Http
2.2.3 Configuration / Network / DHCP Under the Configuration section, select the Network tab to perform the following operations: • Set the encoder’s IP parameters; DHCP or static IP information. • Configure an NTP server to allow the device to automatically update its internal clock using an NTP server. 2.2.4 Configuration / Network / Host Name Configuration-NPT NPT Server- use when desiring to have local network time as default, to do so you must……. -
Page 22: Configuration / Network / Snmp Configuration
2.2.6 Configuration / Network / API- Boujour NOTE: To control the EXO Camera system with a VMS software system, you must enable the required Network APIs. Enable PSIA • or GENETEC API depending on which VMS platform you intend to use with the device. Disabling any unrequired APIs will accelerate boot time. -
Page 23: Configuration / Video In / Video Input
2.3.0 Configuration / Video In 2.3.1 Configuration / Video In / Video Input Under the Configuration section, select the Video In tab to perform the following operations: Digital format – choices are, 720 30fps, 720 60fps, 1080 30fps, 1080 25fps. Note max camera output with WDR Active is 15fps (1080p). 2.3.2 Configuration / Video In / Sensor Configure camera bloc / sensor parameters. - Page 24 VBR aggressiveness however is unique to Moog EXO Cameras and proposes various levels (disabled to aggressive) of motion triggered rate control. The more aggressive the setting, the more variation motion will have on the rate control. It is strongly suggested to disable VBR aggressiveness for low bit rate scenarios (below 1Mbps) as this parameter may negatively affect perceived video quality.
-
Page 25: Configuration / Video In / Point To Point
2.3.4 Configuration / Video In / Point to Point Configure point to point video connections (up to three) for creating persistent video streams from the encoder to • a network endpoint. 2.3.5 Configuration / Video In / Text Overlay Text Box To insert a text overlay: •... -
Page 26: Configuration / Video In / Motion Detection
2.3.6 Configuration / Video In / Motion Detection Select from 1 of 4 available regions: • With mouse click on region position box. • Bring mouse pointer to view window and drag box around area for motion detection. • Select desired Frame Count, Sensitivity and Thresholds. •... - Page 27 2.3.7 Configuration / Video In / Privacy Zones Privacy Zones are used to block out video in areas view is not permitted or desired. To add a Privacy Zone: • Select the Zone to be identified with privacy area. There are up to 16 zones available. •...
-
Page 28: Configuration / Audio In
2.3.8 Configuration / Audio In Under the Configuration section, select the Audio In tab to perform the following operations: • Configure audio input compression parameters. • Configure point to point audio connections (up to three) for creating persistent audio streams from the encoder to a network endpoint. -
Page 29: Configuration / Audio Out
2.3.9 Configuration / Audio Out Under the Configuration section, select the Audio Out tab to perform the following operations: • Configure audio output parameters. • Configure a point to point audio connection for receiving a persistent audio stream from a network endpoint. -
Page 30: Configuration / Recording
2.4.0 Configuration / Recording Note: Recording Menu will NOT be visible unless activated; see 2.20 System configuration. • Grooming mode; Select method to remove files from full SD card chronological will remove old files first. -
Page 31: Configuration / User Accounts
2.4.1 Configuration / User Accounts Under the Configuration section, select the User Accounts tab to perform the following operations: • Select the web interface’s authentication method. A dual passphrase is made available for additional security. • Manage user accounts which have access to the device. User Roles: Administrator: All is available... -
Page 32: Maintenance
3.0.0 Maintenance This section describes how to update your Moog EXO Cameras to newer firmware versions from the web application. To find the latest file go to www.videolarm.com/technical-support/. Click on “EXO PTZ Camera Firmware” - click, save file. Navigate to your device’s web application using your favorite web browser. -
Page 33: Live Viewer
4.0.0 Live Viewer Use Live View for: • Live Camera View • Start and Stop Recording • Pan / Tilt and Camera Control • Setting Presets • Adjust View Scale To enable live you must activate by pressing the “Play” button. Play Button To adjust viewing scale for 1024 x 768 monitor, press scale view. -
Page 34: Live Viewer Pan / Tilt And Presets
4.1.0 Live Viewer Pan / Tilt and Presets Pan/Tilt Controls Lens Control Preset Controls • Pan Tilt Control; To operate Press Arrow in desired direction of movement. • Use Pan / Tilt speed slinder controls to vary Pan / Tilt speed control, to increase speed, slide control knob to (?) •... - Page 35 5.0.0 Recording To activate recording mode you must go to Configuration / System / Use Recorder Mode. Click “Use Recorder Mode” checkbox. This will activate addional Recording controls in the recording window. You must “Save” and then “Reboot” after making this change >...
-
Page 36: Performing Batch Firmware Update
6.0.0 Performing Batch Firmware Update This section describes how to perform a batch update of multiple Moog EXO Camera devices to newer firmware versions from the MDT. The batch firmware update works by starting a firmware update session. Only one session at time is allowed and only 20 devices can be selected by session. - Page 37 To start a firmware update session, choose the “.iof” file corresponding to the new firmware by clicking to the “Select File …” button. Once selected, click to the “Start” button. Once started, the “Firmware Update Session” window shows the progress of the firmware update. This window can be closed at any moment without losing the current session.
-
Page 38: Point To Point Connections
Destination Port: Network port where to send the video. This value must match the port value in the Decoder. Once all the settings have been set, click on Save at the bottom of the page to apply them. The Moog EXO Camera then creates or updates the connection as needed.
