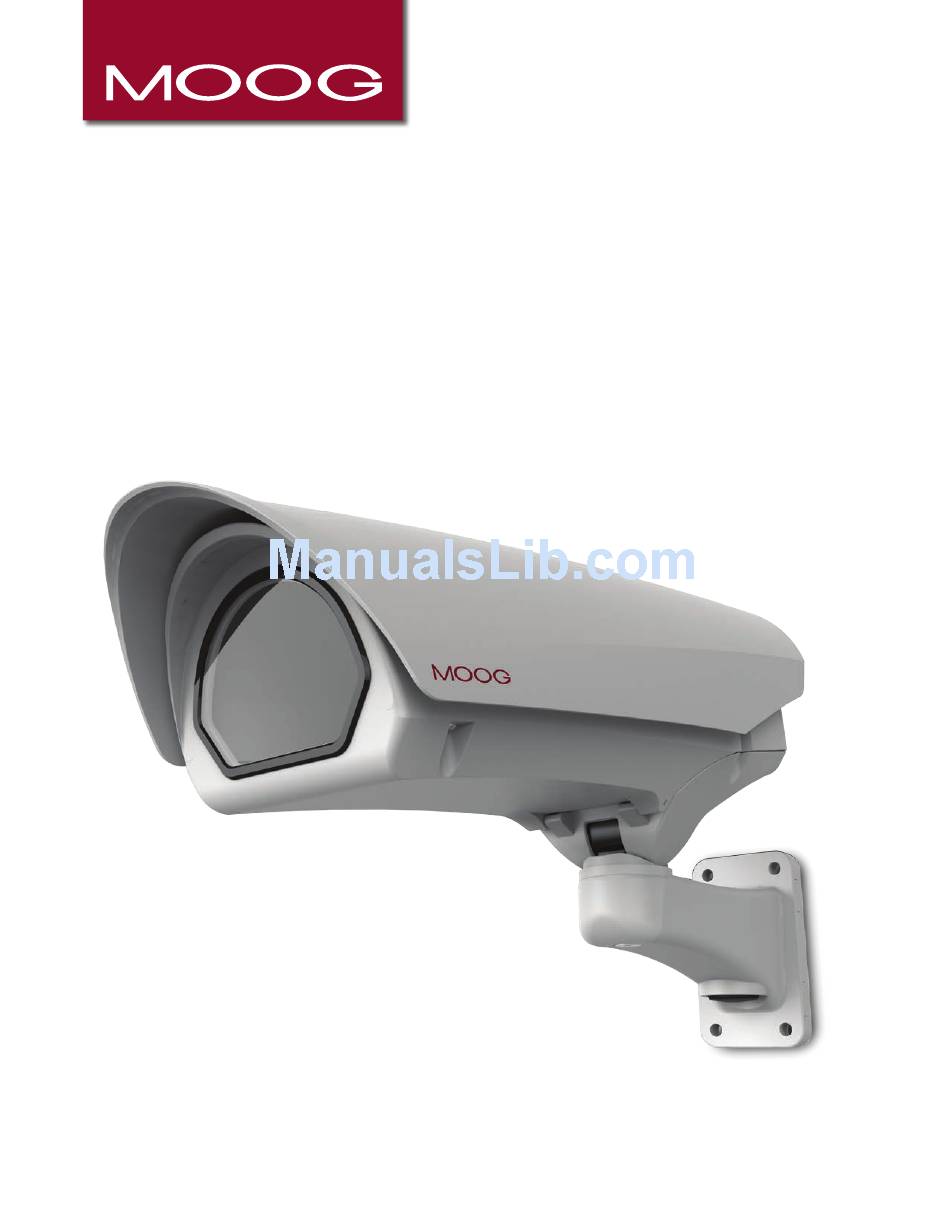

CVFC2-S25
Enhanced Vehicle Detection Camera System
CVFC2-S25................ Environmentally Enclosed Camera System, 120Vac input, feed through wall / pole mount, adjustable sunshield, internal surge
suppression, 128x wide dynamic range, 25x zoom, co-ax, RS-485
© 2013, Moog Inc. All Rights Reserved
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5495 111113
Advertisement
Table of Contents
Related Manuals for Moog CVFC2-S25
Summary of Contents for Moog CVFC2-S25
-
Page 1: Installation And Operation Instructions
CVFC2-S25 Enhanced Vehicle Detection Camera System CVFC2-S25....Environmentally Enclosed Camera System, 120Vac input, feed through wall / pole mount, adjustable sunshield, internal surge suppression, 128x wide dynamic range, 25x zoom, co-ax, RS-485 Moog Inc. Sensor and Surveillance Systems 3650 Woodhead Drive Northbrook, IL. -
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Warranty Registration
Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell. - Page 4 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 5: Electrical Specifications
Electrical Specifications Contents of Box CVFC2-S25 Power 120Vac Class 2 Only 120Vac: 17 watts Heater (16 watts), Blower (1 watt) Tools Required: Phillips head screwdriver English 120Vac: 17 vatios Calentador (16 vatios), soplador (1 vatio) Herramientas requeridas: Destornillador principal Phillips Español... -
Page 6: Wall Mounting
Twist Rotate Lossen and then rotate the wall mount to achieve the If you are running a conduit to the housing, rst proper orientation. install the appropriate tting to the wall mount. • Afloje y gire el soporte de pared para conseguir la orientación adecuada. •... - Page 7 * Max Strap Width: 0.75” Hinge housing away from mount by loosening (2) Attach mount to pole with suitable hardware rear screws. (not provided). • Abisagre la cubierta lejos del montaje aflojando (2) los tornillos • Ate el montaje al poste con el hardware conveniente (no proporcionado). posteriores.
- Page 8 Pass cables through wiring membranes Hinge the housing closed and tighten (2) rear screws. (use screwdriver to pierce). • Abisagre la cubierta cerrada y apriete (2) los tornillos posteriores. • Pase los cables a través de las membranas del cableado (el destornillador del uso a perforar) .
- Page 9 Camera installed by Moog Videolarm. Refer to instruction 81-IN5494 (INCLUDED) for camera manual. • Cámara instalada por Moog Videolarm. Consulte las instrucciones de 81-IN5494 (incluido) para manual de la cámara. • Caméra installée par Moog Videolarm. Reportez-vous aux instructions 81-IN5494 (INCLUS) pour manuel de l'appareil.
-
Page 10: Wiring Diagram
The camera tray can be securely locked into place with the provided 3.5 x 7mm screw. Tighten it through the rear tray tab. Close the housing lid and securely tighten the • La bandeja de la cámara se puede trabar con seguridad en lugar con el (2) lid screws. -
Page 11: Replacement Parts
Replacement Parts CVFC2-S25 Part Number Description RPVL3948 FCH Camera Tray RPVL3950 FCH Heater + Bracket RP76VL2016 FCH 12VDC/24VAC PCB RPFD080 12VDC 40mm Fan RPVL3953 Cable Membrane (0.60" hole) RPFTM2425G FCH Wall Mount Assembly RPFCH11HP FCH Hardware Packet RP71VLBL09 Outdoor Rated Fan (Thermiq only)
