Installation and Operation Instructions

Before attempting to connect or operate this product, please read these instructions completely.
EXO Corrosion Resistant HD Camera
High Definition Network Camera Systems for Harsh Environments
EXSS7C2-2 Stainless Steel 1080P HD PTZ camera system, 20x optic zoom, H.264 support, ONVIF, extended temperature range, surge protection
EXSS7C2-3 Stainless Steel 1080P HD PTZ camera system, 30x optic zoom, H.264 support, ONVIF, extended temperature range, surge protection
EXSP7C2-2 Stainless Steel Pressurized 1080P HD PTZ camera system, 20x optic zoom, H.264 support, ONVIF, extended temperature range,
surge protection
81-IN5513 06/24/13
© 2013, Moog Inc. All Rights Reserved
Moog Inc. • Sensor and Surveillance Systems • 2525 Park Central Boulevard, Decatur, GA 30035 USA • +1 770.987.7550 • www.moogS3.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXSS7C2-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moog EXSS7C2-2

  • Page 1: Installation And Operation Instructions

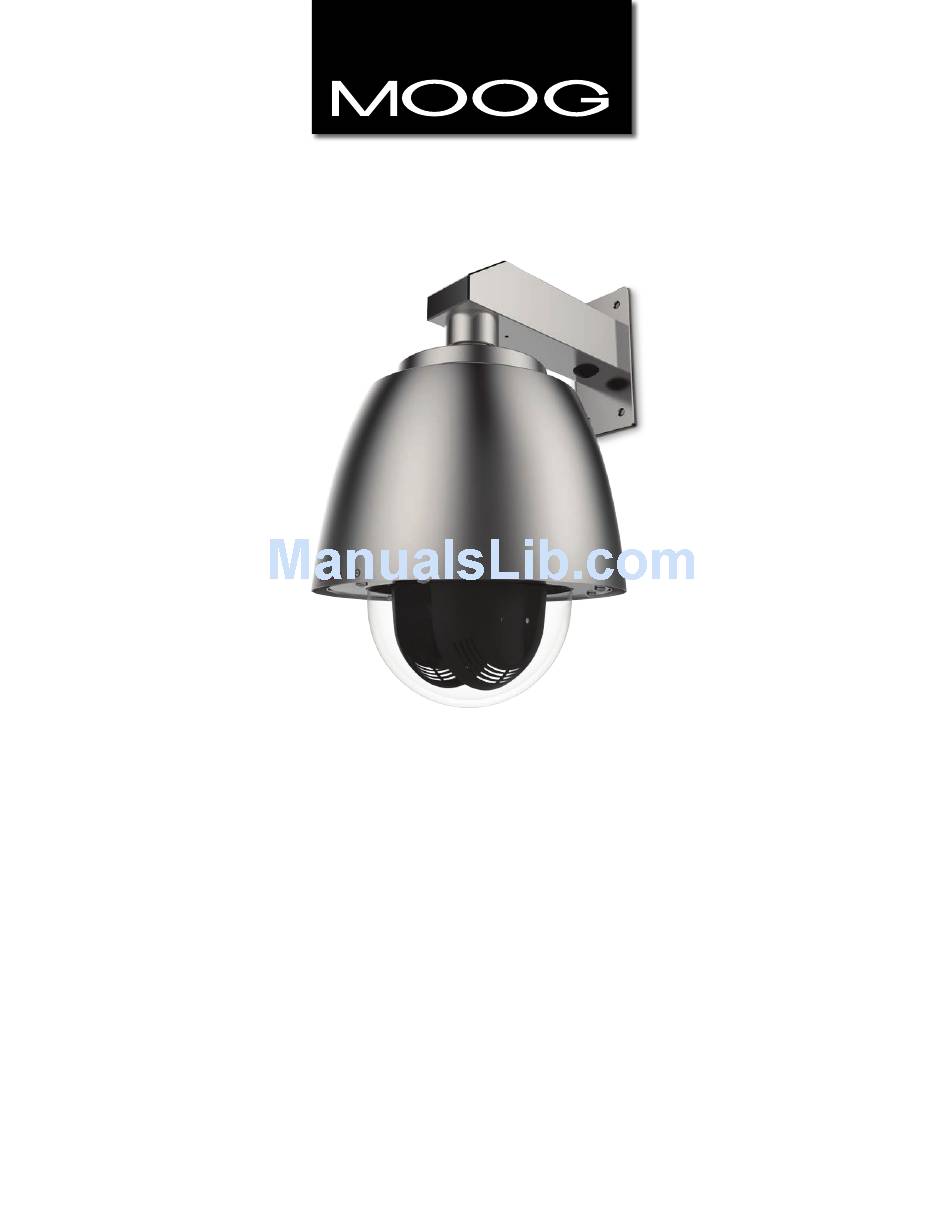

    EXSP7C2-2 Stainless Steel Pressurized 1080P HD PTZ camera system, 20x optic zoom, H.264 support, ONVIF, extended temperature range, surge protection 81-IN5513 06/24/13 © 2013, Moog Inc. All Rights Reserved Moog Inc. • Sensor and Surveillance Systems • 2525 Park Central Boulevard, Decatur, GA 30035 USA • +1 770.987.7550 • www.moogS3.com...
  • Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
  • Page 3 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog, Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30092. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
  • Page 4: Electrical Specifications

    Contents of Box Electrical Specifications Power 24VAC EXPF7 Class 2 Only EXSS7 EXSP7 EXRHW(P)7 24 VAC 3.2 Amps Total Power: 75 Watts Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver 7/16” Wrench or Socket English 24 VAC 3.2 amperios Energía Total: 75 vatios Las Herramientas Requirieron: Destornillador Principal Plano Del 100"...
  • Page 6 1” Straight Conduit Wall mount bracket is designed for straight conduit. If this tting is desired, install it rst. Otherwise, use the thru mount wiring provision. Run connection wires through mount and attach to wall • Soporte de pared está diseñado para conducción recta. Si se desea este ajuste, se debe instalar primero.
  • Page 7 Secure lanyard from dome housing to clip on Complete all wiring connections. wall mount. • Termine todas las conexiones del cableado. • Acollador seguro de la bóveda que contiene al clip en el montaje de la pared. • Accomplissez tous les raccordements de câblage. •...
  • Page 8 X3 PLACES Engage the thread and rotate housing assembly Fasten trim ring assembly to main housing clockwise into wall mount tting until tight. with a phillips screwdriver. • Enganche el hilo y gire conjunto de la caja hacia la derecha en el •...
  • Page 9 SD Card Slot SD Card SD card slot is located at the base SD card slot is located at the base of Pan / Tilt unit. of Pan / Tilt unit. • Ranura para tarjetas SD se encuentra en la base? De la unidad •...
  • Page 11: Software Setup

    1.0.0 Moog Discovery Tool By factory default, the Moog EXO Camera is configured in DHCP. If you are not using a DHCP server it will automatically allocate itself an APIPA (Automatic Private IP Addressing) address in the range 169.254.0.1 to 169.254.255.254 with subnet mask 255.255.0.0.
  • Page 12 In: 2 Out: 1 If no DHCP server was able to assign an IP address to an Moog EXO Camera, it will appear in the MDT device list with an APIPA address (169.254.*.*). If an Moog EXO Camera displays an APIPA address it must be configured with a valid IP address before it can be remotely...
  • Page 13 To assign IP Address, update firmware, or configure Moog web interface, right click on highlighted serial number / Mac Address. Assign IP Address(es) Once the IP information is set, the Silverlight web application served by the EXO Camera can be launched from the MDT or directly in your web browser by typing the device’s IP address in the address bar.
  • Page 14: Using The Moog Exo Web Application

    2.0.0 Using the Moog EXO Web Application Application When entering the Web Application, the following window will be displayed. You will be asked a username and password. The default User name and Password is ‘admin’. (To reset the user name and password see / Configurations / User Accounts)
  • Page 15: System Status

    2.1.0 System Status Status Window System Status - 2.1.0 Configuration - 2.2.0 Main Menu Tabs Maintenance - 3.0.0 Live Viewer - 4.0.0 Recording - 5.0.0 Upon successfully logging into the web interface, a welcome screen will be displayed. The welcome screen shows general devices health status as well as firmware version and system uptime.
  • Page 16: System Configuration

    2.2.0 System Configuration Configuration / System Under the Configuration section, select the System tab to perform the following operations: • View product model information, current firmware version and serial number. • Specify a custom name; this name can be used by third-party software to display a selected name for the device. Enable edge recording by checking the box “Use Recorder Module”...
  • Page 17: Configuration / Date Time

    2.2.1 Configuration / Date Time Under the Configuration section, select the Date Time tab to perform the following operations: • Set the time zone in which the device is operating. • Manually set the current date and time for the device’s internal clock. •...
  • Page 18: Configuration / Network / Http

    2.2.3 Configuration / Network / DHCP Under the Configuration section, select the Network tab to perform the following operations: • Set the encoder’s IP parameters; DHCP or static IP information. • Configure an NTP server to allow the device to automatically update its internal clock using an NTP server. 2.2.4 Configuration / Network / Host Name Configuration-NPT NPT Server- use when desiring to have local network time as default, to do so you must…….
  • Page 19: Configuration / Network / Snmp Configuration

    2.2.6 Configuration / Network / API- Boujour NOTE: To control the EXO Camera system with a VMS software system, you must enable the required Network APIs. Enable PSIA • or GENETEC API depending on which VMS platform you intend to use with the device. Disabling any unrequired APIs will accelerate boot time.
  • Page 20: Configuration / Video In / Video Input

    2.3.0 Configuration / Video In 2.3.1 Configuration / Video In / Video Input Under the Configuration section, select the Video In tab to perform the following operations: Digital format – choices are, 720 30fps, 720 60fps, 1080 30fps, 1080 25fps. Note max camera output with WDR Active is 15fps (1080p). 2.3.2 Configuration / Video In / Sensor Configure camera bloc / sensor parameters.
  • Page 21 VBR aggressiveness however is unique to Moog EXO Cameras and proposes various levels (disabled to aggressive) of motion triggered rate control. The more aggressive the setting, the more variation motion will have on the rate control. It is strongly suggested to disable VBR aggressiveness for low bit rate scenarios (below 1Mbps) as this parameter may negatively affect perceived video quality.
  • Page 22: Configuration / Video In / Point To Point

    2.3.4 Configuration / Video In / Point to Point Configure point to point video connections (up to three) for creating persistent video streams from the encoder to • a network endpoint. 2.3.5 Configuration / Video In / Text Overlay Text Box To insert a text overlay: •...
  • Page 23: Configuration / Video In / Motion Detection

    2.3.6 Configuration / Video In / Motion Detection Select from 1 of 4 available regions: • With mouse click on region position box. • Bring mouse pointer to view window and drag box around area for motion detection. • Select desired Frame Count, Sensitivity and Thresholds. •...
  • Page 24 2.3.7 Configuration / Video In / Privacy Zones Privacy Zones are used to block out video in areas view is not permitted or desired. To add a Privacy Zone: • Select the Zone to be identified with privacy area. There are up to 16 zones available. •...
  • Page 25: Configuration / Audio In

    2.3.8 Configuration / Audio In Under the Configuration section, select the Audio In tab to perform the following operations: • Configure audio input compression parameters. • Configure point to point audio connections (up to three) for creating persistent audio streams from the encoder to a network endpoint.
  • Page 26: Configuration / Audio Out

    2.3.9 Configuration / Audio Out Under the Configuration section, select the Audio Out tab to perform the following operations: • Configure audio output parameters. • Configure a point to point audio connection for receiving a persistent audio stream from a network endpoint.
  • Page 27: Configuration / Recording

    2.4.0 Configuration / Recording Note: Recording Menu will NOT be visible unless activated; see 2.20 System configuration. • Grooming mode; Select method to remove files from full SD card chronological will remove old files first.
  • Page 28: Configuration / User Accounts

    2.4.1 Configuration / User Accounts Under the Configuration section, select the User Accounts tab to perform the following operations: • Select the web interface’s authentication method. A dual passphrase is made available for additional security. • Manage user accounts which have access to the device. User Roles: Administrator: All is available...
  • Page 29: Maintenance

    3.0.0 Maintenance This section describes how to update your Moog EXO Cameras to newer firmware versions from the web application. To find the latest file go to www.videolarm.com/technical-support/. Click on “EXO PTZ Camera Firmware” - click, save file. Navigate to your device’s web application using your favorite web browser.
  • Page 30: Live Viewer

    4.0.0 Live Viewer Use Live View for: • Live Camera View • Start and Stop Recording • Pan / Tilt and Camera Control • Setting Presets • Adjust View Scale To enable live you must activate by pressing the “Play” button. Play Button To adjust viewing scale for 1024 x 768 monitor, press scale view.
  • Page 31: Live Viewer Pan / Tilt And Presets

    4.1.0 Live Viewer Pan / Tilt and Presets Pan/Tilt Controls Lens Control Preset Controls • Pan Tilt Control; To operate Press Arrow in desired direction of movement. • Use Pan / Tilt speed slinder controls to vary Pan / Tilt speed control, to increase speed, slide control knob to (?) •...
  • Page 32 5.0.0 Recording To activate recording mode you must go to Configuration / System / Use Recorder Mode. Click “Use Recorder Mode” checkbox. This will activate addional Recording controls in the recording window. You must “Save” and then “Reboot” after making this change >...
  • Page 33: Performing Batch Firmware Update

    6.0.0 Performing Batch Firmware Update This section describes how to perform a batch update of multiple Moog EXO Camera devices to newer firmware versions from the MDT. The batch firmware update works by starting a firmware update session. Only one session at time is allowed and only 20 devices can be selected by session.
  • Page 34 To start a firmware update session, choose the “.iof” file corresponding to the new firmware by clicking to the “Select File …” button. Once selected, click to the “Start” button. Once started, the “Firmware Update Session” window shows the progress of the firmware update. This window can be closed at any moment without losing the current session.
  • Page 35: Point To Point Connections

    Destination Port: Network port where to send the video. This value must match the port value in the Decoder. Once all the settings have been set, click on Save at the bottom of the page to apply them. The Moog EXO Camera then creates or updates the connection as needed.
