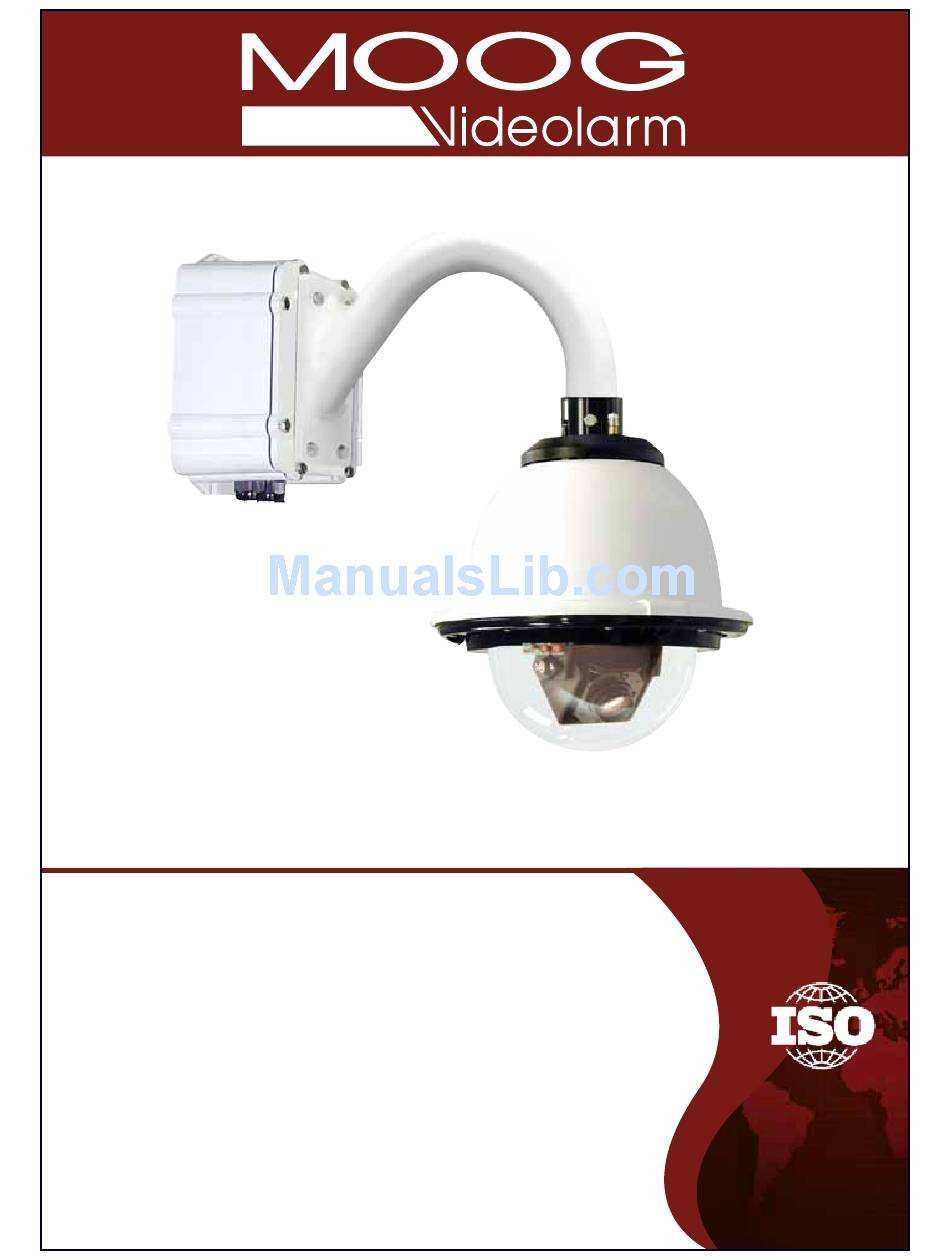

© 2009-2010, Moog Videolarm, Inc. All Rights Reserved
Explosion-Proof: Purge/Pressurization Unit
Installation and Operation Instructions for the following models:
IP Network Ready 7" Explosion-Proof PurgeDome™ Outdoor PTZ Camera
EXPDWCN
Systems for Hazardous environments UL approved for Class 1, Division II
applications. Includes Purging System and Lines. With 23x zoom Day/Night
camera, MPEG-4 & MJPEG video compression, Full D1. Clear dome, with 24VAC input,
heater/ blower
Analog 7" Explosion Proof PurgeDome™ Outdoor PTZ Camera Systems for Hazardous
EXPDWCS
environments UL approved for Class 1, Division II applications. Includes Purging System
and Lines. With 23x zoom Day/Night camera, MPEG-4 & MJPEG video
compression, Full D1. Clear dome, with 24VAC input, heater/ blower
Before attempting to connect or operate this product, please read these
instructions completely. To be used with the 81-IN5409 Instruction Manual.
CERTIFIED
81-IN5410
10-19-2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog EXPDWCN
Summary of Contents for Moog EXPDWCN
- Page 1 © 2009-2010, Moog Videolarm, Inc. All Rights Reserved Explosion-Proof: Purge/Pressurization Unit Installation and Operation Instructions for the following models: IP Network Ready 7” Explosion-Proof PurgeDome™ Outdoor PTZ Camera EXPDWCN Systems for Hazardous environments UL approved for Class 1, Division II applications.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE Do not block any of the ventilation openings. - Page 3 LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship,as follows: PRODUCTCATEGORY PARTS LABOR All Enclosuresand Electronics Five (5) Years Five (5) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Three (3) Years **6 months if used in autoscan /tour operation /tour operation...
-
Page 4: Content Of Box
Content of Box Content of Box PROTECTED CAMERA ENCLOSURE SUPPLIED 1/4 “ & 3/8 ” POLY TUBING PAN / TILT DOME PURGE / PRESSURIZATION UNIT HARDWARE... - Page 5 Unit is shipped with 100’ (max) flex tubing (3/8” & 1/4”) to connect enclosure to purge pressurized unit. 2 fitting are provided as shown in the diagrams. ENCLOSURE SUPPLY OUTLET ENCLOSURE REFERENCE INLET (3/8 “ Push-in Fitting) ...
-
Page 6: System Mounting
NOTES • To ensure adequate protective gas flow to the protected enclosure, all piping and tubing must be fully reamed. English • Precaution must be taken to prevent crimping and other damage to protective gas piping and tubing. Caution must be used when opening/closing swing panel to prevent tubing kinks. •... - Page 7 TUBING CONNECTION DIAGRAMS ENCLOSURE SUPPLY OUTLET ENCLOSURE REFERENCE INLET PEPPERL FUCHS PURGE/PRESSURIZATION UNIT SYSTEM SUPPLY INLET TUBING CONNECTION DIAGRAMS DOME PRESURE GAUGE [ENCLOSURE] ATMOSPHERIC SDOEN OF WOSTOE PRESURE SAFE HIGH REFERENCE SWITCH ENCLOSURE PRESSURE REFERENCE PROTECTED CAMERA ENCLOSURE PRIMARY SECONDARY REGULATOR REGULATOR SUPPLY...
-
Page 8: Setup Procedure
CONNECTION SIZES, LENGTHS & BENDS CAMERA PEPPERL FUCHS PROTECTED REFERENCE GAS SUPPLY CAMERA (System Supply) ENCLOSURE CAMERA PURGE/PRESSURIZATION UNIT SUPPLY System Supply Camera Supply Camera Reference 3/8” OD SS Tubing SUPPLIED SUPPLIED Fully Reamed 3/8” Poly Tubing 1/4” Poly Tubing MAXIMUM: 100 ft MAX 100 ft MAX... -
Page 9: Wall Mount
WALL MOUNT: The power box may be pole mounted with the Attach unit securely to the wall mount using (4) 3/8” pole support clips. (Stainless steel straps not or 8mm hardware (not supplied). provided). INPUT: (120VAC 1A 240VAC .5A) 220-240VAC INPUT 110-120VAC INPUT 240Vac 120Vac... - Page 10 OUTPUT: (24VAC 84VA) HEATERS CAMERA 52 WATTS 32 WATTS Connect Housing Power Optional 24Vac 24Vac Power Output Main To Housing Switch Internal resettable fuses are supplied for the main 24VAC output lines. Do not connect heaters to camera output. The PB24 is not designed for 3 phase or 208V systems. CAPTIVE SCREW To secure in place, tighten captive screw.
-
Page 11: Replacement Parts List
To install the dome align the tabs and twist Hand tighten the screws on the dome. counter clockwise to secure. Recommended torque 12 inches/lb (1.35Nm). Part Number Description Replacement Parts List RP65PT851200 PAN TILT PR25DCP71000 TRIM RING ASSEMBLY WITH CLEAR DOME Distribuidor Autorizado: www.segind.com.br...
