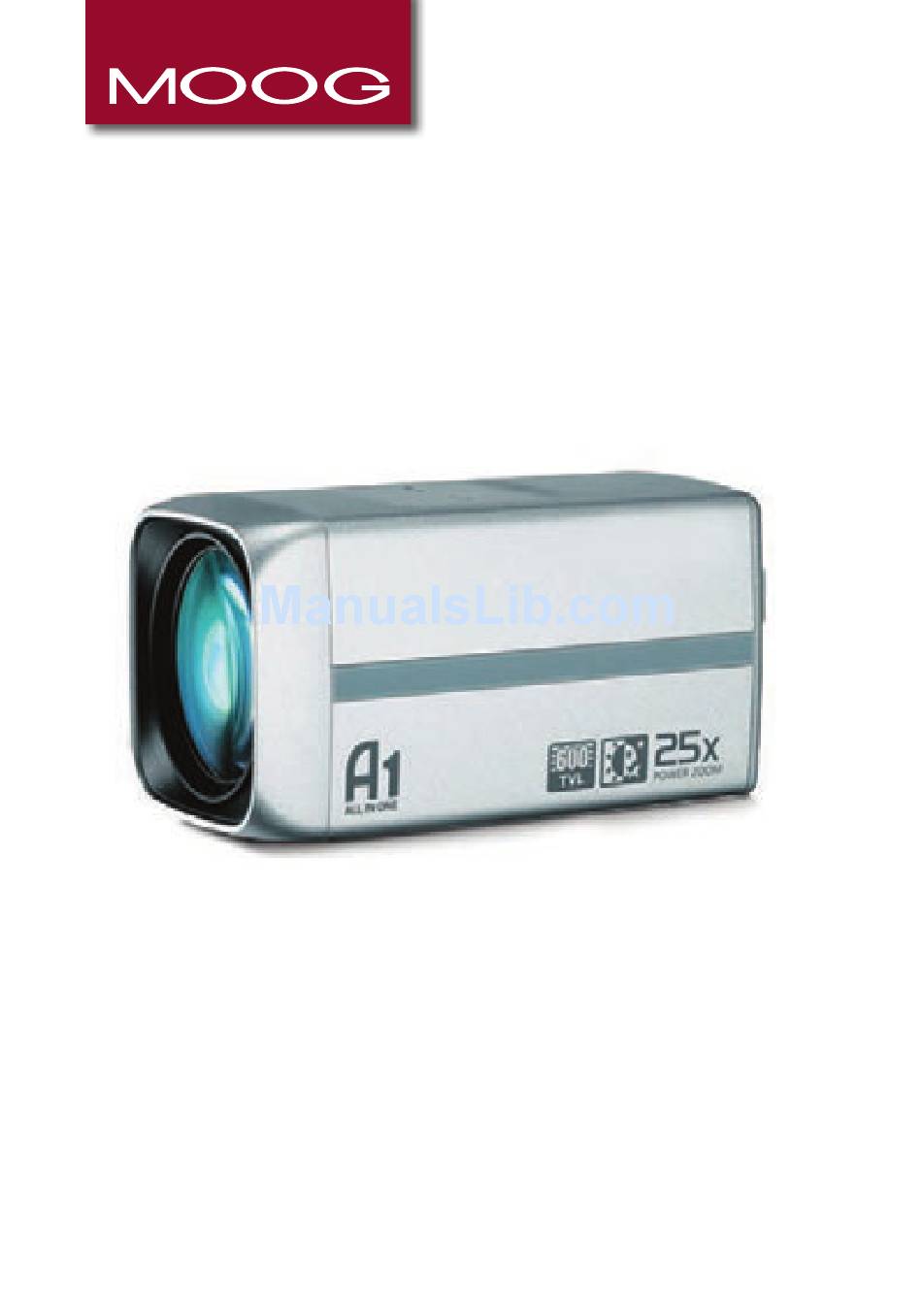

1/4" 25x High Resolution WDR
Zoom Camera with NTSC
Power Zoom Camera System
© 2013, Moog Inc. All Rights Reserved
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5494 120613
Advertisement
Table of Contents
Related Manuals for Moog CVFC2-S25
Summary of Contents for Moog CVFC2-S25
- Page 1 1/4” 25x High Resolution WDR Zoom Camera with NTSC Power Zoom Camera System Moog Inc. Sensor and Surveillance Systems 3650 Woodhead Drive Northbrook, IL. USA 60062 81-IN5494 120613 © 2013, Moog Inc. All Rights Reserved +1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com...
- Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
-
Page 3: Fcc Statement
overview FCC STATEMENT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. - Page 4 FEATURES With the sta te-of-the-art digital signal processing technology, full digital image processing and special algorithm of 600-line high resolution implemented. High Sensitivity: It implements images of high sensitivity using the up-to-date ExView-HAD PS CCD. VPS(Virtual Progressive Scan): This is an advanced technology that reproduces a sharp progressive image.
- Page 5 Rear Panel Input/Output Connector This connector has input and output ports for RS-485 control signals, DAY/NIGHT switching, and alarm output signals.
-
Page 6: Home Return
overview 1. ALARM OUT Alarm out jack for motion detection. (Open Collector, On Gnd) 2. GND Grounding jack. 3. TRIGGER IN Displays the current still image when it r eceives the T rigger signal. (Normal Open Type) 4.5.6 FOCUS, COM, ZOOM This port is used for ZOOM/FOCUS, MENU CONTROL, HOME RETURN, and ONEAF by using an external controller. -
Page 7: Setup Switch
* 2 : For short voltage supply during MENU OFF, executes ONEAF and for more than 2 second * 3 : For more than 2 second long voltage supply, moves to the PRESET 0(HOME) position. 7. 5V OUT Power supply jack for RS-485 JIG. Use within typical DC +5V 100mA. 8. - Page 8 installation & connection 4. Determine the type of power supply and set the POWER SELECTION switch accordingly. Next, plug the power adapter into a wall outlet. 5. If the camera operates normally, the following screen will be displayed for 5 seconds and then disappears. TYPE 4_25ZOM_WDR_N PROTOCOL...
-
Page 9: Main Menu
setup Using OSD icons : If these icons appear in the left and right corner of a menu item, you can use them move to the previous or next menu. (EXIT): Exits the menu setup screen. Before exiting the setup screen, select < SAVE > to save your settings to the whole menus, or <QUIT >... - Page 10 CAMERA SETUP MENU STANDARD GAMING BACKLIGHT DAY/NIGHT Parent Menu Sub-menus LEVEL BACKLIGHT IRIS WEIGHT Custom Setting Custom Setting MEDIUM Custom Setting Custom Setting WDR LEVEL Custom Setting Custom Setting Custom Setting Custom Setting WHITE BAL Custom Setting Custom Setting Custom Setting Custom Setting Custom Setting (F.FAST) (F.FAST)
-
Page 11: Camera Set
setup CAMERA SET Select <MAIN MENU> - <CAMERA SET>. CAMERA SET The Camera Setup menu appears. CAMERA ID Change the settings as necessary, or S I R I select an item to check. MOTION (F.FAST) --- D I M S --- U - S C I L D I M... - Page 12 IRIS The IRIS menu is useful if you set to adjust the intensity of radiation incoming to the camera. [ 00 ] ----I---- LEVEL G I L ALC : Adjust the open and close of the iris. AREA USER - LEVEL : Select an overall brightness level. <SIZE>...
- Page 13 setup With this, you can adjust the AGC level of a CAMERA SET camera. CAMERA ID With AGC active, if the signal strength falls below the standard level, AGC will amplify the S I R I video signal to automatically improve the (VERY HIGH) --- D I M sensitivity.
- Page 14 SHUTTER CAMERA SET CAMERA ID speed in 7 options ranging from 1/100 to 1/10k, S I R I which is mostly used to take a picture of a fast (VERY HIGH) --- moving object. D I M SHUTTER 1/100 U - S OFF) --- As long as SENSE UP is set to AUTO, FIXED / FLICKERLESS...
- Page 15 setup DAY/NIGHT You can specify a recording mode according to the scene. DAY/NIGHT AUTO WHITE BAL Select <CAMERA SET> - <DAY/NIGHT>. FOCUS MODE ONEAF ZOOM SPEED [ 2 ] Select a screen transition mode according DISPLAY ZOOM to the illumination, and set options as DIGITAL ZOOM appropriate.
-
Page 16: White Bal
EXT : The interface to an external alarm enables an automatic switch between DAY and NIGHT mode. If you use an infrared light source while in AUTO mode, this may cause a failure in AUTO SWITCH or AUTO FOCUS. WHITE BAL If you need to adjust the color according to the ambient illumination, you can use the <WHITE BAL>... -
Page 17: Focus Mode
setup You can set the R-GAIN, and B-GAIN value only in <AWC> mode. WHITE BAL MODE [ 00 ] ---- I ---- NIGHT : You can set the < WHITE BAL > [ 00 ] ---- I ---- BLUE according to the ambient illumination. [ 0064 ] R-GAIN If NIGHT mode is set to <... -
Page 18: Zoom Speed
the focus manually, that will operate the same as in <MF>. This will also restore focus after the operation of zoom. - ONEAF : Restores focus after the operation of zoom, and operates the same as in < MF> G I N / Y O unless the operation of zoom is executed. - Page 19 setup - If selecting <LINE>, the camera will use an external power frequency for synchronization. The LL-PHASE can be adjusted as appropriate. It’s a must to use AC 24V power supply when you select line lock for SCZ-2250P(N) SCZ-3250P(N) Line lock is not available for SCZ-2250PD(ND) SCZ-3250PD(ND) AGC COLOR SUP...
-
Page 20: Intelligent Video
taken under a fl uorescent lamp / Regular-patterned image. INTELLIGENT VIDEO You can enable the motion detection and tracking functions. Select <MAIN MENU>-<INTELLIGENCE>. Select each item and set appropriately. MOTION You can enable the motion detection and INTELLIGENCE tracking functions. MASK AREA If you set it to <DETECTION>, the <... -
Page 21: Alarm Out
setup MASK AREA MASK AREA Select the number of the area to be <SIZE> masked that will be excluded from <LOCATION> motion detection. Select the mask number and set the mask size and its coverage. DISPLAY When selected < ON advanced function. -
Page 22: Privacy Zone
PRIVACY ZONE You can set up to 12 privacy zones that will be hided for privacy of the subject when recording. Zone Setup Select <MAIN MENU>-<PRIVACY PRIVACY ZONE ZONE>. Select the number of the zone and press [ENTER]. PRIVACY SET The Zone setup screen appears. - Page 23 setup PRESET This function provides preset camera settings such as zoom and focus so to enable quicker and easier accessing and monitoring, which supports up to 512 presets. Select <MAIN MENU>-<PRESET>. MAIN MENU Select the preset number. PROFILE CAMERA SET Select <POSITION>.
-
Page 24: Other Set
OTHER SET You can reset the system by running FACTORY DEFAULTS, or set the font color etc. LANGUAGE OTHER SET Sele ct <LANGUAGE > and use the left/right LANGUAGE ENGLISH button to select a preferred display language. EXTERNAL TRG (OFF)--- Select <MAIN MENU>-<OTHER SET>. - Page 25 setup CTRL TYPE By inputting the wire remote port, you may set up the A, B, C or D mode. Tele Wide Near Code COMMUNICATION COMMUNICATION Select <MAIN MENU>- PROTOCOL SAMSUNG-E SAMSUNG <COMMUNICATION>. BAUD RATE 9600 ADDRESS Select each item and set appropriately. PROTOCOL, BAUD RATE, ADDRESS : You can manually set the protocol, baud rate and address.
-
Page 26: System Info
SYSTEM INFO You can check the system information. SYSTEM INFO Select <MAIN MENU>-<SYSTEM INFO>. TYPE 4_25ZOM_WDR_N PROTOCOL SAMSUNG SAMSUNG-E The current system information is displayed. COMM. TYPE RS485, HALF BAUD RATE 9600 SERIAL NO. 000000000000000 v2.00 _ 100501 CAMERA VER. SYSTEM INFO TYPE 4_25ZOM_WDR_N... -
Page 27: Specifications
SPECIFICATIONS Item Description Product Type Power Zoom Camera Power Source AC 24V(50Hz), DC 12V Power Consumption 5.2W TV Standard NTSC / PAL STANDARD COLOR SYSTEM ExView-HAD PS CCD Image Sensor 768(H) × 494(V) Horizontal : 15, 734 Hz (INT) / 15, 750 Hz (L/L) TV line frequency Vertical : 59.94 Hz (INT) / 60 Hz (L/L) Horizontal : 600 TV LINES (color) - Page 28 appendix Item Description X128 Signal Output COMPOSITE VIDEO OUT : 1.0 Vp-p 75 ohms/BNC x25 Zoom Lens Integrated Focal length : 3.66 ~ 91.36mm Lens Aperture : F1.65(Wide) F3.0(Tale) - MOD(Minimum Object Distance) : 1000mm High Speed: OFF~1/10K sec Electronic shutter speed Low Speed: OFF~X512 2x ~ 16x...
