Counters

Counter commands can be a numeric value from 00000 to 65535. After reaching the
maximum numeric limit of 65535, an error message will be displayed and the counter will
automatically roll over and start counting again at 00000. To obtain the cumulative total of
counts after the rollover has occurred, add 65536 per each rollover (the imager does not
keep track of the number of rollovers) to the current count.
Note: All counter values will be lost if power is recycled to the imager, or if the imager
receives a Reset or Save command.
Counters by ESP

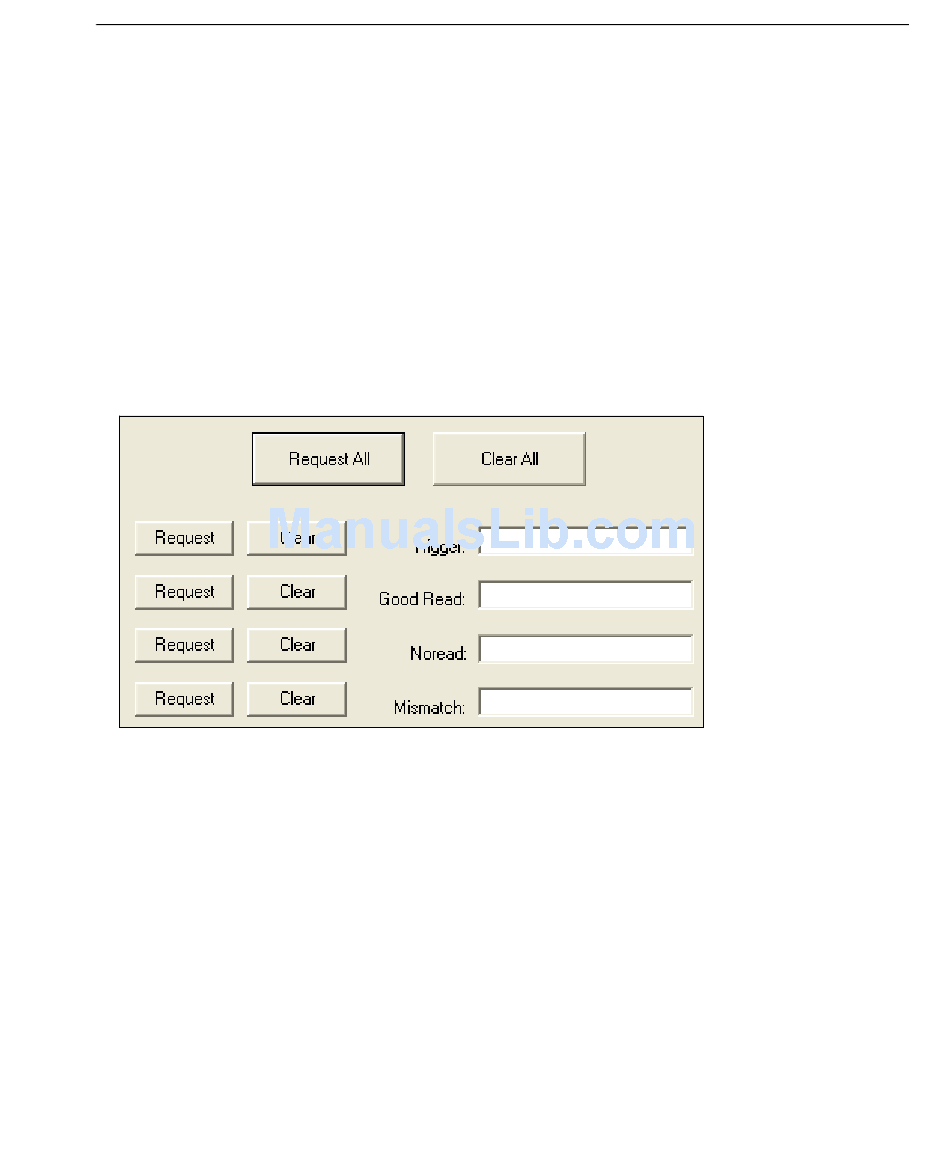

You can access Counters from ESP's Utilities menu.
Click the Request button to display the appropriate count or Clear to set the counter to zero.
