Microscan Symbol Quality Output by ESP

Microscan Symbol Quality Output by ESP

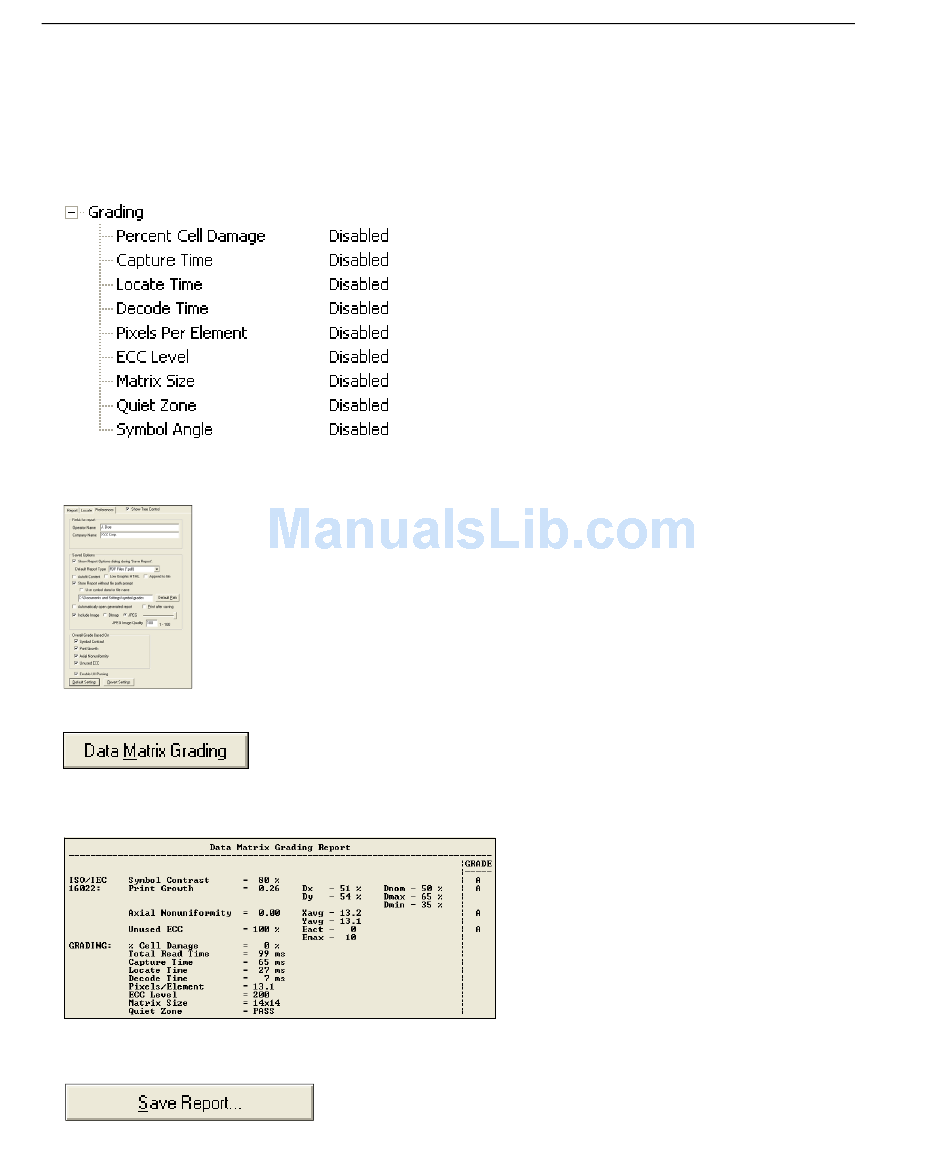

ESP's Symbol Quality interface allows you to evaluate Data Matrix symbols for compliance
with a rigorous set of standards, such as Locate Time, Capture Time, and Decode Time.
First, determine which parameters you want to evaluate, using the Symbol Quality tree control.
Once you have set these Data Matrix evaluation parameters, go to the
and set your Data Matrix Grading Report output preferences.
After your output preferences are set, click the Data Matrix Grading button.
There will be a wait of a few seconds, and then the evaluation results will appear in the
Symbol Quality view, in a format similar to the one shown below.
If you want to view the results in a report format, click the Save Report button. The report
will be output in the format you chose in the Preferences dialog.
8-16
MINI Hawk High Performance Imager User's Manual
Preferences Tab
