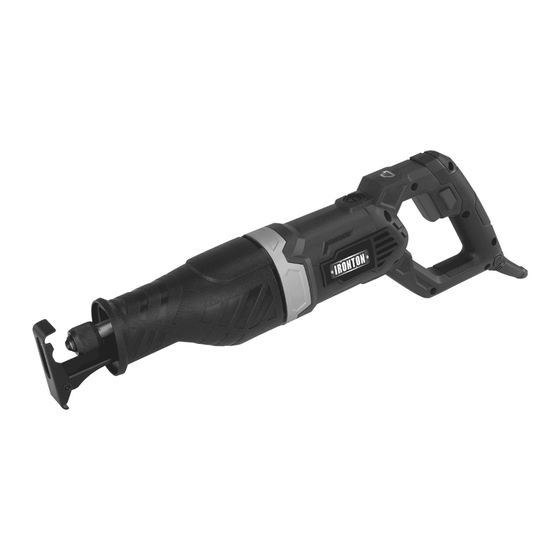

- Page 1 6 A M P R E C I P R O C A T I N G S A W OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 46181...
-
Page 2: Intended Use
Thank you very much for choosing an IRONTON product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. -
Page 3: Electrical Safety
• Inspect the work area for hazards before using tool. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. •... - Page 4 • Remove any adjusting keys or wrenches before turning the power tool on. A wrench or key that is left attached to a rotating part of the tool may result in personal injury. • Do not overreach. Maintain proper footing and balance at all times. Loss of balance can cause an injury in an unexpected situation.
-
Page 5: Extension Cords
• Feed the work piece in the correct direction and speed. Feed the work piece into a blade, cutter, or abrasive surface against the direction of the cutting tool’s direction of rotation only. Incorrectly feeding the work piece in the same direction may cause the work piece to be thrown out at high speed. - Page 6 Guidelines for Using Extension Cords • If you are using an extension cord outdoors, be sure it is marked with the suffix “W-A” (“W” in Canada) to indicate that it is acceptable for outdoor use. • Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it.
-
Page 7: Unpacking And Contents
FIG 1 KNOWING YOUR RECIPROCATING SAW (FIG 1) 1. Blade 5. Power-On Indicator 2. Pivot Shoe 6. ON/OFF Trigger Switch 3. Quick-Release Blade Clamp 7. Lock-On Button 4. Carbon Brush Cover 8. Shoe Locking Screws UNPACKING AND CONTENTS IMPORTANT: Due to modern mass production techniques, it is unlikely the tool is faulty or that a part is missing. -
Page 8: Power Indicator
INSTALLING THE BLADE (FIG 2) Check that the blade you are inserting matches the material you are cutting. Start with a sharp blade. Twist the quick release blade clamp as far as it will go in the direction of the engraved arrow (counterclockwise if facing the saw). -
Page 9: General Cutting
GENERAL CUTTING Clamp your work piece if it is portable, rest the front shoe of the saw on your work piece (be sure the blade is not contacting the work piece) and start the saw, exerting enough pressure in the direction of the cut to keep the shoe pressed firmly against the work piece at all times, Do not force the cut or stall the saw. - Page 10 DIAGRAM A ND P ARTS L IST Page of 12...
-
Page 11: Parts List
Parts List Part # Description Part # Description Baffle ring Bearing plate Outer ring Washer 4 Spring Screw M4*8 Armature (120v) Compression spring Air baffle plate Inner ring Bearing 607 Cylindrical pin Bearing sleeve Plastic washer Plastic sleeve Felt ring Plastic piece Sliding bearing Cap screw M5*14... -
Page 12: Two Year Warranty
TWO-YEAR WARRANTY This product is warranted free from defects in material and workmanship for 2 years after date of purchase. This limited warranty does not cover normal wear and tear or damage from neglect or accident. The original purchaser is covered by this warranty and it is not transferable. Prior to returning your tool to store location of purchase, please call our Toll-Free Help Line for possible solutions.
