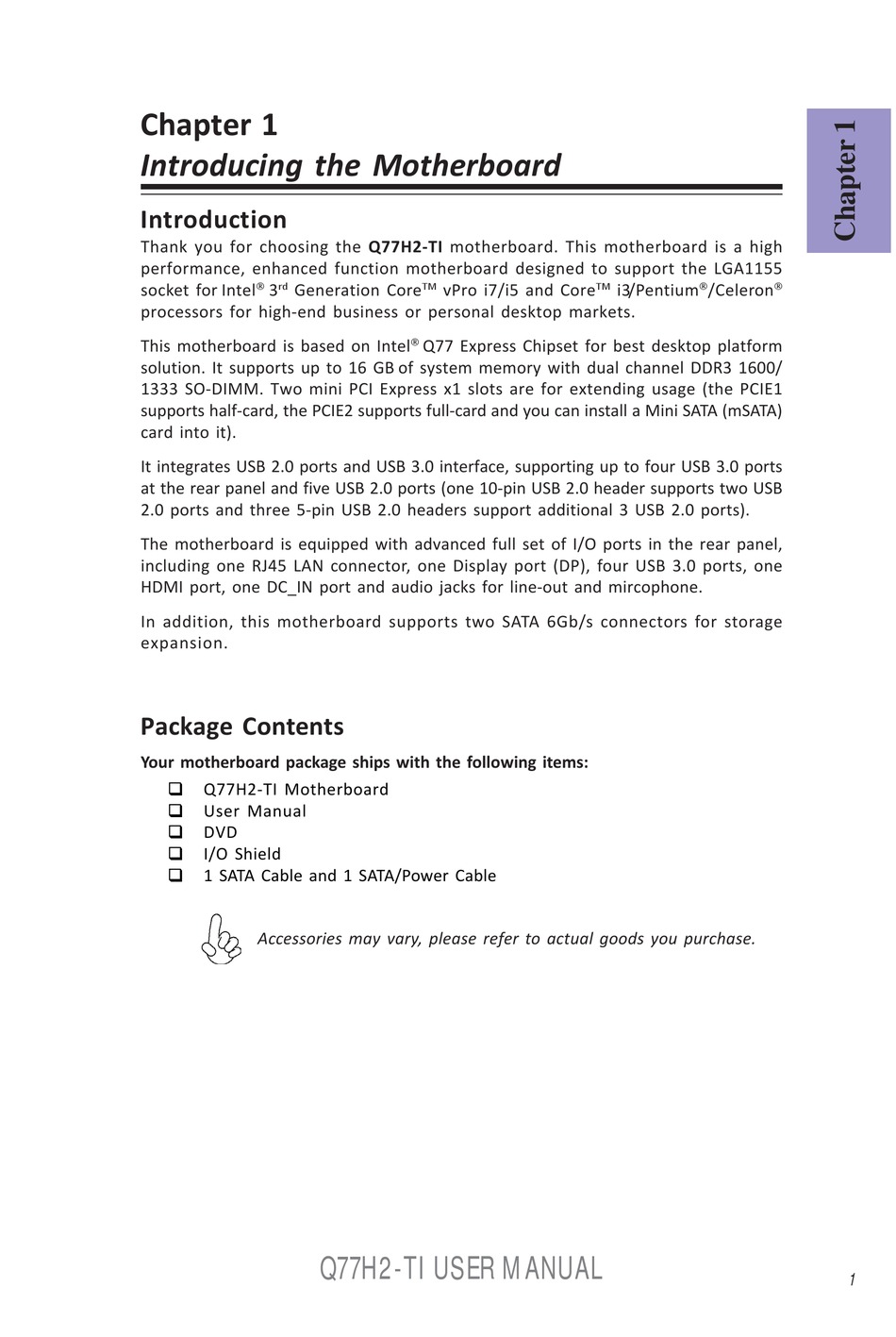

Chapter 1

Introducing the Motherboard

Introduction

Thank you for choosing the Q77H2-TI motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA1155
®
socket for Intel 3 rd Generation Core
processors for high-end business or personal desktop markets.
This motherboard is based on Intel
solution. It supports up to 16 GB of system memory with dual channel DDR3 1600/
1333 SO-DIMM. Two mini PCI Express x1 slots are for extending usage (the PCIE1
supports half-card, the PCIE2 supports full-card and you can install a Mini SATA (mSATA)
card into it).
It integrates USB 2.0 ports and USB 3.0 interface, supporting up to four USB 3.0 ports
at the rear panel and five USB 2.0 ports (one 10-pin USB 2.0 header supports two USB
2.0 ports and three 5-pin USB 2.0 headers support additional 3 USB 2.0 ports).
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including one RJ45 LAN connector, one Display port (DP), four USB 3.0 ports, one
HDMI port, one DC_IN port and audio jacks for line-out and mircophone.
In addition, this motherboard supports two SATA 6Gb/s connectors for storage
expansion.
Package Contents
Your motherboard package ships with the following items:

Q77H2-TI Motherboard

User Manual

DVD

I/O Shield

1 SATA Cable and 1 SATA/Power Cable
Accessories may vary, please refer to actual goods you purchase.
TM vPro i7/i5 and Core
®
Q77 Express Chipset for best desktop platform
Q77H2-TI USER MANUAL
®
TM i3/Pentium /Celeron
®
1
