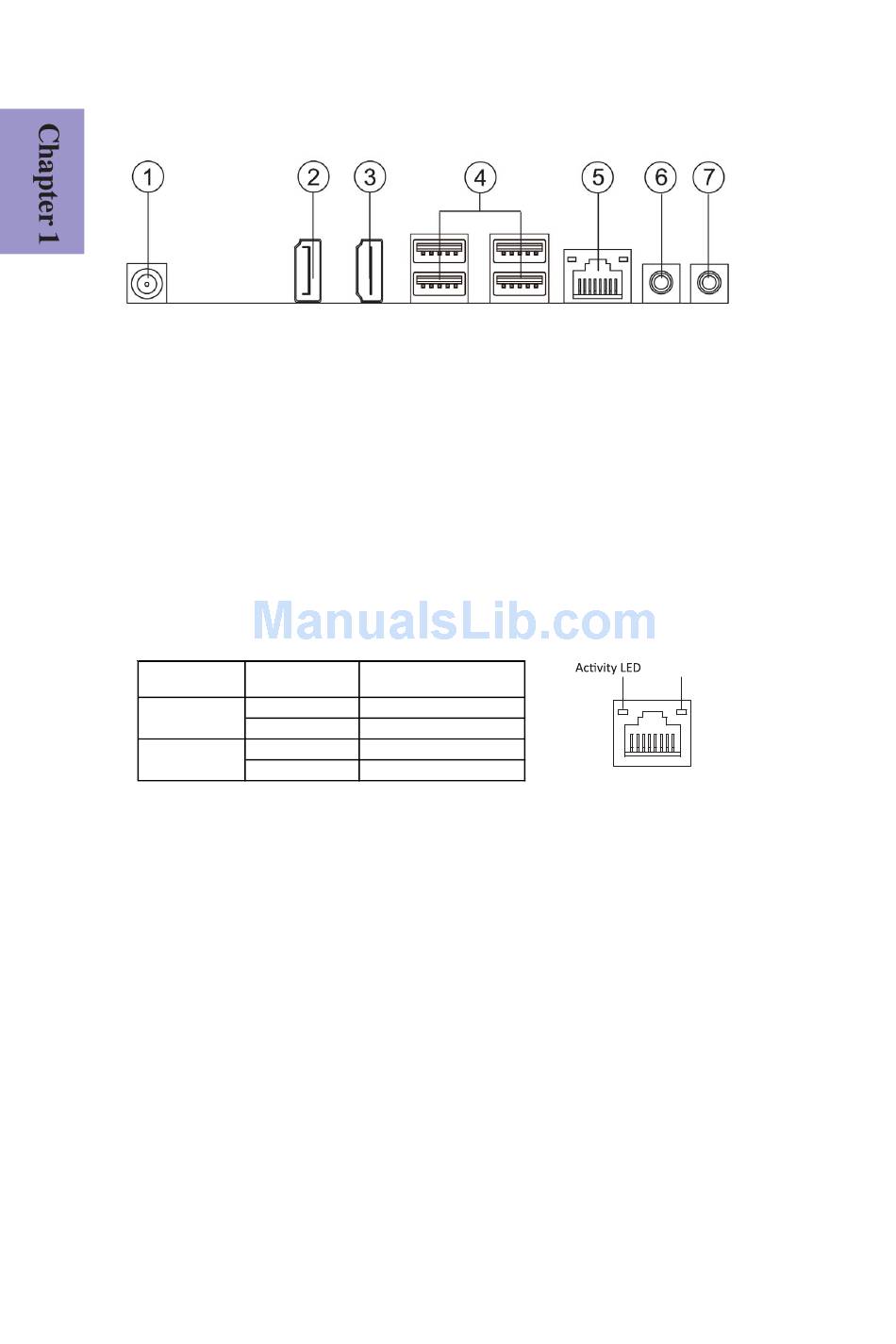

I/O Ports

1. 19V DC_IN Port
Connect the DC_IN port to the power adapter.
2. Display Port (DP)
You can connect the display device to the display port.
3. HDMI Port
You can connect the display device to the HDMI port.
4. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
5. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
LAN LED
Activity LED
Link LED
6. Line-out (lime)
It is used to connect to speakers or headphones.
7. Microphone (pink)
It is used to connect to a microphone.
6
Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Q77H2-TI USER MANUAL
Link LED
LAN Port
