I M P O R TA N T I N F O R M AT I O N
SERIAL NUMBER

Advertisement

Table of Contents
loading

Related Manuals for Polaris 340

Summary of Contents for Polaris 340

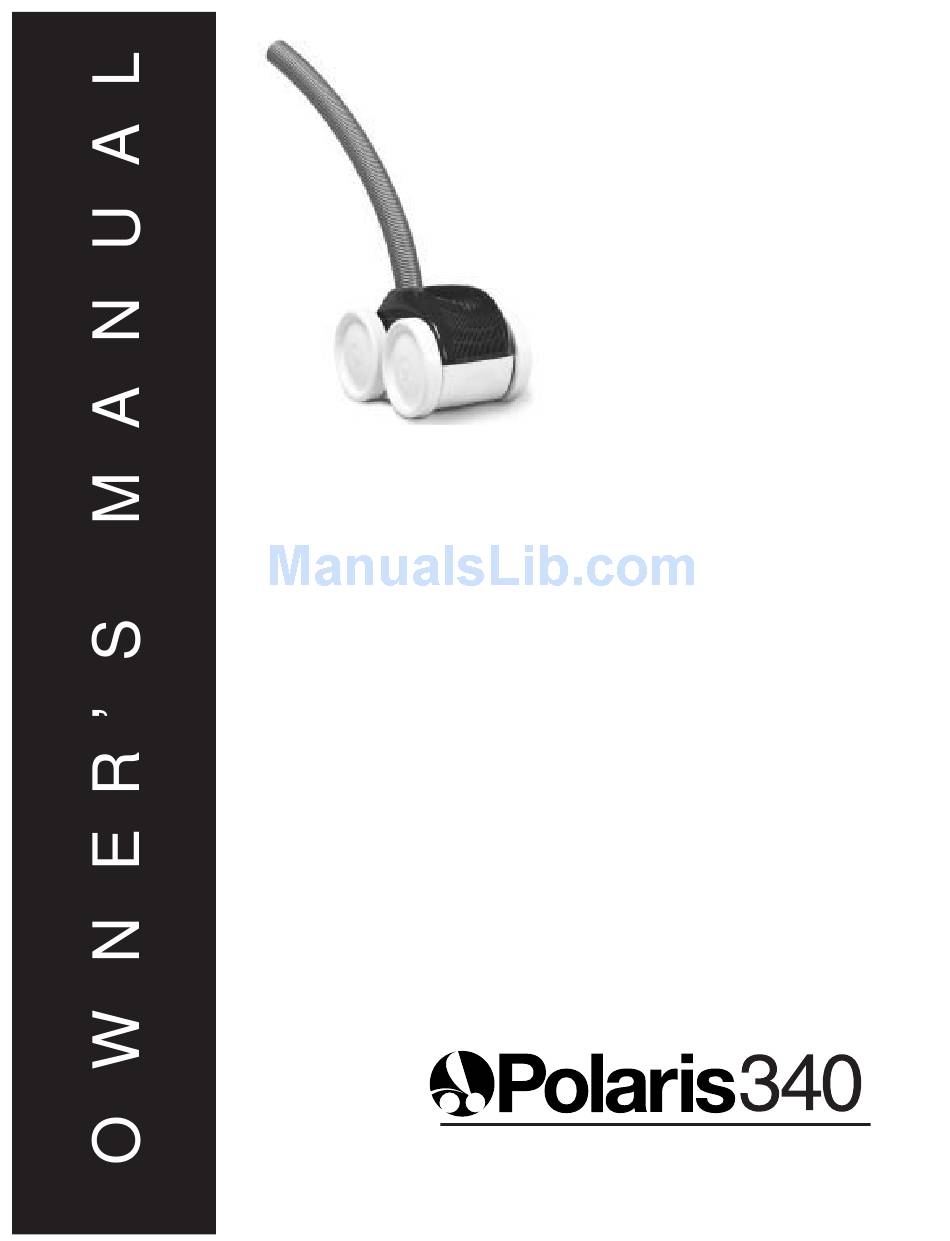

  • Page 1 I M P O R TA N T I N F O R M AT I O N SERIAL NUMBER...
  • Page 2 Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. Polaris is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.
  • Page 3 Introduction Congratulations on the purchase of your new automatic pool cleaner, and thank you for choosing Polaris. The Polaris 340 is designed to give you years of dependable and efficient service. Like most mechanical devices, the Polaris requires periodic adjustments, routine maintenance, and the replacement of certain hardworking parts.

  • Page 4: Quick Installation Instructions

    • Block flow to main drain and all skimmers that will not be used by the Polaris. If the pool does not have a valve to regulate flow to each skimmer, block the flow at the suction line.

  • Page 5: Skimmer Connection

    2. Connect remaining hose sections pushing cuffs securely together. 3. Attach standard hose with hose weight to end of hose. 4. Attach leader hose to same end. The leader hose connects to the Polaris. 5. Connect assembled hose to the hose section already attached to the pool.
  • Page 6 Polaris. Test and Adjust Water Flow For proper operation, the Polaris 340 must receive the correct amount of water flow. Check the pool’s available water flow with the flow indicator. 1. Detach hose and flow regulator, if used. Fill hose completely with water. Reattach flow regulator and hose.
  • Page 7 RPM should be between 30 to 34. 1. Mark the outer edge of a tire. 2. Submerge Polaris and remove any air in the cleaner. Connect the cleaner to the hose keeping it completely submerged. 3. Holding cleaner under water, turn pump on and count wheel revolutions for one minute.

  • Page 8: Storage And Winterizing

    Polaris. Storage and Winterizing Never store the Polaris in direct sunlight. When storing for the winter, drain out all the water (freeze damage is not covered by the warranty). Remove all connectors and adapters from the dedicated suction line or skimmer.
  • Page 9 Exploded Parts Diagram Pool Wall or Skimmer To The Polaris 28 29 Part# Description Part# Description 5-2005 Propeller Grid 5-2010 Flotation, Top, Front and Rear 9-100-5117 Screw, 8-32 x 3/8" SS Pan Head 5-5000 Power Module Assembly 5-2000 Top Housing Assembly...

  • Page 10: Troubleshooting

    Troubleshooting If the Polaris cleaner displays the following Action: Polaris "wheelies" or turns actions, adjustments may be necessary to severely to one side. restore performance. Refer to the exploded Solution: 1. Check the wheel RPM. parts diagram for part numbers indicated in parentheses.

  • Page 11: Troubleshooting Worksheet

    If these solutions do not result in 2. Remove top housing (#3) and improved performance, contact the make sure propeller (#4) is Polaris dealer who sold you the cleaner free of debris. or call Customer Service. 3. Check for proper water flow.
