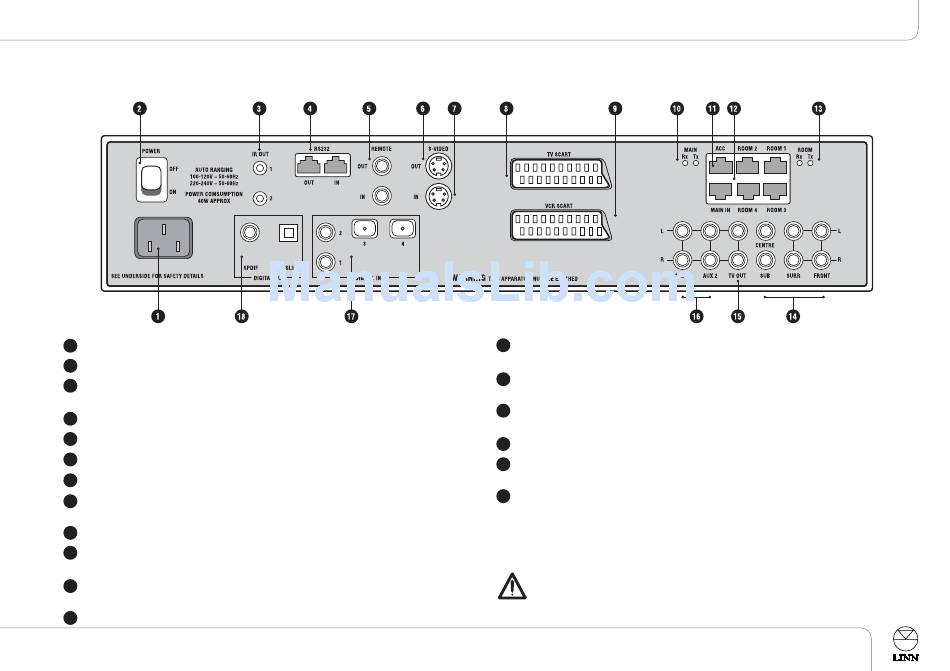

Back panel - SCART version

Mains input
1
Power switch
2
3 IR OUT 1 and 2 Infrared flasher connectors. Allow the control via the handset of
auxiliary devices that accept infrared signals.
RS232 IN and OUT For operating the unit via a PC or touch-screen device.
4
5 REMOTE IN and OUT For installing the unit in a KNEKT system.
S-VIDEO OUT For connection to a display device that accepts an S-video signal.
6
S-VIDEO IN For connection to a VCR with an S-video output.
7
TV SCART For connection to the SCART socket on a display device. This connection
8
carries composite or RGB video and two-channel audio.
VCR SCART For connection to the SCART socket on a VCR.
9
10 MAIN RX TX Indicate signals being transmitted between products in a KNEKT
system.
ACC Accessory socket. For installing the UNIDISK SC in a KNEKT system or for
11
connection to an infrared repeater.
12 MAIN IN, ROOM 1-4 For linking products in a KNEKT system.
ROOM RX TX Indicate signals being transmitted between products in a KNEKT
13
system.
Line output connectors Line outputs for connection to a power amplifier and
14
subwoofer.
TV OUT Line (fixed) level for connection to a display device with volume controls or
15
to an external pre-amplifier.
AUX 1 and 2 Analogue inputs for auxiliary sources.
16
DIGITAL IN 1-4 Two SPDIF (electrical) and two TOSLINK (optical) digital inputs for
17
auxiliary sources.
DIGITAL OUT SPDIF and TOSLINK For connection to devices with digital inputs.
18
Note:
Audio signals from Super Audio CDs and DVD-Audio discs are output as analogue only.
There is no output for these disc types from the digital connectors.
Before connecting or disconnecting any of the plugs on the back panel, the
UNIDISK SC should be disconnected from the power supply. If this is not done
you may generate surges which could damage the UNIDISK SC or other
components in your AV system.
