MAjIk DS-I
QUICkSTART

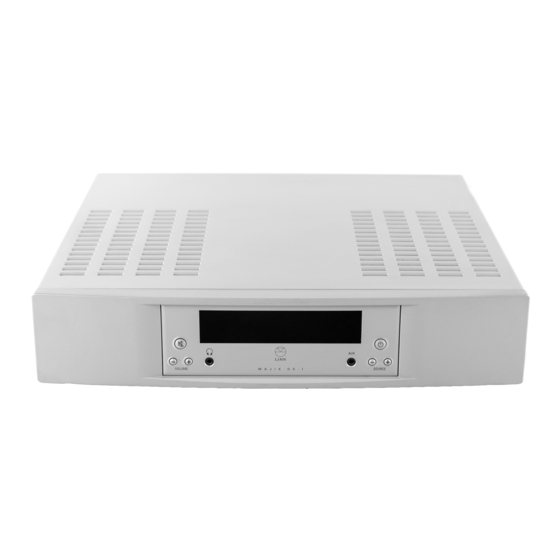

Thank you for purchasing the Linn Majik DS-I player. This guide provides basic unpack-
ing and connecting information to get you started - contact your Linn Specialist for full
installation support.
IMPORTANT:
Please refer to the printed Safety Information booklet for important safety information
and the online manual available at www.linn.co.uk/majikdsi for full instructions on
using your Linn Majik DS-I player.

Unpacking

Remove product from packaging and place on a flat surface
Please retain all packaging for future transport of Majik DS-I

Contents

1 x
Majik DS-I player
1 x mains lead
1 x luminous infra-red (IR) handset (with 2 x AAA batteries)
1 x Safety Information booklet

Positioning

Place unit on a flat, stable and rigid surface
Place unit within range of your network router or switch
IMPORTANT:
Linn recommend the use of separate dedicated network components, including
router, switch and wireless access point (if required for wireless control). Alterna-
tively, a dedicated integrated router/switch/wireless device is preferable to simply
connecting the unit directly to your home broadband router. Linn do not recom-
mend a wireless connection between DS player and network. See
www.linn.co.uk/networks for more info
Avoid positioning the unit in direct sunlight as this can interfere with the infra-red
(IR) sensor on the front panel
Do not stack components and avoid placing near other heat sources
Do not block vents or site the unit in a cabinet which prevents air flowing from front
to back
Allow at least 4" (10 cm) all the way around the unit for air circulation

Connecting

1.
Connect each left and right channel on the Majik DS-I to the equivalent terminal on
your loudspeaker using your preferred connection method (spade / banana plug / bare
wire) and ensuring a good tight connection is made in each case
2.
Connect the Majik DS-I
Ethernet socket to your network using a standard Ethernet
cable
3.
Connect any additional source components to the back panel using your preferred
connection method (phono or balanced) - use socket 4/PH for any turntable you wish
to connect (and do not connect line level source components to this socket)
Your Majik DS-I is configured as an MM (Moving Magnet) phono stage as default -
please contact your Linn Specialist if you wish to change this to MC (Moving Coil) or
convert socket 4/PH to line level
4.
Connect your mains cable but do not power on the unit yet
5.
If you have a NAS or ripping NAS then you should also ensure this is connected to
your network and powered on ( see www.linn.co.uk/nas for more info)
