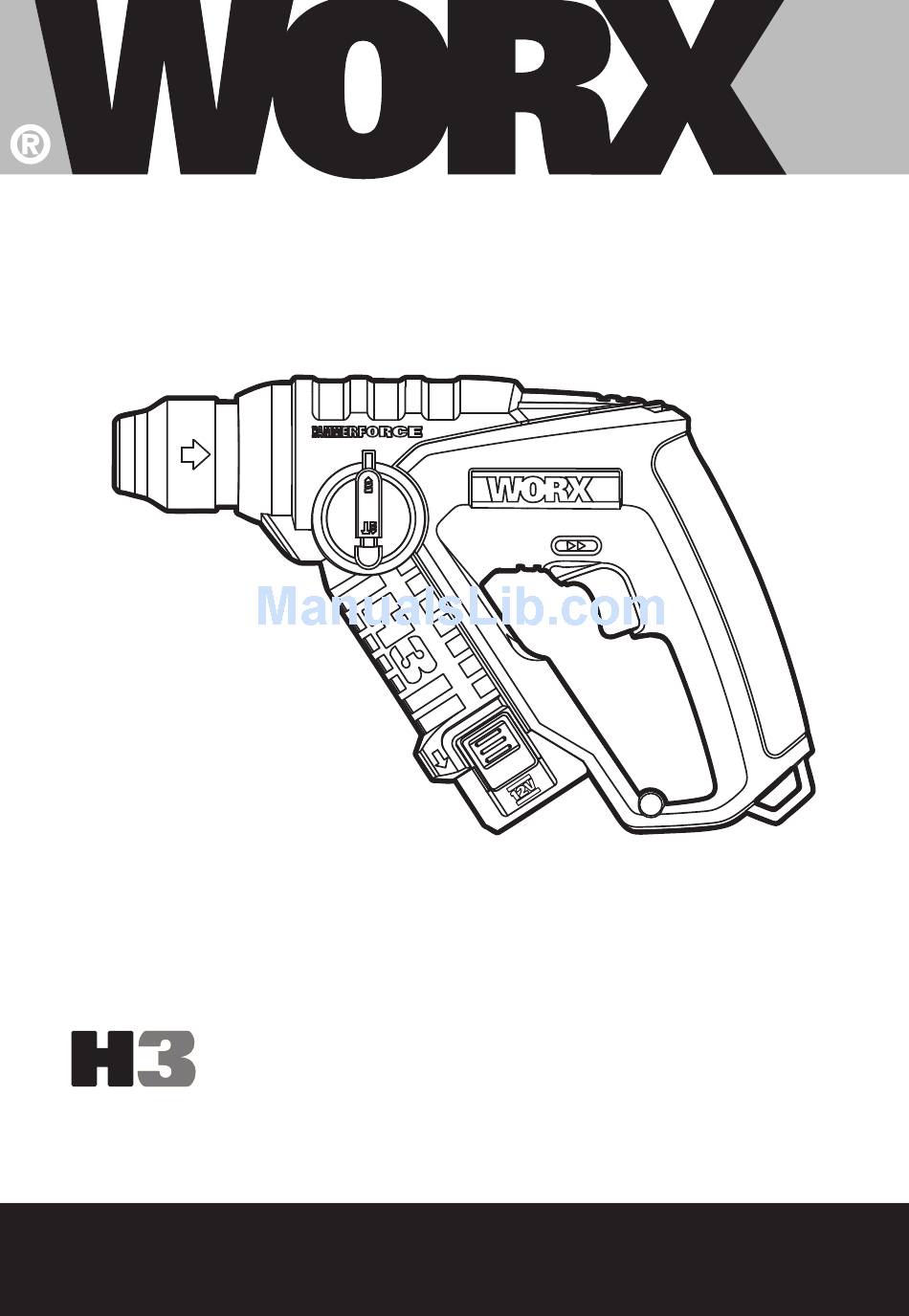

  • Page 1 SAFETY AND OPERATING MANUAL WX382 WX382.1 Cordless rotary hammer WX382.2 WX382.3...
  • Page 2: General Power Tool Safety Warnings

    GENERAL POWER TOOL suitable for outdoor use reduces the risk of electric shock. SAFETY WARNINGS f) if operating a power tool in a damp location is unavoidable, use a residual Warning! Read all safety warnings current device (rcD) protected and all instructions. Failure to follow supply.
  • Page 3 4) PoWer tool USe anD care b) Use power tools only with specifically a) Do not force the power tool. Use designated battery packs. Use of any the correct power tool for your other battery packs may create a risk of application.
  • Page 4 servicing or maintenance. Warning! This power tool produces 8. Always check walls and ceilings to avoid an electromagnetic field during hidden power cables and pipes. operation. This field may under some 9. After long working periods, external metal circumstances interfere with active or passive parts and accessories could be hot.
  • Page 5 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Do not expose to rain or water Do not burn Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point C-Tick approval mark WX382 WX382.1...
  • Page 6 WX382 WX382.1 Cordless rotary hammer WX382.2 WX382.3...
  • Page 7 DUSt Protection caP tool HolDer locking Sleeve forWarD anD reverSe rotation control on/off SWitcH caraBiner cliP Hook Battery Pack Battery Pack releaSe BUtton fUnction MoDe Selection SWitcH leD ligHt 10. ScreWDriver BitS * 11. SDS Drill BitS * 12. HSS Metal Drill Bit * 13.
  • Page 8: Technical Data

    TECHNICAL DATA Model no. WX382 WX382.1 WX382.2 WX382.3 Voltage No load speed 0-900/min Impact rate 0-4800bpm Impact energy 1.0 J Battery type Li-Ion Powershare (WA3503) Charger time 30min Battery capacity 1.3Ah Li-ion Battery pack quantity Steel Max. drilling capacity Wood 10mm Masonry 10mm...
  • Page 9 ACCESSORIES WX382 WX382.1 WX382.2 WX382.3 Battery charger 3hrs (WA3725) 30min battery charger (WA3846) Battery pack (1.3Ah Li-Ion) Keyless chuck with SDS adaptor HSS metal drill 2 (5mm,6mm) 3 (5mm,6mm,8mm) 2 (5mm,6mm) 2 (5mm,6mm) bits 4 (PH2*50mm 9 (PH1/PH2/ 4 (PH2*50mm, 4 (PH2*50mm, ,PZ1*50mm,P PH3*50mm,PZ1/...
  • Page 10 OPERATING INSTRUCTIONS note: Before using the tool, read the instruction book carefully. intenDeD USe The machine is intended for hammer drilling in concrete, brick and stone. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. Machines with electronic control and right/left rotation are also suitable for screwdriving.
  • Page 11 — reMoving (See fig. B3) Retract back the bit holder locking sleeve (2) and pull out the bit. Warning! Your new WORX Rotary Hammer Drill generates powerful forces to get your job done quickly and effectively. These forces may cause...
  • Page 12: Working Hints For Your Tool

    6. fUnction MoDe Selection (See fig. e) The operation of the gearbox for each application is set with the function mode selection switch (8). To change between functions, depress the unlocking button (15) and rotate the selector to the desired operating mode. For simultaneous drilling and impacting of concrete or masonry, choose the Hammer...
  • Page 13: Problem Solution

    condition. Where possible use a pilot hole available recycling and/or disposal options. before drilling a large diameter hole. Discharge your battery pack by operating your tool, then remove the battery pack from the tool housing and cover the battery PROBLEM SOLUTION pack connections with heavy-duty adhesive tape to prevent short circuit and energy 1.
  • Page 16 Copyright © 2013, Positec. All Rights Reserved. 2CDH04APK11007A1...
