Built-In Installation

Unpack the Unit
Uncrate the built-in unit and inspect for any damages.
Remove the wood base and discard the shipping bolts
and brackets that hold the wood base to the bottom of the
unit. Remove and discard all packing materials.
IMPORTANT NOTE: Do not discard the kickplate, anti-tip
brackets and hardware. These items will be needed for
installation.
Retract the front leveling legs all the way up to allow the
unit to be moved into position more easily. You will extend
the front leveling legs down and make adjustments once
the unit is in position.
Remove the drain pan from the base of the unit to avoid
damage to the drain pan, and allow for proper placement
of the appliance dolly.
Grille Removal
In order to prevent damage to the grille and to access the
power cord, the top grille assembly should be removed
prior to moving the unit.
To remove the grille assembly, pull out on the bottom edge
of the grille and tilt upward. Loosen the back two grille
mounting screws and remove the front two grille mounting
screws. Refer to the illustrations below. With the grille held
firmly, pull forward to remove.
To reinstall the grille, insert the grille into position and
make sure the grille catch tabs are engaged. Reinstall the
front two grille screws, then retighten the back two grille
screws. Check for proper fit.
GRILLE HEIGHT ADJUSTMENT
The grille was designed to rest on the upper door hinge(s)
to minimize the reveal between the top of the door and
bottom of the grille. To eliminate potential interference of
the grille and hinge, the grille height can be adjusted.
Loosen the four grille adjustment screws (two on each
side) and adjust the grille height as needed. For screw
location, refer to the illustration below.

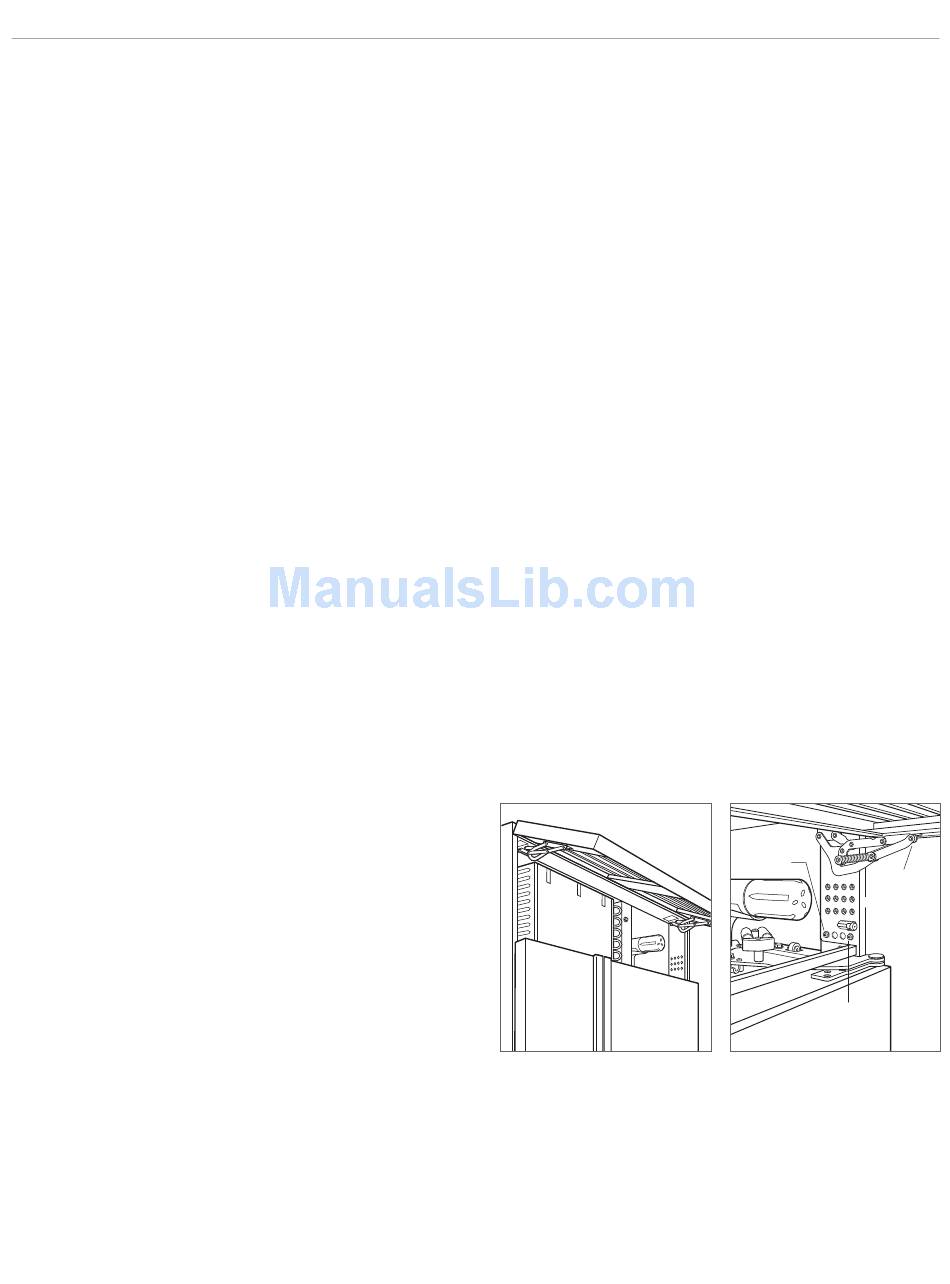

Grille removal.
BACK GRILLE
SCREW
LOCATION
OF GRILLE
ADJUSTMENT
SCREWS
FRONT
GRILLE SCREW
Grille mounting screws.
