$YD\DΠ :LUHOHVV ,3 7HOHSKRQH

User Guide

555-301-700
Issue 2
Part Number: 72-0064-20
Revision F
February 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3606 and is the answer not in the manual?

Questions and answers

Related Manuals for Avaya 3606

Summary of Contents for Avaya 3606

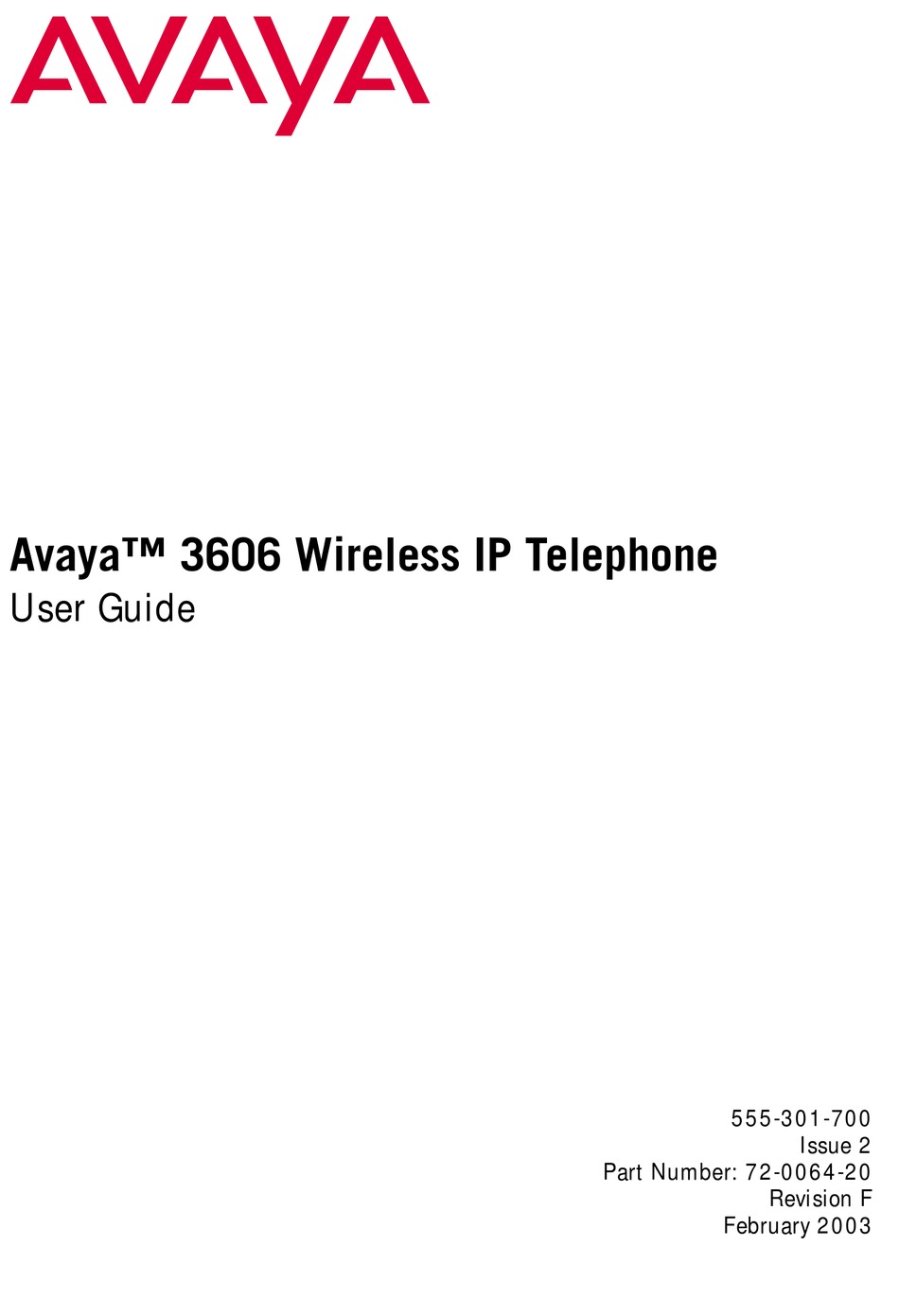

  • Page 1: User Guide

    $YD\DΠ :LUHOHVV ,3 7HOHSKRQH User Guide 555-301-700 Issue 2 Part Number: 72-0064-20 Revision F February 2003...
  • Page 2 Avaya does not warrant that this product is immune from or will prevent unauthorized use of common-carrier telecommunication services or facil- ities accessed through or connected to it.

  • Page 3: Table Of Contents

    Contents Introduction Components of the Wireless IP Telephone Turn the Wireless IP Telephone on/off Basic Call Handling Answer a call Make a Call Place a second call Place the current call on hold Retrieve a held call Hang up a call Transfer a call Conference a call Mute/unmute a call...
  • Page 4 Contents Issue 2 February 2003...

  • Page 5: Introduction

    User’s Guide Introduction  This guide contains basic instructions for using and maintaining the Avaya 3606 Wireless IP Telephone. Components of the Wireless IP Telephone The following figure shows the components of the 3606 Wireless IP Telephone. Issue 2 February 2003...

  • Page 6: Turn The Wireless Ip Telephone On/Off

    Avaya 3606 Wireless IP Telephone User’s Guide Turn the Wireless IP Telephone on/off To turn on the wireless telephone, press the PWR key. You will hear two “chirps,” indicating that the telephone is “on.” To turn off the wireless telephone, press the PWR key. You will hear one “chirp,”...

  • Page 7: Place The Current Call On Hold

    Basic Call Handling Place the current call on hold To hold the current call, press the HOLD key. The line you placed on hold flashes. Retrieve a held call To retrieve (pick up) a held call, press the LINE key and the digit for the line on hold.

  • Page 8: Conference A Call

    Avaya 3606 Wireless IP Telephone User’s Guide Conference a call 1. While active on the call, press the FCN key and the 4 key. The call is placed on hold, the line number for the call on hold flashes, and you hear dial tone.

  • Page 9: Function Key Strokes

    FCN+4) are programmed automatically for your telephone. The following table shows these default settings. The remaining feature options depend on how your Wireless Telephone was programmed by your Avaya server administrator. You can view these feature options by going off hook and pressing the FCN key repeatedly.

  • Page 10: Status/Tone Indicator Summary

    Avaya 3606 Wireless IP Telephone User’s Guide Status/Tone Indicator Summary The following table shows the status/tone indicators for the Wireless IP Telephone. Status/Tone Indicator Meaning NO SVC You have lost service (that is, you may be outside of the coverage area). Walk back Alarm Tone into the coverage area.

  • Page 11: Tips For Use

    Before you can use the wireless telephone, the Battery Pack must be charged. You can only use the wireless telephone with your facility’s Avaya call server. It is not a public cellular phone, and will not work at other locations without administration.

  • Page 12: General Care Of The Wireless Telephone And Chargers

    Earpiece may retain magnetic objects. Operation of the wireless telephone may produce an audible noise noticeable to hearing aid users. It is recommended that an Avaya headset be used by hearing aid users. This device complies with part 15 of the FCC Rules. Operation is subject to...

  • Page 13: The Wireless Ip Telephone Headset

    The Wireless IP Telephone Headset The Wireless IP Telephone Headset Avaya offers optional headsets for use in noisy environments or if you need to have your hands free while talking on the wireless telephone. To use the headset, simply plug it into the jack on the side of the wireless telephone.

  • Page 14: Removing And Replacing The Battery Pack On The Wireless Ip Telephone

    Avaya 3606 Wireless IP Telephone User’s Guide Removing and Replacing the Battery Pack on the Wireless IP Telephone To remove the Battery Pack, press down on the oval button above the Battery Pack on the back of the telephone. Slide the Pack toward the bottom of the wireless telephone until it stops, then lift up.

  • Page 15: Using The Dual Battery Charger

    The Quick Charger Using the Dual Battery Charger Place the Dual Battery Charger on a flat, horizontal surface. The user must end any call in progress by pressing the END key on the wireless telephone before placing the handset into the Charger. Place the wireless telephone in the front compartment facing forward.
  • Page 16 Avaya 3606 Wireless IP Telephone User’s Guide Every 11th charge the Quick Charger will automatically recondition the Battery Pack, as indicated by the flashing amber light. This may take from three to six hours depending on the state of the Battery Pack. To enter or exit the reconditioning mode, press the Mode button while the Battery Pack is on the Quick Charger.
