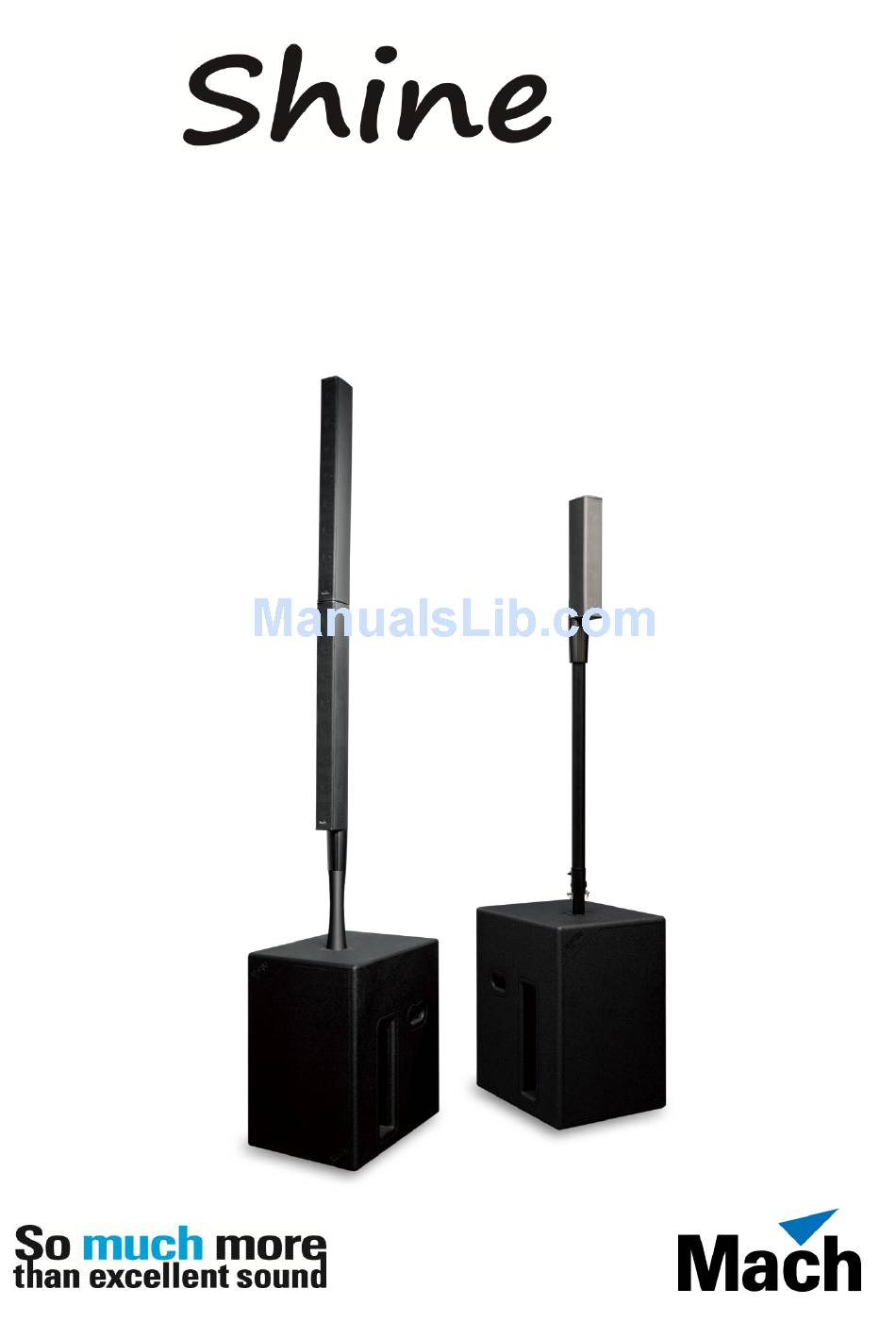

- Page 1 Series Column Speaker System User manual Shine 420 Shine 820 Shine 1220...
-
Page 2: Table Of Contents
Content Introduction -------------------------------------------------------------------------- P.3 General Instructions --------------------------------------------------------------- P.3 Cables --------------------------------------------------------------------------------- P.3 Safety Information ------------------------------------------------------------------ P.4 Technical Specifications ------------------------------------------------------- P.5-6 Accessories for Installation ------------------------------------------------------ P.7 Order Information ------------------------------------------------------------------ P.7 Mach Shine Series User Manual - 2 -... -
Page 3: Introduction
All units have excellent performance consistency and stability. They all independently developed and manufactured entirely by Mach. Sub-woofer system also uses its own special high output, long stoke woofer driver, bass cabinet is not only compact, but also can be hung installation. -
Page 4: Safety Information
It is important that loudspeaker systems are used in a safe manner. Please take some time to review the following points concerning safe use of the Mach loudspeakers. Professional loudspeakers are capable of producing extremely high sound levels and should be used with care. Hearing loss is cumulative and can result from levels above 90dB if people are exposed for a long period. -
Page 5: Technical Specifications
H 90° x V 150° Finish Black Safe Coat coating Dimensions (H x W x D) 638 x 64 x 86 mm Net weight 2.7 Kg Input connector 2 x Speakon Pin 1+, 1- - 5 - Mach Shine Series User Manual... - Page 6 ⑧ AC Power out – link to another Shine 1220 ⑨ Speaker output to top box – connecting a speaker cable. ⑩ Exhaust fans ③ ① ⑥ ④ ② ⑤ ⑦ ⑩ ⑧ ⑨ Mach Shine Series User Manual - 6 -...
-
Page 7: Accessories For Installation
6. Accessories for installation CB-01 Auxiliary mounting bracket for two vertical Shine 820 speakers SS-02 Speaker Pole bracket for Shine 420 & Shine 820 SS-01 Direct insert at top of Shine 1220 for support Shine top boxes SS-03 Direct insert at top of Shine 1220 for support Shine top boxes... - Page 8 Mach Audio Ltd does not accept any liability for loss or damage caused or alleged to be caused directly or indirectly by these instructions. The contents of the instructions may be subject to change without notice. Mach Audio Ltd makes no warranty of any kind with regard to these instructions.
