Summary of Contents for Mach CN7

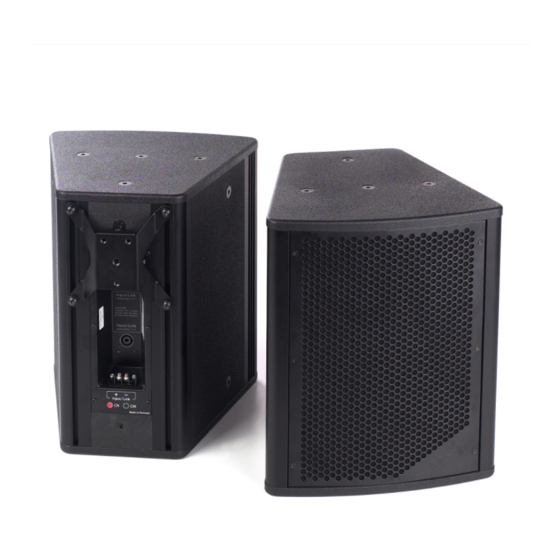

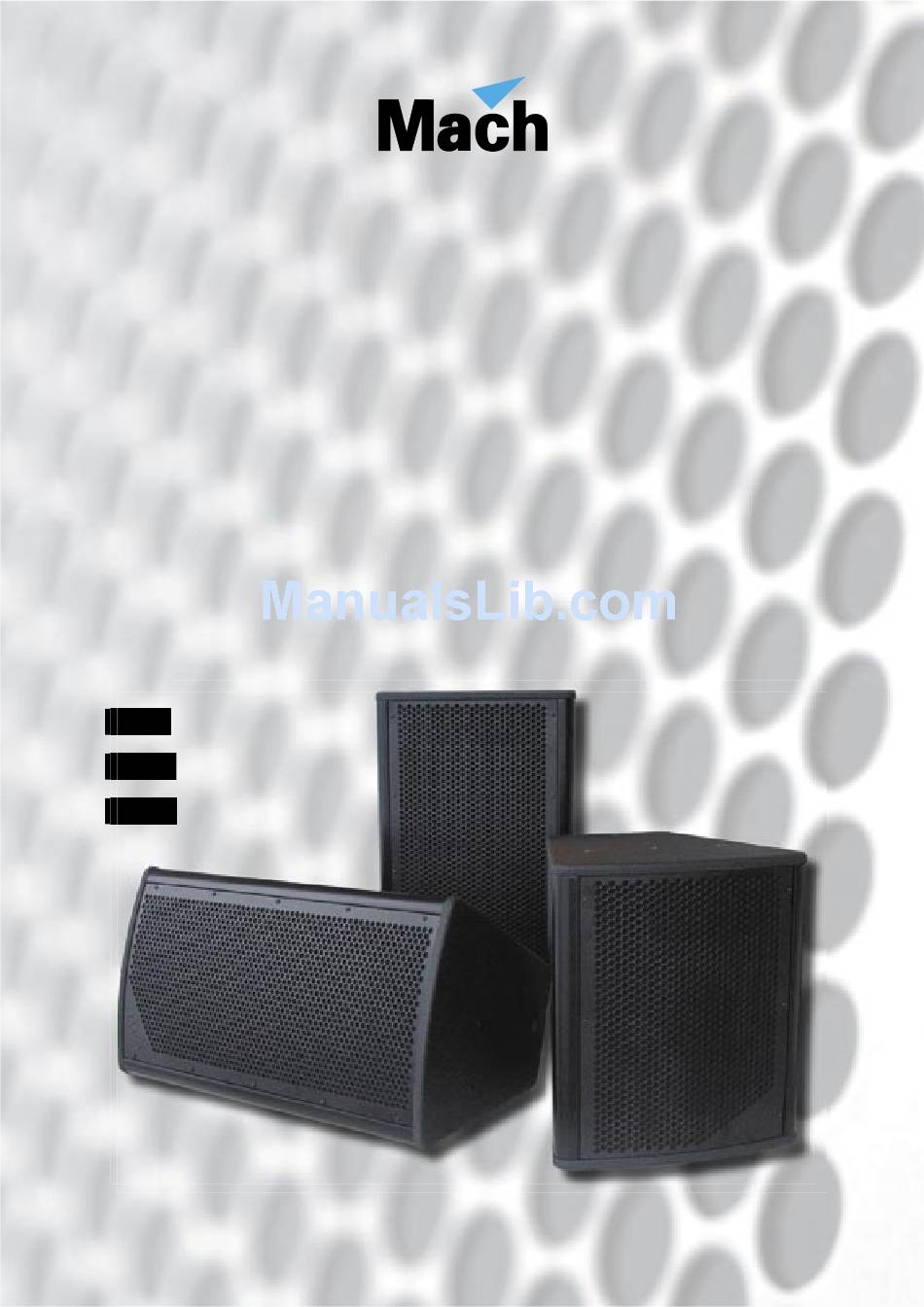

- Page 1 ser manual...
- Page 2 Mach Speakers A/S, Denmark. Mach Speakers A/S • Perspektivvej 2 • 9900 Frederikshavn • Denmark Tel: +45 72 15 08 52 • Fax: +45 98 43 14 15 • e−mail: Mach-Service@martin.dk P/N 35020015, Rev C...
-
Page 3: Table Of Contents
Cables......................................14 Simple connection ................................14 Parallel system ..................................15 System configuration...................................16 Switching between Passive and Active mode......................17 Configuring your Mach CM system for active mode operation................18 Painting the speaker ..................................21 Maintenance of speakers ................................22 How to remove grille.................................22 How to change drivers/woofers............................22 How to remove spider bracket ............................22... -
Page 4: Introduction
To get the most out of your Mach speakers and ensure an easy and trouble-free installation please read the manual carefully and follow the instructions. -
Page 5: The C-Range
4 on the spider bracket. Other ground-breaking features on the new C-range top boxes are recessed terminals with both NL-4 connectors and barrier strip terminals for mounting flush against a wall and full enclosure coating in Mach Safecoat for maximum scratch resistance. -
Page 6: Description Of The C-Range Speakers
escription of the C-range speakers The range can be divided into 3 different groups of products: Near-field top boxes and full-range speakers for medium SPL application where ultimate sound quality is required at low-to-medium SPL with low-to-medium projection and with wide dispersion. Medium-throw top boxes and full-range speakers for high SPL applications where ultimate sound quality is required at medium-to-high SPL with medium projection and with more focused dispersion. -
Page 7: Installation
Your new Mach C-range speaker is one of the most versatile products on the market and every possible effort has been made to make it quick and easy to install your product. The many different installation options available will be described below. -
Page 8: Spider Bracket
pider bracket All CN and CM speakers are supplied with the revolutionary spider bracket shown below. The bracket can be mounted vertically and horizontally depending on the direction the speaker should be flown and enables easy mounting on the wall bracket with a minimum of time and effort. -
Page 9: How To Install Your C-Range Speaker On The Optional Multibracket
ow to install your C-range speaker on the optional Multibracket The C-range is available with an optional Multibracket that represents the optimum solution for many types of wall and ceiling installations. Adjusting the angle Loosen the vertical adjustment locking bolt, remove the locking pin and adjust the bracket to the required vertical position. - Page 10 To mount a CN or CM cabinet on a wall please use the following procedure 1. Find the correct position on the wall and mark where the base of the bracket should be positioned 2. Take the bracket and hold the base flat to the wall at the marked position. 3.
-
Page 11: How To Install Your C-Range Speaker With The U-Bracket
ow to install your C-range speaker with the U-bracket All the smaller models in the C-range are supplied with a U-bracket as standard. For many installation purposes this bracket will be the optimum solution as it is very versatile and easy to use. Illustrated below are a number of ways to use the U-Bracket. -
Page 12: How To Mount Speaker With Eyebolts
The eyebolt should be tightened with no more than 5 NM (3.7 ft-lbs). The certified load for the standard Mach eyebolt is 4000 kilograms (8800 lbs) Warning! Make sure that you comply with all local health and safety regulations when you fly a product. -
Page 13: Rotatable Horn
otatable horn The CM-9 features a rotatable horn that allows the speaker to be flown vertically or horizontally and still maintain the required dispersion.The default positioning of the horn is for horizontal installation. If vertical installation is required remove the grille and unscrew the horn base-plate.The horn can now be rotated 90 degrees to achieve the required dispersion. -
Page 14: Connection
onnection The C-range has a flexible and user-friendly connection module with double connectors, which gives the user the choice of using NL-4 connectors or screw terminals. Speakon® 2-pole cable connector with latch lock. Suited for 4-pole chassis connector using +1/-1 contacts. -
Page 15: Connecting To Amplifier
Mach Speakers A/S recommend 2x4 mm (11 AWG) or 4x4 mm (11 AWG) Mach speaker cable.This is a professional rubber cable that is waterproof, has low impedance, low inductance and low capacitance. It also has a low sulfur content that ensures minimum cable oxidation.The cable is very soft and easy to wind. -
Page 16: Parallel System
arallel system If you require more speakers for better sound distribution and you only have a limited number of output channels on your amplifier, you can connect more than one speaker to each channel.This can be done by linking the speakers for each channel in parallel as illustrated. -
Page 17: System Configuration
For maximum flexibility, all Mach CM speakers can run either passive, using the built-in crossover, or active/biamped with direct drive of each transducer.The speakers are all set up as passive from the factory but can easily be switched over to active mode at a later stage. -
Page 18: Switching Between Passive And Active Mode
Passive and Active mode For the CN7, CN8, CM7 and CM9 Mach has developed a completely new, extremely safe and user friendly way to switch between Passive and Active mode.The procedure is very quick and simple: 1. Unscrew the terminal plate with the six screws 2. -
Page 19: Configuring Your Mach Cm System For Active Mode Operation
Please note that this manual does not go into detail about the use of the Mach 20.06 controller, but all speaker presets for the Mach CM series are preloaded in new or available for download for older controllers, making the configuration of the system quick and effortless. - Page 20 Bi-amp 2-way In bi-amp 2-way configurations each transducer is driven by a separate amplifier and the system is crossed over directly by the M20.06 for 2-way full range output. Amplifier HF Crossover M.20.06 Output Input Output Input 2+/2- Mains Mains Amplifier LF Output Input...
- Page 21 Triple-amp 3-way In a triple-amp 3-way system each transducer is run by a separate amplifier and all signal modulation is done by the M20.06. Amplifier HF Output Input Crossover M.20.06 2+/2- Mains Amplifier LF Output Input Mains Output Input 1+/1- Mains Amplifier Sub Output...
-
Page 22: Painting The Speaker
The C-range cabinets are made of MDF coated with Mach Safecoat and can be painted easily to match the color scheme of your venue. To paint your speaker please follow the procedure below: 1. Remove the front grille 2. -
Page 23: Maintenance Of Speakers
Although speaker systems normally only require very limited maintenance there are several things you can do to ensure that your Mach system sounds as good 3 years after installation as on the day you bought it: Never overload your system – stay within the specified limits for power handling. -
Page 24: Technical Information
Featuring 18 flying points - four of which are fully adjustable - and a customized U-bracket included as standard with every speaker, the C-Range is an extremely versatile installation speaker series.The distinct new CN7 in the C-Range speaker series from MACH powerfully projects every nuance of pure sound in any environment you choose. -
Page 25: Specsheet Cn8
18 flying points - four of which are fully adjustable - and a customized U-bracket included as standard with every speaker, the C-Range is an extremely versatile installation speaker series. The distinct new CN8 in the C-Range speaker series from MACH powerfully projects every nuance of pure sound in any environment you choose. SPECIFICATIONS... -
Page 26: Specsheet Cm7
18 flying points - four of which are fully adjustable - and a customized U-bracket included as standard with every speaker, the C-Range is an extremely versatile installation speaker series. The distinct new CM7 in the C-Range speaker series from MACH powerfully projects every nuance of pure sound in any environment you choose. SPECIFICATIONS •... -
Page 27: Specsheet Cm9
18 flying points - four of which are fully adjustable - and a customized U-bracket included as standard with every speaker, the C-Range is an extremely versatile installation speaker series. The distinct new CN8 in the C-Range speaker series from MACH powerfully projects every nuance of pure sound in any environment you choose. SPECIFICATIONS... -
Page 28: Warranty
Manufacturer: MACH Speaker A/S Perspektivvej 2 9900 Frederikshavn Denmark We, MACH Speakers A/S, declare under our responsibility that the following product(s) Product: CN7/CN8/CM7/CM9 Type: Speaker Are in conformity with: - COUNCIL DIRECTIVE of 3 May 1989 on the approximation of the laws of the Member States relating to... -
Page 29: Ordering Spare Parts
In the unlikely event of your speaker breaking down some of the components can be ordered as spare parts. For information on how to order in your country please contact your local supplier or contact the head office in Denmark at the following address: Mach Speakers A/S Perspektivvej 2 DK-9900 Frederikshavn... -
Page 30: C-Range Overview
-range overview Co-designed by contractors for contractors, the C-range is a breakthrough in installation speaker design and offers extraordinarily easy installation. From full range near-field speakers to medium-throw speakers, the C-range is ideal for many types of venues such as bars, cafés and large live or playback venues. Specifications: Power rating IEC268: 320 watt Power rating peak: 1280 watt... - Page 31 Specifications: Power rating IEC268: 450 watt Power rating peak: 1800 watt Sensitivity 1w/1m: 102 dB Max SPL, calculated long term: 129 dB Max SPL, peak: 135 dB Frequency response +/-3dB: 58 Hz - 20 kHz Dispersion Angle: H 90deg x V 55deg Nominal impedance: 8 ohm Recommended amplifier: 650 watt in 8 ohm WEIGHT &...
-
Page 32: Ci Range Overview
I range overview A perfect complement to the C-range in most retail and club environments is the Mach CI series. All Mach CI in-fill speakers have wide, even dispersion that ensures good coverage in low ceiling applications. Specifications: Power rating IEC258... - Page 33 Supplier Mach Speakers A/S www.mach.dk...
