- Page 1 CI 4 CI 6 CI 8 Manual for the CI series...
- Page 2 Reproduction in any matter whatsoever without the written permission of Mach Speakers A/S is strictly forbidden. Mach Speakers A/S • Perspektivvej 2 • 9900 Frederikshavn • Denmark Tel: +45 72 15 08 52 • Fax: +45 98 43 14 15 • e−mail: Mach-Service@martin.dk P/N 35020017 Rev.A...
-
Page 3: Table Of Contents
Table of contents Introduction The CI series Included items Description of CI speakers CI4, 6 and 8 Mounting bracket CIW Subwoofer How to install your CI speaker Auxiliary mounting bracket Mounting speaker on bracket How to insert speaker cable How to attach safety wire... -
Page 4: Introduction
To get the most out of your Mach speakers and ensure an easy, trouble-free installation, please read the manual carefully and follow the instructions. -
Page 5: The Ci Series

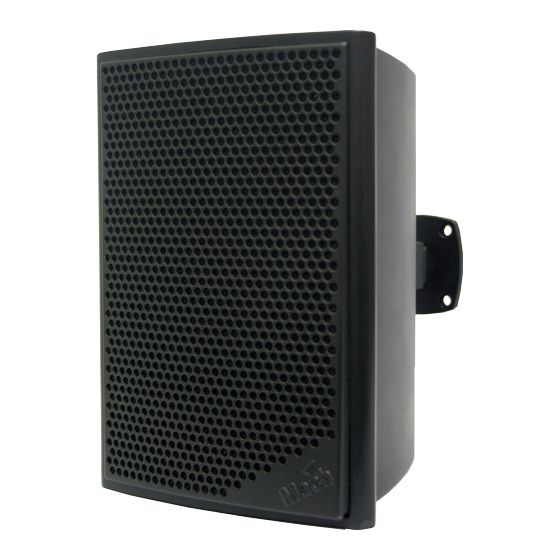

The CI series has been designed specifically for contractors as a high quality, ultra- flexible solution with all necessary brackets included in one convenient package. The CI4, 6 and 8 are all 8 ohm two-way speakers with a horn with uniform dispersion for very flexible positioning. The cabinets have been shaped to achieve both an appealing and attractive appearance and very easy mounting. -
Page 6: Included Items
Contents of the box The Mach CI speaker is supplied as a complete system and your sales package should contain the following items: 2 Speakers 2 Wall hanging brackets 2 Auxiliary mounting brackets 2 Safety wires 2 Safety screws 8 Wall screws... -
Page 7: Description Of Ci Speakers
Description of CI speakers CI4, 6 and 8 The cabinet for the CI4, 6 and 8 speakers is made of ABS plastic to achieve the right combination of strength, functionality and design. The drawing below shows the functional features of the cabinet. -
Page 8: Mounting Bracket
Mounting bracket The CI series is supplied with a unique Mach TF mounting bracket that enables horizontal and vertical adjustment without the use of tools. The Mach TF bracket is illustrated below To adjust the bracket, loosen the round locking knob on the top of the bracket by turning counterclockwise, and adjust to the desired horizontal and vertical position. -
Page 9: Ciw Subwoofer
CIW subwoofer The CIW subwoofer is constructed as the perfect supplement for the CI4, 6 and 8 speakers. The CIW has an amazing low-end sound quality unmatched by any other competing subwoofer product and the unique cabinet construction enables easy, flexible installation. -
Page 10: How To Install Your Ci Speaker
How to install your CI speaker How to mount the bracket on the wall To mount the Mach TF bracket on a wall: 1. Find the correct position on the wall and mark where the base of the bracket should be positioned. - Page 11 The Mach TF bracket is extremely versatile and can be used for mounting the speaker in most of the required positions as illustrated. Side view Side view Top view vertical horizontal vertical...
- Page 12 Wall mounting Wall mounting Outdoor wall mounting Ceiling mounting Ceiling mounting Mounting on pole Table Table Mounting on pole...
-
Page 13: Auxiliary Mounting Bracket
Auxiliary mounting bracket For rare situations where the Mach TF bracket will not be suitable for mounting the speaker, the CI series is also supplied with an auxiliary mounting bracket. This bracket can still use the built-in quick release system in the speaker cabinet, but... -
Page 14: Mounting Speaker On Bracket
Mounting speaker on bracket To mount the speaker on the Mach TF bracket, insert one side of the Mach TF end square into the speaker locking plate, press the locking button down and insert the other side of the end squeare. Once the end square is completely inside the locking plate, release the locking button and make sure that the end square is now locked tightly into place. -
Page 15: How To Attach Safety Wire
How to attach safety wire The safety wire is attached to the speaker at one end and the wall at the other. To attach the safety wire to the speaker, please screw the fastener screw tightly into the speaker cabinet. -
Page 16: Connecting To Amplifier
Connecting to an amplifier The way you connect your CI speakers to your amplifier depends on the type of installation that you are creating and the type of amplifier used. Simple connection The most basic type of connection is a direct connection from one channel on the amplifier to one speaker. -
Page 17: Parallel System
Parallel system If you require more speakers for better sound distribution and you only have a limited number of output channels on your amplifier, you can connect more than one speaker to each channel. This can be done by linking the speakers for each channel in parallel as illustrated. -
Page 18: Serial System
Serial system If the amplifier has a minimum impedance of 8 ohms it is still possible to connect more than one speaker to each channel by using serial connection. When using serial connection, however, please remember that the output will drop according to the number of speakers attached to each channel. -
Page 19: Maintenance Of Speakers
Maintenance of speakers Even though speaker systems normally only require very limited maintenance there are several things that you can do to ensure that your Mach system will sound as good 3 years after installation as on the day you bought it: Never overload your system but stay within the specified limits for power handling. -
Page 20: Technical Information
Technical information CI 4 Specifications: Power rating IEC258 Power rating peak 200W Recommended amplifier Freq. Range +/-3dB 120Hz-20KHz Freq. Range +/-10dB 80Hz-20KHz Sensitivity 1W/1m 87dB Nominal impedance 8 ohm Woofer 4” Tweeter 3/4” Dispersion 90° Flying system TF bracket, Aux mounting bracket Dimensions (H x W x D) 207x150x120mm (8.15x5.91x4.72in) - Page 21 CI 6 Specifications: Power rating IEC258 Power rating peak 260W Recommended amplifier 100W Freq. Range +/-3dB 90Hz-20KHz Freq. Range +/-10dB 70Hz-20KHz Sensitivity 1W/1m 89dB Nominal impedance 8 ohm Woofer 6.5” Tweeter 3/4” Dispersion 90° Flying system TF bracket, Aux mounting bracket Dimensions (H x W x D) 275x200x160mm (10.83x7.83x6.30in)
- Page 22 CI 8 Specifications: Power rating IEC258 125W Power rating peak 500W Recommended amplifier 175W Freq. Range +/-3dB 70Hz-20KHz Freq. Range +/-10dB 60Hz-20KHz Sensitivity 1W/1m 93dB Nominal impedance 8 ohm Woofer 8” Tweeter 1” Dispersion 90° Flying system TF bracket, Aux mounting bracket Dimensions (H x W x D) 395x290x220mm (15.55x11.42x8.66in)
-
Page 23: Troubleshooting
Troubleshooting Installing a Mach professional speaker system should be problem-free. However, installation errors or amplifier faults can impair sound quality. If cables are not connected in phase, or if connections are bad, you may experience lack of bass due to phase cancellation or no sound at all. -
Page 24: Ci6
Item text: Item number: Item text: Item number: Grille: Wall bracket black 260600400 26000475 Wall bracket white 260600410 26000476 26000477 Tweeter Ci4/Ci6 05851005 Ci4W 26000478 Tweeter Ci8 05851006 Ci6W 26000479 Ci8W 26000480 Woofer Ci4 05871003 Woofer Ci6... - Page 25 Supplier Mach Speakers A/S www.mach.dk...
