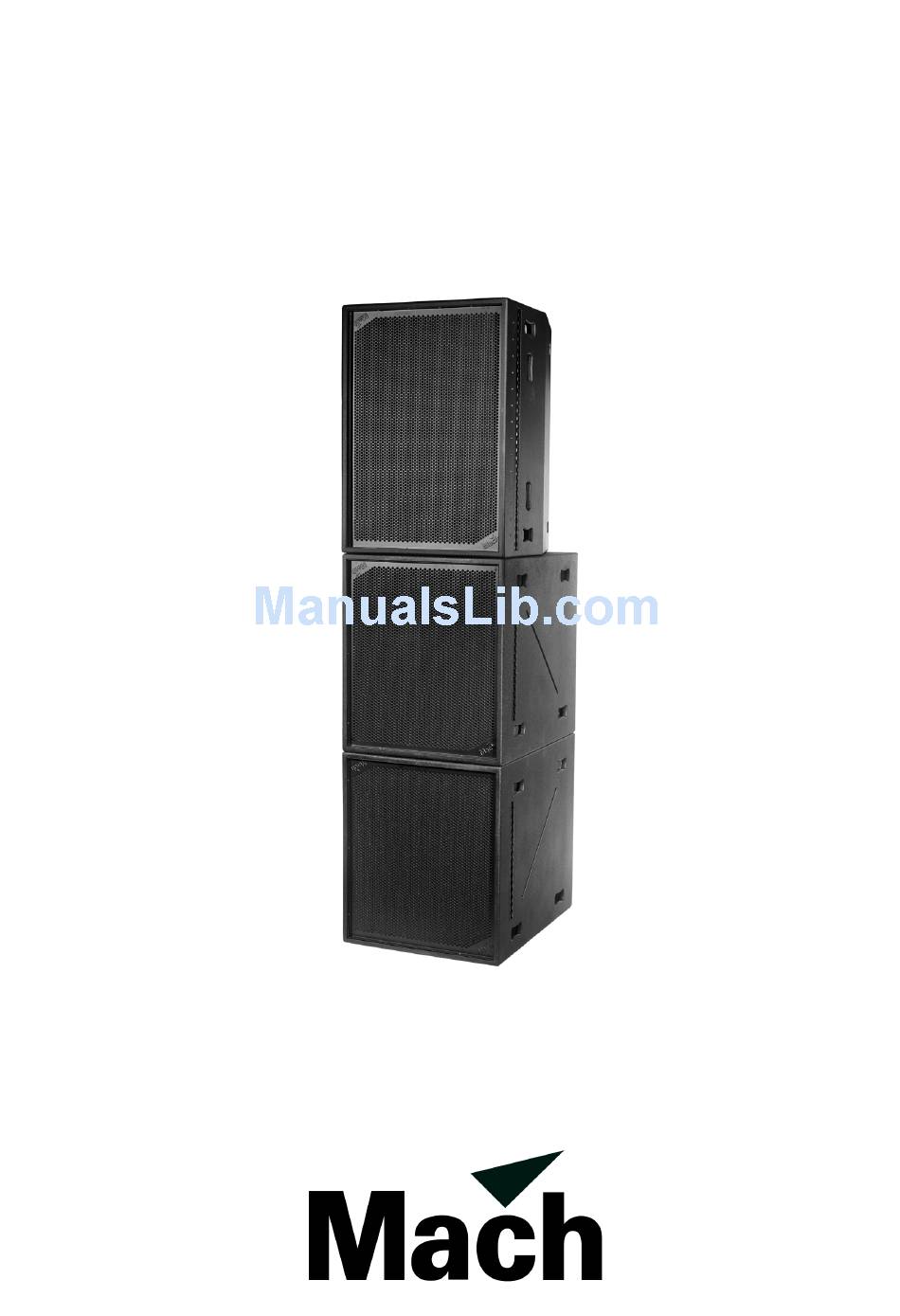

- Page 1 SlingShot user manual...
- Page 2 © 1998 - 2001 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35020001, Rev. F...

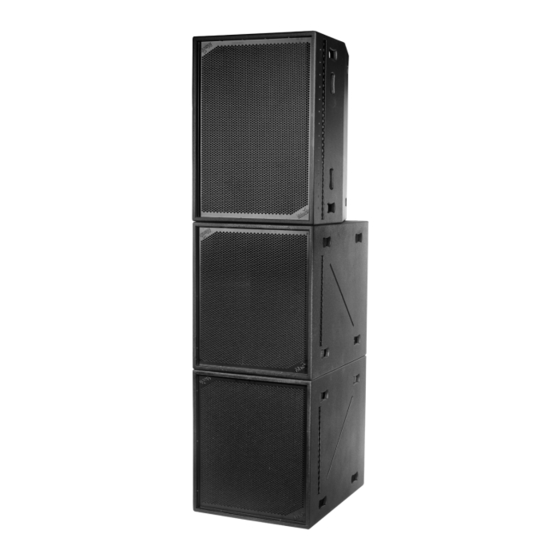

- Page 3 NTRODUCTION The Mach SlingShot Series has been developed for high performance touring and top-end installation applications. The MS1262, MS15X2 and MS118 cover new pioneering ground and incorporate several new materials and techniques, including a special horn flare design that is acoustically optimized to eliminate eddy currents and a new construction technique that minimizes mechanical resonance.
- Page 4 A B I N E T F E A T U R E S The SlingShot cabinets are constructed of 13 ply, 18 mm plywood and finished with a highly scratch and weather resistant polyurethane coating. The MS118 bass cabinet features integrated rubber feet for safe stacking and convenient guide lines for easy stacking.
-
Page 5: Installation
The tilt of each individual box is adjustable in 1° increments. The Slingshot is compatible with ATM flying bars. For clusters of up to 12 boxes (4 wide by 3 deep), use the ATM MLDS system. For arrays of 9 to 24 boxes, use the ATM MEGS 575 flying system. -
Page 6: Operation
XTA DP266 and BSS Omnidrive, Omnidrive Compact and Omnidrive Compact Plus. The file can be downloaded from the service and support area of the Mach web site at http://www.mach.dk. For other processors or controllers, please refer to the settings in the specifications. -
Page 7: To Access Ms15X2 Drive Units
ERVICE E Q U I R E D T O O L S Tool Access door Torx 30 Drive units 4 mm Allen Grille, horn flare, 12” cup, cable terminal #2 Phillips 6 ½” phase plug Fixed key #17 12” phase plug Fixed key #19 M S 1 5 X 2 S E R V I C E... - Page 8 M S 1 2 6 2 S E R V I C E W I R I N G Mode Signal Wire Terminal Speakon 3+ Black Speakon 3- Crossover input Orange Speakon 4+ Active and passive Blue Speakon 4- 12” + Speakon 2+ 12”...
- Page 9 To access the MS1262 2” and 6 ½” drive units Unscrew the rear access door. Unscrew the drive unit and lift directly out of the box. To access the MS1262 12” drive unit Unscrew the rear access door. Unscrew the cup for the 12”. Disconnect the cables from the 12”...
-
Page 10: To Access Ms118 Dri Ve Units
M S 1 1 8 s e r v i c e M S 1 8 C O N E K I T 18” cone kit ............. . P/N 50304011 M S 1 8 C A B L E C O L O R C O D E S red . - Page 11 E C H N I C A L D A T A MS1262 MS15X2 MS118 Power rating, AES/Program 12”: 350/700W 800/2000 W 600/1700W 6½”: 125/250W 2”: 140/280W Frequency response (+/- 3dB) 12”: 160-2kHz 90-650Hz 59-220Hz 6½”: 600-8kHz 52-220Hz (2 pcs.) 2”: 800-18kHz Recommended crossover points 12”: 190-1.3kHz...
- Page 12 Martin Professional A/S • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark www.martin.dk...
