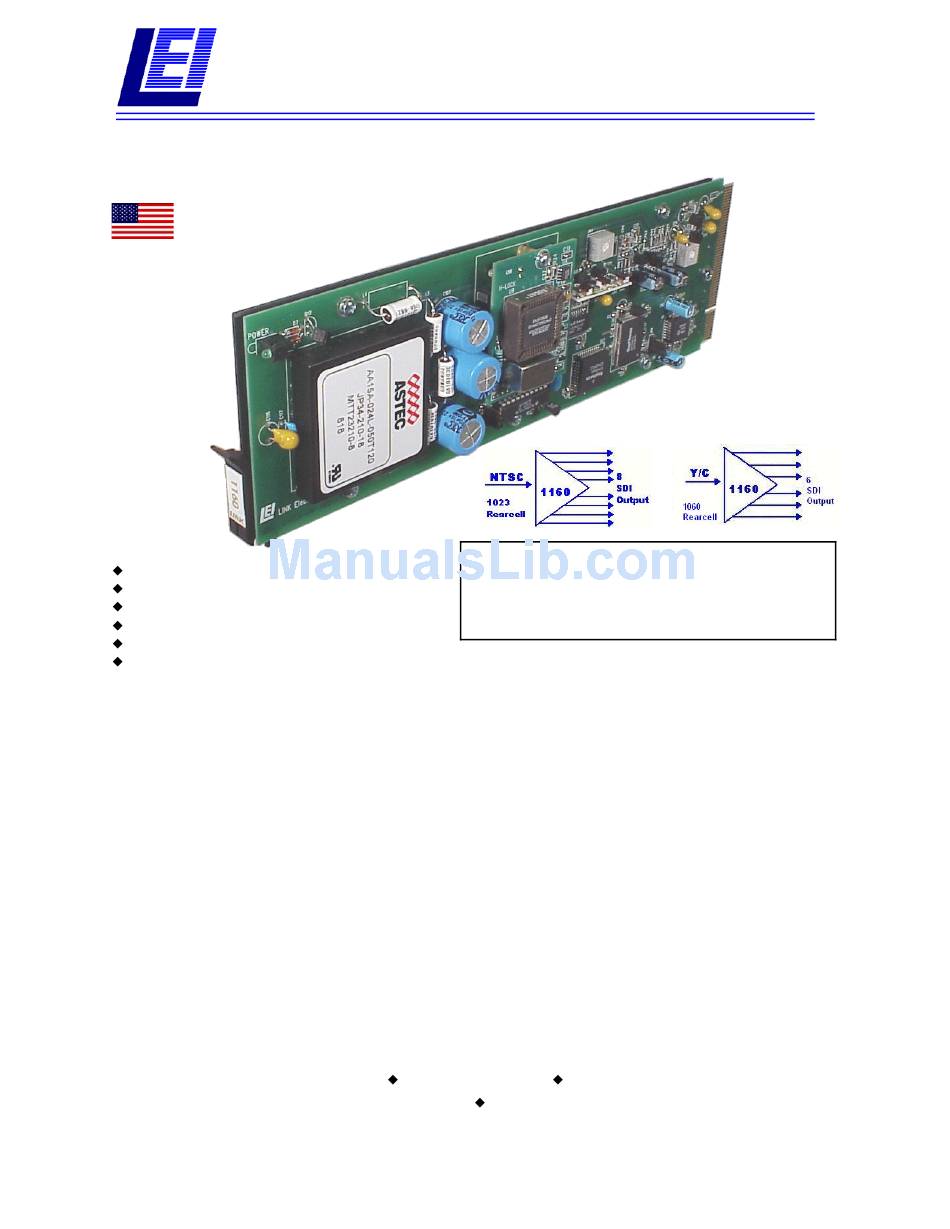

Link electronics NTSC/PAL to SDI Converter DigiFlex 1160 Specification Sheet

LINK ELECTRONICS, INC.
NTSC/PAL TO SDI CONVERTER
DigiFlex 1160
MADE IN THE USA
FEATURES
10 Bit A to D
12 Bit Option
Analog to Digital
Analog Composite Input
8 Digital Outputs
CCIR 601 Compliant
The LINK 1160 analog to digital converter provides
an accurate means of converting analog NTSC or
PAL composite video to component serial digital
(SMPTE 259M). The 1160 takes advantage of the
latest integrated circuit technology to offer
outstanding performance.
The input analog to digital converter features 2x
over-sampling. Pre-filtering to full CCIR-601
specification is accomplished in the digital domain.
Decoding is handled by a state-of-the-art three-line
adaptive comb which eliminates the "hanging dots"
associated with traditional comb filters. The 1160
utilizes 10 Bit processing.
LINK
ELECTRONICS, INC.
1000
1000/2 - Dual Power Supply, Holds 5 Modules
7200
2137 Rust Avenue
Phone 573 334 4433
Mounting Frame Options
- Single Power Supply, Holds 5 Modules
- Mounting Frame, Holds 1 Module
The 1023 rear cell matches the 1160 for system
flexibility. The 1000 frame will accommodate digital,
analog, audio or video in the same frame. System
upgrade is made simple with the DigiFlex 1000
series products.
The DigiFlex 1160 is designed to reside in LINK's
1000-Series frame. This frame can house up to 11
modules of various types. For stand-alone
applications, the DigiFlex modules may be mounted
in a small portable chassis for single module use,
model 7200. The 7200-Series "single-module
frame" features a modular power supply for
insertion of any Digiflex series front and rear
modules.
Cape Girardeau, MO 63703-7668
FAX 573 334 9255
1000 SERIES DIGIFLEX
