Link electronics DigiFlex 1163 Specification Sheet

LINK ELECTRONICS, INC.
NTSC/PAL COMPOSITE TO COMPONENT ANALOG
CONVERTER
DigiFlex 1163
MADE IN THE USA
FEATURES
3 Line Adaptive Digital Comb Filter
10 Bit or 12 Bit Processing
Analog Composite Input
YUV Outputs or RGB
Composite Sync Output

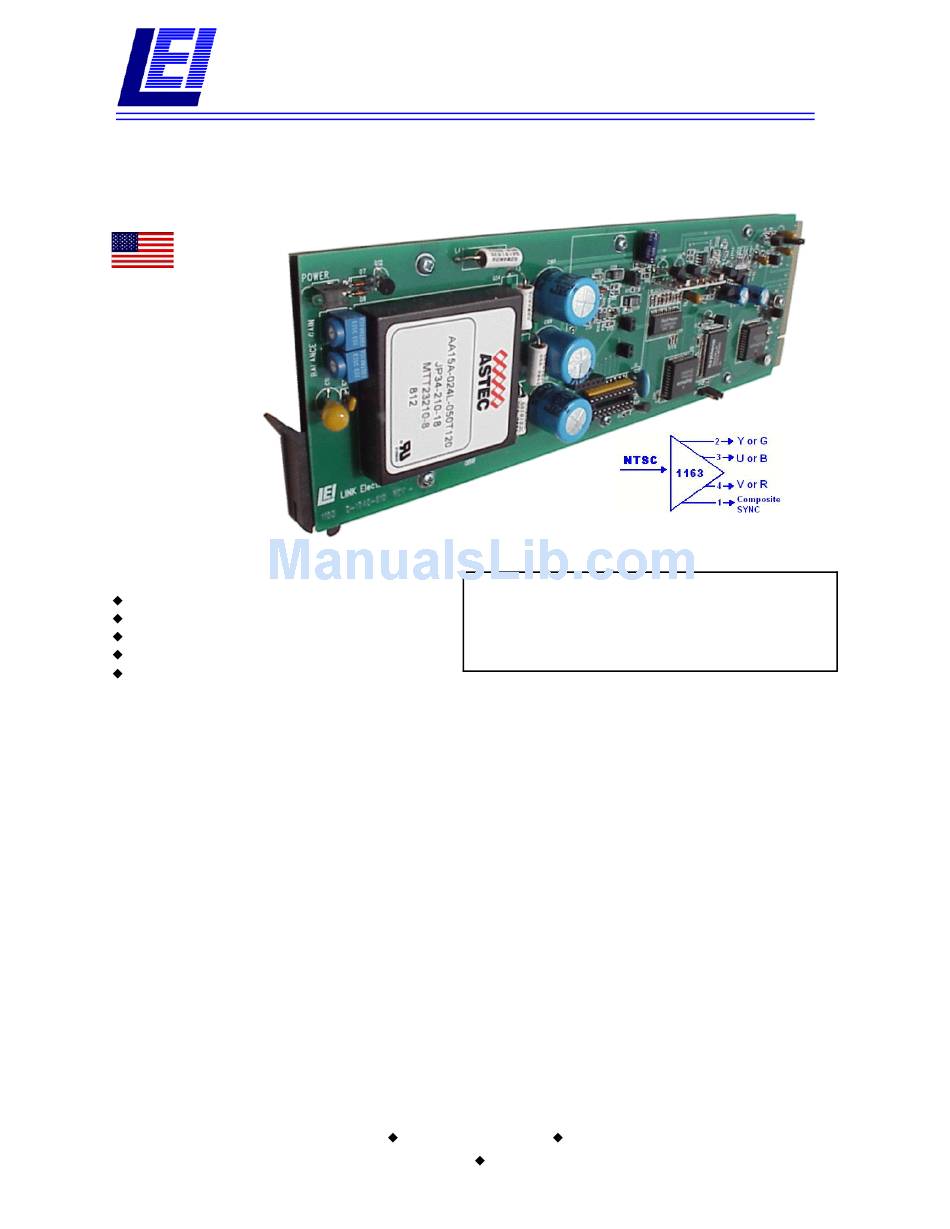

The LINK 1163 analog composite
component decoder provides an accurate means
of converting analog NTSC to component analog,
YUV or RGB. The 1163 utilizes high performance
hybrid output filters mounted on the rear cell to
detect and output RGB or YUV signals
The input analog to YUV decoder features 2x over-
sampling. Decoding is handled by a state-of-the-
art three-line adaptive comb which eliminates the
"hanging dots" associated with traditional comb
filters. The 1163 utilizes 10 Bit processing. The
unit is available with 12 Bit option. Choose rear cell
1024 to provide YUV output and rear cell 1025 to
provide RGB output.
LINK
ELECTRONICS, INC.
1000
1000/2 - Dual Power Supply, Holds 5 Modules
7200
to analog
2137 Rust Avenue
Phone 573 334 4433
Mounting Frame Options
- Single Power Supply, Holds 5 Modules
- Mounting Frame, Holds 1 Module
A rear cell matches the 1163 for system flexibility.
The 1000 frame will accommodate digital, analog,
audio or video in the same frame. System upgrade
is made simple with the DigiFlex 1000 series
products.
The DigiFlex 1163 is designed to reside in LINK's
1000-Series frame. This frame can house up to 5
1163 modules due to power. For stand-alone
applications, the DigiFlex modules may be
mounted in a small portable chassis for single
module use, model 7200.
"single-module frame" features a modular power
supply for insertion of any DigiFlex series front
and rear modules.
Cape Girardeau, MO 63703-7668
FAX 573 334 9255
1000 SERIES DIGIFLEX
The 7200-Series
