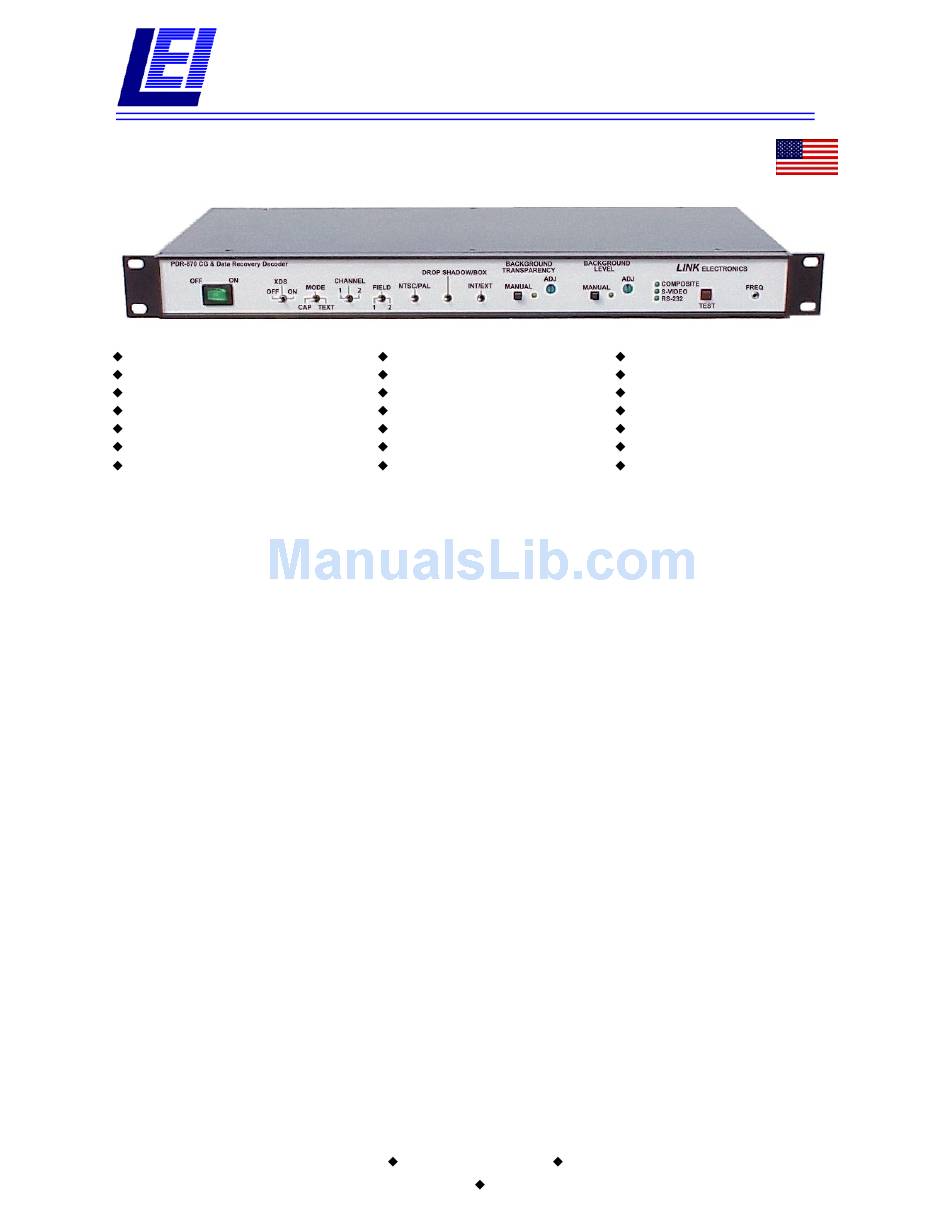

Link electronics PDR-870 Specification Sheet

LINK ELECTRONICS, INC.
CHARACTER GENERATOR CAPTION DECODER
MODEL PDR-870
Caption Decoder
Data Recovery Decoder
Character Generator Decoder
TV Ratings Monitor
NTSC or PAL(Stable Source)
Composite or S-VHS Input
High Impedenced Loop
The PDR-870 is a high performance Closed Caption
Decoder for the NTSC and PAL systems. It is
capable of processing and displaying all standard
closed caption format transmissions--including the
EIA-608 Extended Character Set--in the manner of
a typical closed caption decoder. A stable input video
source is required.
Nine standard data channels are supported by the
PDR-870: Captions channels 1 thru 4 (CC1-CC4),
Text channels 1 thru 4 (T1-T4) and Extended Data
Services (XDS). The various decoding channels are
selectable by four front-panel toggle switches.
Additional front-panel toggle switches provide
NTSC/PAL video standard selection, drop-shadow or
box character keying, and internal/external video.
The internal video function allows the PDR-870 to
generate its own video as a medium for producing
open captions.
In addition, the PDR-870 can accept an RS-232 data
stream and directly produce open captions, serving
as a "character generator decoder." Along with it's
powerful decoder functions, the PDR-870 can serve
as an accurate "V-Chip" ratings monitor. All rating
information described by EIA-744 may be displayed
on-screen by the PDR-870. Both TV Parental
Guidelines and Motion Picture Association of
America (MPAA) ratings are supported.
The PDR-870 can recover incoming Line 21 data
and send it to a computer terminal via the RS-232
port. This data may be recovered with or without the
embedded closed caption control codes.
LINK
ELECTRONICS, INC.
FEATURES
One RU Chassis
S/N Ratio >60dB
Dif Gain <0.1%
Dif Phase <0.1°
RS-232
4 Caption Channels
4 Text Channels
The PDR-870 can also perform a unique data
conversion to reveal the "non-printing" characters
that are part of the closed caption control codes.
Designed with the professional user in mind, the
PDR-870 processes baseband video in either
composite or S-Video formats. A rear-panel push-
button switch is used to select the input/output
format. The selected video mode is displayed at the
front panel by a pair of green LEDs.
The composite video format uses a single high-
impedance, looping input with two outputs. The S-
Video format can use standard 4-pin mini-DIN
connectors or BNCs for its input/output. The video
performance is outstanding with differential phase
and gain errors limited to less than 0.1° and 0.1%
respectively.
The un-weighted signal-to-noise ratio approaches
70dB. AC-Coupled, complementary differential input
amplifiers assure high common mode noise rejection
while discrete phase-linear keyers provide clean
insertion of the decoded characters into the video
image.
Packaged in Link's 1RU 800-Series chassis, the
PDR-870 is both rugged and reliable.
Electronics products are covered by one of the best
warranties in the industry, 10-years including parts
and labor. High performance, flexibility, and
economy are equally represented in the PDR-870
CG, Data Recovery Decoder .
2137 Rust Avenue
Phone 573 334 4433
XDS Channel
Drop Shadow
Extended Character Set
Box Character Keying
Internal or External Video
Internal Video Generator
Background Adjust
Cape Girardeau, MO 63703-7668
FAX 573 334 9255
CLOSED CAPTION SERIES
MADE IN THE USA
All Link
