LINK ELECTRONICS, INC.
NTSC/PAL COMPONENT ANALOG TO SDI CONVERTER
DigiFlex 1166/1167
MADE IN THE USA

FEATURES

10 BIT A to D
Analog Component to Digital
YUV or RGB Input
6 Digital Outputs
525/625
Full CCIR-601

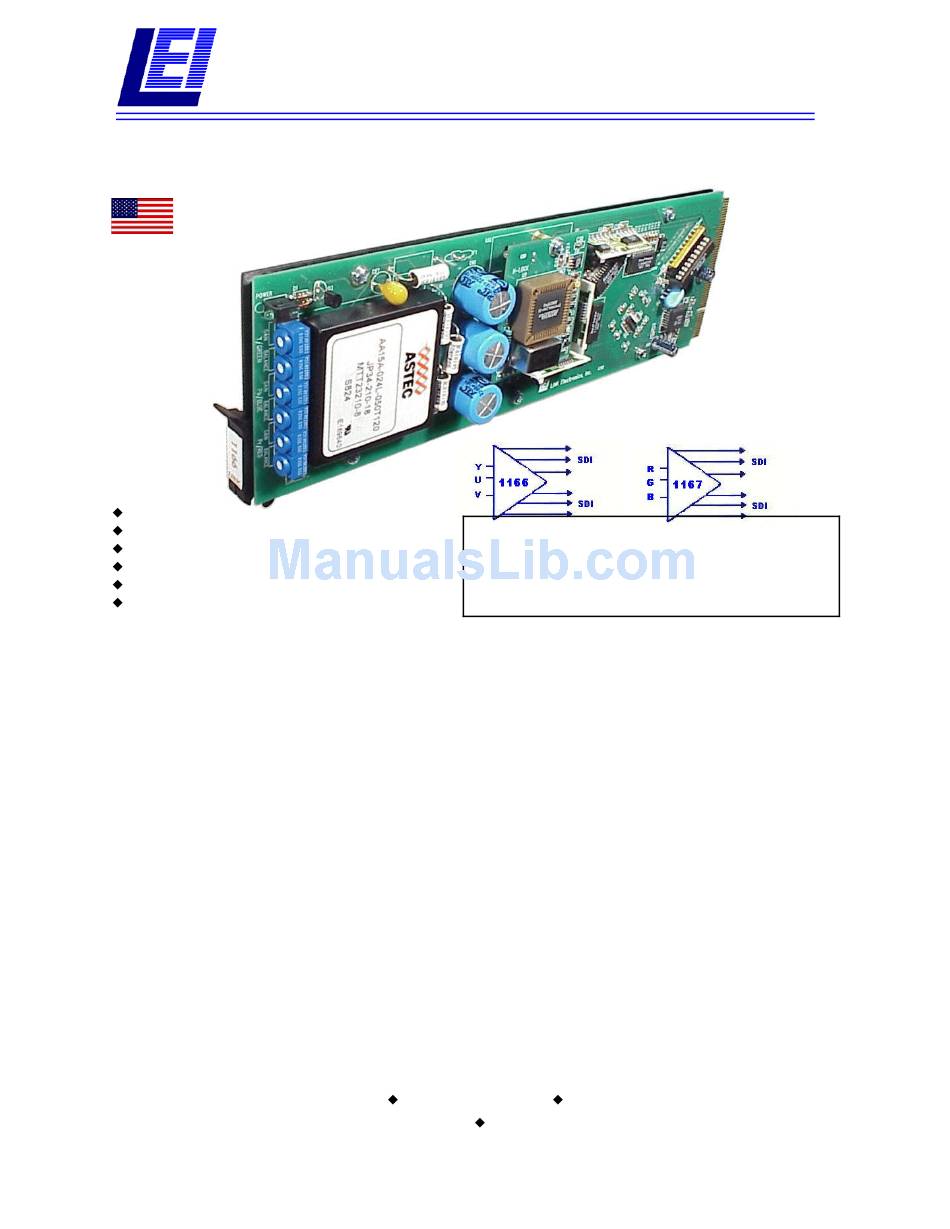

The LINK 1166 analog YUV to digital converter
provides an accurate means of converting analog
component video to component serial digital
(SMPTE 259M). The 1167 converts RGB to SDI.
The 1166/67 takes advantage of the latest
integrated circuit technology to offer outstanding
performance.
The three 10-bit analog to digital converters feature
2x over-sampling. Pre-filtering to full CCIR-601
specifications is handled by a high-performance
analog filter followed by a decimating digital filter.
The analog front-end features gain, offset, and
frequency compensation.
Both 525/60 and 625/50 standards are supported,
by onboard jumper selection.
