Link electronics DigiFlex 1660 Specification Sheet

LINK ELECTRONICS, INC.
ANALOG AUDIO TO DIGITAL AUDIO AES/EBU
DIGIFLEX 1660
MADE IN THE USA

FEATURES

Fault LED
Analog to AES\EBU
Transformer Coupled Digital I/O
External Reference Input
BNC or Terminal Connections

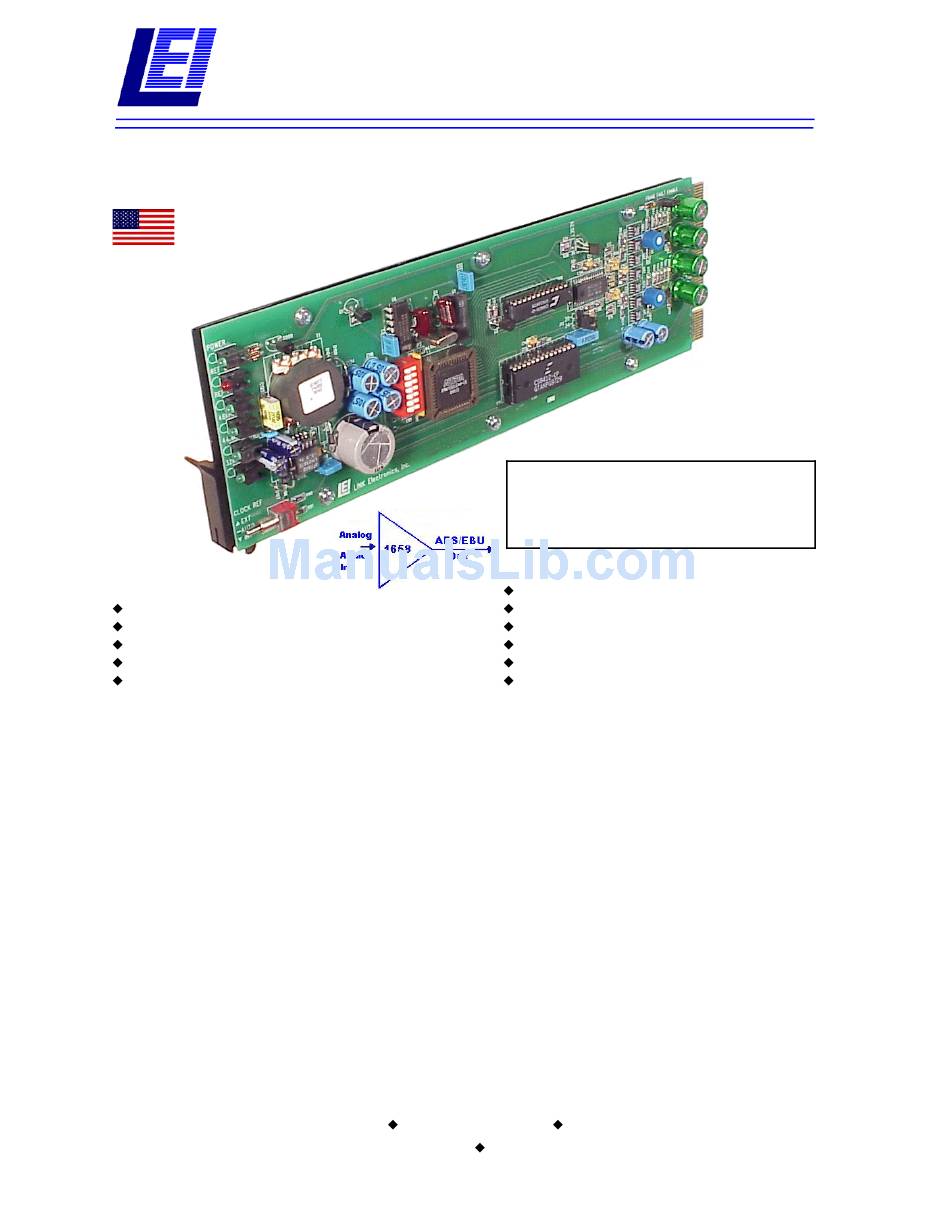

The DigiFlex 1660 accepts one analog stereo input
and provides one output of digital audio to AES3-
1992 or AES3-ID specification.
1660's may be mounted in a 2RU space with
LINK's DigiFlex frame. Transformer coupled digital
inputs and outputs are standard to eliminate the
possibility of ground loops.
The 1660 companion rear cell, model 1020,
allows the user to select terminal or BNC connec-
tors for digital output. Captive screw terminal
blocks are used for the balanced analog input. The
DigiFlex mounting frame with rear cell selection
provides for future growth into the digital or analog
video/audio system requirements.
LINK
ELECTRONICS, INC.
Up to eleven
2137 Rust Avenue
Phone 573 334 4433

Mounting Frame Options

1000 - Single Power Supply, Holds 11 Modules
1000/2 - Dual Power Supply, Holds 10 Modules
7200 - Mounting Frame, Holds 1 Module
Selectable Full Scale +10dBu to +28dBu
20/24 Bit Conversion, Selectable
48 Khz Internal Reference
Automatic External Reference Detection
External Reference Presence LED
Control of Channel Status Bits
The digital signal path uses state-of-the-art inte-
grated circuits. Reference sample rate is automati-
cally detected and indicated by front panel LEDs.
External reference errors are also detected and
reported by red LEDs on both the front and rear
panels. A "Frame Fault" output can also be en-
abled for centralized error reporting.
The digital conversion is accomplished using a 2-
bit Delta-Sigma converter with 24-bit resolution.
Designed with the professional in mind, the
DigiFlex 1660 will provide years of error free
performance. Backed by LINK's standard 10-year
warranty, the 1660 combines high-performance,
reliability and economy.
Cape Girardeau, MO 63703-7668
FAX 573 334 9255
1000 SERIES DIGIFLEX
