FEATURES:
•
1/3" 2.1 MegaPixel Progressive Scan CMOS sensor w/
NVP2420 DSP
•
2.1 MegaPixel With full 1080p 3G-SDI (SMPTE 424M) @
60fps / 30fps HD-SDI (SMPTE 292M) @ 30fps Output
•
30 850nm Dynamic Intensity IR LEDs with 115' Range
•
MegaPixel IR Corrected 3.6mm Fixed Iris lens Included
•
Mechanical IR Cut Filter (True Day/Night)
•
XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
•
16:9 Video format
•
Advanced OSD Functions: Defog, Dynamic IR, WDR,
Motion Detection, Privacy mask, Mirror, BLC/HLC, D-Zoom
•
100% Pure Digital Transmission of video data
•
Up to 700' HD Transmission Range (Depending on cable
characteristics and integrity)
•
IP67 Weather Resistance
•
12VDC Operation

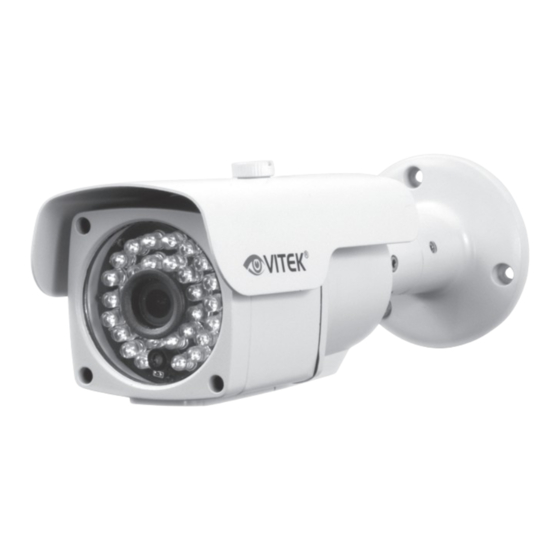

VTC-BHOC6R4F
2.1MP 3G-SDI IP67 Vandal Resistant WDR True
Day/Night Bullet Camera with 3.6mm Lens &
30 IR LEDs
External OSD
Controls
for Ease of
installation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-BHOC6R4F and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VTC-BHOC6R4F

Summary of Contents for Vitek VTC-BHOC6R4F

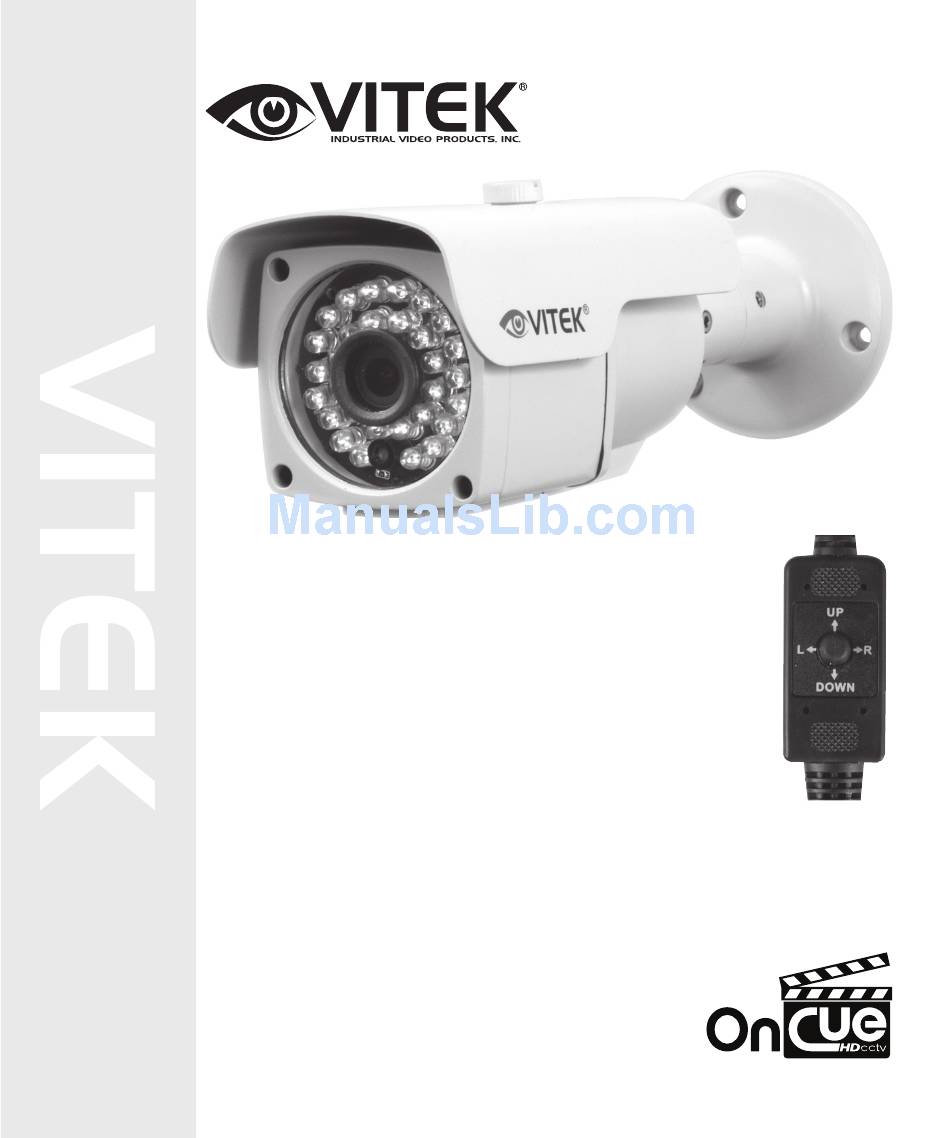

  • Page 1 VTC-BHOC6R4F 2.1MP 3G-SDI IP67 Vandal Resistant WDR True Day/Night Bullet Camera with 3.6mm Lens & 30 IR LEDs FEATURES: • 1/3” 2.1 MegaPixel Progressive Scan CMOS sensor w/ NVP2420 DSP • 2.1 MegaPixel With full 1080p 3G-SDI (SMPTE 424M) @ 60fps / 30fps HD-SDI (SMPTE 292M) @ 30fps Output •...
  • Page 3 WARNINGS The camera needs periodic inspection. • Contact an authorized technician for inspection. Stop using camera if there is a malfunction. • Avoid installing camera in high heat areas, risk of fire may occur. Do not install the camera on a surface that can not support it. •...
  • Page 4 PRECAUTIONS Ø Do not install the camera in extreme temperature conditions. • Only use the camera under conditions where temperatures are between -14˚F and +122˚F. Be especially careful to provide ventilation when operating under high temperatures. Ø Do not drop the camera or subject it to physical shocks. •...
  • Page 5 FEATURES • 1/3” 2.0 Mega-Pixel Panasonic Progressive Scan Sensor • Resolution: 1920 x 1080 (30P/25P, 60P/50P, 60i/50i) • HD-SDI / SMPTE 292M (30P/25P HD-SDI), SMPTE 424M (60P/50P 3G SDI) Video Output • HD over Coaxial Cable • Uncompressed HD Digital Video •...

  • Page 6: Menu Tree

    Setup Menu (OSD) SETUP MENU (OSD) [How to operate OSD joy stick] OSD menu is controlled by OSD joystick in OSD Board or OSD Cable -▲ (UP), ▼ (DOWN), ◀ (LEFT), ▶ (RIGHT), ● (SET / ENTER) [Menu Tree]...
  • Page 7 [Menu Tree] MENU TREE...
  • Page 8 [Menu Tree] MENU TREE...
  • Page 9 [Menu Tree] MENU TREE...

  • Page 10: Main Osd Menu

    MAIN OSD MENU Main OSD Menu MAIN MENU DEFAULT DESCRIPTION LENS Select Lens type according to mounted or built-in lens Set SHUTTER, AGC, SENS-UP, BRIGHTNESS, EXPOSURE D-WDR &, DEFOG BACK LIGHT Select WDR, BLC, HSBLC or OFF * ATW(Auto Tracking White Balance) * AWC -> SET : White Balance is fixed at the value when *(enter) is pressed and keeps the value WHITE BAL...
  • Page 11 1. LENS 1. LENS Select Lens type, DC, MANUAL or P-IRIS. DC Lens: * MODE: Set INDOOR or OUTDOOR 2. EXPOSURE 2. EXPOSURE EXPOSURE DEFAULT DESCRIPTION Set Shutter Speed, 1/60(1/50), FLK, 1/240 ~ 1/50000 or x2 ~ x30 * If camera is equipped with auto iris lens, recommended to set to AUTO.
  • Page 12 dark area. * This is to enhance visibility in foggy DEFOG environments but the performance is limited. 3. BACKLIGHT 3. BACKLIGHT Select Backlight mode, WDR, BLC or HSBLC 3-1. WDR Set WDR level, LOW, MIDDLE or HIGH Note) WDR mode works only with HD-SDI output and not the CVBS (composite out) 3-2.
  • Page 13 BLC ON BLC OFF 3-3. HSBLC This function is used to black out highlighted (bright) areas, in order to enable a clear visual image of objects, such as the license plates of an oncoming vehicle or other objects that may be obstructed by headlamps. HSBLC DEFAULT DESCRIPTION...

  • Page 14: White Balance

    HSBLC OFF HSBLC ON 4. WHITE BALANCE 4. WHITE BAL WHITE BAL DEFAULT DESCRIPTION * ATW(Auto Tracking White balance): White balance performs automatically * AWC -> SET : Sets the white balance to the current scene * INDOOR : White balance is fixed at about WHITE BAL 3100K * OUTDOOR : White balance is fixed at...

  • Page 15: Day & Night

    5. DAY & NIGHT 5. DAY & NIGHT DAY & NIGHT DEFAULT DESCRIPTION * AUTO : Camera switches DAY from/to NIGHT automatically according to the amount of light through the lens. * COLOR : Camera stays color regardless of light level DAY &...
  • Page 16 5-2. B/W 5-2. B/W DEFAULT DESCRIPTION BURST * Set BURST ON or OFF DEFAULT DESCRIPTION IR SMART * Set IR SMART ON or OFF BURST * Set BURST ON or OFF IR SMART * Set IR SMART ON or OFF 5-3.
  • Page 17 6-1. 3DNR (ON) 3DNR DEFAULT DESCRIPTION * Camera is watching for any motions. * When no motion is detect: 3 DNR is working with maximum noise reduction automatically. This will save SMART NR HDD space on the DVR * When motion is detected: 3 DNR deactivates slow motion capture for moving object.
  • Page 18 7. SPECIAL SPECIAL DEFAULT DESCRIPTION CAM TITLE * If set to ON, camera title is displayed. * Can set FREEZE, MIRROR, D-ZOOM, SMART D-EFFCT D-ZOOM, NEG.IMAGE & DIS. * Programmable up to 4 areas. If motion is MOTION detected, mosaic effect appears. PRIVACY * Programmable up to 8 masked areas.

  • Page 19: Cam Title

    7-1. CAM TITLE * Input max.15 characters or symbols by using▲ (up)/▼ (down)/◀ (left)/▶ (right) buttons. * Press ● to select and the selected character/symbol will be displayed on the input line * → ←: move CAM TITLE input position * CLR: remove all inputted characters and symbols * POS: move and set CAM TITLE display position * END: finish and return to menu...
  • Page 20 * Available max. 62x digital zoom. * PAN/TILT : set zoom position by moving UP / DOWN / LEFT / RIGHT. D-ZOOM * Usable at 30/25P resolution. Cannot synchronize with SMART D-ZOOM but usable either D-ZOOM SMART When motion is detected camera will digitally D-ZOOM zoom in NEG.IMAGE...
  • Page 21 7-2. SMART D-ZOOM When motion is detected Smart D-Zoom will zoom into defined area. Smart D-zoom will not work if D-Zoom is enabled SMART DEFAULT DESCRIPTION D-ZOOM SELECT * Able to set 2 areas DISPLAY * Set display box ON or OFF SENSITIVITY * Set sensitivity of D-ZOOM TIME...
  • Page 22 7-3. MOTION MOTION DEFAULT DESCRIPTION * Select area to be detected. Selectable up to 4 SELECT AREA 1 areas. DISPLAY Able to position area and resize motion area * Set sensitivity value. Lower value is more SENSITIVITY sensitive. * ON : Enable mosaic display for the selected MOTION VIEW area DEFAULT...
  • Page 23 Up to 8 privacy zones. PRIVACY DEFAULT DESCRIPTION SELECT * Select the area to mask. select area 1~ 8 * Select display type, OFF, INV, COLOR or DISPLAY MOSAIC set size and position to be masked for the selected area * Select color for masking, If color is selected in COLOR...
  • Page 24 STAICE DPC DEFAULT DESCRIPTION * Detect defective pixels while dark then saves the data for compensation. After starting STATIC DPC camera will close iris automatically. It is also STATIC DPC recommended to cover lens during this process. * ON : Enable STATIC DPC * OFF : Disable STATIC DPC STATIC DPC “ON”...
  • Page 25 7-6. RS485 This is to set RS-485 with PELCO-D protocol for remote control. RS485 DEFAULT DESCRIPTION CAM ID * Set camera ID No. 0 ~ 255 * OFF: camera ID No. is not displayed. ID DISPLAY * ON : Display the ID No on the top-right BAUDRATE 2400 Set baud rate, 2400 / 4800 / 9600 / 19200 / 38400.

  • Page 26: Focus Adjust

    ADJUST DEFAULT DESCRIPTION * Set sharpness level of picture. * Setting to high will cause more noise and a SHARPNESS harsh image * Select LCD or CRT monitor. * LCD : Adjustable GAMMA, BLUE GAIN & RED GAIN. Higher GAMMA is increasing MONITOR Contrast but looses visibility in dark areas.
  • Page 27 9. RESET 9. RESET Push enter button at FACTORY - RESET, return to factory default. 10. EXIT Save all then exit. Note 9. RESET Function List of Simultaneous Operation Push enter button at FACTORY - RESET, return to factory default. 10.
  • Page 28 DIMENSIONS Unit of measurement: inch (mm) 2.33in (59.10mm) 4.96in (126.00mm) 2.42in (61.50mm) 3.74in (95.00mm) 8.07in (205.00mm)

  • Page 29: Specifications

    SPECIFICATIONS SPECIFICATIONS Sensor 1/3” 2.1 MegaPixel Progressive Scan CMOS sensor w/NVP2420 DSP Resolution 2.1 MegaPixel (1080p / 720p) More than 50 dB (AGC Off) Video Output 60fps 3G-SDI (SMPTE 424M) / 30fps HD-SDI (SMPTE 292M) IR Illuminators 30 IR LEDs IR Color Temp.
  • Page 30 OTHER PRODuCTS FROM VITEK On Cue HD-SDI Video Recorders VT-HDOCE Series On Cue Series 4, 8, and 16 Channel Real Time 1080p EX-SDI Digital Video Recorders • 4, 8 OR 16 CH EX-SDI / Analog Inputs (hybrid) with Full 1080p Camera Support •...
  • Page 31 VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.

This manual is also suitable for:
