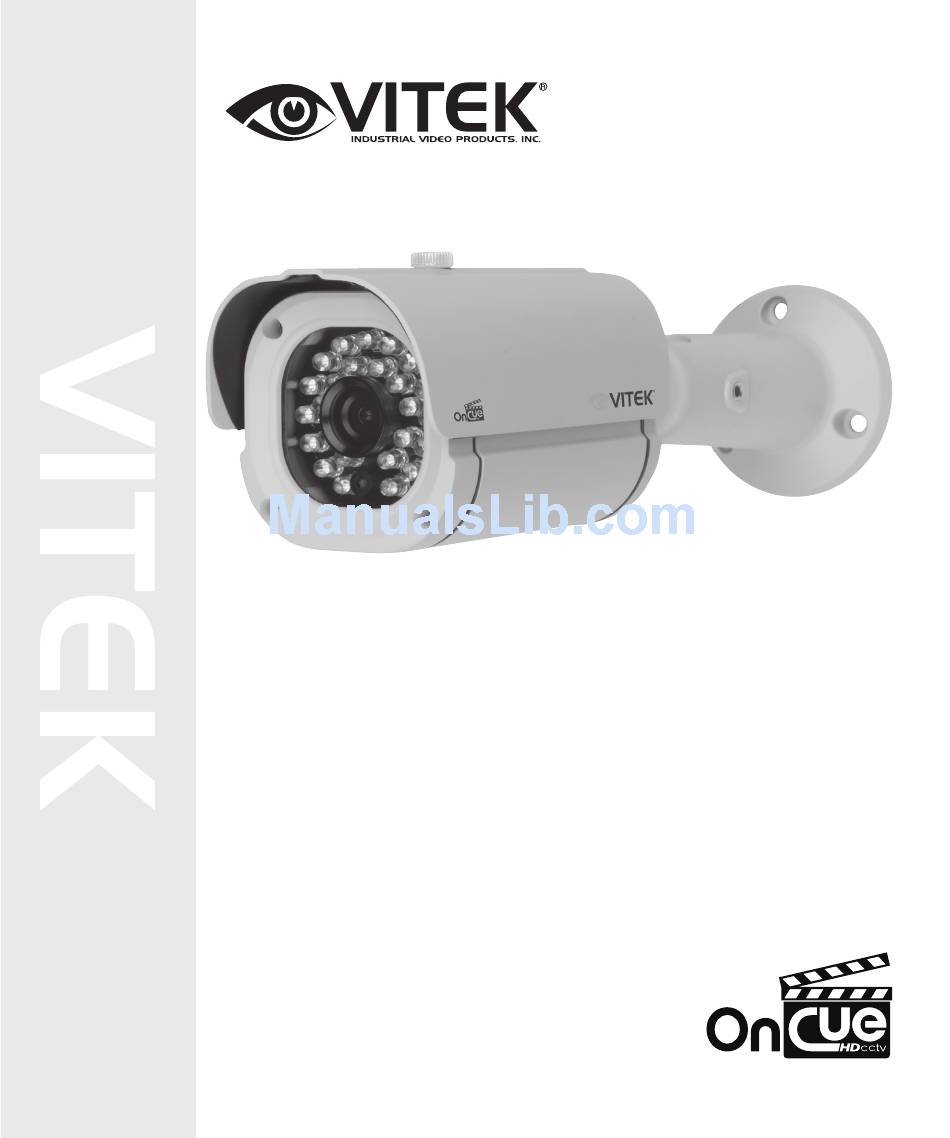

VTC-BHOCR4F
2.0MP HD-SDI Vandal Resistant WDR
Bullet Camera with 25 IR LEDs
FEATURES:
• 1/2.9" Sony CMOS
• 2.0 MegaPixel With full 1080p HD-SDI Output (SMPTE 292M)
• 25 850nm Dynamic Intensity IR LEDs with 100' Range
• 4.3mm Fixed Iris lens Included
• Mechanical IR Cut Filter (True Day/Night)
• 3D-DNR Noise Reduction
• 16:9 Video format
• 100% Pure Digital Transmission of video data
• Up to 700' HD Transmission Range (Depending on cable characteristics
and integrity)
• 12VDC Operation
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-BHOCR4F
Summary of Contents for Vitek VTC-BHOCR4F
- Page 1 VTC-BHOCR4F 2.0MP HD-SDI Vandal Resistant WDR Bullet Camera with 25 IR LEDs FEATURES: • 1/2.9” Sony CMOS • 2.0 MegaPixel With full 1080p HD-SDI Output (SMPTE 292M) • 25 850nm Dynamic Intensity IR LEDs with 100’ Range • 4.3mm Fixed Iris lens Included •...
- Page 2 SPECIFICATIONS Sensor 1/2.9” Sony CMOS Resolution 2.0 MegaPixel (1080p) More than 52 dB (AGC Off) Video Output 1x HD-SDI (BNC) IR Illuminators 25 IR LEDs IR Color Temp. 850nm IR Range 100’ Dynamic Intensity IR LEDs Lens 4.3mm Fixed Minimum Illumination 1 Lux at F1.2 / 0.1 Lux (B/W) / 0 Lux at IR On Day/Night Mechanical IR Cut Filter (True Day/Night)
- Page 3 DIMENSIONS 8.39” 5.16” 5.12” 2.95” 2.87” 2.83” 4.29” INSTALLATION HD-SDI DVR HDMI ADJUST MOUNT...
- Page 4 VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
