Model: AK2100/36/42/48B
Voltage 120V 60Hz 3A
Power consumption
Total:
Lamp: Max.35Wx2
Fan:
THERMALLY PROTECTED
ACT 390 CFM - Fan Max. 160W @ 2.4A, ACT 290 CFM - Fan Max. 140W @ 2.2A
Model:
AK2500/36B
Voltage 120V 60HZ 2.4A
Power consumption
Total:
Lamp: Max.35Wx2
Fan:
THERMALLY PROTECTED
ACT 390 CFM - Fan Max. 140W @ 2.2A, ACT 290 CFM - Fan Max. 120W @ 2.1A
Model
AK6500/36/42B
Voltage
120V 60HZ 2.4A
Power consumption
Total:
Lamp: Max.35Wx2
Fan:
THERMALLY PROTECTED
WHITE
285W
215W
AC120V
230W
160W
BLACK
230W
160W
23

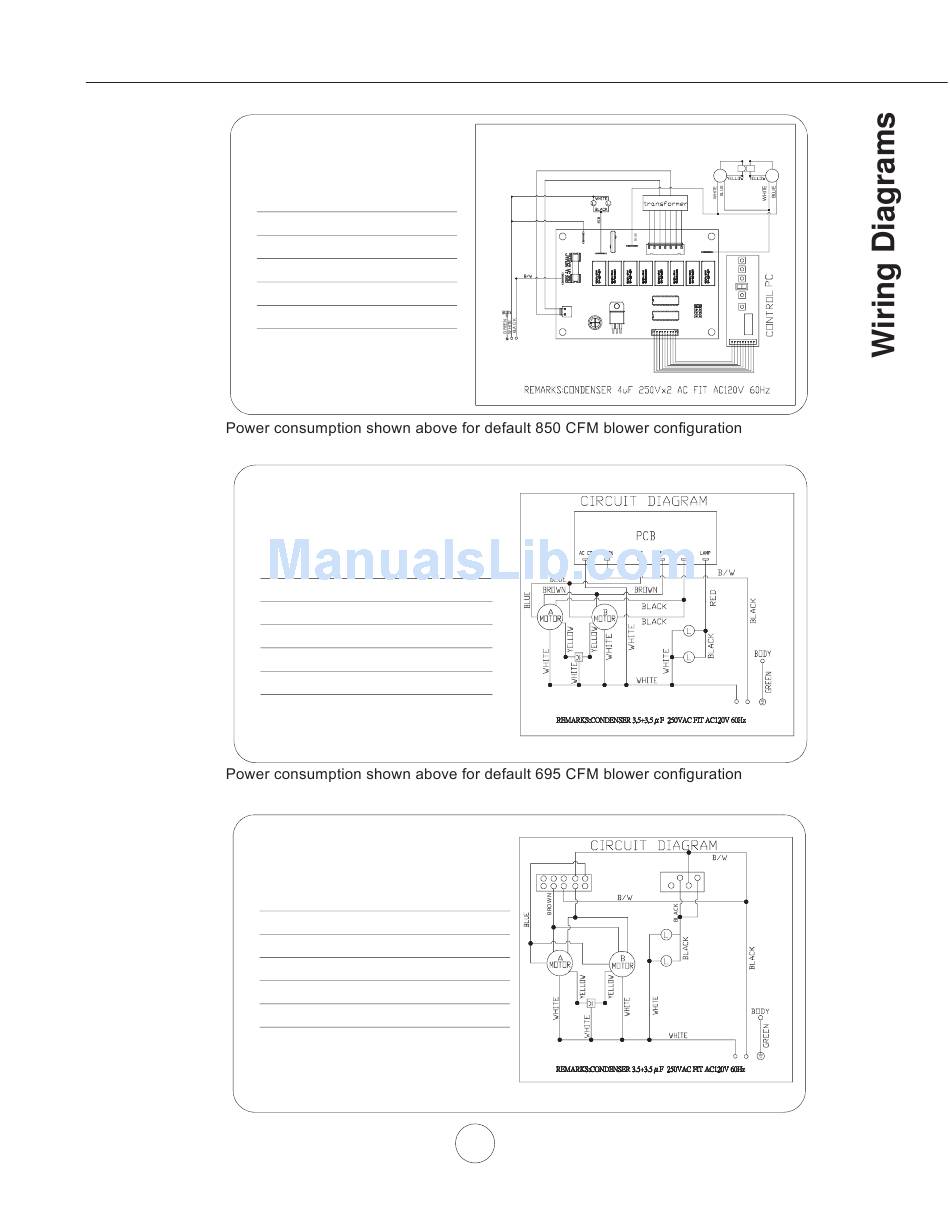

CIRCUIT DIAGRAM
RED
RED
Motor1
Motor2
BLUE
RED
