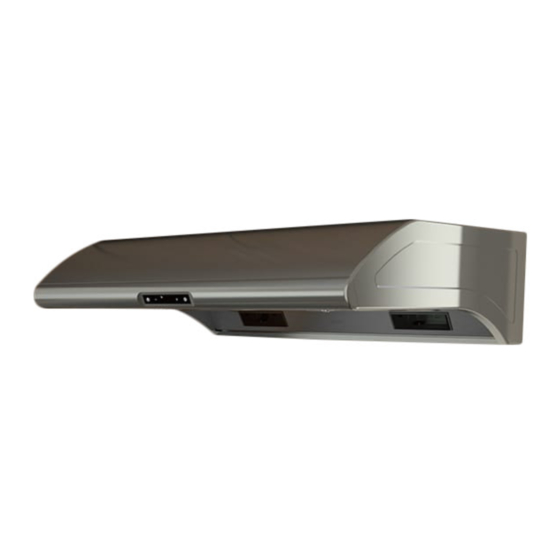

Zephyr Typhoon AK2100BS Use, Care And Installation Manual
Hide thumbs
Also See for Typhoon AK2100BS:
- Use, care and installation manual (53 pages) ,
- Use, care and installation manual (42 pages)
Advertisement
Quick Links
www.zephyronline.com

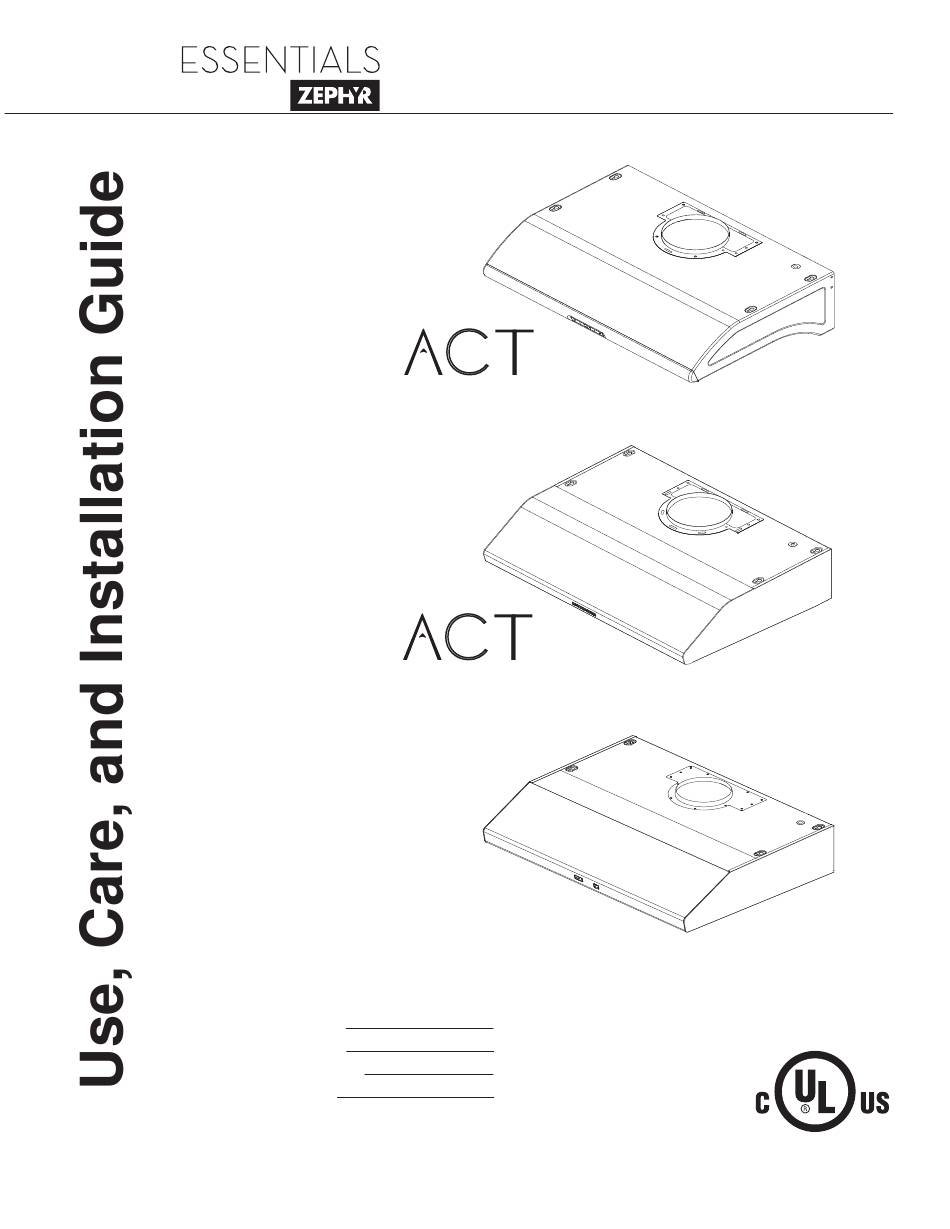

Typhoon
AK2100BS, B,W
AK2136BS, B,W
AK2142BS
AK2148BS
C
TM
Airflow Control Technology
Hurricane
AK2500BS, B, W
AK2536BS, B,W
C
TM
Airflow Control Technology
Cyclone
AK6500BS, B,W
AK6536BS, B,W
AK6542BS
Model number:
Serial Number:
Date of Purchase:
Sales Dealer:
MAY15.0101 © Zephyr Ventilation LLC.
Advertisement
Related Manuals for Zephyr Typhoon AK2100BS
Summary of Contents for Zephyr Typhoon AK2100BS
- Page 1 Typhoon AK2100BS, B,W AK2136BS, B,W AK2142BS AK2148BS Airflow Control Technology Hurricane AK2500BS, B, W AK2536BS, B,W Airflow Control Technology Cyclone AK6500BS, B,W AK6536BS, B,W AK6542BS Model number: Serial Number: Date of Purchase: Sales Dealer: MAY15.0101 © Zephyr Ventilation LLC.
- Page 2 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Some Ducting Options cabinet side wall cap w/gravity damper side wall cap w/gravity damper soffit or crawl space...
- Page 3 www.zephyronline.com (30”) 28 ”, (36”) 34” 1/16 (42”) 39 ”, (48“) 45 ” (30”) 11 ”, (36”) 12 ” 5/16 (42”) 12 ”, (48“) 12 ” ” 15/16 elec k / o (30”) 14”, (36”) 17” (42”) 19 ”, (48“) 22 ”...
- Page 4 (30”) 27 ” (36”) 34” (30”) 11 ” (36”) 14 ” ” 15/16 elec k / o (30”) 11 ” (30”) 29 ”, (36”) 35 ” (36”) 14 ” FRONT BACK ” ” ” SIDE...
- Page 5 www.zephyronline.com (30”) 27 ”, (36”) 33 ”, (42”) 39 ” 12” ” 15/16 elec k / o (30”) 14”, (36”) 17”, (42”) 20” ” 15/16 elec k / o (30”) 29 ”, (36”) 35 ”, (42”) 41 ” 12” FRONT BACK ”...
- Page 6 3-1/4"x10" Rectangular Vertical Ducting 1. Using a Philips-head screwdriver remove the screws and 2. Replace round vertical transition adapter with round vertical transition adapter from top of hood body. rectangular transition adapter. Do not secure to hood body yet. transition adapter. Secure rectangular adapter and rectangular collar to hood body using the previously removed screws from step 1.
- Page 7 www.zephyronline.com 3-1/4"x10" Rectangular Horizontal Ducting 2. Using a Philips-head screwdriver, remove the screws 1. Using a Philips-head screwdriver remove the screws and round vertical transition adapter from the top of the hood. 4. Replace round vertical transition adapter with 3. Typhoon ONLY. Remove the two plastic air diverter rectangular transition adapter.
- Page 8 ELECTRICAL WARNING knowledge and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. Electrical Supply: This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse.
- Page 9 www.zephyronline.com Hood is designed for installation under a kitchen cabinet. See Fig. 1 for details. options. 2. Measure and cut out duct and electrical openings in cabinet or wall to match up with the hood. Ducting and electrical dimensions can be found on Pages 10-12. Note: Make sure duct opening is large enough to apply aluminum duct tape.
- Page 10 Lights On/Off Speed Indicators Power / Delay Off Fan Speed Increase Fan Speed Decrease Power / Delay Off Button Button will turn power on and off for entire hood (fan and lights). - Hood will remember the last speed and light level it was last turned off at. (Example: Press button to turn off hood when on fan speed 3 and high lights.
- Page 11 www.zephyronline.com Power / Delay Off Lights On/Off Speed Indicators Power / Delay Off Button Button will turn power on and off for entire hood (fan and lights.) - Hood will remember the last speed and light level it was last turned off at. (Example: Press button to turn off hood when on fan speed 3 and high lights.
