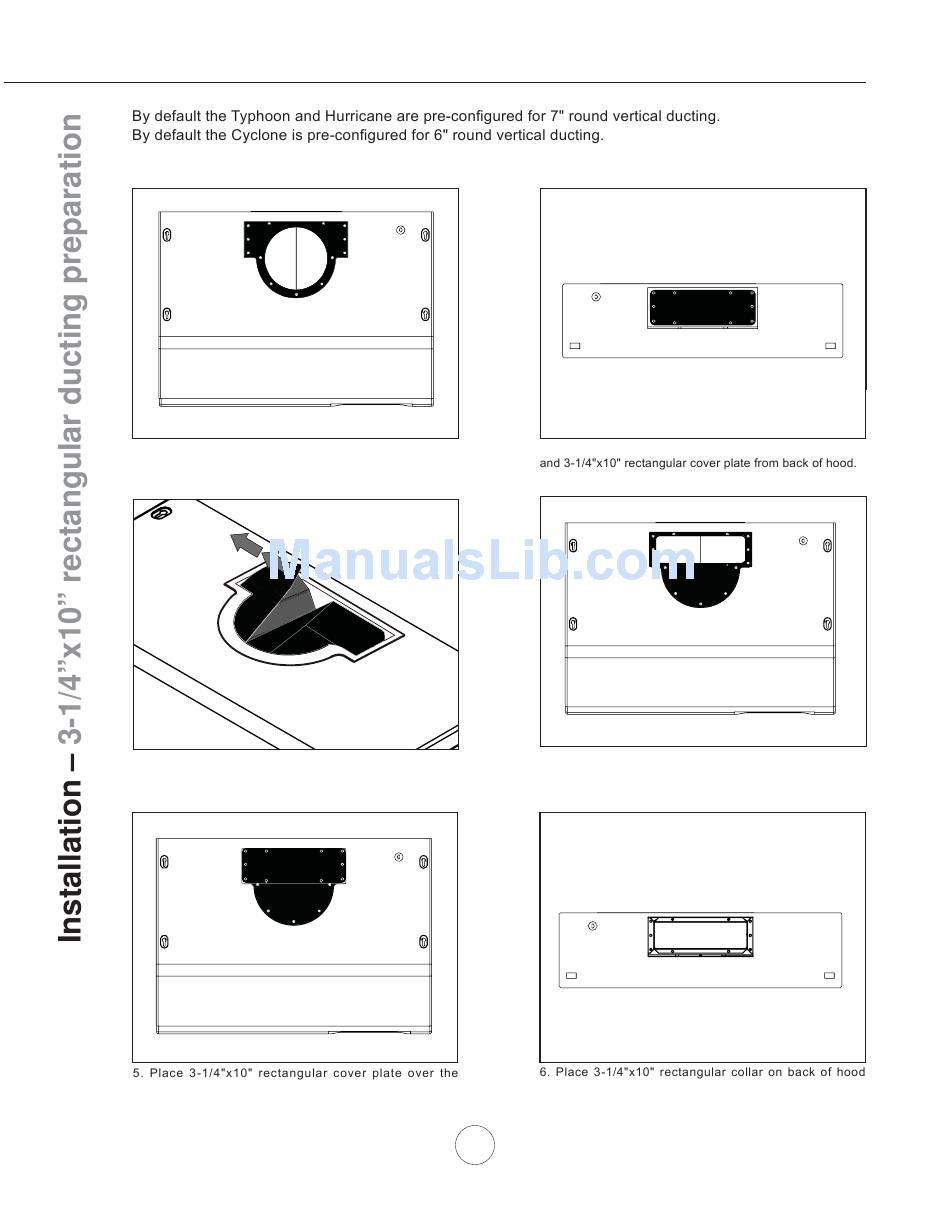

3-1/4"x10" Rectangular Horizontal Ducting
1. Using a Philips-head screwdriver remove the screws and
round vertical transition adapter from the top of the hood.
3. Typhoon ONLY. Remove the two plastic air diverter
blocks. The blocks are located in the hood and can be
accessed from the top when the round transition adapter is
removed.
rectangular opening on top of hood from step 4. Secure
rectangular transition adapter and cover plate to hood body
using the previously removed screws from step 1.
www.zephyronline.com
2. Using a Philips-head screwdriver, remove the screws
4. Replace round vertical transition adapter with
rectangular transition adapter. Do not secure to hood body
yet.
and secure using the screws that previously secured the
rectangular cover plate.
