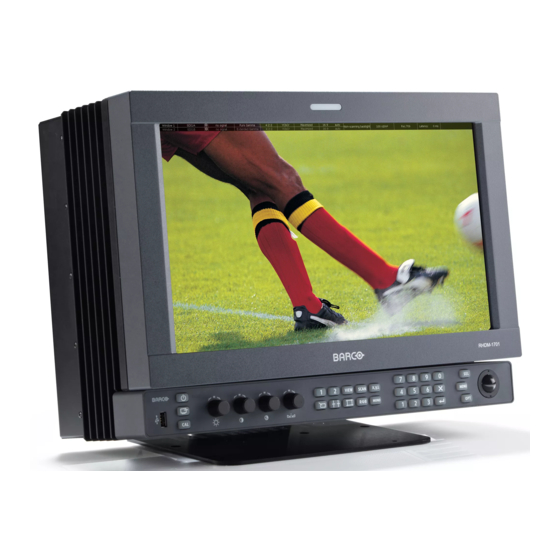

Barco RHDM-1701 User Manual

16.5" - lcd broadcast monitor
Hide thumbs Also See for RHDM-1701:
Table of Contents

Advertisement

Quick Links

Download this manual
RHDM-1701
16.5" - LCD Broadcast Monitor
User manual
K5960051-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHDM-1701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco RHDM-1701

Summary of Contents for Barco RHDM-1701

  • Page 1 RHDM-1701 16.5" - LCD Broadcast Monitor User manual K5960051-01...
  • Page 2 Intentionally left blank Barco - RHDM-1701 - User manual...

  • Page 3: Introduction

    Introduction 1 Introduction 1.1 Customer notice Thank you for buying Barco! Barco is a world leader in display and visualization solutions. We are convinced that you will enjoy our products. 1.2 Change record Revision Date Description April 2010 Initial release July 2010 Update for software V3.04...

  • Page 4: Contents Of The User Manual

    Chapter 3: How to Frequently used procedures and/or features are described in this chapter. This is a good place to start for users who want to learn how the basic controls work. Chapter 4: Full functionality description Barco - RHDM-1701 - User manual...
  • Page 5 Chapter 8: List of abbreviations Chapter 9: Table of contents, list of figures and list of tables Barco - RHDM-1701 - User manual...

  • Page 6: About The Product

    • 10 bit panel • Typical contrast 1000:1 • Barco guarantees the delivery of a RHDM-1701 monitor equipped with an LCD panel selected zero dot defects at sparkle mode. Sparkle mode is when the brightness of a dot is more than 16% at black.
  • Page 7 SDI module specifications • Possible inputs: 2 x SDSDI 2 x HDSDI 2 x 3Gb/s (option) Combination of 2 signals out of: SDSDI, HDSDI or 3Gb/s (option) 1 Dual Link (option) • Outputs: 2 loop-through outputs Barco - RHDM-1701 - User manual...
  • Page 8 • USB: host, peripheral and support of mass storage devices, mouse, etc… Feature packs and options • The RHDM-1701 comes in different flavors. Depending on the specific applications that are tar- geted by the user, different feature packs can be selected. Depending on the feature pack, addi- tional options can be available.

  • Page 9: Read Carefully

    Notes – presented in this manual, provide information, which emphasize points, significant to understand and operate the unit. IMPORTANT Important – presented in this manual, provide information, which is important to highlight. 1.6.2 Copyright © Barco n.v., All rights reserved. Barco - RHDM-1701 - User manual...

  • Page 10: Technical Accuracy Notice

    During the warranty period, Barco n.v. will do all repairs free of charge (material and labor). The faulty parts or units have to be shipped freight prepaid to a Barco n.v. regional service center. Barco n.v. will pay the freight charges when the repaired parts are shipped back to the customer's site.

  • Page 11: Trademarks

    • All software installed on the system, whether they are acquired from Barco n.v. or a third party. An exception is made for software delivered by Barco n.v. that would prove to be a cause for the malfunctioning of the hardware covered under this Agreement.

  • Page 12: Open Source License

    The crossed-out wheeled bin symbol invites you to use those systems. If you need more information about the collection, reuse and recycling systems, please contact your local or regional waste administrator or Barco (www.barco.com). Barco - RHDM-1701 - User manual...

  • Page 13: Safety Precautions

    • Do not use the display unit in a dusty or damp room. • Do not submit the display unit to heavy shocks and/or vibrations. • Do not cover the display unit while in operation to avoid overheating. • Do not expose to direct sunlight. Barco - RHDM-1701 - User manual...

  • Page 14: Requirement For Dusty Environments

    8 or better according to ISO14644-1. If the room in which the display unit is installed does not comply with the dust class stated above, please contact Barco to discuss possibilities to protect the display unit against dust.

  • Page 15: Hazardous Materials

    • Do not power the unit with other input sources as specified in the technical specifications: AC power source: 90-264 Vac, 47-63 Hz • Do not push objects into ventilation openings of the display unit. Barco - RHDM-1701 - User manual...

  • Page 16: First Operation

    Figure 1: Overview of operational controls, indicators and OSD functionalities Different operation interfaces: 1) Status bar 2) OSD menu 3) Toolbox 4) Under Monitor Display bar / Picture Adjustment bar 5) Control panel 6) Indicator lights Barco - RHDM-1701 - User manual...

  • Page 17: Switch On The Display Unit

    The delay time originates from several internal checks and calibrations that are performed to guarantee the correct display of the image. When in doubt about the status of the display unit, please read the troubleshooting in the addendum. Barco - RHDM-1701 - User manual...
  • Page 18 Standby/Power LED = white: Display unit is switched off (hard standby) – press ( the control panel to switch the display unit on. The Standby/Power LED will light up green. Power button Track ball Figure 3: Control panel – power button Barco - RHDM-1701 - User manual...

  • Page 19: How To Register The Display Unit

    The remaining grace period is shown in the top right corner. To register the unit on the website, you will need the current pincode. To obtain it, press Menu and scroll down to the License submenu. The current pincode is displayed there. Barco - RHDM-1701 - User manual...
  • Page 20 • If the grace period has expired, you will see the “Welcome message” with instructions on the screen. Write down the pincode of the display unit that is displayed on the screen, you will need to register it on the website. Barco - RHDM-1701 - User manual...
  • Page 21 3. Register your products and licenses by entering their pincodes on the personalized webpage to obtain license files for your products (https://my.barco.com/productregistration/). In case my.barco.com is not available, please contact Barco service (see contact info mentioned in the above screenshot) 4.
  • Page 22 • If you already have an existing my.barco.com account, please click ‘Login’ and enter your exist- ing user name and password to proceed with the login. • Otherwise if you are a new customer, please sign up to open a my.barco.com account. (This step is done only once)
  • Page 23 First operation • The welcome screen appears. Click on the left tab ‘Register Pincodes’. Barco - RHDM-1701 - User manual...
  • Page 24 First operation 5. Register Pincodes • Add all pincodes of the new products and licenses to be registered • When adding codes, the pincode appears in the list at the bottom of the window Barco - RHDM-1701 - User manual...
  • Page 25 • In the middle of the “Show Products” page, you have the possibility to assign a license (feature pack) to the monitor of your choice. Select the license you would like to assign to that monitor and click ‘Add Feature Pack”. Barco - RHDM-1701 - User manual...
  • Page 26 7. Get License File • If you agree with this assignation, click on ‘Get License File’ • Following page with a link appears. Click the link ‘here’ and save the file on location of your choice. Barco - RHDM-1701 - User manual...
  • Page 27 Important note: Only license files with a filename “barcoLicense” (case sensitive, no extensions) will be recognized by the RHDM. If you obtain a file that has additional information in its name (such as customer reference, serial Barco - RHDM-1701 - User manual...
  • Page 28 Generate a new pincode via the monitor’s OSD (see following section). Register this pincode on the website, as explained previously. The website will ‘release’ that particular monitor and the (wrong) license previously associ- ated with it Assign that license to the correct monitor. Barco - RHDM-1701 - User manual...
  • Page 29 • Click on “Generate new Pincode” in the “License” OSD menu: IMPORTANT Important note: Do not generate a new pincode unless you plan to install new licenses on your product. Generating a new pincode will disable the feature packs on your product! Barco - RHDM-1701 - User manual...
  • Page 30 First operation License OSD menu Confirming this dialog will remove all feature packs from the display unit and generate a new pincode. Barco - RHDM-1701 - User manual...
  • Page 31 • Generate a new license file. Place the license file on a USB stick and connect the USB stick to all display units that need to be updated with the new licenses. • The following message appears when the update is successful and the display unit will function immediately: Barco - RHDM-1701 - User manual...

  • Page 32: Concepts Of Operation

    The function keys contain most of the settings of the display unit. It is important to understand the division of the function keys based on the effect that they have on the processing of the video signal. Figure 5: Function keys divided into categories Barco - RHDM-1701 - User manual...
  • Page 33 The image adjustment knobs control the settings of Background (1), Picture (2), Saturation (3) and Hue (4). Changing these settings will result in the display unit working out of the calibrated range. Background (1), Saturation (3) and Hue (4) apply to the each window separately. Barco - RHDM-1701 - User manual...
  • Page 34 The user can also decide to show only one of the 3 color channels or to convert the video signal to monochrome. In all these cases also the button will light up orange. Press ( ) the button to go back to the calibrated status of the display unit. Barco - RHDM-1701 - User manual...

  • Page 35: How To Setup The Display Unit

    Select the type of input that is connected to the input board (Single or Dual link). When the signal description in this submenu is not correct, override the signal detection and set the input signal properties manually. E.g. for Dual Link: RGB, 4:4:4, 10 bit and Seg- mented frame. Barco - RHDM-1701 - User manual...

  • Page 36: How To

    3.2 How to change the license installed on the display unit Activate the “Admin mode” that you can find in the main menu • Press ( to open the OSD menu • Provide the administrator password: Barco - RHDM-1701 - User manual...
  • Page 37 When you have generated a new pincode by acci- dent, follow the instructions below to reinstall the license and the feature packs on the display unit. Figure 8: License OSD menu Barco - RHDM-1701 - User manual...
  • Page 38 It is recommended to deactivate the admin mode after removing the feature packs from the display unit. With the newly generated pincode, you can assign new/other licenses to the product on the Barco website (https://my.barco.com). Barco - RHDM-1701 - User manual...
  • Page 39 How to • Generate a new license file on my.barco.com. • Place the license file on a USB stick and connect the USB stick to all display units that need to be updated with the new licenses. • The following message appears when the update is successful and the display unit will operate...

  • Page 40: How To View Signals Connected To The Sdi Input Board

    To select a valid signal, open the input selection toolbox by pressing long ( ) on the button of the window in which the input signal has to be shown The concept of selection and viewing of the valid signals is summarized in the figure below: Barco - RHDM-1701 - User manual...
  • Page 41 When no valid input is present for a certain input option, the screen will blank and show the “Invalid input“ icon. When the display unit was powered off, this is the standard setting for both windows. Barco - RHDM-1701 - User manual...

  • Page 42: How To Change The Color Working Space

    Figure 12: Location of buttons to change color working space • Press ( to cycle through the available color working spaces. The current color working space is shown at the top of the screen in the status bar. Barco - RHDM-1701 - User manual...

  • Page 43: How To Visualize The Dark Levels

    (in 8-bit steps). Figure 13: Location of the background adjustment control By increasing the value of the background, the information in the footroom of the video signal (below 0% video signal) becomes visible. Barco - RHDM-1701 - User manual...
  • Page 44 How to clipping bright levels 100 % Visualize super bright Visualize Black super dark offset Black White Video signal 100 % clipping dark levels Barco - RHDM-1701 - User manual...

  • Page 45: How To Maximize Contrast

    “0” on the numeric keypad to set the value to 0% press ( or ( to confirm the value • Move with the trackball down to the “Uniformity” and uncheck the box by pressing ( Barco - RHDM-1701 - User manual...

  • Page 46: How To Correct The Black Level

    ( or ( to select the value move with the trackball up or type “100” on the numeric keypad to set the value to 100% press ( or ( to confirm the value Barco - RHDM-1701 - User manual...

  • Page 47: How To Enable Native Interlaced Mode (Black Line Insertion)

    The aspect ratio is applied instanta- neously to the window. • Press ( to open the aspect ratio mode selection toolbox. • Select the aspect ratio using the trackball. • Press ( or ( to confirm the selection. Barco - RHDM-1701 - User manual...

  • Page 48: How To Select A Color Channel

    • Select the color channel Move with the trackball to highlight a color channel Press ( or ( to select a color channel. The setting is applied immediately to the selected window. Barco - RHDM-1701 - User manual...

  • Page 49: How To Show Two Input Signals Next To Each Other

    3.11 How to show two input signals next to each other • Press ( WINDOW 1 WINDOW 2 WINDOW 1 WINDOW 2 SINGLE INPUT PAN&ZOOM DUAL VIEW Figure 16: View mode functionality Barco - RHDM-1701 - User manual...
  • Page 50 In the dual view mode , the two inputs are scaled to fit the new window size. The aspect ratio remains unchanged while up- or downscaling. Barco - RHDM-1701 - User manual...

  • Page 51: How To Pan The Image

    (continuously) to grab the image and use the track ball to pan the image. When released, the “pointer” can be moved to pan the other window or to perform a new pan on the same window. Barco - RHDM-1701 - User manual...

  • Page 52: How To Zoom In On The Image

    IMPORTANT When an image is zoomed, pixel repetition is used to display the image on the screen. This means that the image is magnified according to an integer amount. No scaling artifacts are introduced. Barco - RHDM-1701 - User manual...

  • Page 53: How To Work With Presets

    1, the button will light up white to indicate that all critical user settings are as defined in the preset again. Basically it allows you to return to current active / last loaded preset. Barco - RHDM-1701 - User manual...

  • Page 54: Loading/Storing & Erasing Presets

    , or move with the trackball to the right to open the “Presets” menu • Move with the trackball to “Load”, “Store” or “Erase”, depending on the desired action and press or ( to open the submenu. Barco - RHDM-1701 - User manual...
  • Page 55 • Go to “Preset to load” to load either the factory preset or one of the 5 user presets. • Go to “Store Current Settings as” to store the current settings to one of the 5 user presets. • Go to “Preset to remove” to remove a selected preset. Barco - RHDM-1701 - User manual...
  • Page 56 How to Barco - RHDM-1701 - User manual...

  • Page 57: Preset Names And Filenames

    User presets created on one RHDM monitor can be transferred to another monitor by using an USB stick. Upon plugging in an USB stick a popup menu will appear on the OSD with the option to copy Presets from USB stick to display or vice-versa: Barco - RHDM-1701 - User manual...
  • Page 58 • Copy preset to USB drive: Copies presets from the display to the USB stick. This option is only available if the display has presets. The presets will be located in the root of the USB stick and named 1-..pre ... 5-..pre. Barco - RHDM-1701 - User manual...
  • Page 59 • Select “Preset management” from the selection menu on the left hand side of the webpage. • Go to “Download presets” to download presets from the monitor into your PC. • Go to “Preset to upload” to upload a preset file from your PC to the monitor. Barco - RHDM-1701 - User manual...
  • Page 60 How to Barco - RHDM-1701 - User manual...

  • Page 61: How To Use The 3D-Lut Feature

    Copy your 3D-LUT file to the root of your USB stick and set its name to 3d.lut. This name is hardcoded and case-sensitive. NOTE Make sure that there are no RHDM software or license files in the root of the USB, as they have precedence. Barco - RHDM-1701 - User manual...

  • Page 62: Lut Upload Via Web Interface

    Information” toolbox. Write down the IP address of the corresponding ethernet port. Open a browser window and type in the Address bar: “http://” + the IP address + “/” (e.g. “http://150.158.200.140”). The web interface of the display unit will open. Barco - RHDM-1701 - User manual...
  • Page 63 Browse for a User 3D-LUT file by clicking on the Browse... button. Note that the file can have any name and doesn't have to be name 3d.lut. Hit the upload button to upload the file to the monitor. Barco - RHDM-1701 - User manual...

  • Page 64: Lut Activation

    • Select “User 3D LUT” from the selection menu on the left hand side of the webpage. • Check “LUT active on window 1” to activate the 3D-LUT file on window 1 • Check “LUT active on window 2” to activate the 3D-LUT file on window 2 Barco - RHDM-1701 - User manual...

  • Page 65: How To Upload New Software

    2. Connect with the pc to the display unit • Check the IP address that is assigned to the ethernet port. Press ( to open the “Display Information” toolbox. Write down the IP address of the corresponding ethernet port. Barco - RHDM-1701 - User manual...
  • Page 66 How to • Open a browser window and type in the Address bar: “http://” + the IP address + “/” (e.g. “http://150.158.200.140”). The web interface of the display unit will open. Barco - RHDM-1701 - User manual...
  • Page 67 How to 3. The software upload • Select “Admin…” from the selection menu on the left hand side of the webpage. Barco - RHDM-1701 - User manual...
  • Page 68 • An authentification will be requested. To enter the Admin section: User name: “admin” Password: “admin117234” • When the valid user name and password are entered, the Admin section will be opened in the webpage. • Click on “Upgrade firmware” Barco - RHDM-1701 - User manual...
  • Page 69 If the upload of the new software would fail or would be interrupted, the display unit will reboot into the failsafe mode. The software version of the failsafe mode is the most recent software version that was uploaded success- fully. Barco - RHDM-1701 - User manual...

  • Page 70: Software Upload Via Usb

    USB stick is removed. When the display unit is busy with the upload of the new software, the following warning is shown on the screen: • When software update has started (“Software update busy”) the USB stick can be removed (all data is already transferred). Barco - RHDM-1701 - User manual...
  • Page 71 USB stick at each power up or activation from hard standby. The display unit will then start the automated firmware update process. This does not happen after the reboot resulting from the software update! Barco - RHDM-1701 - User manual...

  • Page 72: Full Functionality Description

    3) Toolbox 4) Under Monitor Display bar / Picture Adjustment bar 5) Control panel 6) Indicator lights 4.1.2 Operational mode overview The operational status of the display unit can be summarized in the figure below: Barco - RHDM-1701 - User manual...
  • Page 73 Full functionality description Figure 20: Operational mode overview Barco - RHDM-1701 - User manual...

  • Page 74: Indicator Lights

    • Green: The display unit is powered. All signals at the input boards are processed. • LED is not lit: The display is in hard standby or the power connector is disconnected. Fault LED: • Red: A Fault has occurred. Barco - RHDM-1701 - User manual...

  • Page 75: Control Panel

    A USB storage device with the latest firmware will immediately be recognized and the display unit will initiate a firmware upload automatically. It is also possible to connect a mouse as a replacement of the trackball and the (left button) and (right button) buttons. Barco - RHDM-1701 - User manual...

  • Page 76: Press Buttons

    The trackball allows the operator to move the pointer or navigate in the menus. 4.1.4.6 LEDs Power on and input calibrated: • The power button is lit green. • All other buttons are lit white. Barco - RHDM-1701 - User manual...
  • Page 77 Any setting related to the R-G-B button (Color Channel Selection), Color work space selection, Deinterlace mode, Black correction, User 3D lut enable IMPORTANT To see which setting causes the CAL button to light up amber check the OSD submenu “Faults and warnings”. Barco - RHDM-1701 - User manual...

  • Page 78: Status Bar

    • Scale mode • Aspect ratio • Backlight scan mode • Light output • Color working space • Latency of the input signal selected by the active window (0 ms when no signal is connected) Barco - RHDM-1701 - User manual...

  • Page 79: Invalid Signal Indicator

    4.1.7 Under monitor display bar (optional) Figure 25: Screenshot UMD bar with two tally lights The Under Monitor Display (UMD) bar is shown at the bottom of the screen and has two tally lights. 4.1.8 Picture adjustment bar Barco - RHDM-1701 - User manual...

  • Page 80: Pointer Functionality

    The toolbox of a particular setting appears on the screen when a button is pressed for a long time ). The toolbox appears on the left side of the screen and reveals additional settings. A screenshot of the Color Channel Selection toolbox is shown below as an example: Barco - RHDM-1701 - User manual...

  • Page 81: On Screen Display Menu

    Settings can be activated and deactivated by pressing ( or by pressing ( The timeout of the OSD menu can be set in the OSD menu “OSD settings”. The OSD menu can be closed by pressing ( Barco - RHDM-1701 - User manual...

  • Page 82: Web Interface

    The buttons on the control panel can perform an instantaneous operation or open a toolbox, depending on whether the button is pressed short ( ) or long ( Short press Instantaneous effect Long press (press longer Open a toolbox with advanced settings than 2 seconds) Barco - RHDM-1701 - User manual...

  • Page 83: Control Buttons

    Buttons to access the On Screen Display (OSD), to select items Navigation pad and to call possible options. A trackball for easy pointer move- ment. 4.2.2 Control buttons 4.2.2.1 Overview control buttons Figure 28: Control buttons Barco - RHDM-1701 - User manual...

  • Page 84: Power Button

    The panel and backlight are disabled. • sets the display unit into hard standby mode. The panel, backlight and electronics are disabled. Only the button re- mains functional. Barco - RHDM-1701 - User manual...

  • Page 85: Screen Select Button

    Resets Background, Picture, Hue and Saturation and RGB/ Calibration Mono select to the preset values. The button is connected with button. The last selected/saved preset in the color working space toolbox will be selected by pressing ( Barco - RHDM-1701 - User manual...

  • Page 86: Fault Led

    When the display unit starts-up from a hard standby status, the Fault LED lights up during the initialization. When the control panel is fully operational and when the display unit did not detect problems during start-up, the Fault LED will go out. Barco - RHDM-1701 - User manual...

  • Page 87: Image Adjustment Knobs

    The LED above the knob will light up orange. • The image adjustments knobs Background, Saturation and Hue act only on the active window. The Picture knob acts on the entire screen. Barco - RHDM-1701 - User manual...

  • Page 88: Function Keys

    For SDI signals the range can be set to 4-1019 (maximal). For DVI signals the input range can be extended to 0-1023 (maximal). Barco - RHDM-1701 - User manual...

  • Page 89: Select Input Button

    • Footroom level: custom setting of the footroom level. IMPORTANT The Gamma settings apply to the selected window only. All signals processed by that window ( ) will be subjected to the gamma settings defined by the customer. Barco - RHDM-1701 - User manual...

  • Page 90: View Mode Button

    The scan mode is shown in the status bar. mode Scan mode selection toolbox appears: The possible selection of scan modes are: • Non-scanning backlight: The scanning backlight mode is switched off. • Scanning backlight: The scanning backlight mode is activated. Barco - RHDM-1701 - User manual...

  • Page 91: Color Working Space Button

    Store, the values will be saved into a new color working space. The name of this color space will be “custom”, followed by an incremental number. • Remove: Removes the selected color space. Only custom defined color working spaces can be removed. Barco - RHDM-1701 - User manual...
  • Page 92 • Press ( to open the color working space toolbox. • Navigate with the trackball to the top of the toolbox “Select color space”. • Press ( or ( to change the color working space. Barco - RHDM-1701 - User manual...
  • Page 93 The standard defined color working spaces cannot be removed. When the selected custom color working space is removed, the next color working space in the list will be applied to the display unit. Barco - RHDM-1701 - User manual...

  • Page 94: Scale Mode Button

    • OverScan : The inner 96% of the image is shown on the screen. • ViewPort : Allows the user to maximize a 16:9 central portion of a video signal full screen (e.g. to maximize a letter box content). Barco - RHDM-1701 - User manual...

  • Page 95: Aspect Ratio Button

    • 4:3 : Display the image with an aspect ratio of 4:3 on the screen. • Pixel Map : Display the image in the native pixel aspect ratio. For SD signals this is different than 4:3 (e.g. 720:576, 720:480, …) Barco - RHDM-1701 - User manual...

  • Page 96: Safe Area Marker Settings Button

    • Hor. and Ver . define the graphics safe area relative to the aspect ratio markers or image borders as a decrease expressed in percent. Barco - RHDM-1701 - User manual...

  • Page 97: Settings Of The Safe Area Markers

    4.2.5.9 Settings of the safe area markers How to use safe area markers Track ball Figure 33: Location of buttons to set/change safe area markers • Press ( to enable/disable the safe area markers Barco - RHDM-1701 - User manual...
  • Page 98 “viewport”. In the latter case the aspect ratio markers are defined as if the input signal has an aspect ratio of 16:9. How to set action safe area • Press ( to open the safe area settings toolbox Barco - RHDM-1701 - User manual...
  • Page 99 • Choose by which standard the graphics safe area is defined. For more information about these standard settings, please check the tables in the addendum. To select the wanted standard: Move with the trackball to highlight the wanted option Press ( or ( to confirm the highlighted option Barco - RHDM-1701 - User manual...
  • Page 100 To change the value, move with the trackball or press a number on the numeric keypad. The width is expressed in the number of pixels. Press ( or ( to confirm the new value or press ( to restore the previ- ously selected value. Barco - RHDM-1701 - User manual...

  • Page 101: Color Channel Selection Button

    • Green : Select the Green channel The selected color channel is shown in its own color. (e.g. the blue color channel is shown in blue) • Monochrome : Displays the selected color channel in grayscale. Barco - RHDM-1701 - User manual...

  • Page 102: Monochrome Adjustment Button

    Full functionality description 4.2.5.11 Monochrome adjustment button Function Description Toggle between full color (Y’C ) and monochrome Monochrome adjustment (Y’ only). Barco - RHDM-1701 - User manual...

  • Page 103: Function Keys Tree

    Full functionality description 4.2.5.12 Function keys tree Barco - RHDM-1701 - User manual...
  • Page 104 Full functionality description Barco - RHDM-1701 - User manual...
  • Page 105 Full functionality description Barco - RHDM-1701 - User manual...
  • Page 106 Full functionality description Barco - RHDM-1701 - User manual...

  • Page 107: Numeric Keypad

    Exit button. Exit OSD menu and toolbox. Restore value/setting to original value/setting when a value/setting is selected. Enter button. Select an option in OSD menu and toolbox. Confirm a selection in OSD menu and toolbox Barco - RHDM-1701 - User manual...

  • Page 108: Special Function Key Assignment

    OSD menu. Via the numeric keypad, a fast shortcut is enabled for frequent use of specific functions. 4.2.7 Navigation pad 4.2.7.1 Overview navigation pad buttons Figure 35: Navigation pad buttons Barco - RHDM-1701 - User manual...

  • Page 109: Navigation Pad Functionality

    Menu button . The OSD menu is opened by pressing the menu button. Option button. Behaves like the right mouse button. This button calls for the options. E.g. choose between pan and zoom when working in Pan&Zoom-mode. Barco - RHDM-1701 - User manual...

  • Page 110: Settings Osd Menu

    • Input detection: Settings related to the detection of the input signals. • Display settings: Shows information related to the calibration settings of the monitor. • Presets: Settings related to the storage of user settings in so-called presets Barco - RHDM-1701 - User manual...

  • Page 111: Osd Settings Menu

    The status bar is considered to be an OSD menu and hides after the same time of inactivity if “hide after timeout” is checked. Wiggling the track ball activates the status bar. 4.3.3 UMD menu 4.3.3.1 UMD Main menu Barco - RHDM-1701 - User manual...

  • Page 112: Manual Settings

    • Left lamp: Sets the color of the left lamp to the specified value. The possible values are: Red, Green, Amber, Off • Right lamp: Explanation of the setting are the same as for the Left lamp • Text: Explanation of the setting are the same as for the Left lamp Barco - RHDM-1701 - User manual...

  • Page 113: Gpi Settings Menu

    The possible values are: Full, Half, 1/7, Dark. When control is high: Sets the brightness to the specified value when the input signal at the control pin is high. The possible values are: Full, Half, 1/7, Dark. Barco - RHDM-1701 - User manual...

  • Page 114: Input Settings

    Input settings menu contains advanced settings that can influence the visualization of the selected input signals for window 1 and window 2. The settings that can be changed for the selected input signals are: Barco - RHDM-1701 - User manual...
  • Page 115 • Uniformity: The color uniformity is guaranteed via internal calibration processes. This unifor- mity correction is always done. When this box is checked, the luminance uniformity correction is applied. The luminance uniformity correction can lead to a slight loss in contrast. Barco - RHDM-1701 - User manual...
  • Page 116 • Resizer settings: Determines the algorithm that is used to display the luminance information of the image on a different number of pixels on the screen. See “Resizer filter menu” for more details. Barco - RHDM-1701 - User manual...

  • Page 117: Resizer Settings Menu

    RHDM. • Data: Settings which are ideal for displaying pc content. • CGI: Settings which are ideal for displaying Computer Generated Images. • Custom: The settings of the resizer are defined by the customer. Barco - RHDM-1701 - User manual...
  • Page 118 • Balanced (see figure below-b): This type of anti-aliasing is applied by most display units and results in a moderate setting. • Conservative (see figure below-c): This setting is preferred for video signals and results in a strong reduction of anti-aliasing effects while preserving good sharpness of the image. Barco - RHDM-1701 - User manual...
  • Page 119 Steepness: Sets the type of interpolation which is used for determining the values at the pixels of the resized image. Barco - RHDM-1701 - User manual...
  • Page 120 • Nearest (see figure below-c): No interpolation is applied. Down to sub-pixel level, the value of a sub-pixel is equal to the value of the nearest sampling point. Figure 38: “Steepness” settings in the OSD submenu “Resizer settings” Barco - RHDM-1701 - User manual...

  • Page 121: User 3D-Lut Menu

    3D-LUT cube. This setting determines how these discrete points are interpolated in hardware. There are two possible settings: Tetrahedral or Trilinear . The tetrahedral interpolations will keep the colour tints across luminosity. It is similar to a hardware / GPU alike rendering of 3D- Barco - RHDM-1701 - User manual...

  • Page 122: Input Detection

    SDI input 1-B. • Dual link 1-AB: Submenu which allows verification of the input signal and adjustment of the input detection settings in case of a dual link SDI input on 1-AB. Barco - RHDM-1701 - User manual...

  • Page 123: Single Link 1-A & 1-B

    • Bit depth: sets the bit depth of the video signal. Possible settings are: 8, 10 or 12. • Video framing: sets the video framing of the video signal: Possible options are: Interlaced, Pro- gressive or Segmented. Barco - RHDM-1701 - User manual...

  • Page 124: Dual Link 1-Ab Menu

    • Override signal detection: when checked, the display unit will ignore the measured standard and will display the video signal according to the manual settings. • Encoding: sets the encoding of the video signal. This can be RGB or YCbCr. Barco - RHDM-1701 - User manual...

  • Page 125: Display Settings

    Barco CRT (CVM model) and implemented this as a preset. • When the ' Barco CVM ' setting is chosen, the complete RHDM color space is changed so as to look perceptually alike a well-calibrated CVM monitor. In this mode we don't guarantee compli- ance to a technical specification.

  • Page 126: Presets

    • Active preset: Indicates which preset was last loaded and is considered to be the active preset. NOTE A Load or Store action makes the preset that was loaded from or stored to, the active preset. 4.3.7.2 Load presets The load submenu has 6 actions: Barco - RHDM-1701 - User manual...

  • Page 127: Store Presets

    Upon selecting one of the 5 entries another submenu is opened. This submenu has a field to optionally change the name of the preset to be stored. Secondly it has the command to store the preset. Barco - RHDM-1701 - User manual...

  • Page 128: Erase Presets

    The erase submenu has 5 actions, number 1 up to 5 corresponding with preset 1 upto 5. Invoking the action erase the corresponding preset. If that preset is the current active preset, the factory preset is made active instead. 4.3.8 Operation time menu Barco - RHDM-1701 - User manual...

  • Page 129: Temperature Menu

    This menu lists all faults and warnings which have occurred. When a fault occurs, the “FAULT” LED on the control panel will light up red. To solve a fault or warning, please consult the troubleshooting section in the addendum. Barco - RHDM-1701 - User manual...

  • Page 130: License Menu

    • Generate new Pincode: menu item to generate a new pincode. Please read the instructions in the section “how to change the license connected to your display unit” carefully. This item can only be unlocked by entering the “Admin mode” of the OSD menu. Barco - RHDM-1701 - User manual...
  • Page 131 As a result, you will not be able to use the display unit until you have generated a new pincode on my.barco.com. Please follow the instructions in the section “how to change the license connected to your display unit” to install the new pincode on your display unit.

  • Page 132: Osd Menu Tree

    Full functionality description 4.3.12 OSD menu tree Barco - RHDM-1701 - User manual...
  • Page 133 Full functionality description Barco - RHDM-1701 - User manual...
  • Page 134 Full functionality description Barco - RHDM-1701 - User manual...
  • Page 135 Full functionality description Barco - RHDM-1701 - User manual...

  • Page 136: Settings Web Interface

    Figure 39: Web interface – home page Open a browser window and type in the Address bar: “http://” + the IP address + “/” to connect to the display unit via the web interface. Barco - RHDM-1701 - User manual...

  • Page 137: Input Selection Page

    The input selection page allows the setting of the input selection for window 1 and window 2, in analogy with the “Input selection” toolbox. The current setting is shown when the page is opened or refreshed. Press “Apply” to send changes on the web page to the display unit. Barco - RHDM-1701 - User manual...

  • Page 138: Color Processing Page

    Full functionality description 4.4.3 Color processing page Barco - RHDM-1701 - User manual...
  • Page 139 • YCbCr Channel selection – Monochrome: Same setting as applied by pressing ( ) the button. The current setting is shown when the page is opened or refreshed. Press “Apply” to send the changes on the web page to the display unit. Barco - RHDM-1701 - User manual...

  • Page 140: User 3D Lut Page

    Figure 42: User 3D LUT page Upload file • This webpage allows the user to upload a custom 3D-LUT file on the unit. Click on Upload file... to go to the “Upload Custom 3D LUT” page. Barco - RHDM-1701 - User manual...
  • Page 141 It is similar to a hardware / GPU alike rendering of 3D-LUT cube. Trilinear interpolations interpolates independently for R, G and B and is more similar to a software / CPU alike rendering. Barco - RHDM-1701 - User manual...

  • Page 142: Scan Mode Page

    Activate or deactivate the scanning backlight option. This setting is applied to window 1 and window 2 simultaneously. The current setting is shown when the page is opened or refreshed. Press “Apply” to send changes on the web page to the display unit. Barco - RHDM-1701 - User manual...

  • Page 143: Umd Page

    Full functionality description 4.4.6 UMD page Figure 45: UMD web page Barco - RHDM-1701 - User manual...
  • Page 144 • Signal high: Select the color of the right lamp if the signal at the selected pin is high (Red, Green, Amber, Off) UMD text • Controlled by: Select the pin to control the color of the text on the UMD bar (GPI1, GPI2, GPI3 or GPI4) Barco - RHDM-1701 - User manual...
  • Page 145 Amber, Off) • Signal high: Select the color of the text if the signal at the selected pin is high (Red, Green, Amber, Off) Press “Apply” to send the new settings to the display unit. Barco - RHDM-1701 - User manual...

  • Page 146: Preset Management Page

    Full functionality description 4.4.7 Preset Management page Figure 46: Preset Management page Barco - RHDM-1701 - User manual...

  • Page 147: System Info Page

    Figure 47: System info web page The following information is shown on this web page: • Display name • Serial number • Version of the software • Build – date of the release of the software version Barco - RHDM-1701 - User manual...

  • Page 148: Power Management Page

    The current setting is shown when the page is opened or refreshed and cannot be changed. 4.4.9 Power management page Figure 48: Power management web page Activates or deactivates the standby functionality (soft standby). Press “Apply” to send changes on the web page to the display unit. Barco - RHDM-1701 - User manual...

  • Page 149: Documentation Page

    4.4.10 Documentation page Figure 49: Documentation web page This web page contains the weblink to the documentation explorer at my.barco.com. You can use the same ID and password as for the licensing of the display unit to access the documentation online.

  • Page 150: Support Page

    4.4.11 Support page Figure 50: Support web page On this web page, the contact details of the Barco support teams in EMEA (Europe, Middle East & Asia) and the United States are given. Do not hesitate to contact them for technical assistance when necessary.

  • Page 151: Admin

    • User name: admin • Password: admin117234 • This web page allows the user to update the software via the ethernet port. Please consult the “how to upload new software” for more details about this functionality. Barco - RHDM-1701 - User manual...

  • Page 152: Video Signal Processing

    576i: EBU 3213 L to RGB Rec.709 Rec.709 SMPTE 240M Step 2 RGB to R’B’G’ ITU-R BT.601 (Rec. 601) Rec.709 SMPTE 240M Step 3 R’G’B’ to Y’C Table 2: Standards used for video signal generation Barco - RHDM-1701 - User manual...
  • Page 153 The Picture setting does not have any influence on the conversion of the video signal to the image on the screen. The Picture setting only drives the power of the backlight, and consequently, the brightness of the image. Barco - RHDM-1701 - User manual...

  • Page 154: General Definition Oetf

    • b (the voltage up to which the transfer curve is linear) • b (the slope of the linear part: b =V/L ) • g (the gamma correction or exponent of the power function) Barco - RHDM-1701 - User manual...

  • Page 155: Video Encoding Functions

    In general, we can write any of these encoding standards with the formula: ≤ < ⎧ ⎨ − − ⎩ ≤ ≤ − where 5.3 Video encoding functions 5.3.1 Rec.709 Figure 53: L-V’ for Rec.709 ≤ < ⎧ ⎨ − ≤ ≤ ⎩ Barco - RHDM-1701 - User manual...

  • Page 156: Smpte 240M

    Figure 54: L-V’ for xvYCC xvYCC (based on ITU1361) is identical with Rec.709 in the legal range of Rec.709 (here the interval [0..1], but it extends the Rec.709 curve also outside the legal range: Barco - RHDM-1701 - User manual...

  • Page 157: Effective Gamma

    0.52 (see figure below). We call this “best fit” the “ effective gamma ” . Figure 55: The Rec.709 encoding equation fitted with a power function Barco - RHDM-1701 - User manual...

  • Page 158: Rendering Intent

    2.2, but rather to an “effective gamma” of around 2.0 (as discussed in the section “effective gamma” and illustrated in the figure below). Figure 56: The inverse of the Rec.709 encoding function fitted with a power function Barco - RHDM-1701 - User manual...

  • Page 159: Selection Of Oetfs In The Rhdm

    • xvYCC : The xvYCC function is identical to Rec.709 in the legal range of values. However, xvYCC can encode headrooms and footrooms that give rise to out-of-gamut colors. With the wide gamut of the display unit, these colors are displayed correctly on screen. • Pure Gamma Barco - RHDM-1701 - User manual...
  • Page 160 Picture P is the user control that drives the power of the backlights. From this equation you can readily see that Picture has an influence on the black level that is set by the Background and the dark offset of the LCD panel. Barco - RHDM-1701 - User manual...
  • Page 161 Video signal processing γ ⎡ ⎤ ⎛ ⎞ − ⎜ ⎜ ⎟ ⎟ ⎢ ⎥ ⎝ ⎠ ⎣ ⎦ inrw , i = R,G,B NOTE Increasing G or B will result in clipping of the highlights. Barco - RHDM-1701 - User manual...

  • Page 162: Terminology

    8-bit steps. clipping bright levels 100 % Visualize super bright Visualize Black super dark offset Black White Video signal 100 % clipping dark levels Figure 57: Background control Barco - RHDM-1701 - User manual...
  • Page 163 For 10 bit signals, the headroom is defined between level 940 and level 1019. The hue control is similar to the hue setting on a CRT display unit. Hue affects the C and C components of the Y’C according to the following formula: Barco - RHDM-1701 - User manual...
  • Page 164 Nr of active lines + Scanning format + Vertical frequency e.g.: 720p23.98 can be translated to a format that has a resolution of 1280x720, a progressive scan format with a vertical frequency of 23.98 Barco - RHDM-1701 - User manual...
  • Page 165 Since the point may not be on a lattice point, the lattice values must be interpolated. Cubes may be of various sizes and bit depths. Often 17x17x17 cubes are used as 3D-LUTs. Barco - RHDM-1701 - User manual...
  • Page 166 Not only the white level, but also the black level is affected when the picture is adjusted. The value of the picture is expressed in cd/m for 100% video signal. Barco - RHDM-1701 - User manual...
  • Page 167 The RGB notation is used when the signals are proportional to the tristimulus values X, Y and Z. The R’G’B’ notation is used whenever we describe the gamma-corrected RGB components (using a power function such as e.g. ITU.709). Barco - RHDM-1701 - User manual...
  • Page 168 OSD menus. The main difference is that Picture drives the power of the backlights, while Video gain is a multiplication factor applied on the value of the video signal V . Increasing gain results in clipping of the highlights. Barco - RHDM-1701 - User manual...
  • Page 169 D65 (close to 6504 K) is the EBU and SMPTE broadcast standard. Color temperatures of 5400-5600 K are used in film post production and color temperatures of 9300 K are used in Asia (ARIB recommendation). Barco - RHDM-1701 - User manual...

  • Page 170: Addendum

    Colors & Grayscale • Without dithering Color depth: 10 bit Grayscales: 1024 • With dithering Color depth: 12 bit Grayscales: 4096 7.1.1.1.5 Viewing angle • For contrast > 10:1 • Horizontal: 85° • Vertical: 85° Barco - RHDM-1701 - User manual...

  • Page 171: Light Output (At Normal Viewing Angle 0°)

    , gamma=2.35, the black level is typical: 0.12 cd/ 7.1.1.1.9 Resolution • 1920 x 1080 pixels • Active video window: 1920 x 1080 (or less depending on picture format) • Pixel dimension: 0.1905 x 0.1905 mm Barco - RHDM-1701 - User manual...

  • Page 172: Pixel Defects And Cosmetic Specs

    • Dark pixel/subpixel: Number of always-unlit pixels/subpixel • Bright defect subpixel: bright defect area is 25% of subpixel brightness at black • Black defect subpixel: bright defect area is 75% of subpixel brightness at white Barco - RHDM-1701 - User manual...
  • Page 173 A-zone Dot defect Sparkle 1-dot mode 2-dots Units 3-dots 4-dots Density Pcs/ø20mm Total Black 1-dot mode 2-dots Units 3-dots 4-dots Density Pcs/ø20mm Total Total Line defect Serious one is not al- lowed. Uneven brightness Barco - RHDM-1701 - User manual...
  • Page 174 W: width (mm) L: length (mm) L > 40 W 0.08 L 20 L > 20 W > 0.08 Scratch to polarizer D 0.2 Ignore Dot shape D 0.6 D: ave. dia. (mm) D > 0.6 Barco - RHDM-1701 - User manual...

  • Page 175: Image Specifications

    • Typical fall time: 8 ms 7.1.1.2.2 Tolerances Tolerance test colors The display unit complies with the following tolerances for the test colors specified in the EBU Tech 3325: ∆ v ' ' ≤ 0045 Maximal: Barco - RHDM-1701 - User manual...
  • Page 176 The tolerances are shown for 25°C. Tolerances white point and luminance White point chromaticity and luminance is calibrated at the center of the display for x=0.3127, y=0.3290 and Y=100 cd/m (at level 1019) with the following tolerance requirement: Barco - RHDM-1701 - User manual...
  • Page 177 (Relative to screen centre) 1 (screen centre) 2 and 5 ± 0.4H 9 and 12 ± 0.4H 3, 4, 6 and 7 ± 0.35H ± 0.2H 8, 10, 11 and 13 ± 0.4W ± 0.4H Barco - RHDM-1701 - User manual...

  • Page 178: Power Supply Specification

    Power consumption • Nominal power consumption: 100 W • Maximum power consumption: 115 W • Power consumption in hard standby mode: lower than 3 W • Power consumption in soft standby mode: typical 65 W Barco - RHDM-1701 - User manual...

  • Page 179: Power Factor

    7.1.1.3.4 Earth / ground • Protective Earth = mechanical ground = chassis ground • Secondary electrical ground is connected to the chassis ground. 7.1.1.3.5 Input protection • T6.3 A / 250V internal line fuse Barco - RHDM-1701 - User manual...

  • Page 180: Connectors

    SDI input board RJ12 (service port) SDI input board (optional) Audio out – SPDIF (optional) Optional slot Ethernet RJ45 (2 ports) Optional slot Earth stud GPI Tally parallel 100 – 240 Vac in RS485 Power switch Barco - RHDM-1701 - User manual...
  • Page 181 • AC Power connector (IEC): 100-240 Vac Others • Kensington lock IMPORTANT In order to meet the EMI/EMC specifications as described in the environmental specifications paragraph, shielded network cables (Ethernet, Tally) should be used. Barco - RHDM-1701 - User manual...

  • Page 182: Signal Inputs

    Addendum 7.1.1.4.2 Signal inputs Connectors SDI module • 4 BNC connectors 7.1.1.4.3 Control RS485 Tally serial connector • RJ45 Pinning Signal Barco - RHDM-1701 - User manual...
  • Page 183 GPI Tally parallel connector • RJ45 Pinning Signal GPI 1 GPI 2 GPI 3 GPI 4 USB connector • Type A: host • Data rate: USB 2.0 – High speed Ethernet connector • RJ45 Barco - RHDM-1701 - User manual...

  • Page 184: Power

    • Data rate: USB 1.1 – Full speed 7.1.2 Mechanical specifications 7.1.2.1 Dimensions Dimension (mm) Width Width (with bracket) Height 310,3 Height (with bracket) 310,3 Depth 182,95 Depth (with bracket) 182,95 7.1.2.2 Weight • 15,5 kg Barco - RHDM-1701 - User manual...

  • Page 185: Mechanical Drawings

    Addendum 7.1.2.3 Mechanical drawings Figure 62: RHDM-1701 Front view Barco - RHDM-1701 - User manual...
  • Page 186 Addendum Figure 63: RHDM-1701 Top view Figure 64: RHDM-1701 Bottom view Barco - RHDM-1701 - User manual...
  • Page 187 Addendum Figure 65: RHDM-1701 Rear view Barco - RHDM-1701 - User manual...
  • Page 188 Addendum Figure 66: RHDM-1701 Side view Barco - RHDM-1701 - User manual...
  • Page 189 Addendum Figure 67: RHDM-1701 3D front view Barco - RHDM-1701 - User manual...

  • Page 190: Finishing

    Addendum Figure 68: RHDM-1701 3D rear view 7.1.2.4 Finishing Front • Priming coat: Beltical filler P1F6 • Top coat: 2-component purethane paint. • Color: Graphite grey RAL7024 • Screening: Silkscreening (ALU RAL 9006) Back • Priming coat: 2-component epoxy primer •...

  • Page 191: Environmental Specifications

    • Color: Black RAL9005 • Screening: Silkscreening (white) 7.1.3 Environmental specifications 7.1.3.1 Random vibration • Barco Truck simulation procedure for random vibrations - 2gRMS / 3V / 10-500Hz for all three axes 7.1.3.2 Functional shock Operating: • 25 g – 6 ms •...

  • Page 192: En Norms

    • The unit is targeted to meet following EN specifications: Performance Level Reference Test Description Compliant EN 55022 Conducted Emission EN 55022 Radiated Emission EN 61000-3-2 Conducted Emission Har- According to Class D monic Currents EN 61000-3-3 Voltage Changes Fluctua- Not applicable tion Barco - RHDM-1701 - User manual...

  • Page 193: Fcc Norms

    Dip 30% for 25 periods Interrupt: 95% for 250 periods Cannot be compared to generic test level 7.1.3.4.3 FCC norms • Unit meets FCC part 15 level A 7.1.3.4.4 ICES norms • Unit meets ICES-003 level A Barco - RHDM-1701 - User manual...

  • Page 194: Humidity

    • Operating & storage: max 95% @ 35°C (95°F) 7.1.3.6 Altitude/Low pressure • Operating nom. 701 m • Storage nom. 264 m 7.1.3.7 Acoustic noise Location of measurements: at 1m of the display unit. Figure 69: Setup to measure noise levels Barco - RHDM-1701 - User manual...

  • Page 195: Dust Class

    Unit meets following safety requirements and is labeled accordingly: • CE / EN 60950-1 • DEMKO / EN 60950-1 • IEC60950-1 • UL 60950-1 • C-UL CSA C22.2 No 60950-1 (pending) 7.1.4.3 Workmanship • According to ANSI/IPC A-610A level II Barco - RHDM-1701 - User manual...

  • Page 196: Compliancy

    7.2.1.1 Signal input • 4 BNC connectors 2 Inputs 2 Loop-through outputs • Accepts the input signals: 2 x SDI 2 x HDSDI 2 x 3Gb/s (optional) 1 x Dual link (optional) • Automatic input detection Barco - RHDM-1701 - User manual...

  • Page 197: Single Link Sd And Hd Timings

    Addendum 7.2.1.2 Single link SD and HD timings Table 4: Single link SD and HD timings NOTE The SD and HD timings are supported by both the RHDM/B and the RHDM/P. Barco - RHDM-1701 - User manual...

  • Page 198: Dual Link Hdsdi Timings (Optional)

    7.2.1.3 Dual link HDSDI timings (optional) Table 5: Dual link HDSDI timings NOTE SMPTE 372M Dual link HDSDI timings are supported by the RHDM/P. 1280x720 4:4:4 timings are not defined by any standard, and thus not supported. Barco - RHDM-1701 - User manual...

  • Page 199: 3Gb/S Timings (Optional)

    NOTE The SMPTE 425M 3Gb/s timings are supported by the RHDM/P. All level-A and level-B dual link timings are supported by the RHDM/P. The level-B dual stream timings are not supported by the RHDM/P. Barco - RHDM-1701 - User manual...

  • Page 200: Latency

    The OETF defines how each input signal level (V) is transferred to light (L) at the display side. It is γ defined by the OETF shape , the effective gamma ( ) and the displayed video range . OETF shapes: • xvYCC • Rec.709 Barco - RHDM-1701 - User manual...
  • Page 201 • 0-1023 (DVI RGB) • Custom The following table summarizes the recommended settings. However the actual OETF choice is ultimately with the user. “R” stands for recommended and “a” stands for alternative. Table 8: OETF shapes Barco - RHDM-1701 - User manual...

  • Page 202: Color Spaces

    RHDM and is not mentioned here. Table 9: Color space primaries The following table summarizes the recommended color space and white point for different signals. “R” stands for recommended and “a” stands for alternative. Barco - RHDM-1701 - User manual...

  • Page 203: Mutual Effects Of Scaling And Aspect Ratio Settings

    The setting of the scaling mode limits in certain cases the setting of the aspect ratio. “H res” and “V res” correspond to the horizontal and vertical resolution respectively. Table 11: Mutual effects of scaling and aspect ratio settings Barco - RHDM-1701 - User manual...

  • Page 204: Safe Area Marker Settings

    • For 4:3 signal formats and when the safe area markers are defined relative to the image borders (standard definition 480i and 576i): Table 14: Safe area markers defined for 4:3 formats and relative to image borders Barco - RHDM-1701 - User manual...
  • Page 205 Custom aspect ratio marker note: When a custom aspect ratio marker has been specified, the standards mentioned above do not define the safe area and the standard selection will be locked on custom. Barco - RHDM-1701 - User manual...

  • Page 206: Installation

    • by air: the protest has to be issued against the air-carrier within 14 days after delivery of the goods. In all cases, a claim or potential claim should be reported as soon as possible whether or not full documentation is immediately available. Barco - RHDM-1701 - User manual...

  • Page 207: Storage

    Height: 550 mm Width: 675 mm Depth: 400 mm • An optional flight case is available for flexible demo purposes: contact Barco for more details. 7.8.2.5 Repack instructions CAUTION To repack the display unit, please use the original packaging material.
  • Page 208 Note that the left and right side are slightly different and should be used correctly. • Place the display unit gently in the box. The bottom side of the display facing down. Include all original items provided with the display unit, including cables, User manual and guiding sheets. Barco - RHDM-1701 - User manual...
  • Page 209 Addendum • Seal the box with tape. Barco - RHDM-1701 - User manual...

  • Page 210: Mounting Instructions

    The display unit can be mounted on a tiltable stand. The stand can be mounted on the VESA compatible mounting positions at the back side. The mounting positions are spaced by 100mm horizontally and 100mm vertically. Barco - RHDM-1701 - User manual...
  • Page 211 -5° and +15° screw can be positioned in lower hole (tilting limited from 0° to 10°) VESA mounting positions (4 knurled screws) Figure 71: Display unit mounted on tiltable stand Barco - RHDM-1701 - User manual...

  • Page 212: Install The Barco Stand

    Remove the brackets The display unit is delivered with brackets for rack mounting. First remove the 2 rack brackets with handles by unscrewing (2x) 3 torx head screws T20. Figure 73: Removal of rack brackets Barco - RHDM-1701 - User manual...
  • Page 213 Use the 4 knurled screws to mount the stand on the bottom 4 VESA mounting positions. Place the display unit up-right and verify that the display unit is placed on a flat and horizontal surface at all times. Figure 75: VESA mounting with the 4 knurled screws Barco - RHDM-1701 - User manual...

  • Page 214: Remove The Barco Stand

    7.8.3.2.3 Remove the Barco stand Instructions to remove the Barco stand from the display unit: • Place the display unit with the front side on a horizontal, flat and stable table, covered with bub- ble wrap or a similar protective material.

  • Page 215: Cleaning Instructions

    To power-up the display unit: • Place the display unit up-right (on a Barco stand) or mount the display unit safely into a rack. • Connect the power cord of the appropriate power supply to the power connector at the back of the display unit.

  • Page 216: Troubleshooting

    • Image displayed on the screen is distorted, shows bands or stripes. In this case something is wrong with the display unit. Contact Barco or your sales representative. Barco - RHDM-1701 - User manual...

  • Page 217: Fault And Warning List

    The root node is “0” and will always show when an error or warning occurs. In the table below, all nodes and error codes which are relevant to the user are shown. Barco - RHDM-1701 - User manual...
  • Page 218 The hue of window 2 is set to a value out of the calibrated range RGB channels Not all color channels (R,G,B) are used for the output on the screen for window 2 Barco - RHDM-1701 - User manual...
  • Page 219 The faults and warnings under node “3” and “4” cannot be solved by the customer. Please contact Barco customer service or your local sales representative for help. Barco - RHDM-1701 - User manual...

  • Page 220: No Power" Fault Finding Tree

    Power Contact Barco to technical switch on? specifications? power source applied to display Swith power switch on unit? Power No further action LED on? required Contact Barco Figure 77: “No power” fault finding tree Barco - RHDM-1701 - User manual...

  • Page 221: Nothing Observed On The Screen" Fault Finding Tree

    LEDs not lighted Check the “No Apply an input signal to Power” fault the display unit finding tree Figure 78: “Nothing observed on the screen” fault finding tree Barco - RHDM-1701 - User manual...

  • Page 222: Verify Input Signal" Fault Finding Tree

    Contact Barco Set the status bar to “Always visible” in the OSD menu Figure 79: “Verify input signal” fault finding tree Barco - RHDM-1701 - User manual...

  • Page 223: List Of Spare Parts

    • RHDM Starter Spare kit – K5031254 RHDM Power Supply RHDM Power Interface Board RHDM HDSDI Input Board RHDM Communication Board RHDM Control box RHDM Accessory kit • RHDM Accessory kit – K5031253 Knobs VESA screws User manual Barco - RHDM-1701 - User manual...

  • Page 224: Contact Information

    Phone: +32 56 262 350 Fax: + 32 56 233 013 United States Email: Helpdesk.BCDUSA@barco.com Phone: +1 866 992 2726 Fax: + 1 678 475 8124 Web sites Public Web site: http://www.barco.com Partner Web site: http://my.barco.com Barco - RHDM-1701 - User manual...

  • Page 225: Appendix A - Software License

    GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program Barco - RHDM-1701 - User manual...
  • Page 226 Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of Barco - RHDM-1701 - User manual...
  • Page 227 Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. Barco - RHDM-1701 - User manual...
  • Page 228 License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, Barco - RHDM-1701 - User manual...
  • Page 229 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Barco - RHDM-1701 - User manual...

  • Page 230: Gnu Library General Public License

    Copyright (C) 1991 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Barco - RHDM-1701 - User manual...
  • Page 231 Most GNU software, including some libraries, is covered by the ordinary GNU General Public License, which was designed for utility programs. This license, the GNU Library General Public License, applies to certain designated libraries. This license is quite different from the ordinary Barco - RHDM-1701 - User manual...
  • Page 232 Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".) Barco - RHDM-1701 - User manual...
  • Page 233 License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a Barco - RHDM-1701 - User manual...
  • Page 234 Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables. Barco - RHDM-1701 - User manual...
  • Page 235 Verify that the user has already received a copy of these materials or that you have already sent this user a copy. Barco - RHDM-1701 - User manual...
  • Page 236 11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or Barco - RHDM-1701 - User manual...
  • Page 237 For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the Barco - RHDM-1701 - User manual...
  • Page 238 INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS Barco - RHDM-1701 - User manual...

  • Page 239: Appendix B - 3D-Lut File Examples

    7.14 Appendix B - 3D-LUT file examples Currently the monitor supports three types of user 3D-LUT files: Truelight, Cinespace and Autodesk. Below you can find a sample of a valid file for each of the supported types: Truelight sample Barco - RHDM-1701 - User manual...
  • Page 240 Addendum Cinespace sample Autodesk sample Barco - RHDM-1701 - User manual...

  • Page 241: Abbreviations And Acronyms

    Abbreviations and acronyms 8 Abbreviations and acronyms °C Degrees Celsius °F Degrees Fahrenheit ActEv Actions + Events (name of a Barco software product) Automatic Gain Control Automatic Light Control AMLCD Active Matrix Liquid Crystal Display ANSI American National Standards Institute...
  • Page 242 Electronic Industries Association EMI / EMC Electromagnetic Interference / Electromagnetic Compatibility European Norms EOTF Electro Optical Transfer Function Electrostatic Discharge Full Duplex FLIR Forward Looking Infrared FPDM Flat Panel Display Measurements General Purpose Interface Half Duplex Barco - RHDM-1701 - User manual...
  • Page 243 International Standard Organization Indium Tin Oxide International Telecommunications Union kilogram Luminance Liquid Crystal Display LCD Flicker Compensation Line Replaceable Unit Look Up Table Measure of illumination (lumens per meter squared) millimeter milliseconds MTBF Mean-Time-Between-Failures MTTR Mean-Time-To-Repair Barco - RHDM-1701 - User manual...
  • Page 244 Rack Mount Rotator RoHS Restrictions of Hazardous Substances Radiated Susceptibility Serial Digital Interface SDSDI Standard Definition Serial Digital Interface Symbol Generator SMPTE Society of Motion Picture and Television Engineers Separate Sync STANAG Standardization Agreement Barco - RHDM-1701 - User manual...
  • Page 245 SXGA Super eXtended Graphics Array To Be Confirmed To Be Defined To be Measured To Be Tested Transistor Transistor Logic Under Monitor Display Volts Direct Current VESA Video Electronics Standards Association VESA Mount Watt Barco - RHDM-1701 - User manual...

  • Page 246: Table Of Contents

    2.3 Switch on the display unit ..............17 2.4 How to register the display unit............19 2.5 Concepts of operation ..............32 2.6 How to setup the display unit............35 3 How to ..................36 Barco - RHDM-1701 - User manual...
  • Page 247 4.1.2 Operational mode overview ............... 72 4.1.3 Indicator lights................. 74 4.1.4 Control panel ................... 75 4.1.4.1 Overview operation control panel ..........75 4.1.4.2 USB port ................75 4.1.4.3 Press buttons ............... 76 4.1.4.4 Press and rotary knobs ............76 Barco - RHDM-1701 - User manual...
  • Page 248 4.2.6.1 Overview numeric keypad buttons.......... 107 4.2.6.2 Numeric keypad functionality ..........107 4.2.6.3 Special function key assignment ..........108 4.2.7 Navigation pad................108 4.2.7.1 Overview navigation pad buttons ........... 108 4.2.7.2 Navigation pad functionality ..........109 Barco - RHDM-1701 - User manual...
  • Page 249 4.4.4 User 3D LUT page ................140 4.4.5 Scan mode page ................142 4.4.6 UMD page ..................143 4.4.7 Preset Management page ..............146 4.4.8 System info page ................147 4.4.9 Power management page ..............148 4.4.10 Documentation page ..............149 4.4.11 Support page ................150 Barco - RHDM-1701 - User manual...
  • Page 250 7.1.1.3.1 Power inputs ..............178 7.1.1.3.2 Power consumption ............178 7.1.1.3.3 Power factor ..............179 7.1.1.3.4 Earth / ground .............. 179 7.1.1.3.5 Input protection ............179 7.1.1.4 Connectors ................. 180 7.1.1.4.1 Input and output options..........180 Barco - RHDM-1701 - User manual...
  • Page 251 7.2.1.3 Dual link HDSDI timings (optional) ......... 198 7.2.1.4 3Gb/s timings (optional) ............199 7.3 Latency ..................200 7.4 OETF (Opto-Electrical Transfer Function) .......... 200 7.5 Color spaces................. 202 7.6 Mutual effects of scaling and aspect ratio settings......203 Barco - RHDM-1701 - User manual...
  • Page 252 7.8.3.1 Rack mounting ..............210 7.8.3.2 Barco stand (option) ............210 7.8.3.2.1 Barco stand ..............210 7.8.3.2.2 Install the Barco stand ........... 212 7.8.3.2.3 Remove the Barco stand ..........214 7.8.4 Connecting signals and power to the display unit .........214 7.8.4.1 Instructions to power up the display unit.........
  • Page 253 Figure 33: Location of buttons to set/change safe area markers ........97 Figure 34: Numeric keypad buttons ................107 Figure 35: Navigation pad buttons ................108 Figure 36: Example of out of gamut indication (red squares have been replaced by yellow squares for black&white reproducability) ..............116 Barco - RHDM-1701 - User manual...
  • Page 254 Figure 64: RHDM-1701 Bottom view .................186 Figure 65: RHDM-1701 Rear view ................187 Figure 66: RHDM-1701 Side view ................188 Figure 67: RHDM-1701 3D front view ................189 Figure 68: RHDM-1701 3D rear view .................190 Figure 69: Setup to measure noise levels ..............194 Figure 70: Rack mounting of the display unit .............210...
  • Page 255 Table 13:Safe area markers defined for 16:9 formats and relative to image borders ..204 Table 14:Safe area markers defined for 4:3 formats and relative to image borders ..204 Table 15:Fault and warning list ................219 Barco - RHDM-1701 - User manual...
  • Page 256 Table of contents End of document Barco - - User manual...

Table of Contents
