User Manual
RHDM series
High-Definition reference monitors
For broadcast and post-production professionals who are performing color-critical
work on a daily basis, Barco has developed the RHDM series High-Definition
reference monitors. Available in a 17" and 23" version, the RHDM has been designed
to suit the needs of all aspects of today's professional broadcasting - including
camera shading, field productions, mixing and master control, color correction, post-
production and editing. As true Grade-1 LCD displays, Barco's RHDM series bring
amazing color accuracy, image stability and motion handling.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Barco RHDM-1701
Summary of Contents for Barco RHDM-1701

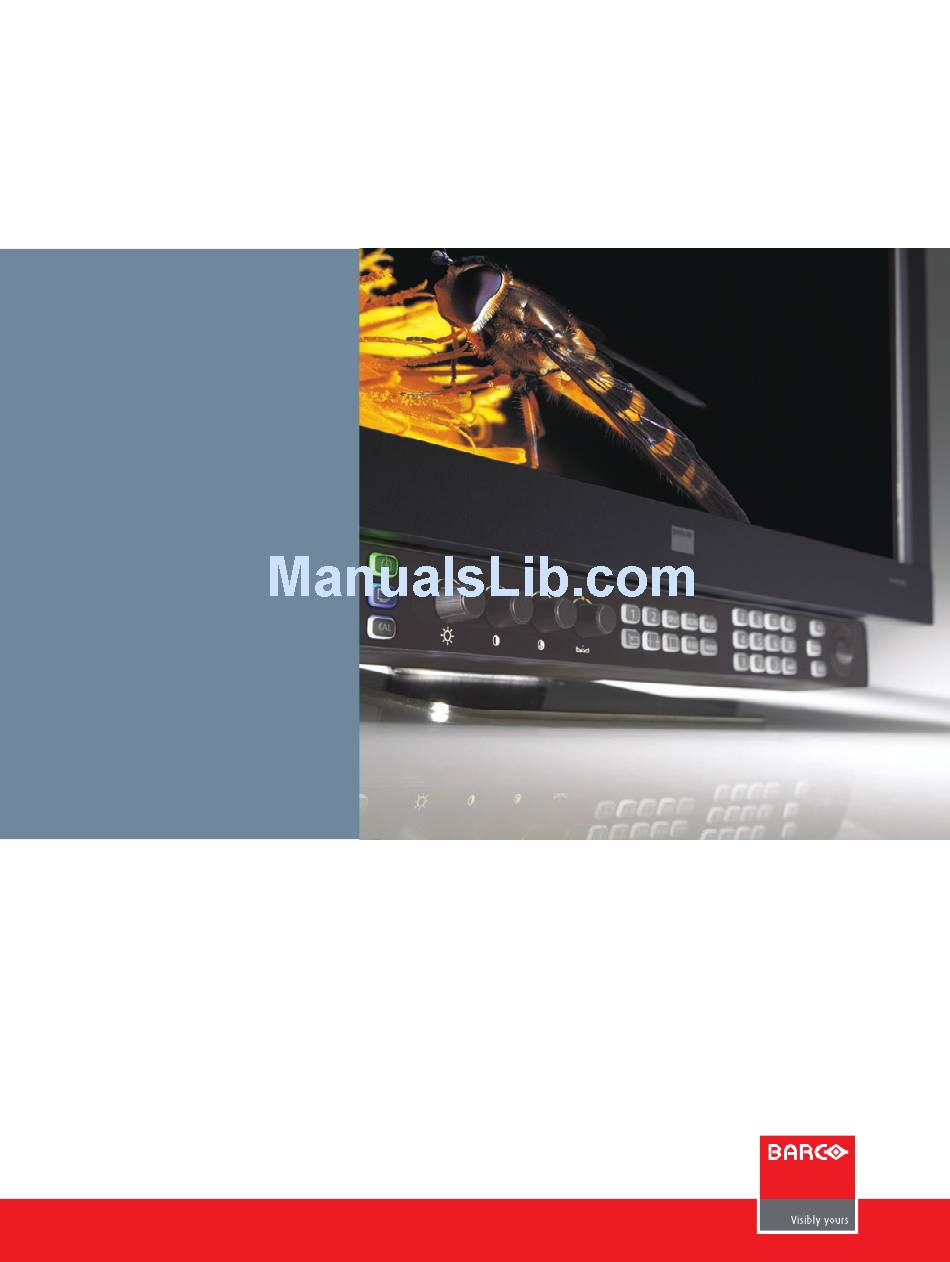

- Page 1 High-Definition reference monitors For broadcast and post-production professionals who are performing color-critical work on a daily basis, Barco has developed the RHDM series High-Definition reference monitors. Available in a 17” and 23” version, the RHDM has been designed to suit the needs of all aspects of today’s professional broadcasting - including camera shading, field productions, mixing and master control, color correction, post- production and editing.
- Page 3 Excellent motion handling With Barco’s RHDM series displays, you can do full justice to the action scenes you produce. Thanks to the high-speed 120 Hz panel, proprietary LCD speed-up algo- rithms and scanning RGB-LED backligh technology, the RHDM series prevent motion blur and judder.
- Page 4 RHDM-B series RHDM-1701B and RHDM-2301B are reli- Camera control/shading At the time of shooting, Barco’s RHDM-B series are the reliable references for program able references for master control directors, colorists and camera and lighting staff. During real-time color judging, the...
- Page 5 In order to simulate this, a 3D-LUT must be applied to the input signal, either in an external processor, or internally in the monitor. Barco's RHDM-P version is able to handle custom 3D-LUTs. Formats from Filmlight, Cinespace and Autodesk are now supported as a standard feature.
- Page 6 Traditional LCD monitors present blur artifacts as a result of the deinterlacing mode, which typically builds up the image in a line by line drawing process. Barco's RHDM series counteract this by reducing the ‘hold’ effect created by LCDs. First of all, the monitors have a fast 120Hz panel.
-
Page 7: Technical Specifications
- 1 x SDI module 22 bit dithered - 2 x DVI input modules RHDM-1701 display: SDI module: • Active area RHDM-1701: 16.53’’ (42 cm) • Input/output card supporting 2x SD- • Resolution RHDM-1701: 1920x1080 SDI or 2x HD-SDI Track ball for on-screen display, panning &... - Page 8 China: +86 400 88 22726 The information and data given are typical for the equipment described. However any individual item is subject to change without any notice. Or mail to sales.broadcast@barco.com The latest version of this product sheet can be found on www.barco.com. www.barco.com/broadcasting...
