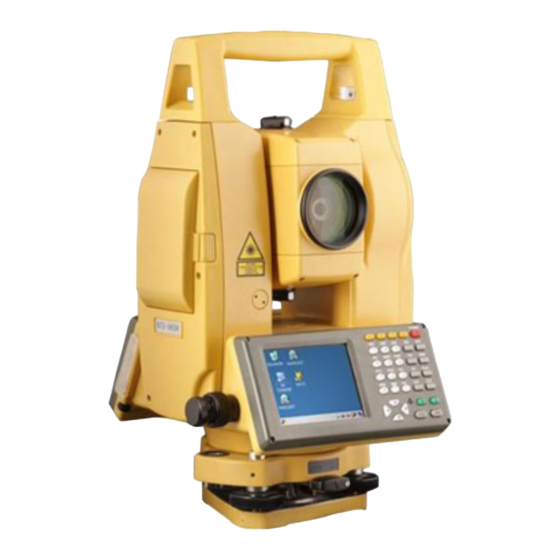

South NTS-960R Operation Manual

Electronic total station

Hide thumbs

page of 214

/ 214
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the NTS-960R and is the answer not in the manual?

Questions and answers

Summary of Contents for South NTS-960R

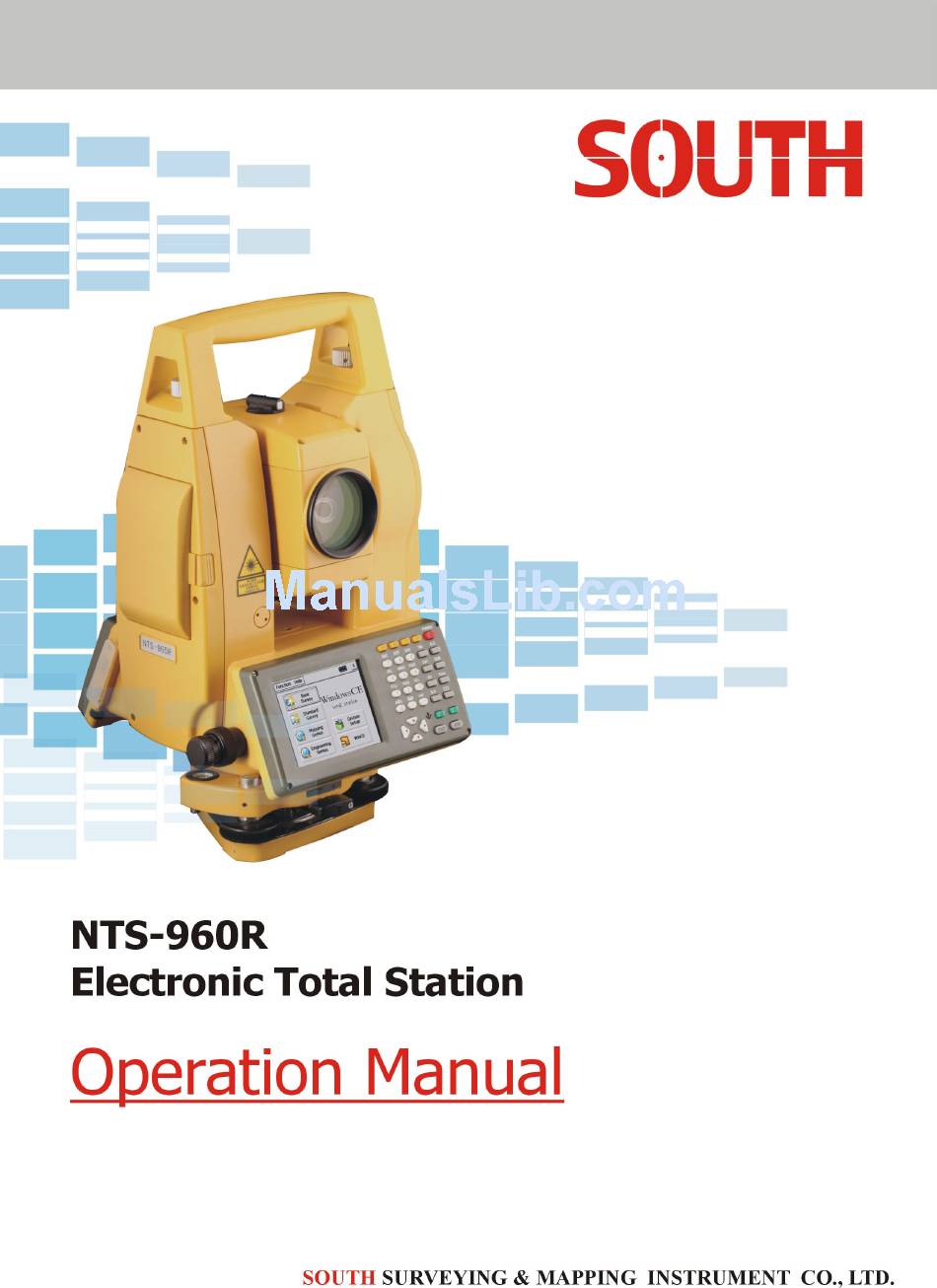

Page 2 Operation Manual NTS-960R Series Electronic Total Station SOUTH SURVEYING &MAPPING INSTRUMENT CO., LTD...
Page 3: Table Of Contents
INDEX FOREWORD .............................. 1 PRECAUTIONS ............................2 SAFETY GUIDE ............................3 1. NOMENCLATURE AND FUNCTIONS ....................4 1.1 NOMENCLATURE ..........................4 1.2 KEYPAD ............................6 2. SYNCHRONIZATION WITH PC ......................7 2.1 INSTALLATION MICROSOFT ACTIVESYNC ................7 2.2 CONNECTING TOTAL STATION WITH PC ...................
Page 4 6.1.4 Vertical Angle Percentage (%) Mode ..................30 6.1.5 Repeat Angle Measurement ....................... 31 6.2 DISTANCE MEASUREMENT ......................33 6.2.1 Setting Atmosphere Correction ....................34 6.2.2 Atmospheric Refraction And Earth Curvature Correction ............37 6.2.3 Setting Target Type ........................38 6.2.4Setting the Prism Constant ......................
Page 5 10. DATA EXPORT/IMPORT ......................... 80 10.1 DATA EXPORT ..........................80 10.2 DATA IMPORT..........................82 11. RECORD MEASUREMENT DATA ....................84 11.1 SETTING OCCUPIED POINT AND BACKSIGHT POINT ............85 11.2 BACKSIGHT OBSERVATION (BS OBS) ..................96 11.3 FORESIGHT OBSERVATION (FS OBS) ..................
Page 6 13.2.6 Slope Setout ........................... 145 13.2.7 Cross Section Setout ......................148 13.3 COGO ............................150 13.3.1 Intersection ..........................150 13.3.2 4-Intersection ......................... 151 13.3.3 Inverse ........................... 153 13.3.4 Area ............................154 13.3.5 Missing Line Measurement ....................157 13.3.6 Radiate ...........................
Page 7 2 IMPORT DATA TO TOTAL STATION ..................... 195 2.1 Coordinate Data/Fixed Point Data Format ................. 195 2.2 Cross Section Data Format ......................195 2.3 Point P Coding Format ....................... 196 2.4 Horizontal Line........................... 196 【APPENDIX-B】 CALCULATE ROAD ALIGNMENT ..............198 1 ROAD ALIGNMENT ELEMENTS ....................
Page 8: Foreword
FOREWORD Thank you for purchasing Electronic Total Station WinCE(R) Series. As a new generation of total station independent R& D, WinCE Series realizes the automation and informationization, and takes the advantage of networks, which makes it a computer‐like total station. The Windows CE interface of WinCE(R) Series is much similar to that of Windows System.You can intuitionally launch data storing, manipulating and exchanging with PC ...
Page 9: Precautions
PRECAUTIONS 1. Do not collimate the objective lens direct to sunlight without a filter. 2. Do not store the instrument in high and low temperature to avoid the sudden or great change of temperature. 3. When the instrument is not in use, place it in the case and avoid shock, dust and humidity. 4. If there is great difference between the temperature in work site and that in store place, you should leave the instrument in the case till it adapts to the temperature of environment. 5. If the instrument has not been used for a long time, you should remove the battery for separate storage. The battery should be charged once a month. 6. When transporting the instrument should be placed in its carrying case, it is recommended that cushioned material should be used around the case for support. 7. For less vibration and better accuracy, the instrument should be set up on a wooden tripod rather than an aluminum tripod. ...
Page 10: Safety Guide
SAFETY GUIDE For infrared laser EDM (visible laser) Warning: The total station is equipped with an EDM of a laser grade of 3R/Ⅲa. It is verified by the following labels. Over the vertical tangent screw sticks an indication label “CLASS III LASER PRODUCT”. A similar label is sticked on the opposite side. This product is classified as Class 3R laser product, which accords to the following standards. IEC60825‐1:2001 “SAFETY OF LASER PRODUCTS”. Class 3R/Ⅲ a laser product: It is harmful to observe laser beam continuously. User should avoid sighting the laser at the eyes. It can reach 5 times the emitting limit of ...
Page 11: Nomenclature And Functions
1. NOMENCLATURE AND FUNCTIONS 1.1 NOMENCLATURE...
Page 13: Keypad
1.2 KEYPAD Functions of the Keys Nomenclature Function POWER Power Key To switch power ON/OFF. F1～F4 Soft Key Refers to the function displayed. 0～9 Numeric Key To input desired numbers. A～/ Alpha Key To input alphabets. Tab Key To move cursor rightward or to next character field. Backspace To delete one character leftward when inputting numbers or alphabets.
Page 14: Synchronization With Pc
2. SYNCHRONIZATION WITH PC 2.1 INSTALLATION MICROSOFT ACTIVESYNC There is a CD of Microsoft ActiveSync attached in the product package. First, install Microsoft ActiveSync on the personal computer and communicate with PDA. Please follow the steps below. Before Installing Microsoft ActiveSync Before installing, read the following words carefully: ●During the installation processing, reboot your computer is required. Therefore, please save your jobs and quit all the applications before installation. ●To install Microsoft ActiveSync, you are supposed to have an USB cable (available in the product package) connect the PDA with the personal computer. ...
Page 15 Using “Browse” Function After the synchronized between the total station and the PC, click “Browse” button to browse al the contents in the portable device (total station), as below. You can assign a task to a file like delete or copy. ...
Page 16: Knowing About Wince(R)
3. KNOWING ABOUT WINCE(R) Press POWER Key to switch it on, and enter into the welcome interface of Win Total Station. 3.1 OPERATING SYSTEM Total Station WinCE(R) Series is based on Windows CE operating system, which similarizes your browse approach with that of Microsoft Windows on a PC. You will find many similar functions like Start, Shortcut Function List and Tools List, etc. “ ” ●Note: When the battery is low, an icon will appear on the status bar, as well as a message showing that the battery is low will displayed on the screen. 3.2 SETTING YOUR TOTAL STATION You can adjust setting of WinCE(R) to adapt your work style. 3.2.1 Backlight For save battery, total station WinCE(R) will judge automatically whether to shut the light or not and will adjust lighteness. You can set as you need. How to set the time of backlight? ...
Page 17 OPERATIONAL STEPS DISPLAY ① On WindowsCE desktop, click “Start”→“Settings”. Settings ②Press control panel to enter Control panel into main menu. Use stylus to roll the slider bar to find Display “Display” icon. ③ Click “Display” to enter setting of Display Properties ④...
Page 18: Touch-Screen Adjustment
3.2.2 Touch-screen Adjustment If the touch‐screen is not sense to the stylus, you need to adjust the touch‐screen. How to adjust touch‐screen？ OPERATION STEPS DISPLAY control panel ① In “Control panel” find “stylus” icon. stylus stylus ②Click “stylus”’ Calibration Calibration ③ Click “Calibration”, and then “Recalibrate”. Recalibrate ④ According to the prompt, use the stylus to click the cross center.
Page 19: Approaches To Input Numeral And Character
⑤ Press [ENT] to save new [ENT] setting, Press [OK] to return to control [OK] panel. 3.3 APPROACHES TO INPUT NUMERAL AND CHARACTER For Total Station WinCE(R) Series, Two kinds of inputting approaches are available. One is using the keyboard, like the keyboard of a mobile phone, with 3 characters on one key. Press it once to display the first characters. Press it twice to display the second one. And press it three times to display the third one. The other approach is ...
Page 20 ③ On desktop of WinCE, a new folder is created. And activate the soft keyboard as seen on the right. ※1) ④Click the [Shift] key on the [shift] keyboard via the stylus to shift capital letter inputting mode, as shown on the right. Click letter [J] to input a characters “J”.
Page 21 ⑦ Click number [1] to input “1”. ⑧ After inputting, click once on the blank area on the desktop to confirm the inputting and close the soft keyboard. ※ 1) Input [ ] key to close soft keyboard. [Example 2：Input via keyboard] OPERATIONAL STEPS DISPLAY ①...
Page 22 [shift] ③ Press [SHIIFT] again to return to small letter inputting mode, and press [5] for 5 times to input letter “o”, [7] twice to input “b”, as ※ shown on the right, ④ [α] Press [α] key to return to number inputting mode, and press [-] to input “-”, and [1] to input the number “1”.
Page 23: 4．Star Key (★) Mode
4．STAR KEY (★) MODE Press the (★) to view the instrument settings. You may modify the settings by pressing the (★)： TILT: Electric Circular Vial Graphic Display. [F1] ATMOS: Set the Temperature , Pressure, Atmospheric Correction Value（PPM）and Prism constant value（PSM）. [F2] TARGET: The light acceptance quantity level (Signal level) is displayed [F3] 1 Electric circular bubble graphic display Electric circular bubble can be displayed by graphic. This function is good for leveling the instrument when the circular bubble is difficult to check directly. Rotate the leveling screws while observing the display. After leveling, press [Back] to return the previous mode. 2 Set the Temperature ,Pressure, Atmospheric Correction Value（PPM）and Prism constant value（PSM） Click [atmos] to view the Temperature, Pressure, PPM and PSM. To modify parameter, use stylus moving the cursor to the field and enter new data. Refer to “14.2 SETTING ATMOSPHERE DATA AND PRISM CONSTANT”. ...
Page 24 3 Set the target type, illumination of cross hair and check the signal intensity. Click [Target], target type, illumination of cross hair, etc. can be set. Setting of target type: WinCE(R) Series total station can be set as red laser EDM and invisible infrared EDM, and the reflector can be set as with prism, without prism and reflecting sheet. User can set according to the requirement. WinCE Series total station has invisible infrared EDM function only, the prism used with which has to be matching with the prism constant. Use stylus to select among the options: reflectorless/sheet/ prism ●Refer to “ technical parameters” for the parameter of kinds of reflector. Setting of illumination of cross hair: ●Move the stylus to adjust the brightness of crosshair. L: Indicate that the crosshair is dim. H: ...
Page 25: Preparation For Measurement
No light acceptance Minimum quantity level Maximum quantity level 5. PREPARATION FOR MEASUREMENT 5.1 UNPACKING AND STORE OF INSTRUMENT ‐ Unpacking of instrument Place the case lightly with the cover upward, and unlock the case, take out the instrument. ‐ Store of instrument Cover the telescope cap, place the instrument into the case with the vertical clamp screw and circular vial upwards (Objective lens towards tribrach), and slightly tighten ...
Page 26 same plumb line. ③ Step the tripod to make sure if it is well stationed on the ground. 2) Put the instrument on the tripod Put the instrument carefully on the tripod head and slide the instrument by loosening the tripod head screw. If the plumb bob is positioned right over the center of the point, slightly tighten the tripod head screw. 3) Roughly leveling the instrument by using the circular vial bubble. ① Turn the leveling screw A and B to move the bubble in the circular vial, in which case the bubble is located on a line perpendicular to a line running through the centers of the two leveling screw being adjusted . ② Turn the leveling screw C to move the bubble to the center of the circular vial. 4) Precisely leveling by using the plate vial ...
Page 27 ③Repeat the steps ①② for each 90º (100g) rotation of the instrument and check whether the bubble is correctly centered in all directions. 2 Centering by using the optical plummet 1) Set tripod Set up tripod to suitable height, ensure equal length of three legs, spread and make tripod head parallel to the ground, and place it right above the measurement station point. Prop up tripod on the ground and fix one leg. 2) Install instrument and collimate the point Set instrument carefully on tripod, tighten the central connecting screw and adjust optical plummet to make the reticle distinctly. Hold the other two unfixed legs ...
Page 28: Battery Information
Repeat this operation till the instrument collimate precisely to the measurement station point. 5.3 BATTERY INFORMATION The icon of batter is to show the remaining level of the battery. Notice: ① the battery operating time will vary depending on the environmental conditions such as ambient temperature, charging time, the number of times of charging ...
Page 29: Reflector Prism
begun. When charging is complete (indicator lamp turns green), disconnect the charger from its power source. ∙Battery Removal Cautions： Before removing the battery from the instrument, make sure that the power is turned off. Otherwise, the instrument may be damaged. ∙Battery Recharging Cautions： The charger has built‐in circuitry for protection from overcharging. However, do ...
Page 30: Eyepiece Adjustment And Collimating Object
∙Dismounting If necessary, the instrument (including reflector prisms with the same tribrach) can be dismounted from tribrach. Loosen the tribrach locking screw in the locking knob with a screwdriver. Turn the locking knob about 180° counter‐clockwise to disengage anchor jaws, and take off the instrument from tribrach. ∙Mounting Insert three anchor jaws into holes in tribrach and line up the directing stub with the directing slot. Turn the locking knob about 180°clockwise and tighten the locking screw with a screwdriver. 5.6 EYEPIECE ADJUSTMENT AND COLLIMATING OBJECT Method of Collimating Object（for reference） ① Sight the Telescope to bright place and rotate the eyepiece tube to make ...
Page 31: Vertical And Horizontal Angle Tilt Correction
the eyepiece tube carefully to eliminate the parallax. 5.7 VERTICAL AND HORIZONTAL ANGLE TILT CORRECTION When the tilt sensors are activated, automatic correction of vertical and horizontal angle for mislevelment is displayed. To ensure a precise angle measurement, tilt sensor must be turned on. When a dialog of compensation displays, it indicates that the instrument is out of automatic ′ compensation range (±4 ), and must be leveled manually. WinCE(R) Series compensates both the vertical and horizontal angle readings due to inclination of the standing axis in the X and Y direction. Example：` OPERATIONAL STEPS DISPLAY ① If the instrument hasn’t been leveling, compensation...
Page 32: Basic Survey
● If the Tile Correction is ON (Single Axis or Dual Axis), under the situation that the instrument is not well leveled, you can level the instrument according to the moving direction of the electronic bubble as seen on above. 6. BASIC SURVEY On desktop of WinCE double click to enter into the menu of Win Total Station, as shown in the following graph: You can press numeric keys [1]～[5] to select functions. To quit this screen, press [ESC]. Press numeric key [1] or click “ ” to enter into basic survey. The screen displays as follows. ...
Page 33: Angle Measurement
mode. The following graph lists each function key in every measure mode. Mode Display Softkey Function 0 Set 0 Set horizontal angle. HSet Preset a horizontal angle. Hold Hold horizontal angle. Repeat Repeat horizontal angle measurement. Switch between vertical angle and percentage. HR/HL Switch horizontal angle right/left Mode EDM mode: Fine[s]/ Fine[N]/ Fine [r]/Track m/ft Distance unit: meter/Feet/U.S.
Page 34: Switch Horizontal Angle Right/Left
OPERATIONAL STEPS DISPLAY ① Sight target A Sight the first target A. ② Set the horizontal angle of target A as 0°00′00″. [0 Set] Click [0 SET], press [OK] in the [OK] pop-up dialog box to confirm. ③ Sight second target (B). The screen displays the horizontal Sight B and vertical angle of target B.
Page 35: Horizontal Angle Reading Setting
OPERATIONAL STEPS DISPLAY Make sure the mode is ① Angle measurement. ②Click [HR/HL] key, horizontal right angle measuring mode is [HR/HL] shifted to left angle mode.※1) ※1)Every time click [HR/HL] key，HR/HL is shifted in order. 6.1.3 Horizontal Angle Reading Setting 1) Setting by holding the angle ...
Page 36 ② [Hold] Click [Hold], hold the required horizontal angle. ③ ※ Collimate the target. 1） ④ Click [Unlock]]，to release the horizontal angle. The display turns [Unlock] back to normal angle measurement mode ， setting current horizontal angle as the value held just now.
Page 37: Vertical Angle Percentage (%) Mode
② [HSet] Click [HSet]，a dialog box pops Input ③ horizontal Input the required horizontal ※ ※ angle angle 1)、 For Example: 120°00′00″ ④ ※ After inputting, press [ENT] [ENT] When completed, normal measuring from required Horizontal angle is possible. ※ 1) You can press [ ] to open inputting panel, click the numbers to input,see “3.3 APPROACHES TO INPUTTING NUMBERS AND LETTERS”.
Page 38: Repeat Angle Measurement
② ※ [V%] Click [V/%]. ※ 1) Every time Click [V/%], the display mode switches accordingly. 6.1.5 Repeat Angle Measurement This program is used to accumulate repeated angle measurement, displaying the sum of and average value of all observed angles. It records the observation times at the same time. Example： OPERATIONAL STEPS DISPLAY ①...
Page 39 ② Sight target A Sight the first target A. ③ [0 Set] Click [0 Set], 0 Set the horizontal angle. ④ Sight B Use horizontal clamp screw and horizontal tangent to sight the second target B. ⑤ [Hold] Click [Hold].
Page 40: Distance Measurement
⑥ Sight A again Use horizontal clamp screw and horizontal tangent to sight first target A again. [Unlock] ⑦ Click [Unlock]. ⑧ Sight B again Use horizontal clamp screw and horizontal tangent to sight the second target B again. [Hold] ⑨...
Page 41: Setting Atmosphere Correction
should be avoided. The measured distances may be wrong or inaccurate. When the [MEASURE] is triggered, the EDM measures the object which is in the beam path at that moment. If e.g. people, cars, animals, swaying branches, etc. cross the laser beam while a measurement is being taken, a fraction of the laser beam is reflected and may lead to incorrect distance values. Avoid interrupting the measuring beam while taking reflectorless measurements or measurements using reflective foils. Reflectorless EDM ● Ensure that the laser beams cannot be reflected by any object nearby with high reflectivity. ...
Page 42 6.2.1.1 Calculation of Atmospheric Correction ●The value of Atmospheric Correction can be influnced by air pressure, air temperature and the height. The calculating formula is as follows: (calculating unit： meter) PPM = 273.8 ‐ 0.2900 × Pressure Value（hPa） 1 + 0.00366 × Temperature value（℃） If the pressure unit adopted is mmHg: make conversion with: 1hPa = 0.75mmHg. ● The standard atmospheric condition of WinCE Series (e.g. the atmospheric condition under which the atmospheric correction value of the instrument is zero ) : ...
Page 43 ③ According to the same steps, input the value of Air pressure. Input Pressure click the “Save” after finishing setting. [Save] ④ Press [OK] to save these parameters. System will get PPM value from value temperature and air pressure, The [OK] screen displays as the right graph.
Page 44: Atmospheric Refraction And Earth Curvature Correction
OPERATIONAL STEPS OPERATION DISPLAY ①In the menu of total station, “System Setup” click “System Setup” and then +“Atmospheric click ”Atmospheric Parameters” Parameters ②Delete the old PPM and input Input PPM Value the new one※1) ③Click [Save] to save the value. [Save] ※1)The inputting scope of Atmospherie parameters ：-100 ～...
Page 45: Setting Target Type
H= S * [sinα + cosα* S * cosα(1‐K) / 2Re] If the correction of atmosphere refraction and the earth curvature is neglected, the calculation formula of horizontal distance and the height differentia are: D=S·cosα H=S·sinα In formula: K=0.14 …………………… Atmosphere Refraction Modulus ……………… Re=6370 km The Earth Curvature Radius ………………... α(orβ) The Vertical Angle Calculated From Horizontal Plane (Vertical Angle) …………………………. S Oblique Distance NOTE: The atmosphere refraction modulus of this instrument has been set as: K=0.14.it ...
Page 46: 4Setting The Prism Constant
②Click [Target] to enter into the function of setting type of the [Target] target. ③4. Use stylus to choose the type target. Non-Prism, Sheet,Prism options can be chose under WinCE(R) total station.※1) ④Press [ENT] to quit. [ENT] ※1) Instrucion of the target type: Non-P: measure with the visible red laser, no need to use prism.
Page 47: 5Distance Measurement (Continue Measurement)
② Current Atmospheric Parameters display on the screen. Use stylus to move cursor to Input Value PSM input area, delete data and input new numbers.※1) ③Click [Save]. [Save] ④Click [OK] to save. [OK] ※1) The scope of prism constant ：-100mm～+100mm, Step Length 0.1mm .You also can set Prism Constant in star key (★)model. ...
Page 48: Distance Measurement (Single/N-Time Measurement)
② Click [Dist] enter distance measurement. The system start survey [Dist] according to EDM mode set last time. ③ Click [M ode] to enter EDM Mode setting. [Mode] Here takes Fine[r] as example. The measure result displays. 1) ④ ※ ～ ※3) ※...
Page 49: 7Fine/Tracking Measurement Mode
OPERATIONAL STEPS DISPLAY ① In EDM Mode, click [Mode] to enter EDM Mode setting. [Mode] System defaults as Fine[s]. ② Click Fine [N] or press [▲]/ [Fine[N]] [▼], a Times column displays on Input times the upper right screen. Input the times of N-time measurement.
Page 50: Coordinate Measurement
OPERATIONAL STEPS DISPLAY Sight the center of prism. Sight the prism ① ② Click [Mode] to enter EDM Mode setting set it as Track. [Mode] ③ Click [Enter]. Sight the target, system start survey based on the [Enter] setting set just now. 6.3 COORDINATE MEASUREMENT 6.3.1 Setting Coordinate Values of Occupied Point Set the occupied point Coordinate according to coordinate origin, and the instrument ...
Page 51 Example： OPERATIONAL STEPS DISPLAY ① [Coord] Click [Coord] to enter into coordinate measurement. ② [Occ] Click [Occ] . ③ Input coordinate of occupied point, after inputting one item, [Enter] click [Enter] to move to the next item.
Page 52: Setting The Backsight Point
④ [Enter] After all inputting, click [Enter] to return to coordinate measurement screen. 6.3.2 Setting the Backsight Point Example： OPERATIONAL STEPS DISPLAY ① [BS] Click [BS] to enter BS Setting. ② Input coordinate of backsight point. After inputting one item, [Enter] click [Enter] to move to the next item.
Page 53: Setting The Instrument Height/ Prism Height
④ Sight the backsight point, click [YES]. System sets the backsight [Yes] azimuth and returns to Coordinate Measurement Screen. The screen displays the backsight azimuth set just now. 6.3.3 Setting the Instrument Height/ Prism Height Measure the Coordinate by entering the instrument height / prism height, Coordinate of unknown point will be measured directly.
Page 54: Operation Of Coordinate Measurement
After inpu tting all data, Click [Enter] ③ [Enter] to return to Coordinate Measurement Screen. 6.3.4 Operation of Coordinate Measurement Measure the Coordinate by entering coordinate of occupied point, backsight azimuth, the instrument height and prism height, coordinate of unknown point will be measured directly. ●To set coordinate value of occupied point，see Section “6.3.1 Setting Coordinate Values of Occupied ”.
Page 55: Application Programs
OPERATIONAL STEPS DISPLAY ①Set coordinate values of occupied point and instrument / prism height ※ ② Set backsight azimuth 。 2) ※ ③Collimate target. ※3) ④ Click [Coord]. Measurement [Coord] ends and the result displays. 4) ※ ※ In case the coordinate of occupied point is not entered, then the coordinate of occupied point set last time would be used.
Page 56: Remote Elevation Measurement (Rem)
OPERATIONAL STEPS DISPLAY ① Under the mode of Distance [Layout] Measurement, click [Layout]. ② Select the distance measurement mode (SD/HD/VD) to be laid out. After inputting the data to be laid out, click [Enter] ※ ③ Start setting out. ※ A dialog box prompts to enter slope distance you want to layout, after entering click[Enter] to layout SD.
Page 57: Inputting Prism Height (H)
7.2.1 Inputting Prism Height (h) Example：(h=1.5m) OPERATIONAL STEPS DISPLAY ① [REM] In Distance Measurement, click [REM] to enter into REM function. ② [With R.Ht] As shown in the right graph, use stylus to click “With R..Ht”.
Page 58: Without Inputtingt Prism Height
Input prism ③ height Input prism height. ④ Sight the prism center P. ⑤ Sight the prism Click [Measure] to start measure. ⑥ [Measure] The HD betweent instrument and prism is displayed. ⑦ Click [Continue], the prism position is entered. [Continue] ⑧...
Page 59 Example： OPERATIONAL STEPS DISPLAY ① Without R.Ht Use stylus to click “Without R. Ht” ② Sight prism center P. ③ Sight prism Click [Measure] to start survey. ④ [Measure] The HD between instrument and prism is displayed. ⑤ Click [Continue], The G point position is entered.
Page 60: Missing Line Measurement (Mlm)
⑥ [Continue] Click [Continue]. ⑦ Sight target Sight target K. The Vertical Distance (VD) is ※ displayed. ※ 1) To quit REM, click [Exit]. 7.3 MISSING LINE MEASUREMENT (MLM) The Missing Line Measurement program computes the horizontal distance (dHD), slope distance (dSD) and vertical difference (dVD). This program can accomplish this in two ways: ...
Page 61 OPERATIONAL STEPS DISPLAY ① In Distance Measurement, click [MLM] to enter into missing line [MLM] measurement function ② Use stylus to select A-B，A-C. ③ Sight prism A, click [Measure]. The HD between instrument and [Measure] prism A is displayed. ④ [Continue] Click [Continue].
Page 62 ⑤ [Measure] Sight prism B， Click [Measure]]. ⑥ Click [Continue], The horizontal distance (dHD) height differentia [Continue] (dVD) and slope distance (dSD) between prism A and B display. ※ 1） ⑦ To measure distance between point A and C, sight prism C and [Measure] then click [Meas.
Page 63: Line Measurement (Line)
7.4 LINE MEASUREMENT (LINE) The Line Measurement program allows the user to measure the height of an inaccessible object above a point. Both the inaccessible object and the point are located along an established base line. Two prisms, A and B, are set up apart from each ...
Page 64 ② Use stylus select with R.H. ③ Click [Set] to set instrument height and target height. After [Set] inputting, click [Enter]. ④ Sight prism A, click [Meas] to start measure. After measuring, [Meas] click [Continue]. ⑤ [Meas] Sight prism B, click [Meas] to start distance measure.
Page 65 ⑥ [Continue] After measuring click [Continue]. ⑦ Sight line point L, Measured data to the line point L is diplayed. VD : Vertical distance HD: Horizontal distance from the instrument to L Off : Horizontal distance from A to ⑧ Click [Continue].
Page 66: Lead Measurement (Store Nez)
⑩Click [Next], line height LH (LH) and horizontal distance (Off) [Continue] are displayed ※1)～※3) ※ 1) To finish the measurement, press [ESC]. ※ ⑦ 2) To return to operation step click [VD]. ※ 3) The NEXT key is used when the groud point G is not clear and you would like to check another ground point G on the same vertical line.
Page 67 OPERATIONAL STEPS DISPLAY ① [Store] Click [Store]. [Store] ② Use stylus select “Store” ③ Click [Set] to reset instrument height or prism height. After [Set] setting, click [Enter]. ④ Collimate target p1 prism which instrument moves. Click [Measure] [Measure] to start survey.
Page 68 ⑤ Click [Continue] . The coordinates of P1 displays at [Continue] the bottom of screen. ⑥ Click [Store] . Coordinate of P1 will be confirmed. [Store] The display returns to main menu. Power off and move instrument to P1 (Prism P1move to P0 ) ⑦...
Page 69: Offset Measurement (Offset)
7.6 OFFSET MEASUREMENT (OFFSET) There are four offset measurement modes in the Offset Measurement. 1.Angle offset 2.Distance offset 3.Plane offset 4.Column offset 7.6.1 Angle Offset This mode is useful when it is difficult to set up the prism directly, for example at the centre of a tree. Place the prism at the same horizontal distance from the instrument as that of point A0 to measure .To measure the Coordinate of the centre position, operate the offset measurement after setting the instrument height/prism height. ●When measuring coordinates of ground point A1: Set the instrument height/prism height. ...
Page 70 OPERATIONAL STEPS DISPLAY ① [Offset] Click [Offset]. ② In the prompted dialogue box click [Angle Offset] to enter into angle offset measurement. Angle ③ Offset Use the stylus to select “Free VA” (or “Fixed VA”) to start angle offset measurement. Sight prism P ④...
Page 71: Distance Offset
⑥ Click [Continue], The slope distance, horizontal distance [Continue] height differentia and coordinate from instrument to point AO will be ※ ※ shown 1)， ※ 1) To set instrument height or target height, click [Set]. ※ 2) Click [Exit] to quit. ● Set Inst. Height/Prism Height before starting measurement. ...
Page 72: Column Offset
OPERATIONAL STEPS DISPLAY ① [Distance In Offset dialog box, click [Distance Offset] to enter into Dist. Offset] Offset. ② Move stylus to “Input”, enter the offset distance. When each value is inputted, use stylus to move the next item. ③ After inputting “dRL”, sight the prism, click [Measure] to start [Measure]...
Page 73 to the center of the column (P0), coordinate and direction angle can be calculated by measured circumscription points (P2) and (P3). The direction angle of the center of the column is 1/2 of total direction angle of circumscription points (P2) and (P3) ●Setting the coordinate of occupied point ，refer to “6.3.1 Setting Coordinate Values of Occupied Point ”. Example： OPERATIONAL STEPS DISPLAY ① [Column In Offset dialog box, click [Column Offset] to enter into Offset] Column Offset measurement. ②...
Page 74: Plane Offset
③ Collimate the point (P2) on the left side, as shown in the right [Continue] graph. Click [Continue]. ④ Collimate the right side of the column (P3) ⑤ Click [Continue], the distance between the instrument and center [Continue] column (P0) will ※...
Page 75 ●Setting the coordinate of occupied point, refer to “6.3.1 Setting Coordinate Values of Occupied Point”. Example： OPERATIONAL STEPS DISPLAY ① In Offset dialog box, click [Plane Offset] to enter into Plane Offset [Plane Offset] measurement. ② Sight prism P1, click [Measure] to start measure After measuring, [Measure] click [Continue]. [Continue] ③ Measure the points P2 ， Click[Measure] to start measure..
Page 76: Parameters Setting
④ [Measure] Sight prism P3，Click [Measure] to start measure. ⑤ Click [Continue] to calculate and display coordinate and distance [Continue] value of cross point between collimation axis and of the plane . ※ ※ 1) To set instrument height or target height, click [Set]. ●In ...
Page 77 Other Parameters Menu Selecting Item Contents 1. Coord. Ranking NEZ/ENZ Select the display format in the coordinate measurement mode for NEZ or ENZ 2.Occ Save 0 Set / Save Select whether to save coordinate of occupied point or 0 Set. 3.Angle Unit Deg/Gon/Mil Select degree (360°) , gon (400 G) or mil (6400 M) for the measuring angle unit to be shown on...
Page 78: Start Standard Survey Program
④ [Default] default communication parameters, click [Default]. ⑤ [Other To set other parameters, click [Other Parameter]. Set as the same Parameter] method. ⑥ [OK] After setting click [OK] to quit. The display returns to basic survey main menu. 8. START STANDARD SURVEY PROGRAM In Total station main menu, click “...
Page 79 Main feature of standard survey program: ●Multiple Job Files Standard Survey Software uses named jobs with separate files for raw data, coordinates and strings. The job is given alphanumeric names. You may have many jobs in the system. You may create a new job for storing data, or you may open an existing job for data storage. You may also delete job files. ...
Page 80 ●Upload Point Code from Serial Port The point code of total station may be created by uploading codes from a computer. ●Upload Roads Design data from serial port Horizontal alignment data, vertical alignment data and cross section data for Alignment lay out can be uploaded from serial port. ●Point Setting‐Out The standard setting out program calculates bearing and distance, displays offsets from occupied point to lay‐out point after each measurement. Coordinates of set‐out points can be saved and differences downloaded in the fill‐cut files. Note that the scale factor defined under the SETUP will be used in the calculation of setting out distances. ●Strings Setting Out ...
Page 81: Project
Coordinates calculation from two known points, with either bearings or distances. ●Inverse Computation of bearing and distance between 2 known points, Note that the scale factor defined under the MENU function will be used in the calculation of distances. ●Area Calculation Area calculation of a serial of points defined by point code. ●Radiation Coordinates of a point can be computed by entering bearing and distance. ●Missing Line measurement The slope distance, horizontal distance and vertical distance between two points can be computed. ●Batter boards A program for setting out in building area. If two points can not be setout, a batter board can be placed in the vicinity. ...
Page 82: Create New Project
(3)Set scale factor (4) Data export/import Standard measuring program require that every time measuring you must create a job file name, if not, system will create a default file name (default) automatically. All the measuring results will be saved in this file. 9.1 CREATE NEW PROJECT Create a new project file. A job name has a maximum of 16 characters and should be made up from the letters A‐Z, numbers 0‐9 and the minus sign (_# $ @ % + ‐), but the first character can not be a space. OPERATIONAL STEPS DISPLAY ① [New] [Project] menu, click [New].
Page 83: Open Project
※ 2) Press [ESC] key to exit the screen without saving the settings. ※ 3) If the project exists, the system prompts “Project are the same!” So, select OPEN option to see a list of current jobs before creating the new job if you are not sure which jobs currently exist. 9.2 OPEN PROJECT Example： ...
Page 84 OPERATIONAL STEPS DISPLAY ① In [Project] menu, ， Click [Delete] or press [▲]/[▼] to select. [Delete] The screen shows as the right graph. ② Double click the project you want to delete. Delete some files： The system defaults to delete all projects.
Page 85: Option
9.4 OPTION OPERATIONAL STEPS DISPLAY [Option] ①In [Project] menu, ， Click [Option] (or press [▲]/[▼] to select), the screens as the right graph. ②Click each item to set. Click [Set] [Set] to return. Options: Fixed File：Set fixed point file [On] or [Off]. 1）If it is set as [On], when the fixed point file will be scanned for coordinates before prompting for the coordinates. When the same point number is saved in coordinate database or fixed database. The data in [coordinate data] will be called up. 2）If the station file option is OFF, the fixed point file is not searched. Coord. Display：Set whether to display coordinate of NEZ during measurement. Coord Transform：Set whether to calculate and save coordinate. ...
Page 86: Grid Factor
9.5 GRID FACTOR Measured horizontal distance is multiplied by the scale factor in coordinate calculation. The raw data is not altered by the scale factor. Enter the scale factor and the mean elevation into screen, the downloaded raw data will contain a scale factor record. The following grid factor is used to calculate coordinates. Calculation Formula 1. HEIGHT FACTOR= ELEV R ： The average radius of the earth ELEV：The height of the mean sea level 2. ...
Page 87: Data Export/Import
② Input the Scale and Elevation. ③ [Enter] The system calculates the grid factor. Click [Enter].The display returns to standard survey main menu. Note: 1. Inputting range of scale:0.990000 ～ 1.010000. The default value: 1.00000 2. Inputting range of average altitude: -9999 ～ 9999 The default value: 0 10.
Page 88 ② In the prompt dialog, click the data you want to export. Click [Export] [Export]. ③ Select the place to save export data Input file name in the Name field. ④ Click [OK], then data is export to appointed position. And the [OK] display returns to standard survey main menus.
Page 89: Data Import
At same time this icon will appear in your My computer. Now you should find the TXT form file in Mobile Device and copy them to your pesonal PC disk.The process is completed. 10.2 DATA IMPORT Coordinate files for set out, fixed point and code library files, alignments and cross section files for set out may be uploaded from a computer to the total station by series port. ...
Page 90 ② [Import] Select the data type you need to ※ import, and click [Import]. ③ The imported file is found. ④ Click [OK], data is imported to appointed position and return to [OK] standard survey main menu. ※ 1)HZ Alignment：Upload a horizontal alignment for road design layout. Data format please refer to appendix A.
Page 91: Record Measurement Data
SOFTWARE IMPORT: Connect the 960 total sation to computer with the USB cable after checking that if there Microsoft ActiveSync software has already been installed. Microsoft ActiveSync will show as follow: Find out the TXT form file you want to transmit.Use copy or cut moving function of windows to transmit the TXT form file to Mobile Device, the icon of which shown as: After that you could find that file in the Total station’s disk.Open the Standared survey program and import the TXT file you just copy from PC.This process is completed. 11. RECORD MEASUREMENT DATA The RECORD menu is mainly used for collecting and recording raw data. It allows setting ...
Page 92: Setting Occupied Point And Backsight Point
11.1 SETTING OCCUPIED POINT AND BACKSIGHT POINT Example： OPERATIONAL STEPS DISPLAY ① [Set] In [Record] menu, click [Setup] ※...
Page 93 ② A： In “Occ PT” input the point name. Click [Info]. A：The system will start searching function. If the point name doesn’t exist in internal memory, system will prompt to input coordinate As shown in the right graph. B： B ： If the point name exists in internal memory, system will call up the point automatically and display on the screen.
Page 94 ③ Input the backsight point. ④ system calculates azimuth. ⑤ Click [Set] to enter into BS Set function. Bks：Bearing calculated by system [Set] or entered manually. HR：Current horizontal azimuth.
Page 95 ⑥ A： A ： If click [0 Set] ， then the horizontal angle displays 0. Click [Enter] to quit and set BS azimuth as 0. B：If click [Set], the HR displays as the azimuth. B： C： If click [Check], backsight point coordinate will be checked by measuring the slope distance of backsight point.
Page 96 compute these coordinates. A resection involves the measurements from an occupied point to several other points with known coordinates. It is possible to perform a resection by measuring angles and distances or by measuring angles only. The type of measurements influences the minimum number of observations needed to perform a resection. In case of angle as well as distance measurements a minimum of 2 observations are required, by measuring angles only a minimum of 3 observations should be performed. ...
Page 97 ③ Input PT, Input the number of know point which used for resection and prism prism height height. ④ [Mode] Click [Mode] to choose measure mode. ⑤ [Measure] Sight the center of target prism, click [Measure] to start measure. ⑥ After measuring, click [Record], a dialog box shows as the right [Record]...
Page 98 ⑦ The system returns to resection main menu. The screen displays the PT just measured If the coordinate is unknown, system will request user to input the coordinates and then return to resection main menu. ⑧ Click [Add] again, repeat steps ②...
Page 99 ●It is possible to select whether the level of the occupied point, a scale factor or the backsight bearing (‘Calculate Bkb’) should be calculated. Furthermore it is possible to select whether the calculated scale or the measurements which have been performed (‘Store res meas’) should be stored. ● After setting, click [Enter] to return to the main resection screen, saving the changed mode and (re)calculation of the occupied point, residuals and the required parameters. Press [ENT] in the resection main menu will quit this function and save the coordinates of the occupied point. In case ‘Store res meas’ was turned on in [PARAM], ...
Page 100 E.g.: 1) If p1, p2, p3 and OccPt fall on the circle, the result can not be computed. 2) If the point is near the circle then the result is unstable. 3) Residuals are useful to avoid that observations of low quality will be used for the resection computation. However, in case of a small number of observations or a bad geometrical constellation of the points it is possible that one bad observation influences several residuals. 4) The unit of residuals is similar to the unit of the measurements performed. However the residuals of horizontal angle and vertical angle are always displayed in decimals. E.g.: 3°49′50″shows as 3.4950 ...
Page 101 ② Input Input known PT and Prism height, and sight the center of Target height prism. Click [Measure] to start [Measure] survey. ③ [Record] After measuring click [Record].
Page 102 A： ④ [OK] Click [OK]. A： If the point name doesn’t exist in internal memory, system will ↓ prompt to input coordinate As shown in the right graph. System calculates height of occupied point automatically. ↓ B： B：If the coordinate of the point exists in the file, System calculates height occupied...
Page 103: Backsight Observation (Bs Obs)
11.2 BACKSIGHT OBSERVATION (BS OBS) For record the raw data of backsight point. Back Sight Observations only can start after setting of occupied point and backsight point. Example： OPERATIONAL STEPS DISPLAY ① [BS Obs] In [Record] menu click [BS Obs] or press [▲]/[▼] to enter into BS measurement ②...
Page 104: Foresight Observation (Fs Obs)
11.3 FORESIGHT OBSERVATION (FS OBS) The data of Foresight Observations mainly used for the traverse adjustment calculation. After setting Occ point and BS point, the measuring begins. Example： OPERATIONAL STEPS DISPLAY ①In [Record] menu click [FS Obs] [FS Obs] or press [▲]/ [▼] to enter into FS measurement.
Page 105 ⑤To change measure mode, click [Mode]. Click“○” before the mode, [Mode] and click [Enter]. Click [Measure] to start survey. ⑥ After measuring, the results display. [Measure] Click [Record], a dialog box [Record] prompts as the right graph. Click [OK], N 、 E 、 Z [OK] ⑦...
Page 106: Sideshot Observation (Ss Obs)
11.4 SIDESHOT OBSERVATION (SS OBS) OPERATIONAL STEPS DISPLAY ① [SS Obs] In [Record] menu click [SS Obs] or press [▲]/ [▼] to enter SS Measurement. ② Input PT, R.Ht Input PT, R.Ht. Click [Measure] ※ ※ ※ [Measure] to start measure. 1)，...
Page 107 ④ Click [OK], N、 E、 Z coordinates display. [OK] If the point exists, system prompts whether to cover the point. ⑤ [Enter] Click [Enter]，the measurement results are saved. ② ⑤ Repeat ～ finish measurement. ※ 1) Click [Mode], to select measure mode among Fine[S]/Fine [N]/ Fine[R]/Track/Angle Meas. ※...
Page 108: Offset
11.4.1 Offset Apply the following procedure to a point which can not be measured directly. Measured data change to raw data directly. A radial (forward) offset is along the line of sight, with positive away from the instrument, and a tangential (right) offset is perpendicular to the line of sight with positive ...
Page 109 Record an observation as close as possible to the required point. OPERATIONAL STEPS DISPLAY ① [Measure] In [SS] function sight the prism center. Click [Measure] to start measure. ② [Function] Keep the instrument still, click [Function]. A dialog box prompts as the right graph. ③ [Offset] In Function menu, click [Offset] to enter Offset measurement.
Page 110 ④ Input Away Input Away offset manually. Away: off set along the line of sight offset ⑤ Collimate offset target point, press [Horizon] or [Vertical] , the [Horizon] offset value will be computed and displayed on screen [Vertical] Right: The offset value for right/left direction.
Page 111: Plane Offset
⑧ [Enter] Click [Enter] to return to SS Measurement screen. 11.4.2 Plane Offset This mode is similar with【PROGRAM】→【Offset】→【Plane Offset】. Example： OPERATIONAL STEPS DISPLAY ① [Function] Measurement, click [Function]. ② Click [Plane Offset] to enter into Plane Offset Measure. [Plane Offset] Click [Define], to enter into Define Plane function.
Page 112 ④ [Record] After measuring click [Record]. ⑤ ③ ④ Repeat steps ～ to finish measuring other two points for entering reference plane. ⑥ After defining the Plane, the system prompts as the right graph. [On] Click [On] to open Plane Offset ※...
Page 113: Pt. Line Mode (For Measurement From Point To Line)
⑧ [Record] Click [Record] to record results of Plane Offset. ⑨ [Enter] Click [Enter] to save measuring results. ⑦ ⑧ Repeat steps ～ to finish measuring other points on the plane. ※ 1) [On]：Function key used to display “Plane Offset”. In SS Measurement screen “Plane Offset Mode”...
Page 114 occupied point during the process.) Example： OPERATIONAL STEPS DISPLAY ① Measure coordinates of Point A、 B，record in the memory. In SS [Pt. Line Measurement, click [Pt. Line Mode] Mode] to enter into Point Line Mode. ② Define base line. Enter the Point number of start point and stop point If the point does not exist, it displays “Coord PT not found!”...
Page 115: Control Input
⑤ [Record] After measuring click [Record]. ⑥ [OK] Click[OK] to display coordinate. ⑦ [Enter] Click [Enter] to save the results.. ④ ⑥ Repeat steps to finish ～ measuring other points. ※ 1)[On]：It is used to activate Point to Line Mode. [Off]：It is used to disable the Point to Line Mode.
Page 116: Cross Section Survey
OPERATIONAL STEPS DISPLAY ① [CTRL Input] In SS Measurement, Click [CTRL Input] to enter into control code Input function. ② Input Control code, Code2 and String 2. To call up code in code lib, Input message click [Code]. ③ Click [Enter], the screen returns to SS Measurement screen.
Page 117 Example： Set occupied point and backsight point. OPERATIONAL STEPS DISPLAY ① [X-Sect] In [Record] menu click[X-Sect], a dialog box prompts as the right Input CL Code graph. and String Input CL Code and String and click [Enter]. ② Start cross section measurement. First measure point on center line. Input code of center line (The code [Measure] should be same as the code of last...
Page 118 ⑤ [OK] Click [OK] to display the coordinates of this point. Click [Enter] [Enter] to save the results. ⑥ The screen returns to standard measurement. Input code of each point on the cross section, repeat ② ⑤ steps to finish measuring ～...
Page 119: Edit Data
⑨ ② ⑧ Repeat steps to finish ～ measuring points of cross section on other chainages. [NOTE]： (1.) The maximum point number for each cross section is 60. (2.) The chainage number automatically displayed is calculated as the horizontal distance from its occupied point to its center. 12. EDIT DATA The edit menu provides options to edit raw data, point coordinates, the fixed point library, and the code library. ...
Page 120: Editing Raw Data
12.1 EDITING RAW DATA To edit the raw data from the current job select Raw Data from the Edit menu.： Function keys at the bottom of the screen： [Start]：Go to the beginning of this file. [End]：Return to the end of the file [Search]：To search a specific point, code or string in the file Example OPERATIONAL STEPS DISPLAY ① In Edit menu, click [Raw Data], the system lists all measurement [Raw Data] data of the project. ② A： Find the needed data. A: Click the slide bar to view all data.
Page 121 B： Click [Search], in the prompt dialog box input PT, Code, String, and select between Full Name and Part Name. Click [Search] to start search. B： ③ [Edit] After finding the needed data, click [Edit],the Meas. Data Edit dialog box appears. ④...
Page 122: Coord. Data
12.2 COORD. DATA The coordinates generated from the current job may be edited or point coordinates may be manually entered. In [Edit] menu click [Coord. Data]. 12.2.1 Edit Coord. Data Example: OPERATIONAL STEPS DISPLAY ① [Coord. Data] In Edit Menu, click [Coord. Data], system lists all coord. data in the project.
Page 123 ② A： Search the needed coord. data A：Click the slide bar to display all coord. data. Click the needed point name when it appears. You can press [▲]/[▼] to view the data. B： B： Click [Search], in the prompt dialog box input PT, Code, String, and select between Full Name and Part Name.
Page 124: Add Coord. Data
④ Input data Input new data ⑤ [Enter] Click [Enter], the screen returns to the Coord. Data Edit dialog box, the data is rectified. 12.2.2 Add coord. data Example： OPERATIONAL STEPS DISPLAY ① [Coord. Data] In Edit menu, click [Coord.
Page 125: Delete Coord. Data
Input PT ID, ③ Code, String, Input PT ID, Code, String, and N, E, Z coordinate. coordinate. ④ Click [Enter], and return to previous screen. The data will be [Enter] added on the bottom of the profiles. 12.2.3 Delete Coord. Data Example： ...
Page 126: Fixed Point Data
③ [OK] Click [OK] and the data are deleted. The screen returns, and the cursor moves to next row. NOTE：1. The range of each coordinate is from -9999999.999 to 9999999.999 2. Coordinates that are entered or changed are rounded to 3 decimal places. 12.3 FIXED POINT DATA ...
Page 127 OPERATIONAL STEPS DISPLAY ① [Code Data] In Edit Menu, click [Code Data], the system lists all code data in the job. ② [Add] Click [Add] to display a dialogue as shown on the right. Input Layer, Code Attribute dialogue. ③ A：...
Page 128: Edit Layer/Code
④ A： A： New codes are added under the layer. B： B： A new code layer and code will be created. 12.4.2 Edit Layer/Code OPERATIONAL STEPS DISPLAY A：Layer ① Use the stylus to click on the layer or code to be edited. B：Code...
Page 129: 3Delete Code
A：Edit Layer ② Click [Edit]. Input new data. [Edit] B：Edit Code A：Layer ③ After editing, click [Enter]. [Enter] B：Code 12.4.3Delete Code...
Page 130: Fill-Cut Data
OPERATIONAL STEPS DISPLAY ① Use the stylus to click the code to be deleted. ② [Delete] Click [Delete], a notice appears as shown on the right. ③ [OK] Click [OK], the screen returns, ※ and the code is deleted. ※ 1) The layer can’t be deleted when the layer contains codes.
Page 131: Program Menu
●This function can realize search for the fill‐cut data. ●Fill‐cut data can not be edited. 13. PROGRAM MENU The menu includes below functions: ⑴ Set Out ⑵ Roads ⑶ Cogo ⑷ Traverse ⑸ B.Boards ⑹ Tape Dim 13.1 SET OUT To show the SET OUT menu, from the 【Program】 menu, select 【Set Out】 . The setting out option allows setting out by point number, strings, alignments and cross sections. ●The basic routine for setting out is similar in all these methods, except for the way data is uploaded and the setup sequence. ●Setting out points allows setting out by point number in point number order. Setting out strings allows setting out by string or point code in the order in which the points were uploaded within the string. Setting out of alignment and cross sections, points are specified by chainage and offset with reference to an uploaded alignment. 13.1.1 Occupied Point& Backsight Point In [Program] menu, click [Set Out]→[Setup], in the prompt menu click [Set] to enter ...
Page 132 menu. ●If alignment data exists, the occupied point screen changes to include chainage and offset： ●Here the method of using alignment to set occupied point and backsight point will be introduced. Example： OPERATIONAL STEPS DISPLAY ① [Set Out] [Program] menu, click [Setout], in the prompt box click [Setup] [Setup] to enter into Occ. &BS Set screen.
Page 133: Point Set Out
③ Input station Input Chainage and Offset, and click [Enter]. information [Enter] ④ Input instrument height and code, then click “Align.” in “BS” field. In the box input Chainage and Offset and then click [Enter]. ⑤ System calculates azimuth, click [Set].
Page 134 After setting occupied point and backsight point, you can start point setting out Example： OPERATIONAL STEPS DISPLAY ① [Set Out] In [Program] menu, click [Set Out], in the prompt box click [Point] [Points]. A： ② In the prompt dialog box input the PT and Prism Height. A： If the coordinates of the point number exists in memory, system will call up the point automatically.
Page 135 ③ [Set Out] After setting the set out point, click [Set Out] to start setting out. [Measure] Sight prism center, click [Measure] to start measure. ※ ④ Rotate the telescope, making “Turn” item and “→” item display as 0, and ask the rodman to move the prism.
Page 136 ⑦ After setting out, click [Enter] to quit The screen displays as the [Enter] ② ⑥ graph. Repeat steps ～ finish setting out other point. ⑧ In PT Layout screen click “ ” to return to Standard Survey main menu. ※...
Page 137: String Setout
internal memory. If the point is new, system will recommends you to input its coordinate. 13.1.3 String Setout After setting occupied point and backsight point, you can start string setting out Example： OPERATIONAL STEPS DISPLAY [Set Out] ① In [Program] menu, click [Set Out], in the prompt menu click [Strings] [Strings] ②Input Chainage and String of the point to be set out, and click [Set Out].
Page 138: Road Design And Layout
[Note]：A fixed point data file can not be used in String Setout. 13.2 ROAD DESIGN AND LAYOUT 13.2.1 Define Horizontal Alignment In [Roads] menu select [Define HZ AL]. To know how to calculate an alignment, see appendix B. ●Horizontal alignment consisted of following elements: start point, straight line, circular curve and transition curve. First define the start point. ...
Page 139 ③ After inputting information of start point, click [Save] to save. [Save] Then enter into the screen of alignment input process. As shown on the right. The “Define HZ AL” displays current chainage and the bearing angle (the tangent line from the chainage) and the function key (For creating new line). System provides four functions: defining straight line, circular curve, transition curve, point. Select a function key, enter the detailed information of the chainage, the alignment elements will ...
Page 140 ② Input bearing Input the bearing and length of the straight line. and distance. ③ After inputting, click [Save] to save the alignment data, and display the chainage of the end of the line and its bearing. [Save] · Then, you can define other arcs. ·...
Page 141 OPERATIONAL STEPS DISPLAY ① On the screen of input process, click [ARC]. The screen will [ARC] display the factors of arc to be defined. Input radius ② and arc length. Input radius and arc length. ③ [Save] After inputting, click [Save] to save the data of this alignment.
Page 142 Press [TRNS] key in the “Define HZ AL”, the transition curve can be defined. Transition curve consists of the minimum radius and arc length. The rule of radius value: along the forward direction of the curve. When the curve rotates to right, the radius value is positive. When the curve rotates to left, the radius value is minus. The arc length can not be minus. OPERATIONAL STEPS DISPLAY ① [TRNS] On the screen of input process, click [TRNS], the screen will display factors of transition curve to be defined. ② Input radius Input radius and arc length. and arc length. ③...
Page 143 In “Define HZ AL” menu Click [PT], the point can be defined. A point element consists of coordinates, radius and clothoid parameter A1 and A2. Radius, A1 and A2 can not be minus. If radius is entered, an arc is inserted with the specified radius. If clothoid parameter A1 or A2 is entered, a clothoid is inserted between straight and arc with the specified length. Example： OPERATIONAL STEPS DISPLAY ① [PT] On the screen of input process, click [PT], the screen will display factors of point to be defined. ②...
Page 144: Edit Alignment
③ [Save] After inputting, click [Save] to save the data of this alignment. [NOTE]：When you want to enter A1, A2 from clothoid length L1, L2, the following equations are used: Any changes to the alignment must be done using the edit alignment option. 13.2.2 Edit Alignment To edit the alignment select Edit HZ AL from the Roads menu. OPERATIONAL STEPS DISPLAY ① [Edit HZ AL] In the menu of [Roads], click [Edit HZ AL] to enter into the screen of Edit HZ AL.
Page 145 ② A： The screen display the last alignment data. Search for the data ※ to be edited. A：Click Prev. /Next to find the alignment data to be edited. B： B ： Click [Search], a dialog as shown on the right pops up. Input the chainage and click [Search].
Page 146: Define Vertical Alignment
※ 1) Start：Press this key to go to the start of the file. End：Press this key to go to the end of the file. Prev. ：Press this key to display the previous point data. Next ：Press this key to display the previous point data. Search：Press this key to search for data, after pressing this key, enter the required chainage and press [ENTER], the data for the chainage will be displayed.
Page 147: Edit Vertical Alignment
OPERATIONAL STEPS DISPLAY ①In [Roads] menu click［Define [Define VT AL ］ to enter into defining vertical alignment function. ② Input chainage, elevation and Input Curve Length. After inputting, chainage, click [Save]. elevation and The curve length of start and end Curve Length point must be 0.
Page 148 OPERATIONAL STEPS DISPLAY ①In [Roads] menu click [Edit VT AL] to enter into defining vertical [Edit VT AL] alignment screen. ② The screen displays the first A： alignment data, search the data needs to be edited. ※1) A：Click Prev. /Next to find the alignment data needed to be edited.
Page 149: Alignment Setout
④ Click any key on the screen. (Such as [Prev.]), the data is saved. 13.2.5 Alignment Setout After setting road data, you can start setting out For an alignment setout a horizontal alignment must have been uploaded from computer by using [Set Out]→[Alignment]. ● the vertical alignment is optional, but is required to compute cut and fill. The defining method is same as defining horizontal alignment. Rule： Offset left: the horizontal distance from the left stake point to the center line. Offset right: the horizontal distance from the right stake point to the center line. Elevation difference: Left (right) is the elevation difference between left (right) stake and the center line point. Example： ...
Page 150 Please set the occupied point and backsight azimuth firstly. OPERATIONAL STEPS DISPLAY ① In Alignment Layout screen, enter the start chainage, chainage increment, and the horizontal distance from side stake point to center line. To setout dig/fil data, the height difference is needed. ②After inputting, the center line setting out data of the start chainage displays on the lower screen.
Page 151 ⑤ Rotate the telescope, making “Turn” item and “→” item display as 0, and ask the rodman to move prism. ⑥ Sight the prism center, click [Measure] to start measure. Ask the rodman to move prism making “Away” and “↑” display as 0. ⑦When four items are 0, the point to be set out is found.
Page 152: Slope Setout
LOFS：The key is use in setting out the left side stake. Press it to display the offset and the height difference of the left side stake. ROFS：The key is use in setting out the right side stake. Press it to display the offset and the height difference of the right side stake. +CHG：The key is use in increasing the chainage. ‐CHG：The key is use in decreasing the chainage. Slope：The key is used in slope set out. 13.2.6 Slope Setout Slope setting‐out can be performed as part of the Alignment setout option. Only after defining vertical alignment and horizontal alignment, it is possible to perform slope setting‐out. In Alignment Layout menu click [Slope] to display slope layout. Slope layout main menu: The input cut/fil value is a ratio. ...
Page 153 The left and right slopes may be entered for both cut and fill. Enter the required slopes using positive numbers for both cut and fill. The software selects the appropriate slope from the table depending on whether the situation is on the left or right and in excavation or fill. Excavation or fill is determined by the estimated level at the offset of the hinge point. If the level is above the level of the hinge then the cut slope is used, otherwise the fill slope is used. Example： OPERATIONAL STEPS DISPLAY ①...
Page 154 ② Click [Slope] to start slope layout. [Slope] After inputting ratio of dig (or fill) of Left and Right slope After inputting, select left or right slope to layout. ③ Enter into slope layout menu. Input the prism pole and sight a point near where it is estimated the slope will intercept and press [Measure] to take the first trial shot.
Page 155: Cross Section Setout
13.2.7 Cross Section Setout To set out design cross sections select X‐Sect from the Set Out menu. The cross section setout is similar to the alignment setout, the points are uploaded in chainage, offset and level format and a reference alignment must also exist. X‐Sects layout main menu The screen displays cross section data imported to total station. About the method please refer to “10.2 DATA IMPORT”. Example： ...
Page 156 OPERATIONAL STEPS DISPLAY ① In the menu of Set Out, click [X-Sect]. ② Data will be displayed on the screen as shown on the right. ③ Click [+CHG]/[-CHG] to search data forward backward; click [LOFS]/[ROFS] display neighboring offset and elevation on the cross section.
Page 157: Cogo
OPERATIONAL STEPS： ① Create a new text file (.txt) on the computer and save it. See Appendix A for the format of cross section data. ② Copy the file to total station. ③ In the total station, import the saved data to current project by “Data Import”. See “10.2 Data Import”. 2) You can use [LOFS]/[ROFS] to display appointed chainage. The sequence of the displayed data is according to the sequence in text file. Enter the data in the order of its offset values (from left to right), if chainages are the same. 3) When editing the cross section data, chainages should be in the order from little to much. 13.3 COGO The COGO menu contains a number of coordinate geometry functions. (Fixed data can not be used in these functions.) ...
Page 158: 4-Intersection
② In pop-up dialog input the point ID and azimuth/distance of point that applied intersection. Here take azimuth intersection for example.,※1)、※ If the point ID input does not exist in the project, an inputting dialog will display as shown on the right. Input the coordinate, and click [Enter] to save.
Page 159 The coordinate for a point can be computed by the intersection of four known points. OPERATIONAL STEPS DISPLAY ① In COGO menu click [4-Intersection] [4-Intersection]. ②In the popped up dialog box enter the points used for 4-Intersection. If the entered PT doesn’t exist in project, program will request you to enter coordinates. ※1)
Page 160: Inverse
③After inputting, click [Calc.], to calculate the coordinates of [Calc.] intersection point. If no intersection exists, “No Intersection!” will display. Input the point name and click [Enter] ④The data is saved and the display returns to standard survey main menu. ※1) To call coordinate data from project, Click [Load].
Page 161: Area
②Enter From PT and To PT. If the entered PT doesn’t exist in project, program will request you to enter coordinates. ※1)、※2) ③After inputting, click [Calc.], to [Calc.] calculate the coordinates ※3) ④Press[ESC] to returns to standard [ESC] survey main menu. ※1) To call coordinate data from project, Click [Load].
Page 162 OPERATIONAL STEPS DISPLAY [Area] ①In COGO menu click [Area]. ② A dialog box pops up. Click “Marked Pt to Calculat” and click [Enter] [Enter]. ※1) A： ③ A：Click [Mark] to mark pts used for area calc. ※2) B： B：You can click [Search] to search PT in project.
Page 163 ④ Click [Calc.] to calculate the area. The number used to calculate [Calc.] and area will be shown. ※3)、※4) ⑤Click [Enter] to quit and return to [Enter] Standard Survey Main Menu. ※1) Marked Pt to Calc.：specify which points should be used for the area calculation One kind of Pt to Calc：Compute the area of a figure enclosed by points with a common coding.
Page 164: Missing Line Measurement
②Input Code and String used for area. Click [Enter]. ③ The program will search data meets requirement calculate the area. ④Click [Enter] to quit and return to Standard Survey Main Menu. [Enter] Usually ( m ) or ( ft ) ...
Page 165 OPERATIONAL STEPS DISPLAY ①In Area Option, click [MLM] [MLM] ② Input the Pt used for MLM measurement.※1) Set Occ.& BS point: (If occupied point and Backsight azimuth has not been defined, the dialog box as right will pops up.) Pt does not exist in project: If the entered point doesn’t exist in project, program will request you to measure this point.
Page 166: Radiate
③The result is calculated out and displayed. dHd：Horizontal distance between the two points. dVd ： Height difference between two Points； dSd：Slope distance between two points. ④Press [ESC] to quit and return to [ESC] Standard Survey Main Menu. ※1) To call coordinate data from project, Click [Load]. [Note]： ...
Page 167: Traverse Adjustment
② Input From PT, Bearing and Distance, and click [Calc.]. ※1) If the entered PT doesn’t exist in project, program will request you to enter coordinates. After inputting, click [Enter] to calculate. ③the new point coordinate will be calculated and be displayed. ※2) ※1) To call coordinate data from project, Click [Load].
Page 168 ●To adjust angles the end point must be occupied and a known point observed to measure the closing angle. The point number used for this observation must be different from the known point too. Start Pt: 111 BKS Pt: 110 End Pt: 116 Close Pt: 117 Known Pt: 110 111 Example： ...
Page 169 [Record] ③In [Record] menu click [FS Obs]. [FS Obs] ④Sight the traverse point 112, use [Record] to record the measured coordinates. ⑤Move the instrument to PT112. Turn on the machine and select [Record], remeasure occupied point (PT112), backsight point (PT111), sight traverse point (PT113).Click record.
Page 170 ⑥Repeat ①～④ to measure and record coordinates of each traverse point. (The number of traverse point is entered according to length and requested accuracy). ⑦When the instrument is moved to PT115, measure a known point (916), record as PT116. ⑧To calculate traverse, you should set station on PT116, and sight another known point (such as 917), measure and record as...
Page 171 ② Enter Start Point, and click Enter start [Enter]. Point [Enter] ③When the entered start Point is same as the start Point in internal memory, the screen will display a dialog box to enter end point. Enter the End Point, (Measured Point) and known Point, these two Point must be different.
Page 172 ⑥The screen pops up” Elevation Adjust?” Here, click [OK] to adjust. Not to change and data, please click ⑦The display returns to standard survey main menu. If the closure point is measured: (The step 1, 2 are same as above). OPERATIONAL STEPS DISPLAY ③After entering Start Pt, system...
Page 173 ⑤The close difference is calculated and displayed.Click [Enter]. ⑥The azimuth results display. If the angle is in the allowed range of close difference, click [Enter]. ⑦ Click [Enter], system calculates angle adjustment and displays the result. Click [Enter]. ⑧Here the screen pops up “Coord Adjust”...
Page 174: Batter Boards
⑨The screen pops up “Elevation Adjust” again. Click [OK] to adjust. Not to change any data, click“ ”. ⑩The display returns to standard survey main menu. 13.5 BATTER BOARDS When setting out points, particularly for building plots, it is usually necessary to mark a point with an offset so that the point can be re‐established after work has been ...
Page 175 Example： OPERATIONAL STEPS DISPLAY ① In [Program] menu, click [B.Boards]. A： ② A： Input Setout P1 and click [Enter]. B： B： If the Point is unknown, a dialog box will pops up to request you to enter coordinates. After inputting, click [Enter].
Page 176 ③Enter Setout P2 and click [Enter]. ④ A： Now define the batter board, enter Board 1 and click [Enter]. B： If the point is unknown, SS Measurement dialog box will pop up. After measuring, the data is record to the project. ⑤Enter Board 2.
Page 177: Method 2: Batterboards Using One Side
⑥A dialog box shows the distances from intersection to PT1 and PT 2. ※1) ⑦Click “OK”, the intersection is set out. ※1) Click“ ” to quit batter board program. ※The setout of this intersection point is identical to Point Setout, which is discussed in paragraph 13.1.3, except for two differences. 1) Automatically the intersection point is chosen for setting out. 2) CUT is not shown at the screen. NOTE： 1) If the intersection point is not on the batterboard, the message “Point Not on Batterboard!” is shown on the screen. ...
Page 178 Procedure Operating procedure ： (A) Two setout points (S1 and S2) are selected and one side of the batterboard is measured (BB 1). An approximate distance D1 is shown. (B) The position of the pole is changed according to the value of D1 and a measurement is performed. The distance D1 is now precise. The process has to be repeated until D equals zero to find the intersection point. Example： OPERATIONAL STEPS DISPLAY ①After entering Setout Points and Board1 click [S.O].
Page 179: Tape Dimensions
the line connecting the two setout points. The distance D1 is calculated using this assumption. Next a second point on the batter board is measured. From now on the distance D1 will be calculated using the correct orientation of the batterboard.D1 will now be more precise. 2) The error message ‘Invalid value ’is shown if the batter board and the line connecting the two setout points are parallel. 3) The coordinates of the calculated intersection point are recorded in the coordinate file. The number of this intersection point is, compared to the highest ...
Page 180 OPERATIONAL STEPS DISPLAY ①In [Program] menu, Click [Tape Dim]. ②Enter PT A (Start PT) and PT B A： (End PT) on Re. line and click [Enter]. If the point exists in project, then the Re. Line is defined. B： If the point doesn’t exist in project, the SS Measurement dialog box pops up.
Page 181 ④ The reference line is defined, A：Left now use a tape to measure the line which perpendicular reference line, and start from End PT of reference line. First select direction in which the straight line proceeds and enter Dist, PT and Code, and click [Enter].
Page 182: System Settings
※1) stipulation of Left, Right: Along with extending direction of straight line, turn left is Left. ※2)Inputting range of Dist: 0.001～1000 There are two ways to return to the main menu ： 1) Press [ESC] key in case you have measured an open polygon. All points defined are automatically stored. 2) Click [End] to quit in case you have measured a closed polygon. The closing error (the distance between the last point and the first reference point) will be displayed. Click [OK] key to store all points defined and to return to main menu. NOTE ： The reference line and the lines defined by offsets are graphically shown only in case at least one offset has been entered. 14. SYSTEM SETTINGS 14.1 SETTING UNIT AND MEASURING PARAMETER 1, UNIT SETTING OPTIONS ...
Page 183 3.Tilt OFF/1axis/2axis Select the tilt sensor option for OFF, (1axis) vertical only or (2axis) vertical and horizontal 4. W-Corr. 0/0.14/0.20 Select the coefficient correction for refraction and earth curvature. Selections refraction coefficient are : OFF( No Correction ) , K =0.14 or K =0.20 ※...
Page 184 OPERATIONAL STEPS DISPLAY [System Setup] ①In the main menu click “System Setup”. Click options setting ② parameter. ③After setting, click [Save]. [Save] ④ Click [OK], the settings are [OK] saved.
Page 185: Setting Atmosphere Data And Prism Constant
⑤To set Measurement setting, click “Measurement Setting”, repeat steps ② ～ ④ to make the measurement setting. After setting, click “ ”. 14.2 SETTING ATMOSPHERE DATA AND PRISM CONSTANT Atmospheric Parameters (ppm): The speed of light in air is extremely fast. And it is not a constant, but changes with the temperature and pressure of atmosphere. Once atmosphere correction is set, this instrument can implement atmosphere correction automatically. Even the instrument is powered off, the atmosphere correction value is still kept. ●You can set the atmosphere correction value under star key(★) mode. ●The formula of atmosphere correction: (unit: meter)) PPM = 273.8 ‐ 0.2900 × pressure value（hPa） ...
Page 186 OPERATIONAL STEPS DISPLAY ① System Setting click “Atmospheric Parameter”. ②The screen shows the parameter current used. Enter new data in the fields you need to set. [Save] ③After setting, click [Save]. ④ Click [OK], the settings are saved. [OK] ※1)Data range: Temperature：-30 ～ +60℃ (Feet length 0.1℃) or -22 ～...
Page 187: Check And Adjustment
PPM：-100 ～ +100 PPM (Feet length 1PPM) PSM：-100 ～ +100 mm (Feet length 1mm) ※2) The instrument will calculate PPM according to the entered Temperature and Pressure. 15. CHECK AND ADJUSTMENT This instrument has undergone a strict process of checking and adjustment, which ...
Page 188: Inclination Of Reticle
No adjustment is required if the bubble of circular vial is in the center after checking and adjustment of the plate vial. Adjust 1. Adjust circular bubble after plate bubble is centered. 2. Loosen the screw (one or two) opposite with bubble deflective direction; 3. Tighten the screw on the direction accordant deflective until circular bubble is centered; 4. Adjust three adjustment screws for several times until circular bubble is centered; 5. ...
Page 189: Perpendicularity Between Line Of Sight And Horizontal Axis (2C)
15.4 PERPENDICULARITY BETWEEN LINE OF SIGHT AND HORIZONTAL AXIS (2C) Check 1. Set object A at about 100 meters away the same height as the instrument, and make the vertical angle with ±3°. Then level and center the instrument and turn on the power 2. Sight object A in FaceI and read the horizontal angle value. (e.g.: Horizontal angle L=10°13′10″). 3. Loosen the vertical and horizontal clamp screws and rotate the telescope. Sight object A in Reverse faceand read the horizontal angle value. (e.g.: Horizontal angle R= ...
Page 190 ② In the menu bar click show Collimation as right. Collimate the ③In Face I precisely collimate the target target, and press [Set]. [Set] ④ Rotate telescope Sight prism in precisely sight the same target in Reverse face Reverse face. Click [Set]. [Set] ⑤After setting, the screen displays [Set]...
Page 191: Vertical Index Difference Compensation
⑥Click [OK] to finish adjustment [OK] of collimation. B. Optics Adjustment (professional maintenance man only) 1. Use the tangent screw to adjust the horizontal angle to the right reading which has been eliminated C, R+C=190°13′40″‐15″=190°13′25″ 2. Take off the cover of the reticle between the eyepiece and focusing screw. Adjust the left and right adjusting screws by loosening one and tightening the other. Move the reticle to sight object A exactly. 3. Repeat inspection and adjustment until｜２Ｃ｜＜２０". 4. Replace the cover of the reticle. Note: After adjustment, need to check the photoelectricity coaxiality. 15.5 VERTICAL INDEX DIFFERENCE COMPENSATION Check 1. Mount and level the instrument and make the telescope parallel with the line connecting the center of the instrument to any one of the screws. Lock the horizontal clamp screw. ...
Page 192: Adjustment Of Vertical Index Difference (I Angle) And Setting Vertical Index 0
If the compensation function is not working, send the instrument back to the factory for repair. 15.6 ADJUSTMENT OF VERTICAL INDEX DIFFERENCE (I ANGLE) AND SETTING VERTICAL INDEX 0 Inspect the item after finishing the inspection and adjustment of items in 15.3 and 15.5. Check 1. Power on after leveling the instrument. Collimate object A in Face I and read the Vertical angle value L. 2. Rotate the telescope. Sight object A in Face Ⅱ and read the Vertical angle value R. 3. If the vertical angle is 0°in zenith，i=(L+R‐360°)/2 If the vertical angle is 0°in horizon. i=(L+R‐180°)/2 or(L+R‐540°)/2 4. If ...
Page 193: Transverse Axis Error Compensation Adjustment
③ Rotate telescope Sight prism in precisely sight the same target in Reverse face Reverse face. Click [Set]. [Set] ④After setting, the screen displays [Set] as right. Click [Set]. ⑤Click [OK] to finish adjustment [OK] of index error. Note: 1. Repeat the checking steps to measure the Index Error (i angle). If the Index Error cannot meet the requirement; user should check whether the three steps of the adjustment ...
Page 194 higher than the instrument. To avoid the influence of sight axis, user must have an associated adjustment before adjusting sight axis. It is unnecessary to collimate the prism or the target plane to ascertain the transverse axis error. Therefore user is enabled to launch this adjustment at any time. Select a recognizable point which is rather far away from the instrument, and much higher or lower than the instrument. Make sure it can be precisely collimated twice. OPERATIONAL STEPS DISPLAY ① After leveling the instrument, [System Setup] click System Setup in the main menu.
Page 195: Optical Plummet
④After setting, the screen displays as right. Click [Set]. [Set] ⑤Click [OK] to finish adjustment [OK] of horizontal axis. 15.8 OPTICAL PLUMMET Check 1. Set the instrument on the tripod and place a piece of white paper with two crisscross lines on it right below the instrument. 2. ...
Page 196: Instrument Constant（K
Adjust 1. Take off the protective cover between the optical plummet eyepiece and focusing knob. 2. Fix the paper. Rotate the instrument and mark the point of the center of optical plummet which falls on the paper at every 90°. As illustrated: Point A, B, C, and D. 3. Draw lines that attach AC and BD and mark the intersection point of the two lines as O. 4. Adjust the four adjusting screws of the optical plummet with an adjusting pin until the center mark coincides with Point O. 5. Repeat the inspection and adjusting steps to make the instrument meets the requirements. ...
Page 197 Adjust If a strict inspection proves that the Instrument Constant K has changed and is not close to 0. If the operator wants to adjust, should set Stadia Constant according to the Constant K ●Set the orientation via the Vertical Hair to maintain Point A, B, C on the same line precisely. There must be a fixed and clear centering mark on the ground of Point B ●Whether the prism center of Point B coincides with the Instrument Center is a significant step to inspect the accuracy. So on Point B the tripod or compatible tribrach should be used. It will decrease the difference. ∙Input Instrument Constant: ...
Page 198: Parallel Between Line Of Sight And Emitting Photoelectric Axis
※ ) Horizontal compensation adjust, vertical compensation and EDM adjusting: are set by the factory, please do not make any setting. 15.10 PARALLEL BETWEEN LINE SIGHT EMITTING PHOTOELECTRIC AXIS Check: 1. Set the reflector 50m away from the instrument. 2. Collimate the center of the reflector prism with reticle. 3. Switch on the instrument, and enter into Distance Measurement Mode. Press [DIST] (or [All]) to measure. Rotate the Horizontal Tangent Screw and Vertical Tangent Screw to launch electric collimation and make the light path of EDM unblocked. In the bright zone find the center of emitting photoelectric axis. 4. Check the center of reticle to coincide with the center of emitting photoelectric axis. If so, the instrument is proved eligible. Adjustment: If the center of reticle deviates ...
Page 199 with the center of reticle, and fix the Horizontal Clamp Screw. Rotate the telescope upward to make D near the horizontal hair. Flex the prism pole Leg “e” to make the D in the center of reticle. Then both Point C and D are on the central line of reticle. Set the instrument on Point B to another cross lines. With the same way to flex the Leg “f” to make Point C and D on the central line of reticle. Through the adjustment of the instrument on Point A and B, prism pole has been perpendicular. If the bubble offsets from the center, adjust the three screws under circular vial to make the bubble centered. Check and adjust again until the bubble is in the center of the vial from both directions of the prism pole. ...
Page 200: Accessories
16. ACCESSORIES １pc Carrying Case １pc Main Body １pc Backup on‐board Battery １pc Charger １pc Plummet Correction Pin 2 pcs １pc Fur Brush １pc Screwdriver Allen key 2 pcs １pc ...
Page 201: Export Data From Total Station
【APPENDIX-A】 1 EXPORT DATA FROM TOTAL STATION After saving the data collected by total station by “Data Export” to appointed route, use U disk or synchronizing software (use Microsoft ActiveSync to synchronize total station and PC.) to copy to your computer, then you can view the data. 1.1 Raw Data Format WinCE (Identifier) (Included information) PROJECT ...
Page 202: Import Data To Total Station
115,1.059,1.059,1.297,, Additionally, the coordinate format of point to line program is: PT, E, N, Height, code, string, start reference PT, end reference PT 3,29.145,31.367,100.632,PT,1,2 4,128.365,56.367,115.732,PT,1,2 110,29.364,31.526,100.904,PT,101,103 111,49.892,3.958,112.834,PT,101,103 2 IMPORT DATA TO TOTAL STATION Data can be imported includes coordinate data, fixed point data, code data, horizontal ...
Page 203: Point P Coding Format
0.000,3.500,18.553 0.000,5.501,18.493 12.669,‐4.501,18.029 12.669,‐3.500,18.059 12.669,‐0.000,18.164,CL01 12.669,3.500,18.059 12.669,5.501,17.999 2.3 Point P Coding Format The code files enclosed in code library, should assure that every line has a code, which includes entity number and layer name, etc. Every entity is ended by carriage return. The edited coding format is as follows: Code[，Entity[，Layer]] TREE,1,VEG FENCE,2,BDY CL,2,CL EP,2,ROAD GUTTER,2,ROAD PATH,2,PATH DRAIN,2,DRAIN BM,1,CONTROL MH,1,DRAIN GUS,1,UTILITY WATER,2,UTILITY LP,1,UTILITY LIGHTS,1,UTILITY ROCK,2,NS ●When there is no definition in code library, the default value for entity is “1”, and for layer is “0”. ...
Page 204 KEYWORD nnn,nnn[,nnn] Here: START POINT stake number, E, N STRAIGHT azimuth, distance ARC radius, arc length SPIRAL radius, length PT ...
Page 205: Appendix-B】 Calculate Road Alignment
【APPENDIX-B】 CALCULATE ROAD ALIGNMENT The road alignment stake‐out program can stake out the alignment elements including straight, arc and transition curve. NOTE: ●Road alignment data can be uploaded from computer or can be entered manually. Transect data can only be uploaded from computer. ●Road alignment and transect data is managed by chainage. ●One job corresponds to one road alignment, you can use several jobs to create several alignments. 1 ROAD ALIGNMENT ELEMENTS There are two ways to enter the alignment elements: ...
Page 206 Pt North East Radius Transition curve A1 Transition curve A2 (N) (E) (R) BP ...
Page 207: Calculation Road Alignment Elements
2 CALCULATION ROAD ALIGNMENT ELEMENTS ⑴ Calculation of the length of transition curve L : Length of clothoid : Parameter of clothoid : Radius =64 m L =64 m ...
Page 208 Δ R − − °20′06″) 1.700 Δ Δ Symmetry spiral transition ⑸ Calculation of Spiral Transition coordinate τ − =63.348‐100sin18°20′06″=31.891 Symmetry spiral transition ⑹ ...
Page 209 α − ⋅ α − ⋅ α ⇒ Bearing from IP1 to IP2 322°07′30.1″ 1300 –(‐182.468) * cos 322°07′30.1″= 1444.032 m 1750 –(‐182.468) * sin 322°07′30.1″= 1637.976 m ⑽ Calculation of coordinates BC，EC which is ARC (IP1,IP2,EP) ⋅ Arc length IA= 95°52′11″ ...
Page 210 The coordinates and the distance are calculated as below ： Compute the length of straight line Straight line − − 1249 1100 1574 1050 BP∙KA1= m − − 1575 1444 1536 1637 straight line KA2∙BC m straight line − − 2000 1867 1800 1587 EC∙EP m Start point coordinate (BP) N 1100.000 m E ...
Page 211 Length 131.354 m Transition (Between KE2 and KA2) Radius ‐100 m (“‐” sign is turn left curve toward the end point) Length 64 m Straight line (between KA2 and BC) Bearing 322°07′30.1″ ...
Page 212: Technical Specification
Technical Specification Distance Measure Part Type NTS‐962R NTS‐965 R Distance Measurement Max Single prism 5.0Km 5.0Km distance None (Good 300m 300m prism weather) Digisplay Max：9999999.999 m Min:1 mm With prism ：2＋2ppm Precision Without prism：5＋3ppm Fine:2s、Quick measure:1.2s、 Measure time Track:0.6s Atmospheric Auto correction ...
Page 213 Plate vial 30”/2mm Circular vial 8’/2mm Optical Plummet Image Erect Magnification 3× Focusing range 0.5m～∞ Field of view 5° Display LCD 3.5inch Type WindowsCE.NET English operaion system On‐board Battery Power supply Rechargeable Ni‐H battery Voltage DC 7.2V Continuous operation 8 hours time Size & weight Dimension 200×180×350 mm Weight 6.0 kg ...

South NTS-960R Operation Manual

Foreword

Precautions

Safety Guide

1 Nomenclature and Functions

2 Synchronization with Pc

3 Knowing about Wince(R)

4 ．Star Key (★) Mode

5 Preparation for Measurement

6 Basic Survey

7 Application Programs

8 Start Standard Survey Program

9 Project

10 Data Export/Import

11 Record Measurement Data

12 Edit Data

13 Program Menu

14 System Settings

15 Check and Adjustment

16 Accessories

Appendix-A

Appendix-B】 Calculate Road Alignment

Technical Specification

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for South NTS-960R

Summary of Contents for South NTS-960R

Table of Contents
