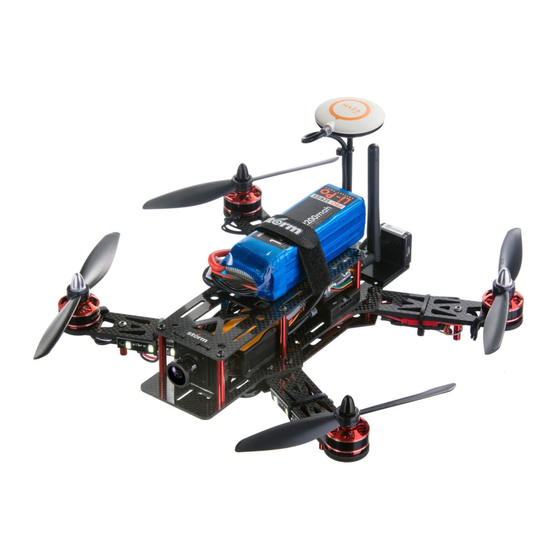

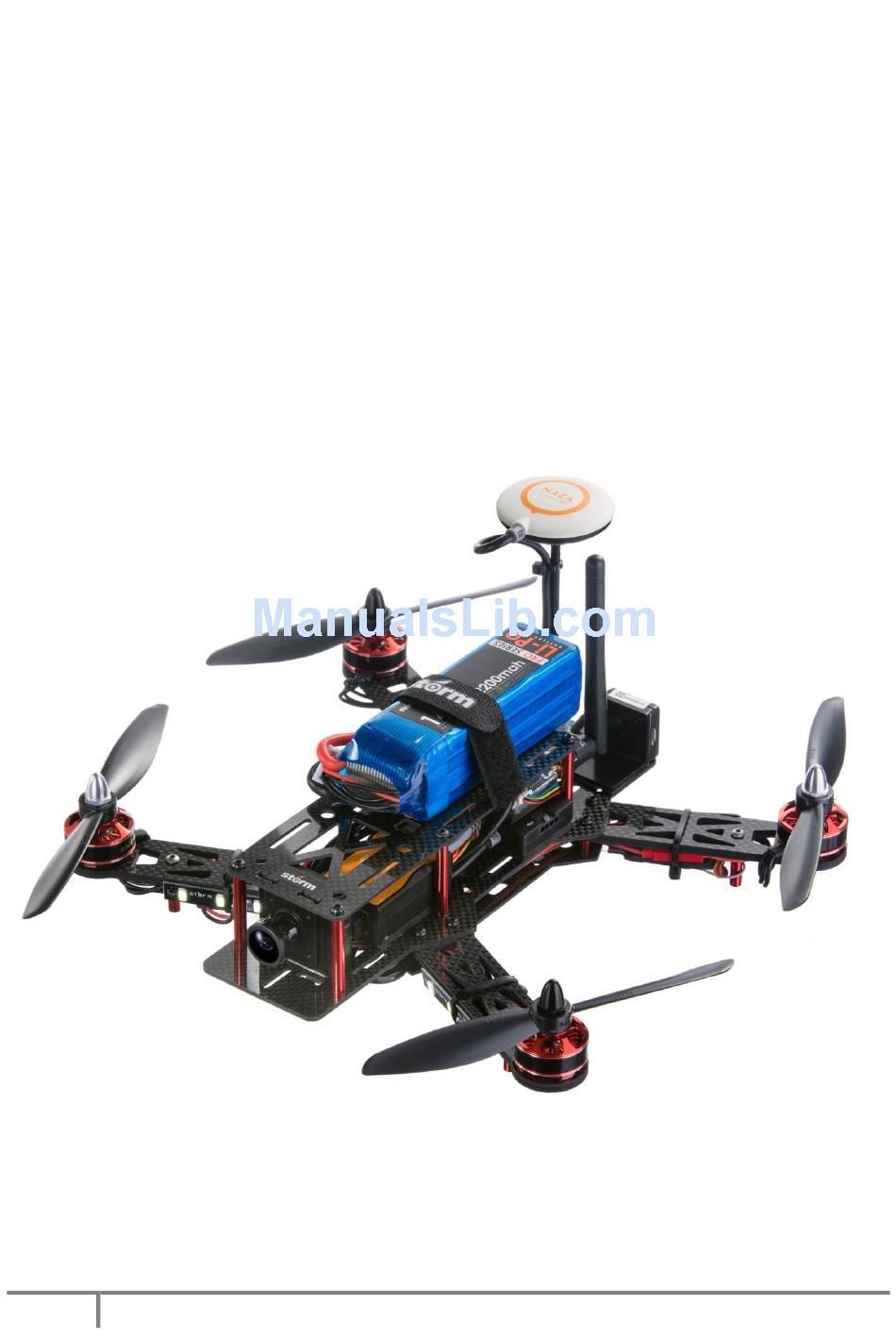

Storm Racing Drone

(Type A)

with Naza V2 GPS Flight Controller

AT9 Radio Controller

USER MANUAL

V1.0

Need help?

Do you have a question about the Storm and is the answer not in the manual?

Questions and answers

Summary of Contents for Helipal Storm

Page 2 6) Never overcharge LiPo batteries. Do not charge above 4.2V per cell. When the battery is fully charged, disconnect it from the charger. Never leave the battery charger unattended during charging. 7) Never discharge batteries to below 3.3V per cell 8) Remove batteries when not using the drone. Copyright@2015 HeliPal.com. All Rights Reserved...
Page 3 Package includes: 1. Fully Assembled Storm Racing Drone GPS w/ DJI NAZA V2 GPS System 2. Built-in FPV System (Camera and Transmitter) 3. DJI iOSD Mini Module (Overlay flight data information) 4. RadioLink 2.4Ghz AT9 Radio System w/ R9D 9-Ch Receiver 5.
Page 6 If the transmitter is off, push throttle stick to down position, turn on the transmitter, push throttle to middle, switch the G switch Down(towards you) and Up(away from you) to take over the control again. Copyright@2015 HeliPal.com. All Rights Reserved...
Page 7 2. NAZA V2 Manual It is important to learn more about the NAZA-M V2 GPS Controller. You can download the manual here: http://download.dji-innovations.com/downloads/nazam-v2/en/NAZA-M- V2_Quick_Start_Guide_en.pdf Copyright@2015 HeliPal.com. All Rights Reserved...
Page 9 100110 5847MHz 100010 5752MHz 011010 5860MHz 100000 5760MHz 011000 5865MHz 111110 5765MHz 010110 5866MHz 000010 5771MHz 101010 5880MHz 000000 5780MHz 101000 5885MHz 110100 5785MHz 110110 5905MHz 010100 5790MHz 001010 5925MHz 100100 5800MHz 001000 5945MHz 000100 Copyright@2015 HeliPal.com. All Rights Reserved...
Page 10 Use the small screwdrivers to press and hold the switch inside the receiver until it is flashing with light in Blue and Purple, Switch on the radio controller, it will start searching for available receiver. Receiver will stop flashing while the bind process complete and the radio controller will the signal strength on the screen Copyright@2015 HeliPal.com. All Rights Reserved...
Page 11 Go to [AUX-CH] -> ATTITUDE, apply the setting below: [CH8] = VrB [CH9] = SwA [CH10] = SwB [CH] = CH7 [SW3] = SwG [SW2] = NULL [GPS] = 0% [ATTI.] = 50% [ATTI.] = 100% Copyright@2015 HeliPal.com. All Rights Reserved...
Page 12 [1][RESET] [1] = SwH (Using Switch H to responsible for the reset timer action) [1][RESET] [2] = DOWN (Using Switch H’s down action to reset the timer) Copyright@2015 HeliPal.com. All Rights Reserved...
