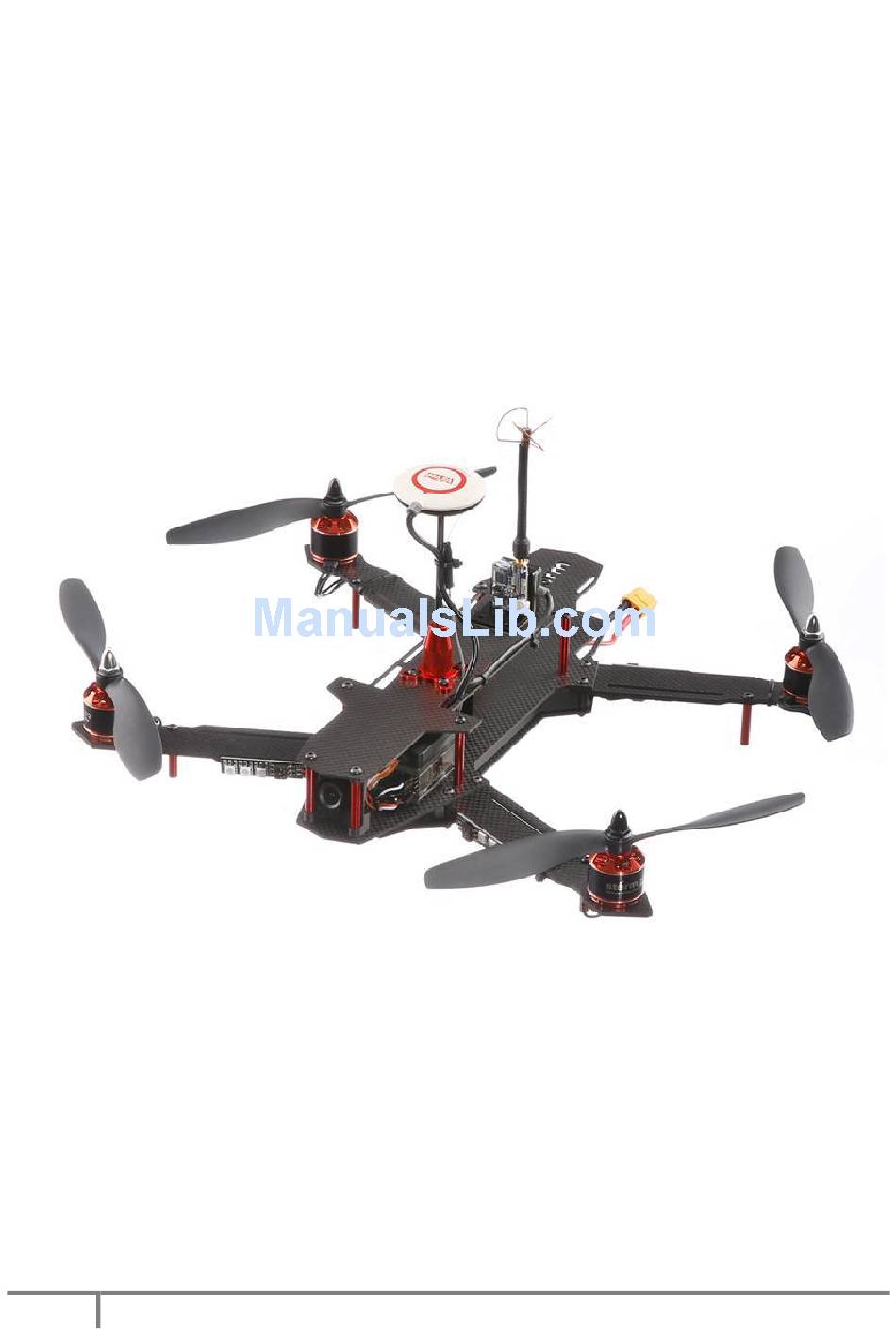

Storm Racing Drone
with Naza GPS Flight Controller
USER MANUAL
V2
Copyright@2015 HeliPal.com. All Rights Reserved
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the storm racing drone 370 and is the answer not in the manual?

Questions and answers

Related Manuals for Helipal storm racing drone 370

Summary of Contents for Helipal storm racing drone 370

  • Page 1 Storm Racing Drone with Naza GPS Flight Controller USER MANUAL Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 2 6) Never overcharge LiPo batteries. Do not charge above 4.2V per cell. When the battery is fully charged, disconnect it from the charger. Never leave the battery charger unattended during charging. 7) Never discharge batteries to below 3.3V per cell 8) Remove batteries when not using the drone. Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 3 5. 6pcs Counter-Clockwise 8045C Carbon-filled Nylon (4 of them are spare parts) 6. SKYRC E4 Battery Charger 7. 2.0 mm Hex Wrench 8. 2.5 mm Hex Wrench 9. 10mm Hex Nut Driver Driver (for motor cap) 10. 5.5mm Hex Nut Cross Wrench (for airframe) Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 4 Quick Start Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 5 Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 6 Control Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 7 Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 8 If the transmitter is off, push throttle stick to down position, turn on the transmitter, push throttle to middle, switch the G switch Down(towards you) and Up(away from you) to take over the control again. Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 9 2. NAZA V2 Manual It is important to learn more about the NAZA GPS Controller. You can download the manual here: http://download.dji-innovations.com/downloads/nazam-v2/en/NAZA-M- V2_Quick_Start_Guide_en.pdf NAZA m Lite - http://download.dji-innovations.com/downloads/naza-m%20lite/en/NAZA- M%20LITE_User_Manual_v2.00_en.pdf Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 10 Circuit Diagram Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 11 Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 12 5645MHz 5805MHz 5658MHz 5806MHz 5665MHz 5820MHz E3 (DEFAULT SETTING) 5685MHz 5825MHz 5695MHz 5840MHz 5705MHz 5843MHz 5725MHz 5845MHz 5732MHz 5860MHz 5740MHz 5865MHz 5745MHz 5880MHz 5760MHz 5880MHz 5765MHz 5885MHz 5769MHz 5905MHz 5780MHz 5917MHz 5785MHz 5925MHz 5800MHz 5945MHz Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 13 Use the small screwdrivers to press and hold the switch inside the receiver until it is flashing with light in Blue and Purple, Switch on the radio controller, it will start searching for available receiver. Receiver will stop flashing while the bind process complete and the radio controller will the signal strength on the screen Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 14 Go to [AUX-CH] -> ATTITUDE, apply the setting below: [CH8] = SwC [CH9] = SwA [CH10] = SwB [CH] = CH7 [SW3] = SwG [SW2] = NULL [GPS] = 0% [ATTI.] = 50% [ATTI.] = 100% Copyright@2015 HeliPal.com. All Rights Reserved...
  • Page 15 [1][RESET] [1] = SwH (Using Switch H to responsible for the reset timer action) [1][RESET] [2] = DOWN (Using Switch H’s down action to reset the timer) 11) [F/S][THRO] = 0% Copyright@2015 HeliPal.com. All Rights Reserved...
