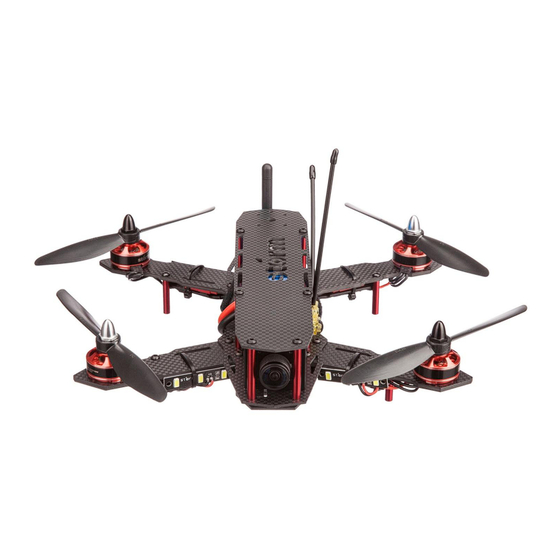

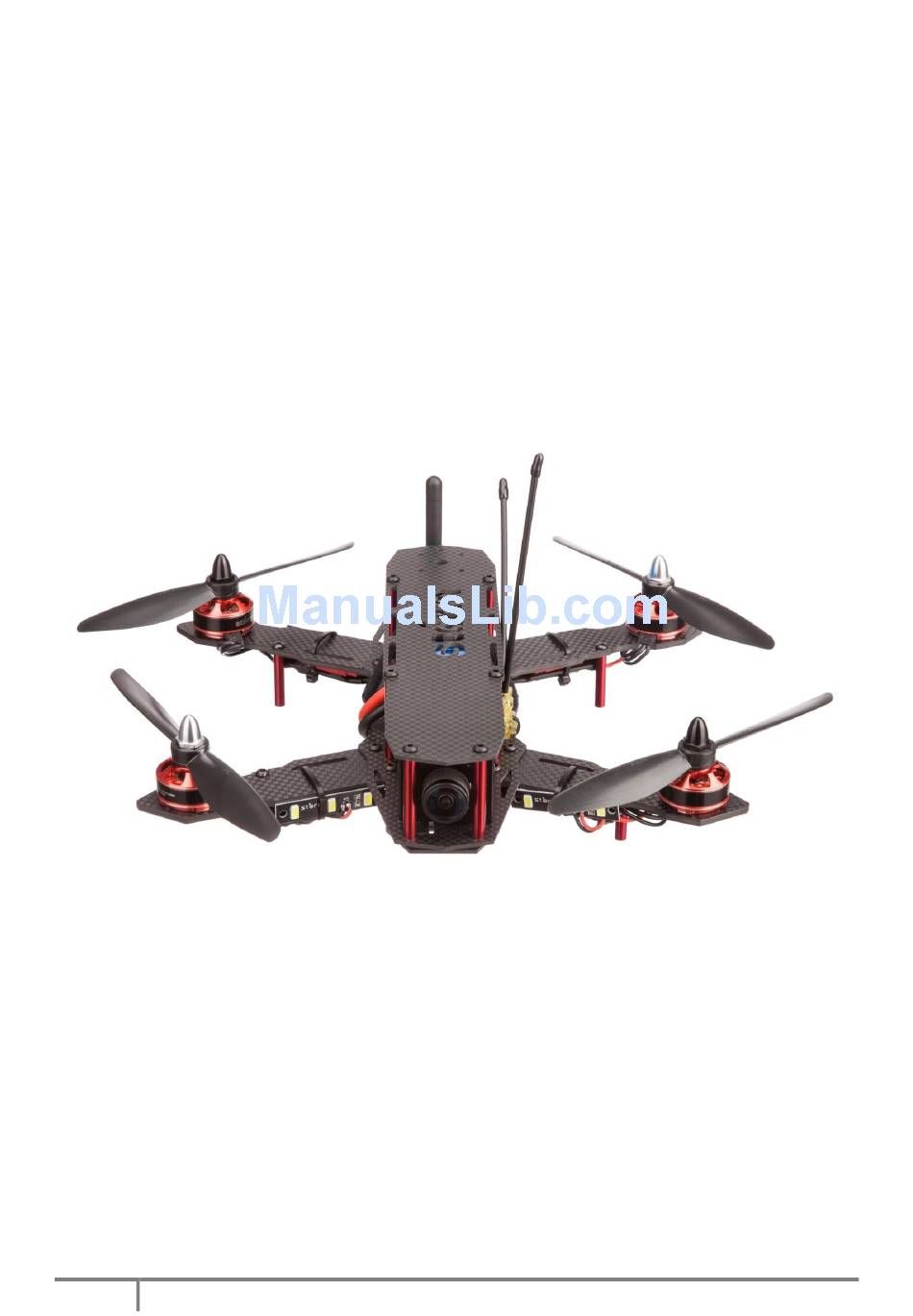

- Page 1 SRD250 Storm Racing Drone USER MANUAL V1.3 Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 2 6) Never overcharge LiPo batteries. Do not charge above 4.2V per cell. When the battery is fully charged, disconnect it from the charger. Never leave the battery charger unattended during charging. 7) Never discharge batteries to below 3.3V per cell 8) Remove batteries when not using the drone. Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 3 8. 2.5 mm Hex Wrench (for motor screws) 9. 10mm Hex Nut Driver Driver (for motor cap) 10. 5.5mm Hex Nut Cross Wrench (for airframe locknut) 11. Anti-Slip Mat for Battery 12. Clover Leaf Antenna (4 cells edition only) Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 4 Important Notes 1) Install antenna tube 2) Install battery anti-slip mat Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 5 3) Make sure that there is clearance between the battery and propellers (If the battery is damaged, don’t use it anymore) 4) Make sure that the antenna is secured before connect the battery (Video transmitter may burn out if the antenna is not secured) Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 6 5) Do not touch the LED or Video Transmitter. It’s hot! 6) Set the Battery Buzzer if necessary. Copyright@2015 HeliPal.com. All Rights Reserved...
-
Page 7: Quick Start
Quick Start Copyright@2015 HeliPal.com. All Rights Reserved... -
Page 8: How To Control
How to control Copyright@2015 HeliPal.com. All Rights Reserved... -
Page 9: Circuit Diagram
Circuit Diagram Copyright@2015 HeliPal.com. All Rights Reserved... -
Page 10: Fpv System
100110 5847MHz 100010 5752MHz 011010 5860MHz 100000 5760MHz 011000 5865MHz 111110 5765MHz 010110 5866MHz 000010 5771MHz 101010 5880MHz 000000 5780MHz 101000 5885MHz 110100 5785MHz 110110 5905MHz 010100 5790MHz 001010 5925MHz 100100 5800MHz 001000 5945MHz 000100 Copyright@2015 HeliPal.com. All Rights Reserved... - Page 11 [FUNCTION] > [SAFE] > GEAR = HOLD [FUNCTION] > [TRVAD] > ELEV = U100% / D100% [FUNCTION] > [SAFE] > FLAP = HOLD [FUNCTION] > [TRVAD] > AILE = L100% / R100% [FUNCTION] > [SAFE] > AUX2 = HOLD Copyright@2015 HeliPal.com. All Rights Reserved...
