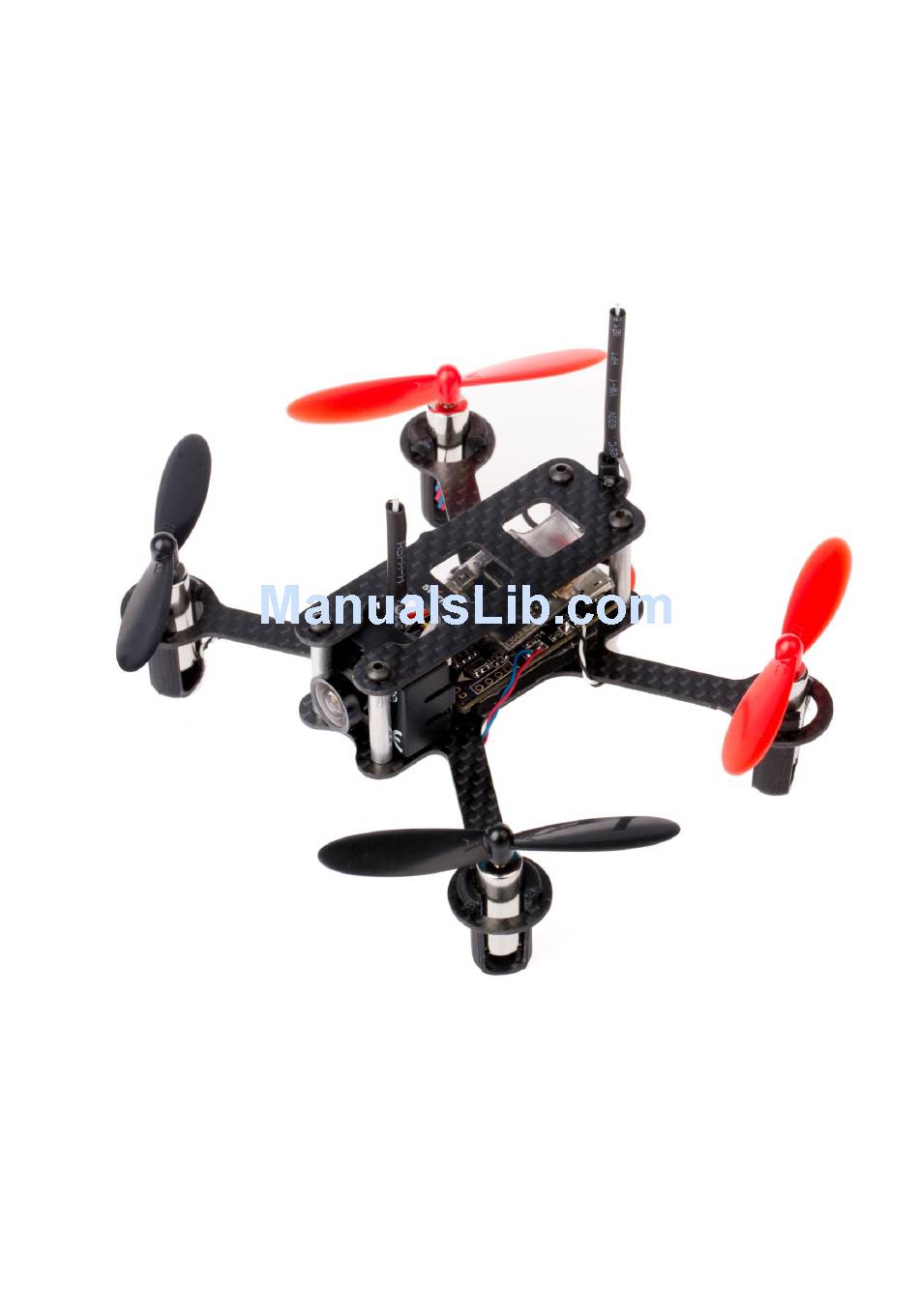

Storm SRD101

with BetaFlight Controller

USER MANUAL

V1.1

Need help?

Do you have a question about the storm SRD101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Helipal storm SRD101

Page 2 6) Never overcharge LiPo batteries. Do not charge above 4.2V per cell. When the battery is fully charged, disconnect it from the charger. Never leave the battery charger unattended during charging. 7) Never discharge batteries to below 3.3V per cell 8) Remove batteries when not using the drone. Copyright@2016 HeliPal.com. All Rights Reserved...
Page 13: Fpv System
If two or more drones are flying at the same time, try to select different video frequency to avoid video interference. The bigger different in video frequency between drones, the less interference generated. Always check the supported channels of you FPV reception devices such as monitor, goggles Copyright@2016 HeliPal.com. All Rights Reserved...
Page 14 Power on the aircraft, then Press and Hold the very small black button on the side of the receiver, until the LED goes flashing, then release the button. After a few seconds it will automatically bind with the transmitter, it's that simple. Copyright@2016 HeliPal.com. All Rights Reserved...
Page 15 Go to [AUX-CH] -> ATTITUDE, apply the setting [CH8] = SwC [CH9] = SwF [CH10] = SwA below: [CH] = CH5 [SW3] = SwG [SW2] = NUL [STABL.] = 0% [STABL.] = 50% [ARCO.] = 100% Copyright@2016 HeliPal.com. All Rights Reserved...
Page 16 10) Go to [F/S], apply the setting below: [1] [AILE] = NOR [2] [ELEV] = NOR [3] [THRO] = 15% [4] [RUDD] = -70% [5] [ATTI] = NOR [6] [AUX1] = NOR [7] [AUX2] = NOR [8] [AUX3] = NOR Copyright@2016 HeliPal.com. All Rights Reserved...
Page 17 11. Final step, on the BetaFlight configurator, go to CLI tab and type "set spektrum_sat_bind = 0" and then type "save". This must be done so that receiver doesn't go back to binding mode. 12. Restart transmitter, disconnect drone from computer and connect battery to reboot. Copyright@2016 HeliPal.com. All Rights Reserved...
Page 18 In [Travel] menu, make sure you have those six Goto [Reverse] menu, make sure AIL, RUD, channels (THR, AIL, ELE, RUD, GER and AX1) to channel are reversed. have 147 for travel like this picture, otherwise the drone will not start. Copyright@2016 HeliPal.com. All Rights Reserved...
Page 19 Receiver No. 01, and then click "Bind", the transmitter will start beeping, wait until receiver LED turn solid. Power off Transmitter and Receiver. Turn on the transmitter and power on the Receiver, now you should have bound them. Copyright@2016 HeliPal.com. All Rights Reserved...
Page 20 You can find the procedures below: Download OPENTX program by isiting http://www.open-tx.org/downloads.html. Always use the latest version Use the latest OPENTX 2.1 branch. Download the latest helipal profile for our drone here (Please unzip before use): www.helipal.com/download/uav/srd-taranis-x9d-plus.zip http://goo.gl/PZQeWO Turn on your radio by holding both lower trims towards the center and turn on transmitter at the same time, you will enter BootLoader mode.
Page 21 Click to open our profile, drag the correct drone memory to your own transmitter. Remember to click to write the profile back to your radio. Unplug USB cable, switch off transmitter and switch on again. Copyright@2016 HeliPal.com. All Rights Reserved...
