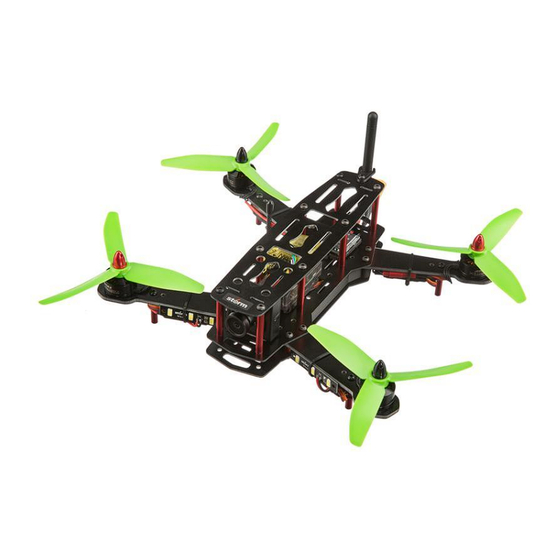

- Page 1 Storm Racing Drone Type B Lite USER MANUAL Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 2 6) Never overcharge LiPo batteries. Do not charge above 4.2V per cell. When the battery is fully charged, disconnect it from the charger. Never leave the battery charger unattended during charging. 7) Never discharge batteries to below 3.3V per cell 8) Remove batteries when not using the drone. Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 3 4. 6pcs Counter-Clockwise 6045 ABS Propeller (4 of them are spare parts) 5. 2.0 mm Hex Wrench (for column screws) 6. 2.5 mm Hex Wrench (for motor screws) 7. 5.5mm Hex Nut Cross Wrench (for airframe locknut) Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 4 Quick Start Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 5 Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 6 How to control Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 7 Circuit Diagram Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 8 100110 5847MHz 100010 5752MHz 011010 5860MHz 100000 5760MHz 011000 5865MHz 111110 5765MHz 010110 5866MHz 000010 5771MHz 101010 5880MHz 000000 5780MHz 101000 5885MHz 110100 5785MHz 110110 5905MHz 010100 5790MHz 001010 5925MHz 100100 5800MHz 001000 5945MHz 000100 Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 9 Use the small screwdrivers to press and hold the switch inside the receiver until it is flashing with light in Green, Switch on the radio controller, it will start searching for available receiver. You can try toggle Switch A to test the buzzer function to determine whether they are bind or not. Copyright@2015 HeliPal.com. All Rights Reserved...
