Summary of Contents for Artusi ADW5000X

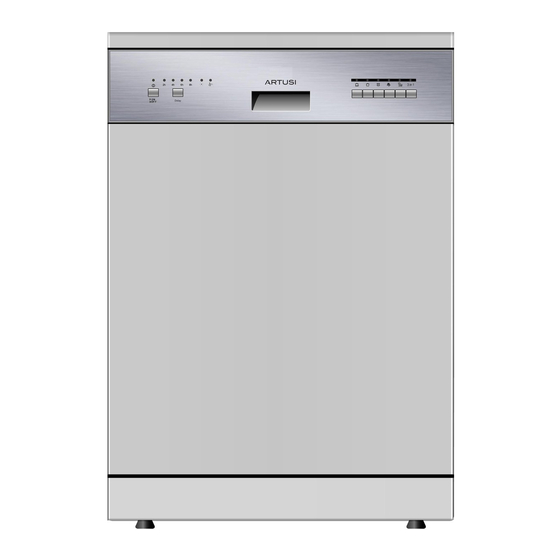

  • Page 1 ADW5000X...
  • Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. Compartment Fill main-wash detergent. Compartment Fill the detergent dispenser Fill pre-wash detergent. (Follow the user instructions!) Mechanical indicator Check the rinse aid level...

  • Page 3: Table Of Contents

    Dear Customer, This appliance is intended to be used in household and similar applications such as: – staff kitchen areas in shops, offices and other working Control Panel...........2 environments; Dishwasher Features........2 – farm houses; – by clients in hotels, motels and other residential type environments;...
  • Page 4 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of anelectric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.

  • Page 5: Control Panel

    To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Inten. Heav y Normal Rinse Rapid 3 in 1 1 ON/OFF Button: To turn on/off the power supply. Program Butto n: To select washing program when press the button.

  • Page 6: A Fill The Rinse Aid Dispenser

    Before using your dishwasher for the first time: A. Fill the rinse aid disp enser B. Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks.

  • Page 7: B Function O F Detergent

    Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a p roblem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free.

  • Page 8: Amount Of Detergent To Use

    Amount of Detergent to Use If the lid is closed: press release button. T he lid will sp ring open. Always add the detergent just before starting each wash cycle. Only use branded detergent aid for dishwasher. Dishwasher detergent is corrosive! Take care to keep it out of reach of c hildren. Prop er Use of De terg ent Use only deterge nt specifically made for the use in dishwashers.

  • Page 9: Attention Before Or After Loading The Dishwasher Baskets

    Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, take glass and cutlery out of the dis hwa sher as soon as possible after the program has ended.

  • Page 10: Loading The Upper Basket

    Loading the Upper Basket Loading the Upper Basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

  • Page 11: Cutlery Basket

    Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.

  • Page 12: Wash Cycle Table

    ℃ Pre-wash(50 ) Pre-wash For the heaviest so iled loads, ℃ Wash (65 Intensive such as pots,pans,casserole Rinse dishes and dishes that h ave 5/25 g. Rinse been sitting with d ried food ℃ Rinse (55 on them for a while. Drying ℃...

  • Page 13: Turning On The Appliance

    Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled “ ” Loading the Dishwasher ). “ ” Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid ). Insert the plug into the socket.

  • Page 14: Filtering System

    The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.

  • Page 15: Cleaning The Filter

    Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
  • Page 16 When not in Use for a LongTime After Every Wash It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.
  • Page 17 Improper connection of the equipment earthing conductor can result in the risk of an for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed.

  • Page 18: Water Outlet

    How to Drain Excess Water From Hoses If the sink is 1000mm higher from the floor, the excess water in hoses cannot be dra ined directly into the sink. It will be necessary to drain excess water from hoses into a bo wl o r suitable container that is held outside and lower th an the sink.
  • Page 19 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker triggered appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on Make sure the power cord is properly plugged into the wall socket.
  • Page 20 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 21 Height : 850mm Width : 600mm Depth : 580mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 12 Place settings...
  • Page 22 Office: 2. What is not Covered by the Warranty. 48-50 Moore Street, Leichhardt N.S.W 2040 The Warranty does not apply if an artusi product Post: is defective by a factor other than a defect arising Locked Bag 3000, Annandale, N.S.W 2038...
  • Page 23 Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 694 583) 01032014 Artusi Warranty March 2014.indd 2 6/03/2014 10:08 am...
