Summary of Contents for Artusi ADW5008X

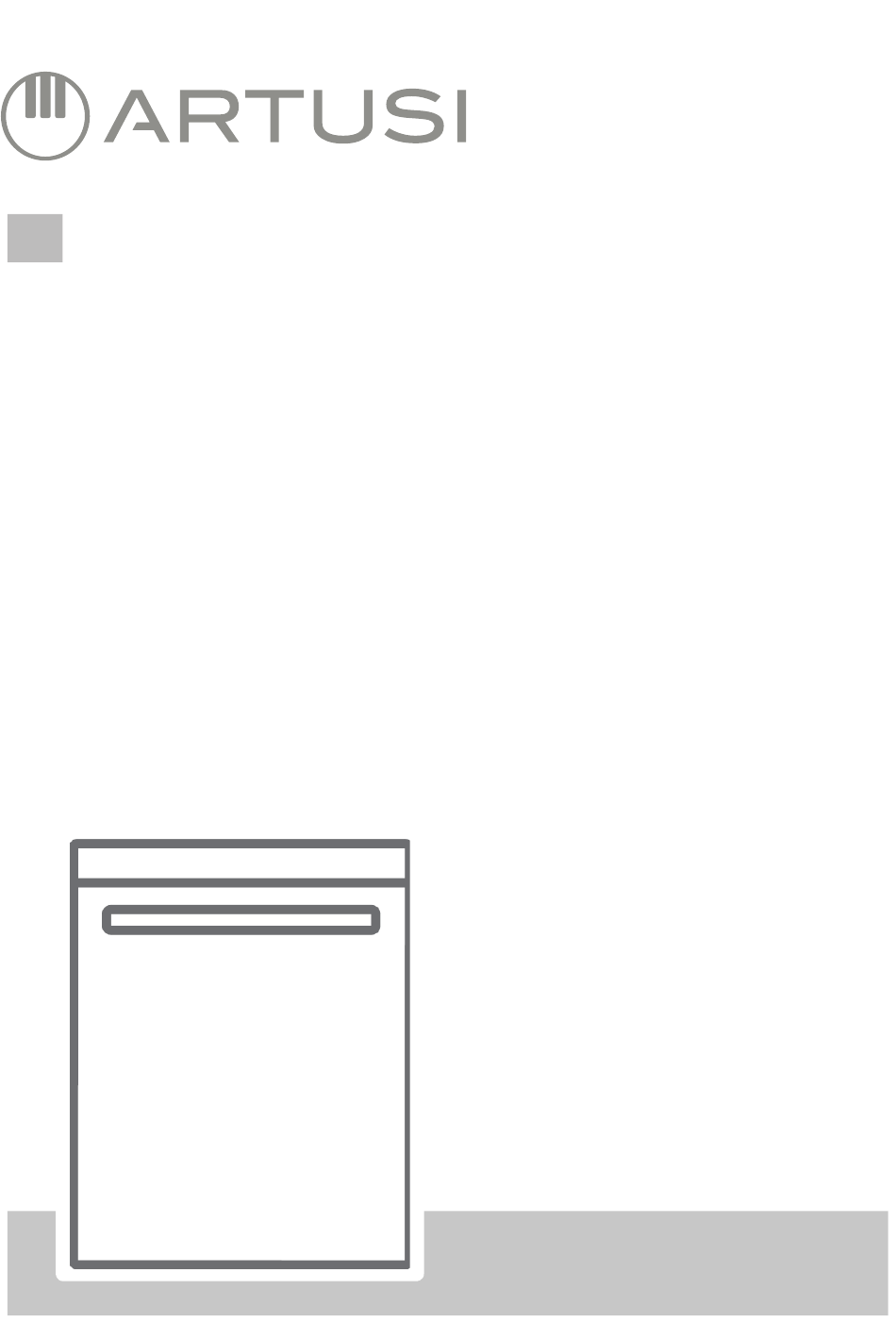

  • Page 1 Dishwasher / User Manual ADW5008X...
  • Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1 SAFETY INSTRUCTIONS ................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings .....................5 1.3 During Usage........................6 2 INSTALLATION ....................9 2.1 Machine Positioning .......................9 2.2 Water Connection ......................9 2.3 Water Inlet Hose ......................9 2.4 Drain Hose (Model Depending) ..................10 2.5 Electrical Connection ....................10 2.6 Fitting The Machine Undercounter ................11 3 TECHNICAL SPECIFICATIONS ..............

  • Page 4: Safety Instructions

    1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 5: Installation Warnings

    There may be some residue left in the machine after washing. Keep children away from the machine when it is open. 1.2 Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine.

  • Page 6: During Usage

    Always use the coated plug supplied with your machine. If the electrical cable is damaged, it should only be replaced by a qualified electrician. • Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa.
  • Page 7 Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened. The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position.
  • Page 8 Pull the plug to disconnect the machine from the mains, never pull on the cord. EN - 8...

  • Page 9: Installation

    2 INSTALLATION 2.3 Water Inlet Hose 2.1 Machine Positioning When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C. Read all warnings located on the packaging before removing the packaging and positioning the machine.

  • Page 10: Drain Hose (Model Depending)

    2.4 Drain Hose (Model Depending) 2.5 Electrical Connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the...

  • Page 11: Fitting The Machine Undercounter

    2.6 Fitting The Machine Undercounter If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2).

  • Page 12: Technical Specifications

    3 TECHNICAL SPECIFICATIONS 3.2 Technical Specifications 15 place Capacity settings Dimensions Height 850(mm) Width 598(mm) Depth 598(mm) Net weight 46 kg Operating 220-240V voltage / 50 Hz frequency Total current 10(A) Total power 1900(W) Maximum: Water supply 1 (Mpa) pressure Minimum: 0.03 (Mpa) 3.1 General Sppearance...
  • Page 13 RECYCLING • Some machine components and packaging consist of recyclable materials. • Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. ) • The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling. •...

  • Page 14: Before Using The Appliance

    4 BEFORE USING THE 4.3 Using combined detergents APPLIANCE These products should be used according to the manufacturer’s instructions. Never put combined detergents into the 4.1 Detergent usage interior section or the cutlery basket. Only use detergents specifically designed Combined detergents contain not for domestic dishwashers.

  • Page 15: Filling The Rinse-Aid And Setting

    4.5 Filling the rinse-aid and setting To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

  • Page 16: Loading Your Dishwasher

    5 LOADING YOUR DISHWASHER 5.1 Recommendations Remove any coarse residue on dishes For best results, follow these loading before placing the dishes in the machine. guidelines. Start the machine with full load. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
  • Page 17 Four Folding Racks Height Adjustment The folding racks allow easier placement The upper basket includes a mechanism of larger items, such as pots and pans. which enables the height of the basket Each section can be folded separately. The to be adjusted up (1) or down (2) without racks can be raised up, or folded down, as having to remove the basket.
  • Page 18 Height Adjustable Rack (peg type) The foldable racks in the upper basket enable the placement of large items such as pots and pans. Each section can be folded separately. The foldable racks can be either raised up or folded down. The upper cutlery basket is composed of two pieces that can be separately removed.

  • Page 19: Alternative Basket Loads

    5.2 Alternative Basket Loads Lower Basket Top Basket Incorrect Loads Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer’s recommendations for a good performans result. EN - 19...

  • Page 20: Programme Table

    6 PROGRAMME TABLE Duration Programme Description (min) Fastest program for lightly soiled and recently used dishes and suitable for Mini 14’ 4 place settings. Quick 30’ Suitable for lightly soiled dishes and quick wash. Standard program for normally soiled daily using dishes with reduced energy and water consumptions.

  • Page 21: The Control Panel

    7 THE CONTROL PANEL 3. Delay Button You can delay the start time of the programme for 1-2...24 hours by pressing the delay button (3) before the programme starts. The delay indicator (3.1) will be on. If you want to change the delay time,first press the Start/Pause button and then the delay button to select a new delay time.

  • Page 22: Changing A Programme

    Tablet Indicator selected for 15 to 100 minutes. Select the Tablet Detergent function when * Wash using a combined detergent that contains * Rinse salt, rinse aid or other extras. The Tablet * Dry Detergent Indicator will remain on for as * End long as it is selected.

  • Page 23: Cancelling A Programme

    NOTE: At the end of washing program- me, you can leave the door of your machi- ne ajar to hasten the drying. Start newly selected programme by NOTE: If the door of machine is opened pressing the Start/Pause button. or power is cut off during washing the programme will continue when the door is The new programme will resume closed or the power is restored.
  • Page 24 Natural Ion Tech (Model Depending) This function provides extra hygiene to the machine thanks to Ion Technology. It opera- tes as an independent program. This func- tion is activated by pressing Options button (6) for 3 seconds in ready state. At the end of 3 seconds, “Ion”...

  • Page 25: Cleaning And Maintenance

    8 CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out Cleaning your dishwasher is important to of the micro filter (2).Then pull and remove maintain the machine’s service life the metal filter (3).Rinse the filter with lots of Make sure that the water softening setting...

  • Page 26: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on p ieces of broken glass or pointed implements.

  • Page 27: Troubleshooting

    9 TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 28 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 29 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
  • Page 30 KILAVUZ KODU...
