Summary of Contents for Artusi ADWFI602
- Page 1 AP PL I ANC ES FO R L I VI NG ADWFI602 OPERATION MANUAL...
- Page 2 ARTUSI Family. This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
- Page 3 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.
-
Page 4: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................1 1.3. During Use........................2 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................6 2.5. Electrical Connection ....................7 2.6. - Page 5 8.CLEANING AND MAINTENANCE ................. 17 8.1. Cleaning the Machine and Filters ................17 8.2. Spray Arms ........................17 9.TROUBLESHOOTING ....................18 10.PRACTICAL INFORMATION ..................20 11.THE PRODUCT FICHE ....................21...
-
Page 6: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. -
Page 7: Installation Warnings
1.2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. - Page 8 • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher. Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.
- Page 9 Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap. Operation at a low voltage will cause a decline in performance levels. For safety, disconnect the plug once a program has finished.
- Page 10 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
-
Page 11: Installation
2. INSTALLATION WARNING: Run water through the new hose before connecting. 2.1. Machine positioning When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Connect the hose directly and unloaded. Do not put the machine in an to the water inlet tap. -
Page 12: Electrical Connection
2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current. -
Page 13: Technical Specifications
3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 13 place Capacity settings Dimensions Height 850(mm) Width 598(mm) Depth 598(mm) Net weight 46 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) Total power 1900(W) 3.1. General appearance 1. Upper basket with racks 2. -
Page 14: Detergent Usage
4.1. Detergent usage Only use detergents specifically designed for domestic dishwashers. Add the recommended amount of detergent for the selected programme to ensure the best performance. Keep your detergents in cool, dry places out of reach of children. See the detergent manufacturer’s instructions for a further information. EN - 9... -
Page 15: Filling The Detergent
4.2. Filling the detergent In order to change the rinse aid level, follow the below steps before turning on Push the latch to open the dispenser and the machine: pour in the detergent. • Touch the programme button and hold Close the lid and press it until it locks in it down. -
Page 16: Loading Your Dishwasher
5. LOADING YOUR DISHWASHER For best results, follow these loading guidelines. We recommend that you place large items (pots, pans, lids, plates and bowls) which are heavily soiled in the lower basket. The upper basket is designed for delicate and lighter dishware such as glasses, coffee and tea cups and saucers. - Page 17 Lower Basket Two Folding Racks (12 pc) The folding racks on the lower basket allow for the placement of larger items, such as pots and pans. Each section can be folded separately. They can either be folded down or raised up, as shown in the images below. EN - 12...
-
Page 18: Alternative Basket Loads
5.2. Alternative Basket Loads Lower Basket Top basket Incorrect loads EN - 13... -
Page 19: Programme Table
6. PROGRAMME TABLE Duration Programme Description (min) Fastest programme for lightly soiled and recently used dishes. Suitable for 4 place Mini 14’ settings. Quick 30’ For lightly soiled dishes and a quick wash. Eco (Reference) Standard programme for normally soiled, daily-used dishes. Super 50’... -
Page 20: The Control Panel
7.THE CONTROL PANEL NOTE: When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator (7) will iluminate to indicate the rinse aid chamber needs filling. Delaying a Programme Press the Delay Start touch button to delay the start time of a programme for 1 hour up to 19 hours. -
Page 21: Switching The Machine Off
for 30 seconds. A buzzer will sound 5 times Compatibility between Options when the programme is cancelled. OPTIONS Delayed Half Tablet Start Load NOTE: When the door is opened after a programme is complete, the buzzer sound Delayed Start will stop and ‘0’ will show on the display (3). Switching the Machine Off Half Load A buzzer will sound 5 times when a... -
Page 22: Cleaning And Maintenance
8. CLEANING AND the filters. Replace the filter insert, and MAINTENANCE rotate it clockwise (4). • Never use your Dishwasher without a Cleaning your Dishwasher is important filter. to maintain the machine’s service life. • Incorrect fitting of the filter will reduce Oil and limescale may build up in your the washing effectiveness. -
Page 23: Troubleshooting
9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start. - Page 24 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
-
Page 25: Practical Information
AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of the Insufficient water hose. - Page 26 Office: 2. What is not Covered by the Warranty. 48-50 Moore Street, Leichhardt N.S.W 2040 The Warranty does not apply if an artusi product Post: is defective by a factor other than a defect arising Locked Bag 3000, Annandale, N.S.W 2038...
- Page 27 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 694 583) 01032014...
- Page 29 Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.
Need help?
Do you have a question about the ADWFI602 and is the answer not in the manual?
Questions and answers

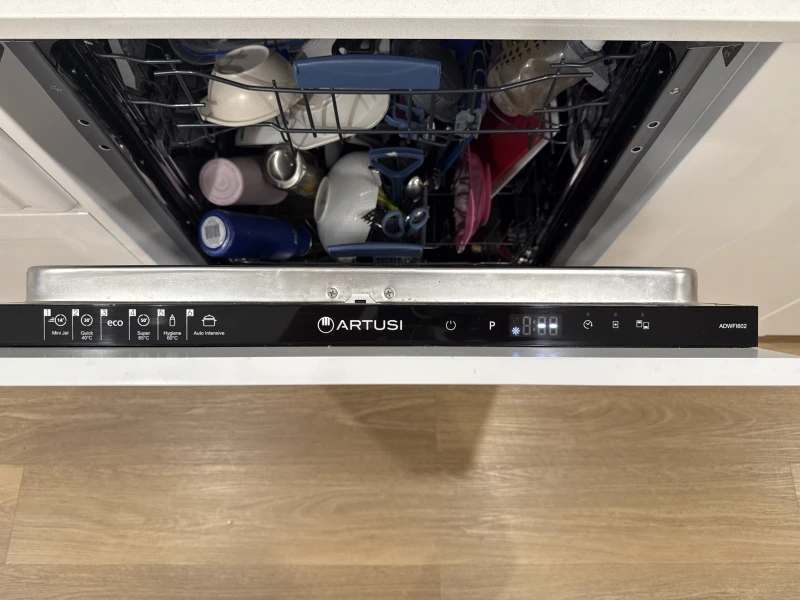

Control panel not working. The light is on, however when the buttons a pressed there is no response. I’ve turned dishwasher off at the power socket and still the same
