Summary of Contents for Artusi ADWFI458

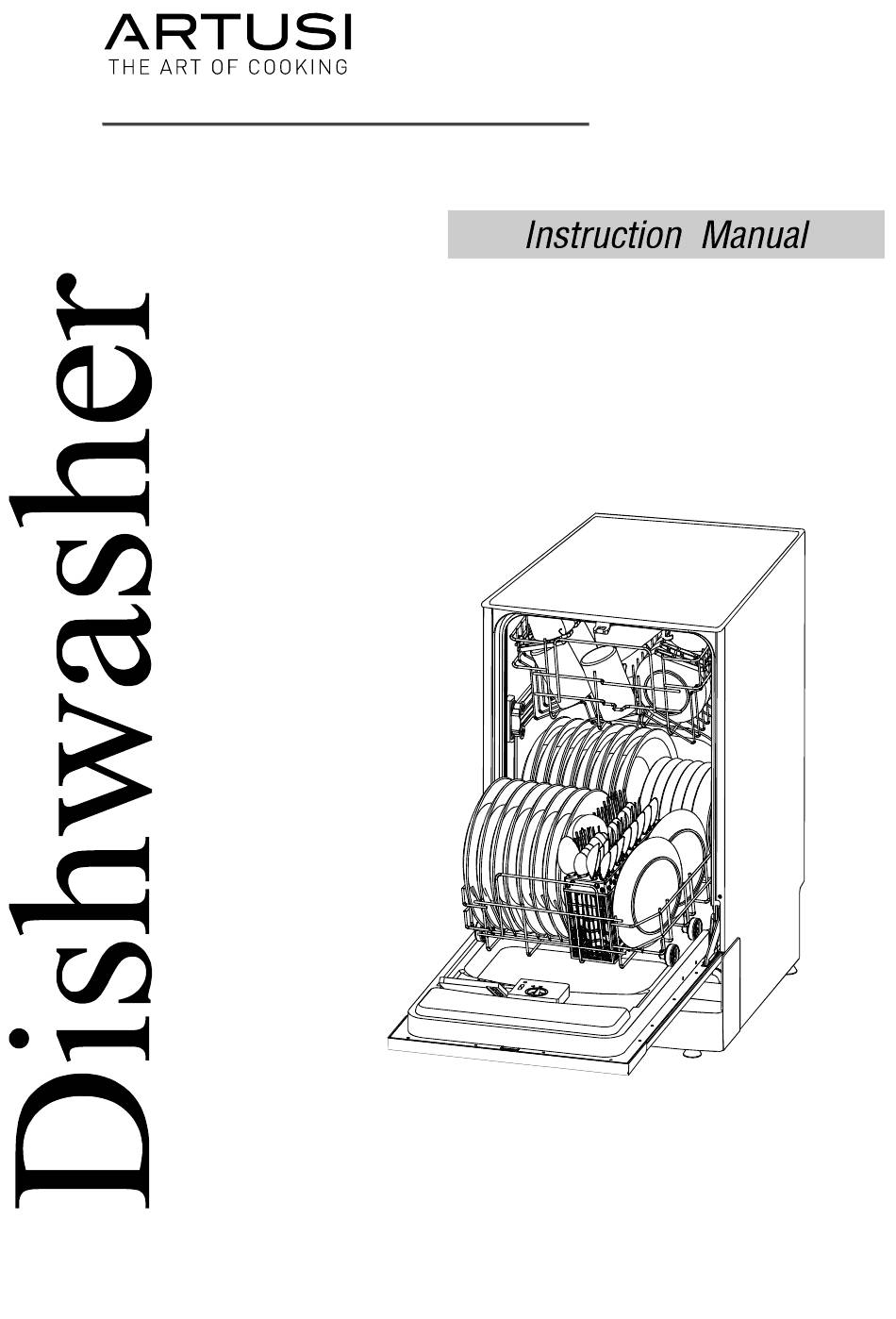

  • Page 1 ADWFI458...

  • Page 2: Table Of Contents

    Dear Customer, Please carefully read this manual before using the Control Panel...........2 dishwasher, it will help you to use and maintain the Dishwasher Features........2 dishwasher properly. Keep it to refer to it at a later date. Pass it on to any subsequent owner of the appliance. A.
  • Page 3 WARNING! When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of anelectric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
  • Page 4 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Inten. Normal Rapid 3in1 On/Off Power button : To turn on/off the power supply . Power indicator light. Rinse Aid indicator light: comes on when it needs to be filled.

  • Page 5: Rinse Aid Dispenser

    Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

  • Page 6: Rinse Aid Dispenser

    RINSE AID DISPENSER To open the dispenser, turn the cap to the "open" (left) arrow and lift it out. Pour the rinse aid into the dispenser, being careful not to overfill. Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow. Be careful not to overfill the dispenser, because this could cause over sudsing.
  • Page 7 Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. Concentrated Detergent Based on their chemical composition, detergents can be split in two basic types: conventional, alkaline detergents with caustic components low alkaline concentrated detergents with natural enzymes The use of“normal”...

  • Page 8: Detergent

    Fill in detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: The place of main wash cycle detergent placed , “MIN”means approximately 20g of detergent. The place of pre-wash cycle detergent placed , approximately 5g of detergent Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging.
  • Page 9 The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not be moved by the spray of water. 1 Cups Glasses Saucers...

  • Page 10: Cutlery Basket

    Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
  • Page 11 Are not suitable Are of limited suitability Some types of glasses can become Cutlery with wooden, horn china or dull after a large number of washes mother-of-pearl handles Plastic items that are not heat resistant Silver and aluminum parts have a Older cutlery with glued parts that are not tendency to discolour during washing Temperature resistant...
  • Page 12 shes and items of cutlery must not lie inside one another, or cover each other avoid damage to glasses, they must not touch Load large items which are most difficult to clean into the lower rack he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Attention! Long bladed knives stored in an upright position are a potential hazard!

  • Page 13: Wash Cycle Table

    Pre-wash（50℃） Pre-wash For heaviest soiled crockery, Wash（65℃） and commonly soiled pots, 5/20g Rinse pans, dishes etc with dried Rinse on soiling; Rinse（55℃） Drying Pre-wash Standard daily cycle for Wash（55℃） normally soiled loads, such Normal 5/20 g. 0.78 Rinse（65℃） as pots, plates, glasses. (AS/NZS 2007.
  • Page 14 Switch Off the Dishwasher In the digital display appears 0 (remaining programme time), only in this case the programme has ended. 1.Switch off the dishwasher by pressing the ON/OFF button. 2.Turn off the water tap! Open the door carefully. Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

  • Page 15: Caring For The Dishwasher

    Filter assembly For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.
  • Page 16 To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components. Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

  • Page 17: Aesthetic Panel's Dimensions And Installation

    【Figure1】 90 ° 90 ° Cabinet dimensions Less than 5mm between the top 820mm of dishwasher and 580mm Electrical, drain and cabinet and the water supply line entrances outer door aligned to cabinet. Space between cabinet bottom and floor 450 mm 【Figure2】...
  • Page 18 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) . Hop hook 【Figure4a】...

  • Page 19: Tension Adjustment Of The Door Spring

    Tension adjustment of the door spring ● The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5).

  • Page 20: Dishwasher Installation Steps

    Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs.
  • Page 21 Dishwasher must be level for proper dish rack operation and wash performance. Place level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the four leveling legs individually. When level the dishwasher, pl s pay attention not to let the dishwasher tip over.
  • Page 22 In order to avoid that there is more water staying in the inlet hose, please close the hydrant after using.(For the models: no safety inlet hose.) Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

  • Page 23: Error Codes

    Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker triggered appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
  • Page 24 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 25 Height : 820mm(adjustable+60mm) Width : 445mm Depth : 540mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 8 Place settings...
  • Page 26 Office: 2. What is not Covered by the Warranty. 48-50 Moore Street, Leichhardt N.S.W 2040 The Warranty does not apply if an artusi product Post: is defective by a factor other than a defect arising in the manufacture of the artusi product, including Locked Bag 3000, Annandale, N.S.W 2038...
  • Page 27 Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 856 411) 01052015 Artusi Warranty May 2015.indd 2 29/04/2015 10:29 am...
